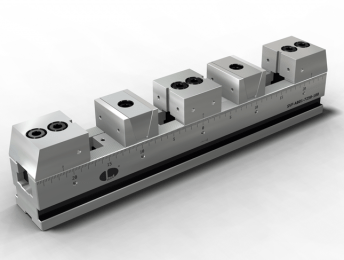

The SVF-B range of flexible vices from Leave are an effortless way of clamping multiple workpieces in your milling machine. Simply position the moving and fixed jaws to suit the size of the workpieces and clamp as many parts in your workspace as you can fit. The SVF-B range of vices use bi-directional clamping wedges so one clamping screw will secure two workpieces. This makes for shorter loading times in vertical machines but for horizontal machines please see the SVF-A range. The SVF series of vices are all manufactured from tool steel treated to HRC 55 and fully ground. A range of jaws, parallels, workstops and other accessories is available to maximise the flexibility of this system and allow for regular and irregular shaped workpieces. All SVF-B vices come equipped to clamp 3 or 4 parts but additional jaws can be purchased to clamp additional workpieces.
