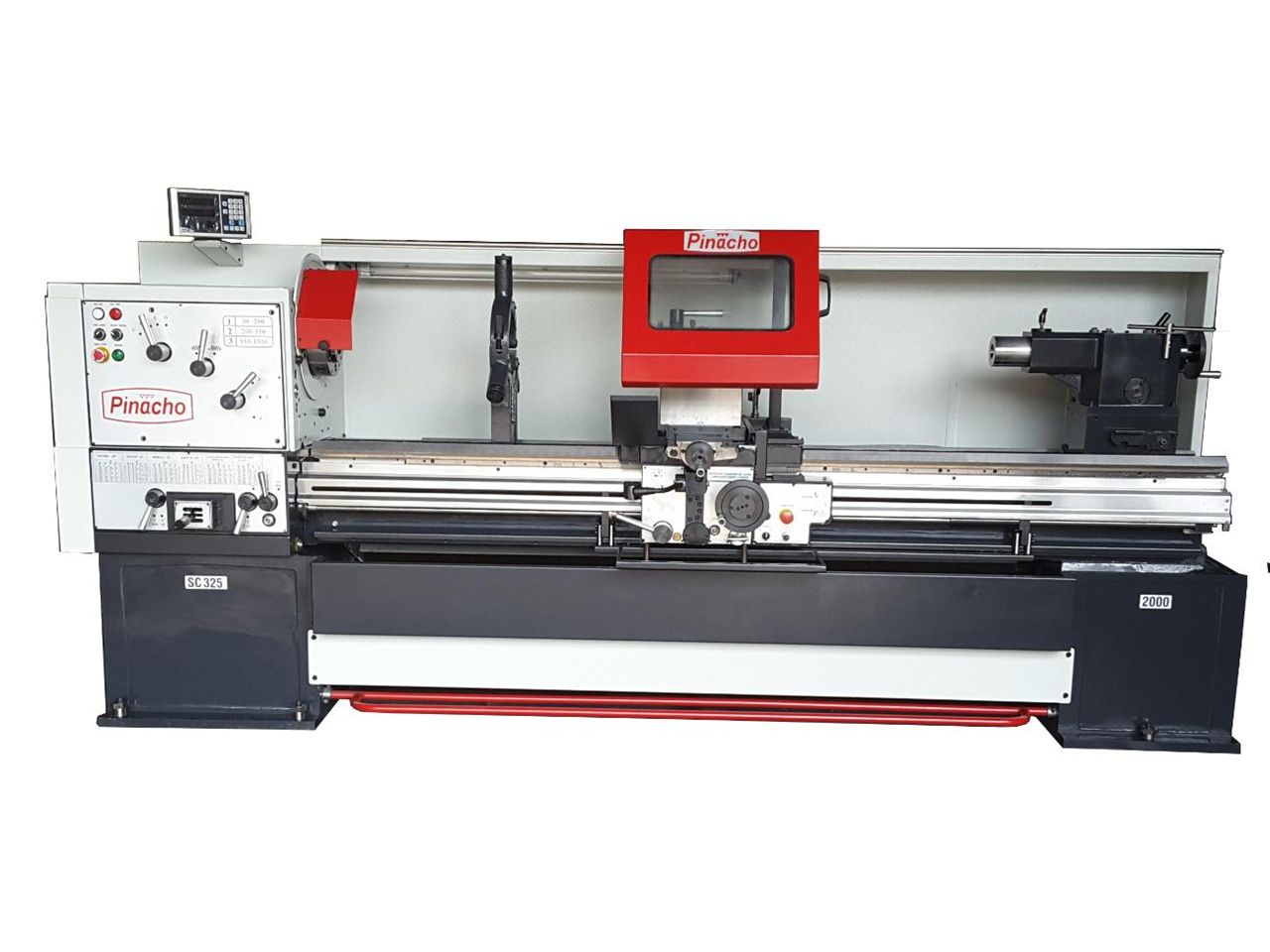

Swing over bed 495mm. Swing over cross slide 267mm. Swing in gap 737mm Width of gap in front of spindle nose 286mm. Width across bed shears 445mm. Distance between centres 1016mm. Spindle nose D1-8”. Spindle speeds 8-1120 rpm. Spindle bore 81mm. Sp...
Lubrication system main spindle Automatic lubrication system Coolant equipment Rear guard over the entire length of the machine Square tool post Fixed centre and reduction sleeve Leveling feeds Protection of the shaft Protection of the chuck with mic...
