Home > Lathes (CNC and Manual) > Lathes General Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • LATHE CELTIC
  • Model:

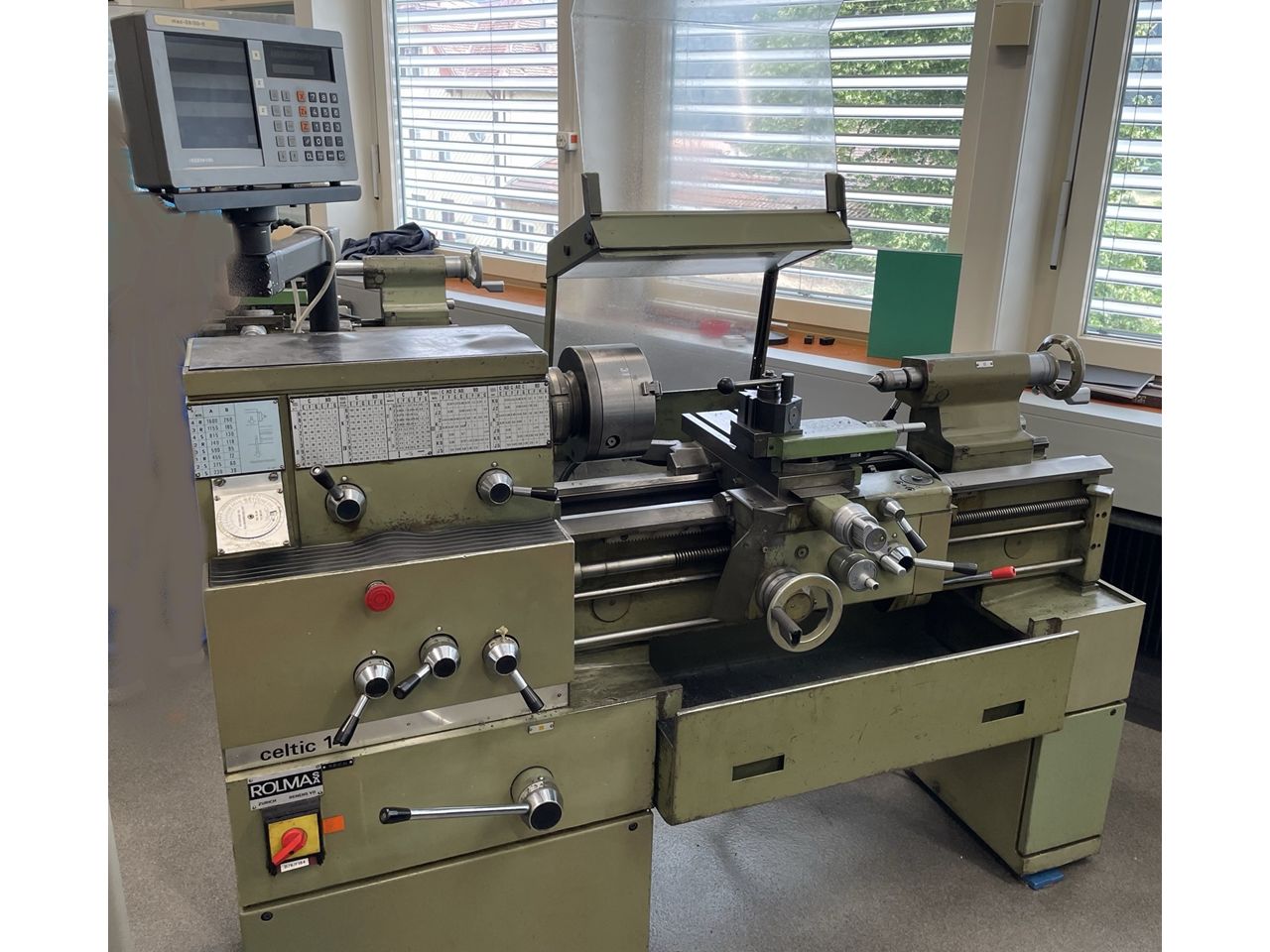

  • LEAD SCREW LATHE CELTIC TYPE 14
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Centres height: 155 mm
Between centres : 800 mm
Length of bench : 1505 mm
Length of lathe : 1650 mm
Width of bench : 210 mm
Gap (special execution)
Length : 192 mm
Usable length before plate : 140 mm
16 spindle speeds : from 45 to 2000 rpm
: or 35 to 1500 rpm
Power of 2-speeds motor : 3-2 or 2-1,6 HP

.
