MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Harrison
  • Model:
  • Harrison M390
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • United Kingdom United Kingdom

DESCRIPTION

Harrison M390

Name of Machine: Harrison M390
YOM:
Stock Number: TBA

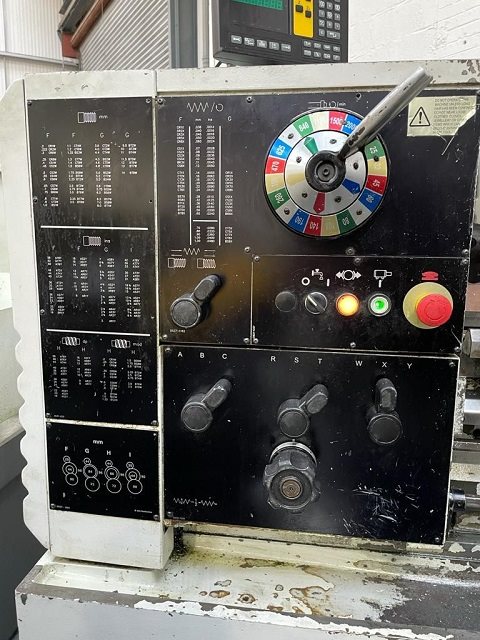

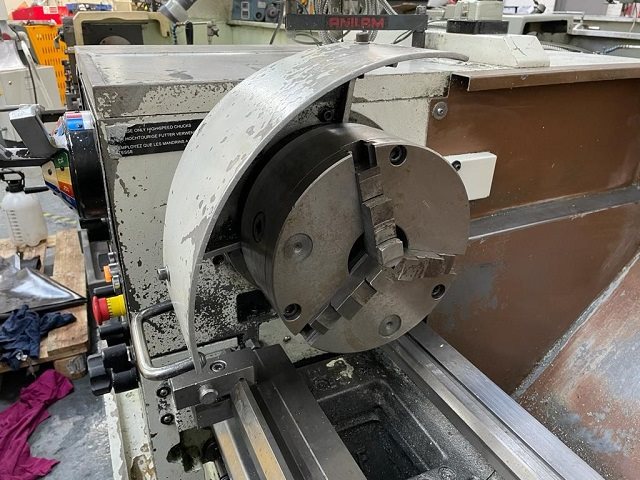

Geared head centre lathe. Distance between centres 1250mm. Spindle nose D1-6 Camlock. Motor power 5.5kW. Constructed on a cast iron base with removable chip tray. The rigid triangular webbed bed, designed for optimum swarf clearance, is of high grade cast iron, induction hardened and form ground. The Headstock is mounted directly on the bed to ensure correct alignment. The spindle drive gears are solid steel, hardened and ground, lubricated by recirculating oil pumped universal gearbox gives a wide range of Metric & Imperial feeds and threads.

Specification:

Height of centres 195mm
Distance between centres 1250mm
Swing over bed 400mm
Swing in gap 585mm
Gap width from faceplate 165mm
Swing over cross slide 246mm
Spindle bored to pass 54mm
Spindle nose Camlock D1-6
Taper in nose bush No. 4 MT
Spindle speeds 16
Speed range 25 to 2000rpm
Main motor 5.5kW
Leadscrew diameter 32mm
Leadscrew pitch metric 6mm
Leadscrew pitch imperial 4TPI
Width over bedways 318mm
Width over cross slide 180mm
Cross slide travel 250mm
Width of topslide 100mm
Topslide travel 130mm
Tailstock quill diameter 73mm
Tailstock quill travel 140mm
Tailstock quill taper No. 5 MT
Standard electrics 415V 3 phase 50Hz
Condition: Used
Location Fishponds, Bristol
Price: POA
Shipping Details: A VAT invoice will be supplied within 48 hours of the sale end date. Delivery off loading and siting are all available with this machine at extra cost.
