MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GILDEMEISTER
  • Model:

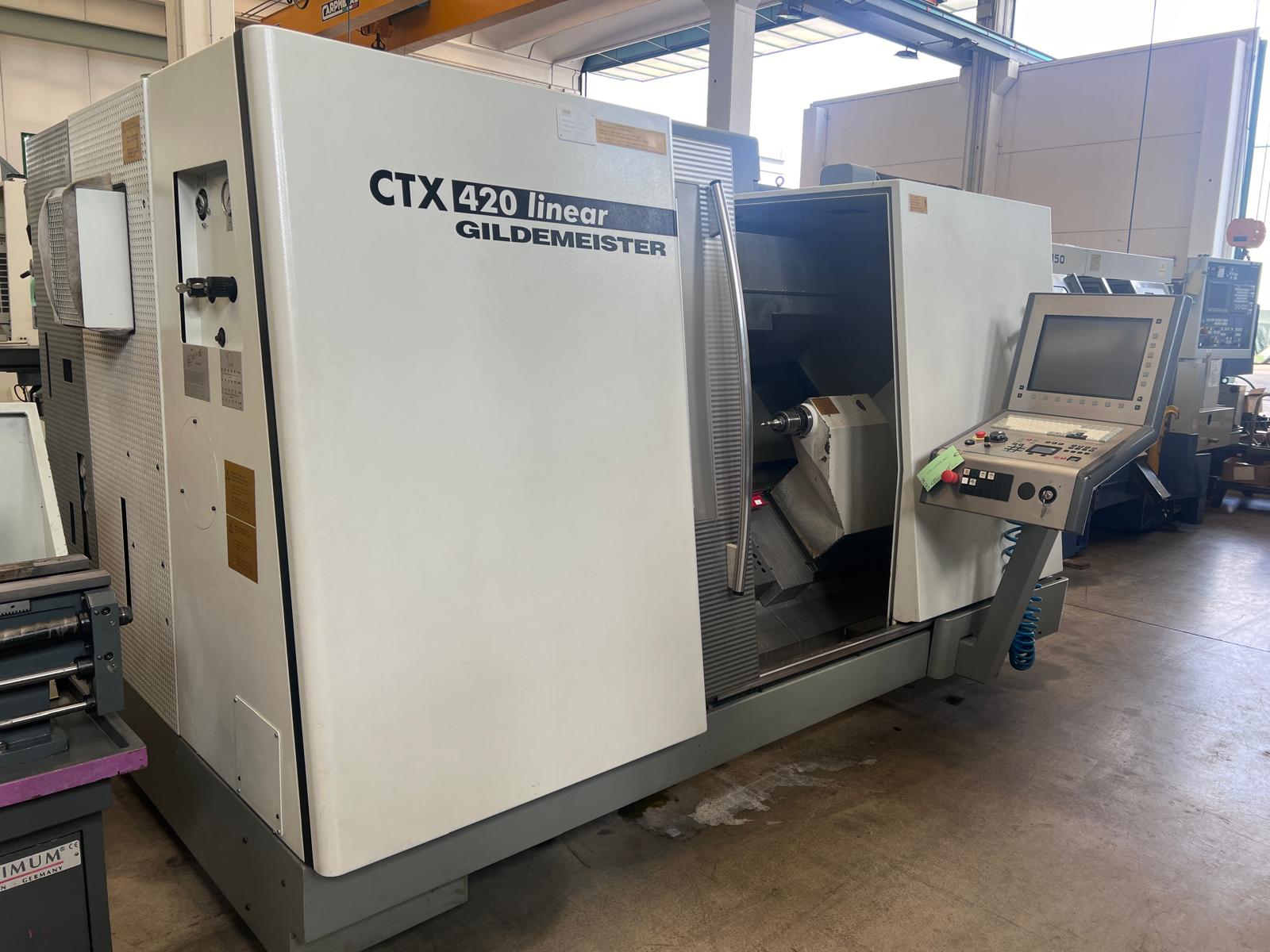

  • LATHE GILDEMEISTER CTX 420
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

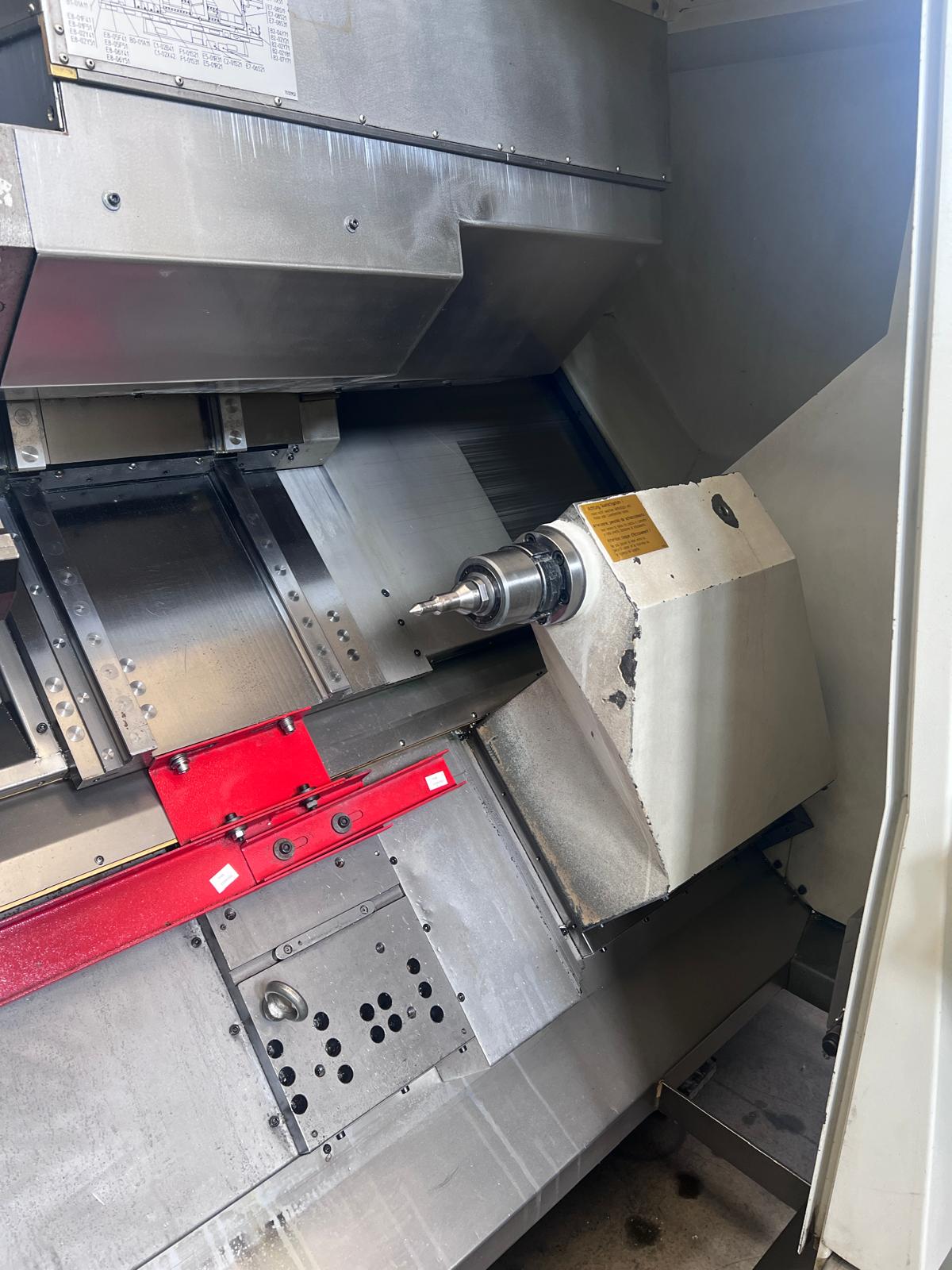

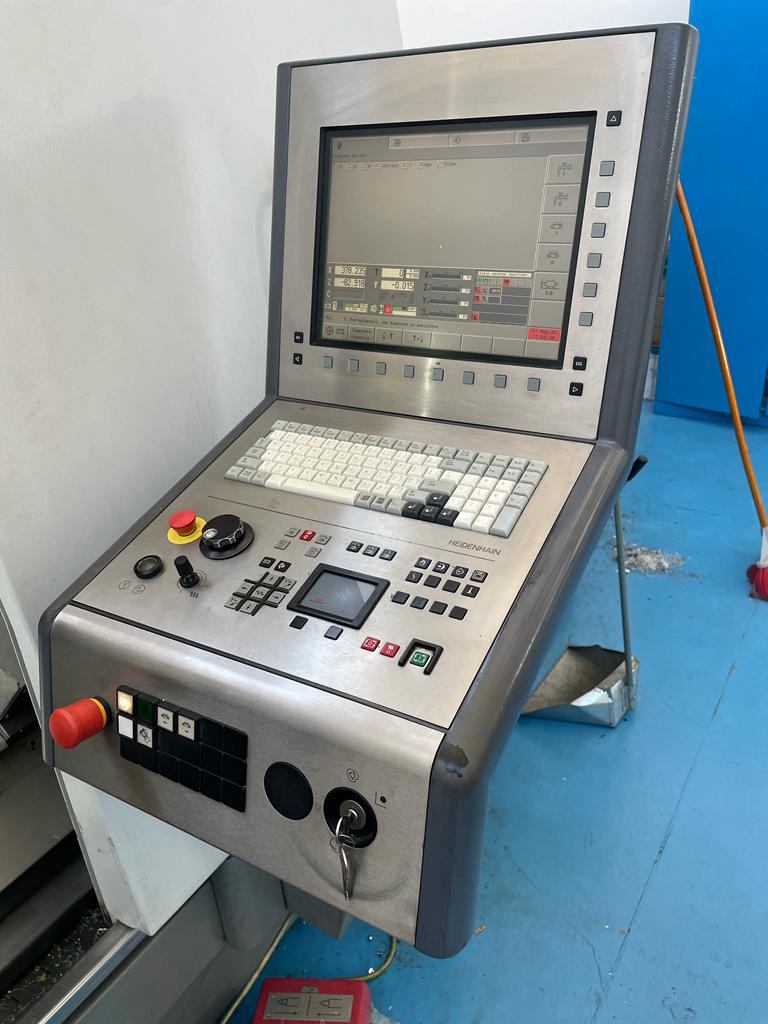

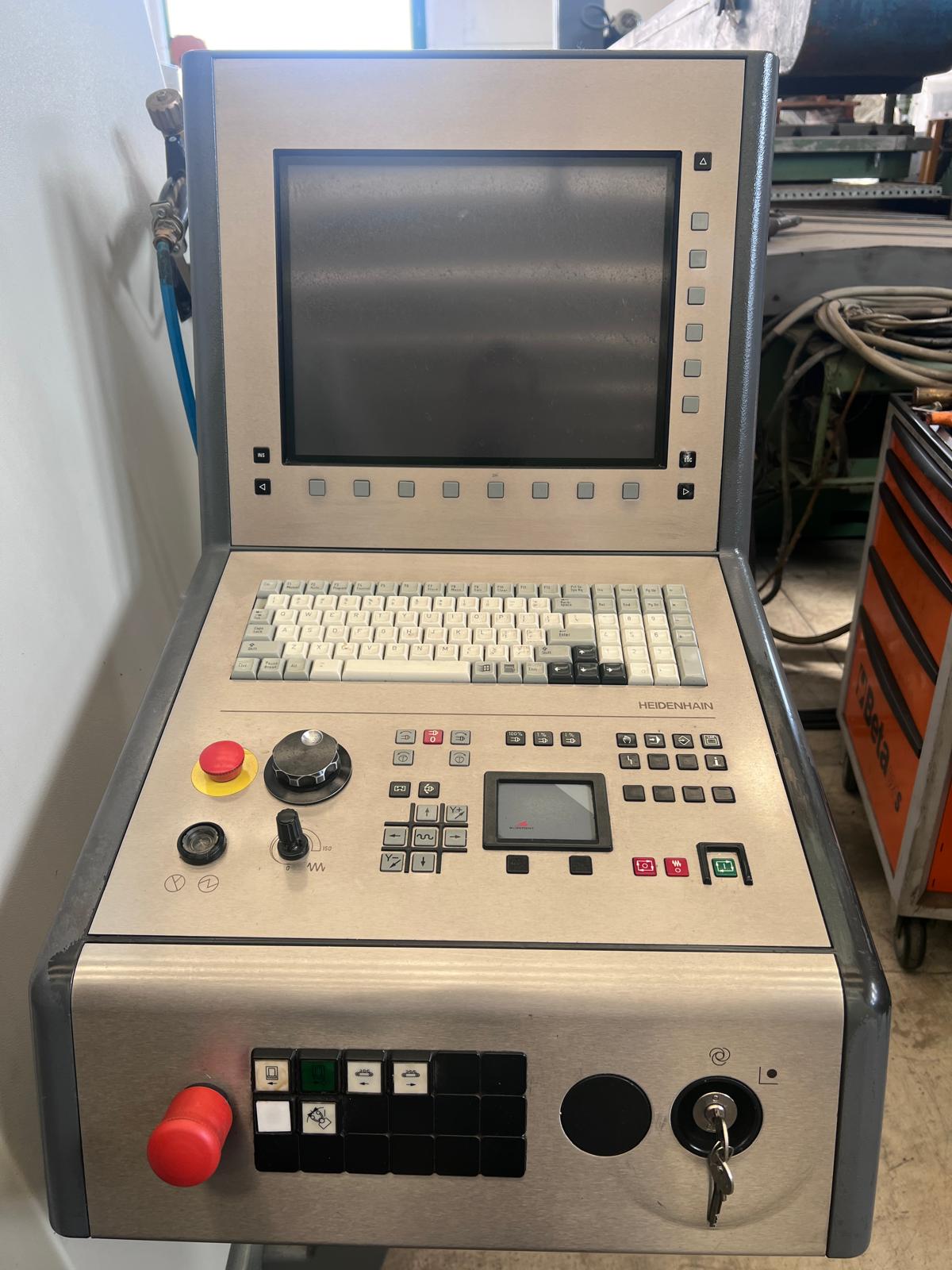

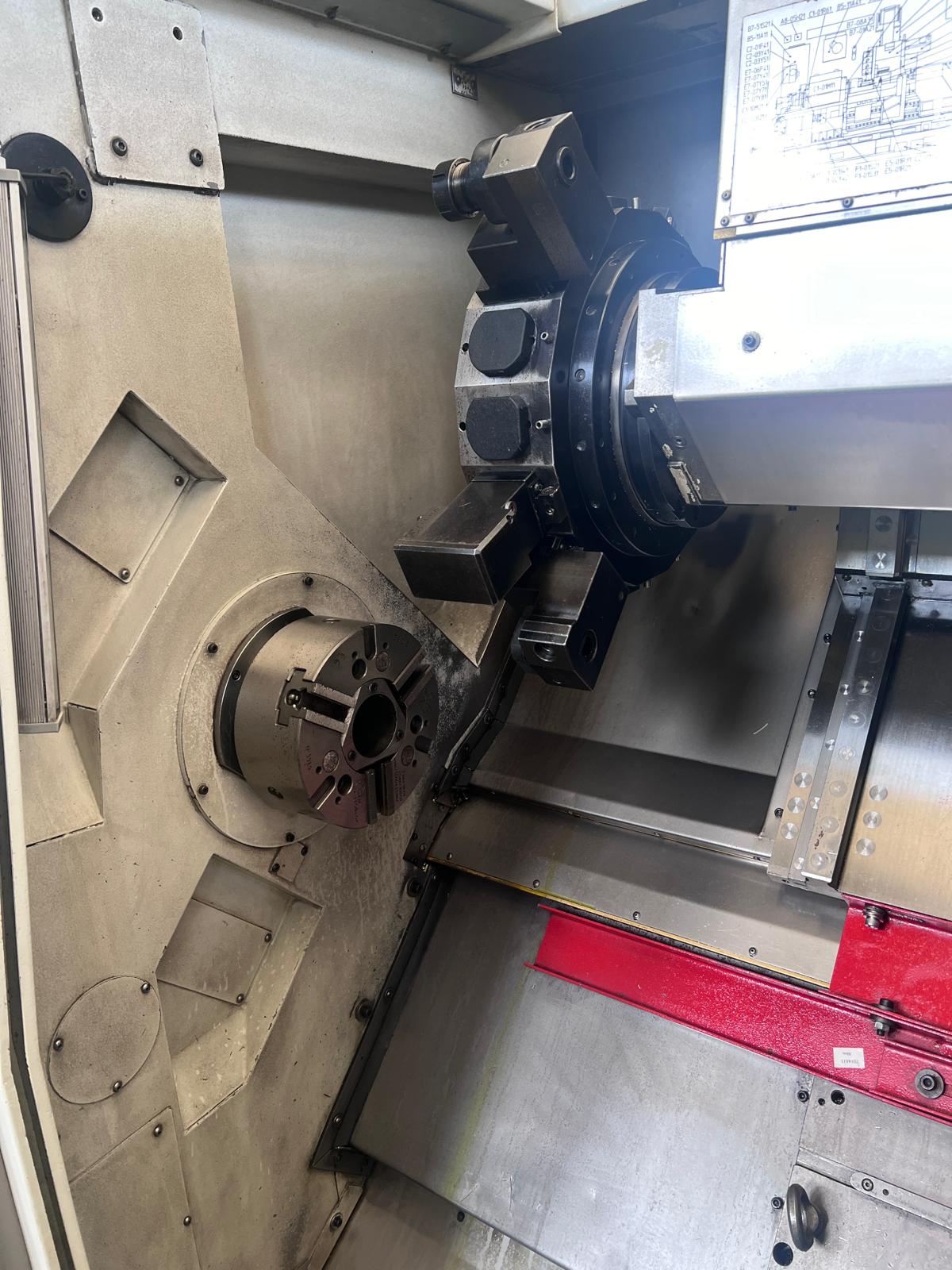

GILDEMEISTER 09236 Y-AXIS + C-AXIS LIVE TOOLS TAILSTOCK CNC HEIDENHAIN WORKING AREA: Max swing diameter over the bed mm 680 Max swing diameter on the carriage mm 565 Max turning diameter mm 324 Max turning length mm 600 SPINDLE: Bar passaging mm 65 Spindle bore mm 79 Spindle motor power S1 100% kW 25 Spindle speed 25-5000 rpm Max spindle torque S1 100% Nm 270 STROKES: X stroke mm 260 Z stroke mm 635 Y stroke mm +/- 40 Rapid feed X/Z m/min 60/45 TURRET: Number of live tools 16 positions Tool mounting cylinder shaft (DIN 69880) VDI 30 Max speed of live tools 4500 rpm TAILSTOCK: Tailstock stroke mm 580 Tailstock mounting MT5 MACHINE WEIGHT AND OVERALL DIMENSIONS: Dimensions (LxWxH) without chip conveyor mm 4350x2440x2080 Weight without chip conveyor Kg 6000 EQUIPPED WITH: -Chip conveyor -Rest USED MACHINE
