MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Takisawa
  • Model:
  • LATHE TAKISAWA MOD. TA25 C/BT
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

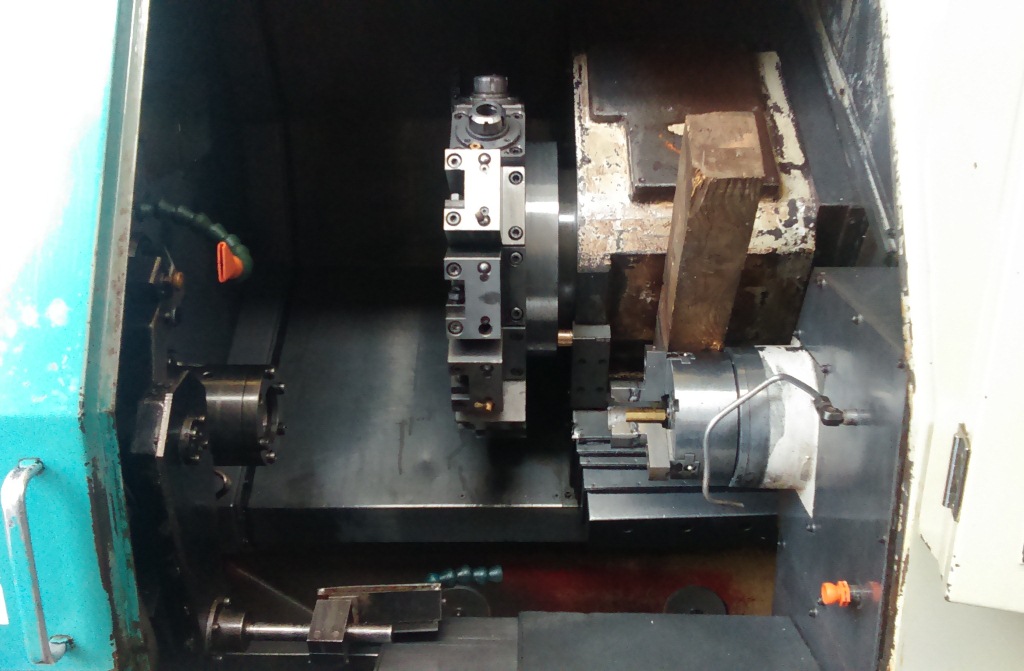

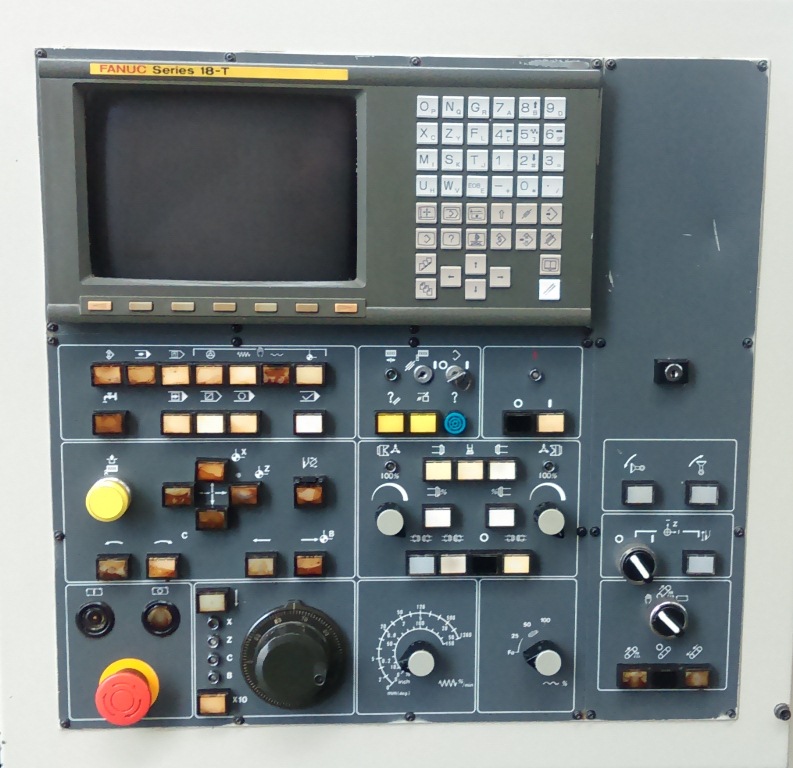

TAKISAWA 06974 AXIS C, COUNTER-SPINDLE LIVE TOOLS CNC FANUC 18-T CAPACITY: -Max turning diameter mm 230 -Max turning lenght mm 610 -Bar passaging diam. mm 52 STROKES: -Axis X mm 185 -Axis Z mm 660 -Axis B mm 620 -Axis C 360 degrees SPINDLE: -Spindle speed rpm 40-4000 -Spindle taper JIS A2-6 -Spindle bore mm 65 COUNTER-SPINDLE: -Counter-spindle speed rpm 50-5000 -Spindle bore mm 53 TOOL MAGZINE: -Tool magazine 12 live positions AVANZAMENTI: -Rapid feed axis X mm/min 20000 -Rapid feed axis Z mm/min 24000 -Rapid feed axis B mm/min 24000 -Rapid feed axis C 25 min/-1 MOTOR: -Spindle motor power kW 11/15 (30 min/cont.) -Counter-spindle motor power kW 7,5/5,5 kW OVERALL DIMENIONS AND WEIGHT: -Machine lenght mm 1810 -Floor space mm 3070x2030 -Machine weight Kg 5700 USED MACHINE
