Description:
Or
Reference: 2419002

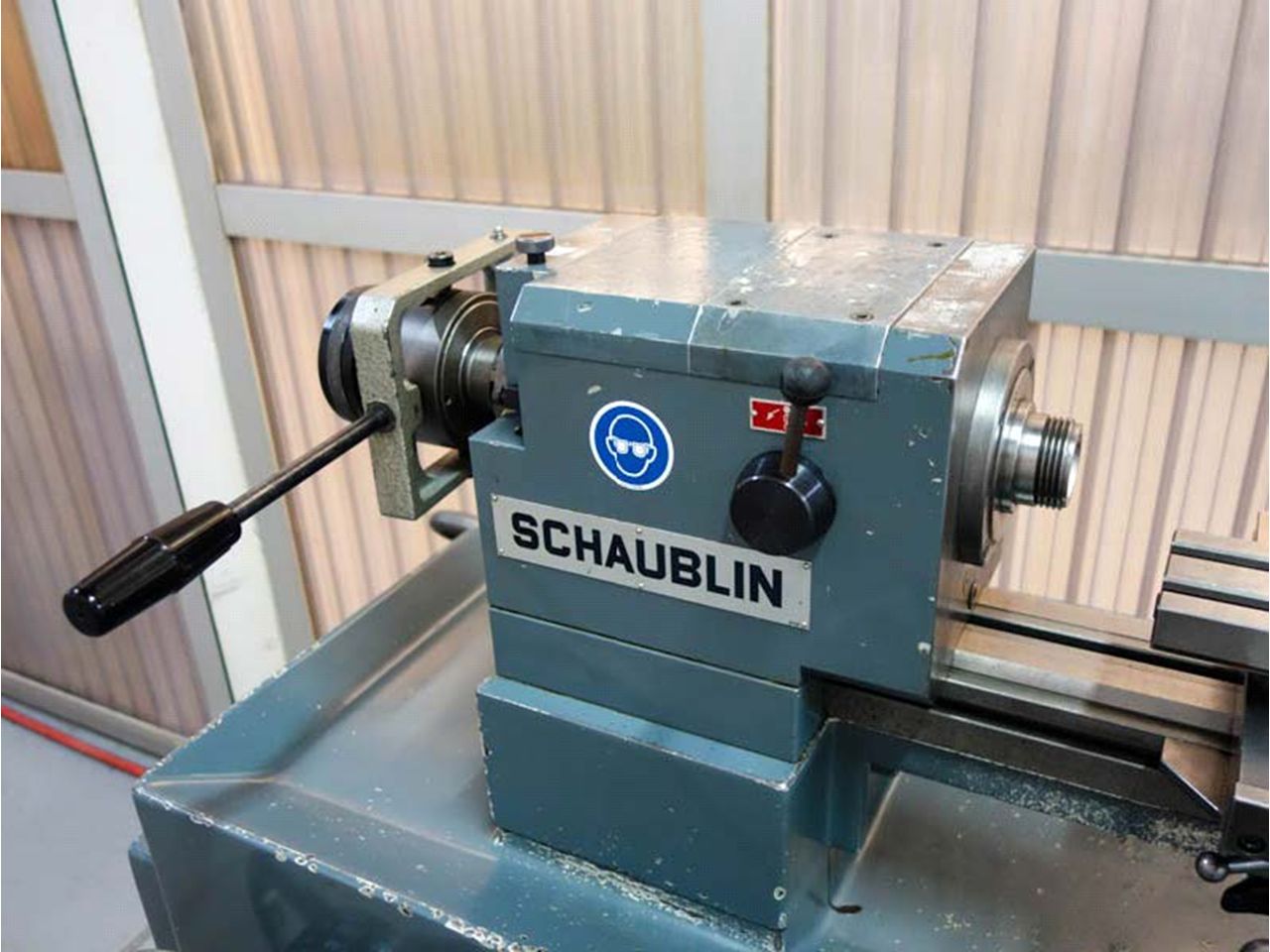

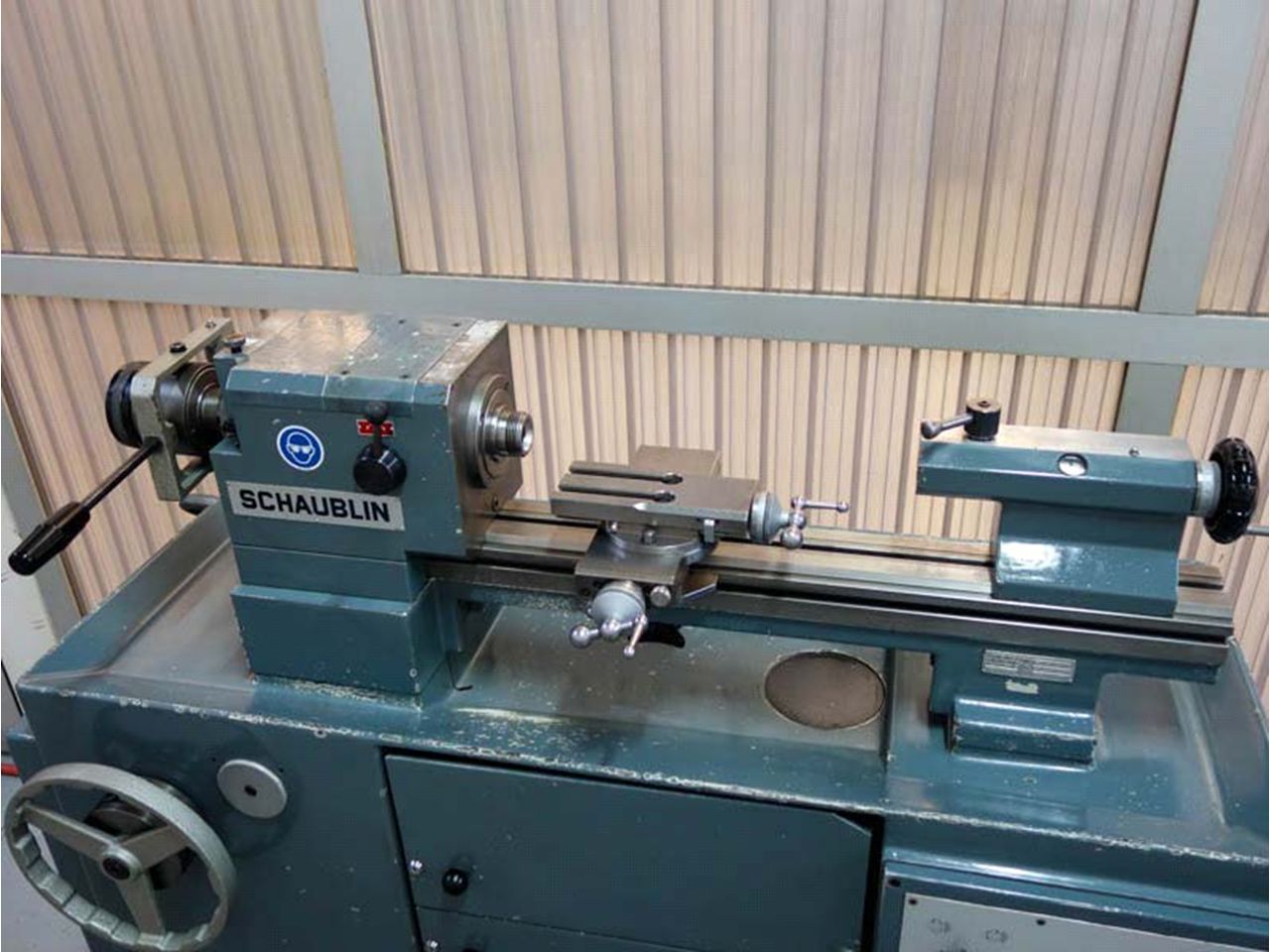

headstock with reduction for collet W25, with fast clamping device

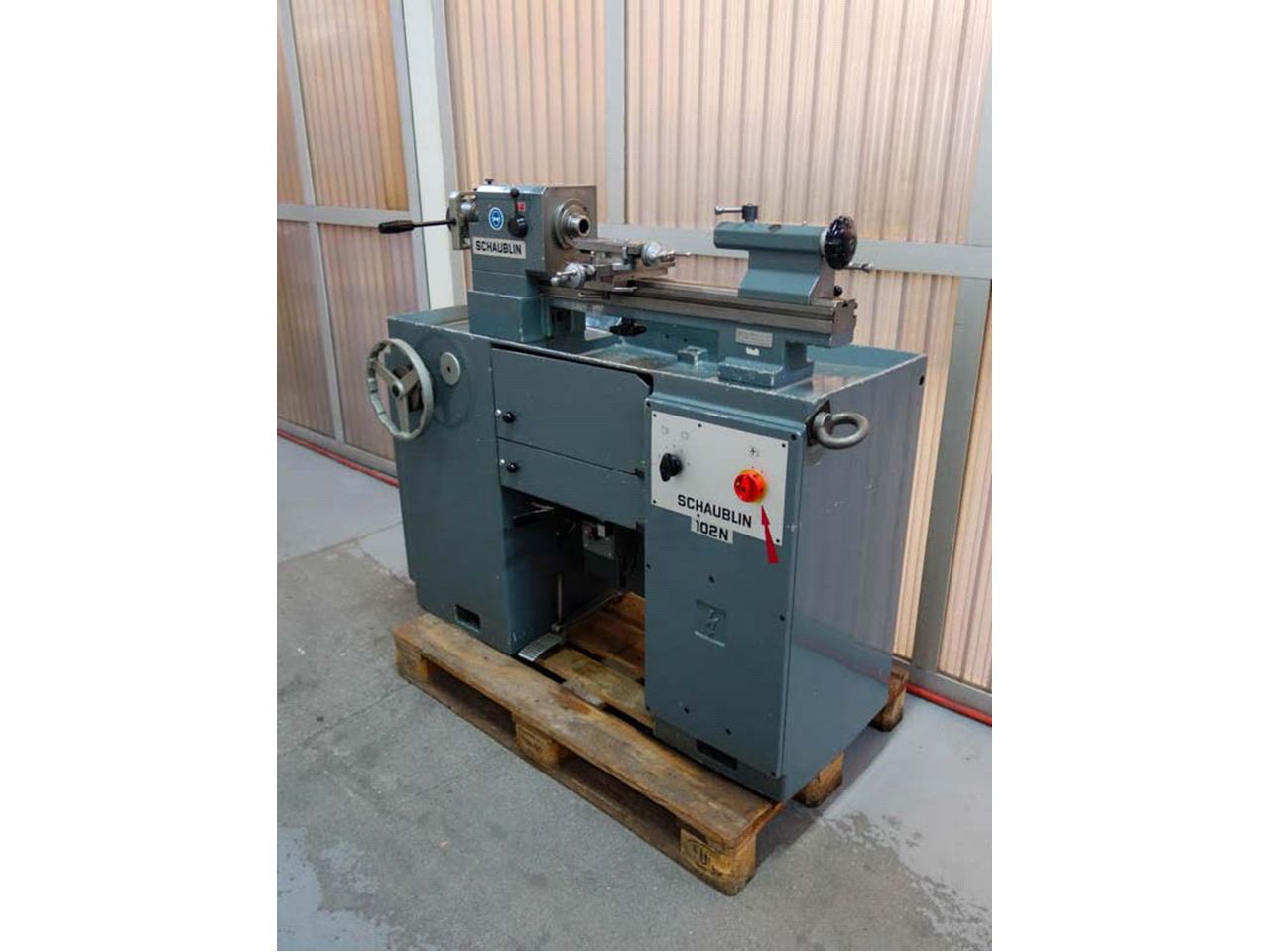

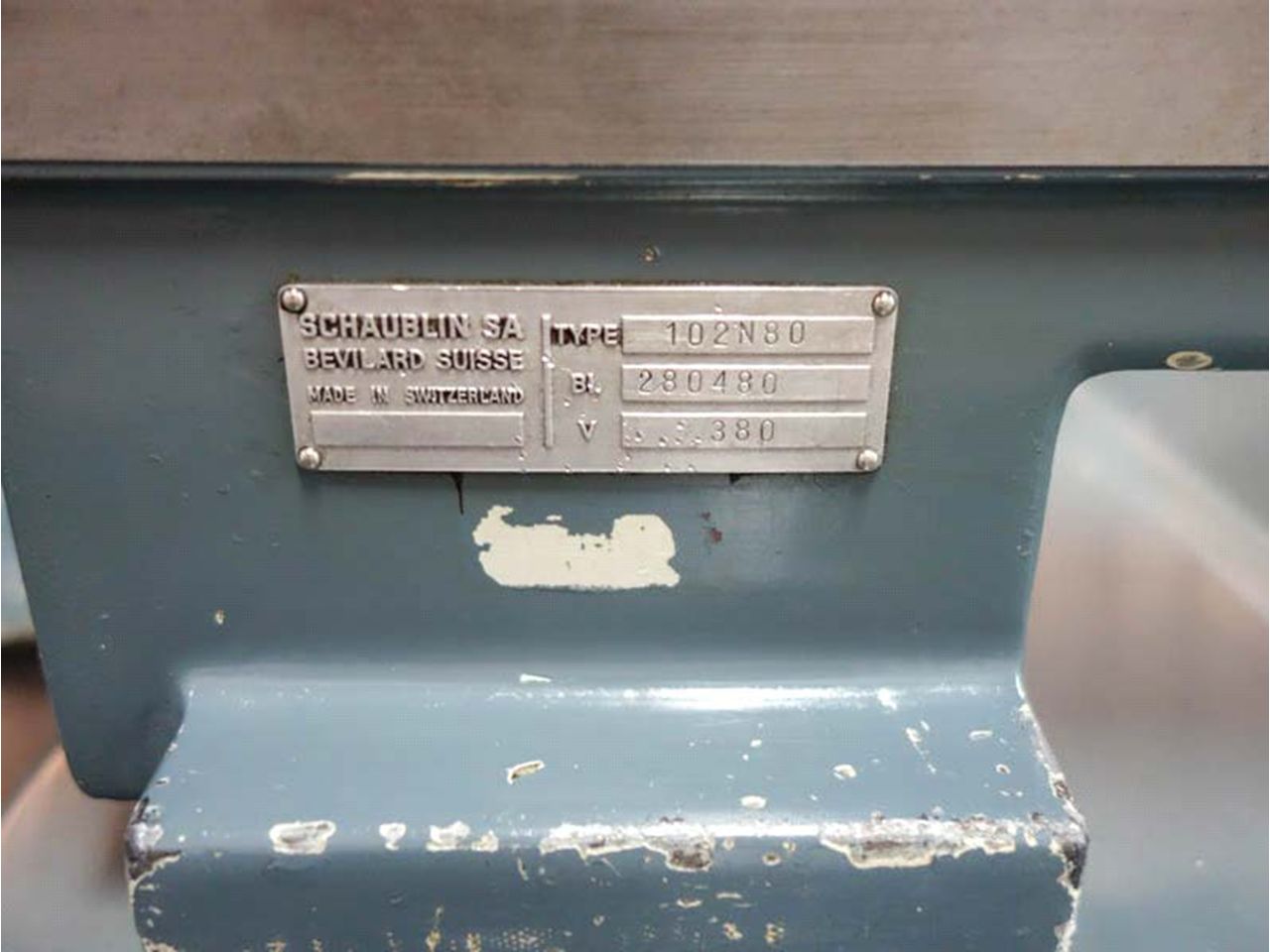

| Manufacturing number | |
| Manufacturing year | |
| Manufacturing origin | Swiss |
| Voltage | 380V 50Hz 3Ph. |
| Netweight | 550 kg |
| Dimensions | 200/80/140 cm |
| Total power | |
| Customs position | 8458.1930 |
| Colour |
| Capacities : | |
| - height of centres | 102 mm |
| - distance between centres, standard headstock W | 470 mm |
| - distance between centres, headstock type W with | |
| reduction unit | 375 mm |
| - Swing over bed | 200 mm |
| - Swing over carriage | 120 mm |
| Bed : | |
| - Height - width - lenght | 168-100-1000 mm |
| cast-iron bed with ground inverted-V profile | |
| Headstocks : | |
| - spindle nose for collets | W-25 |
| - maximum bore through collet (bar capacity) | 19.0 mm |
| - headstocks with reduction unit, ratio | 1:5 |

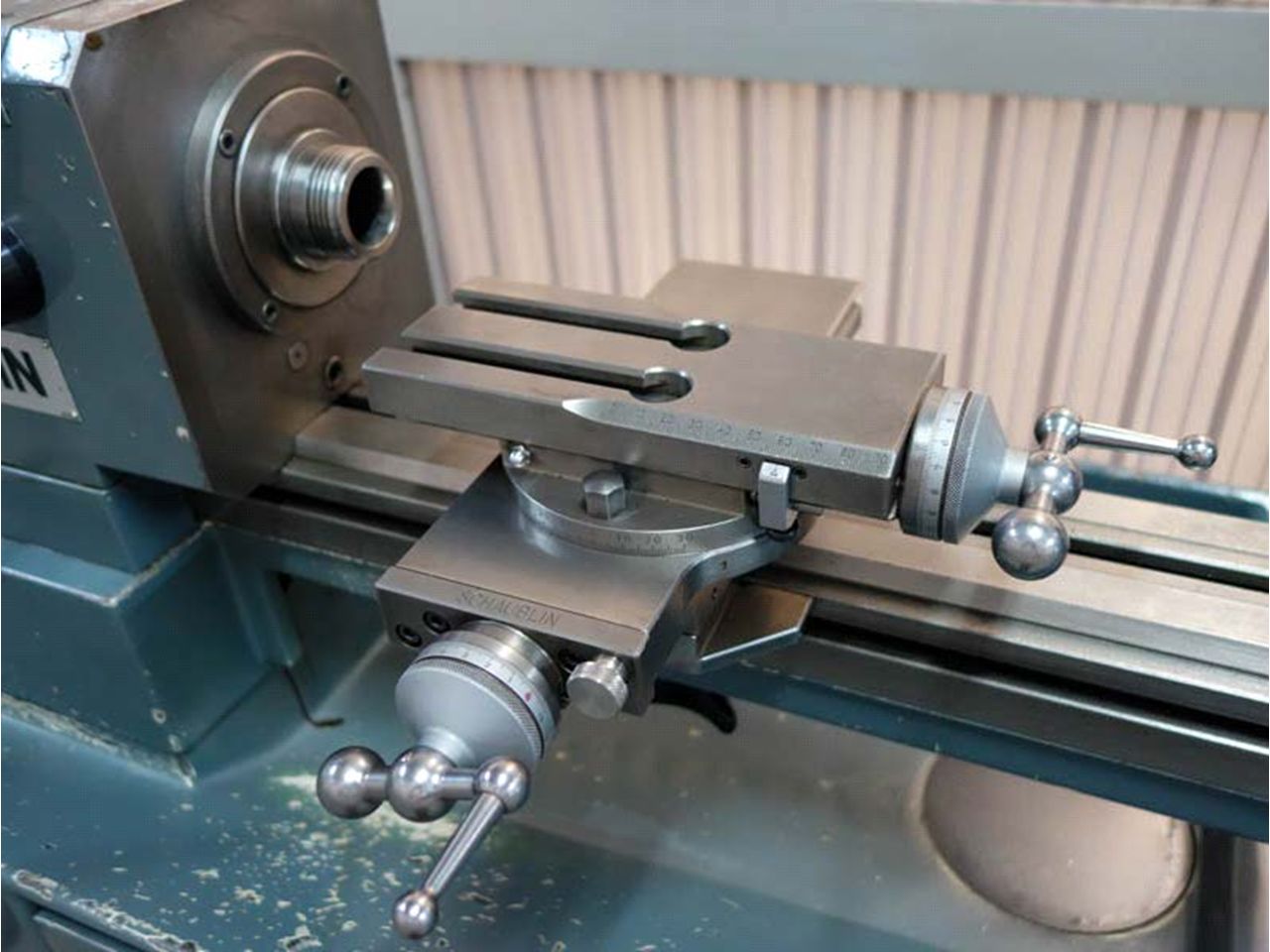

| Carriages : | |
| - stroke of longitudinal tool slide | 90 mm |
| - stroke of transverse tool slide | 100 mm |
| - size of tools | 12x12 mm |

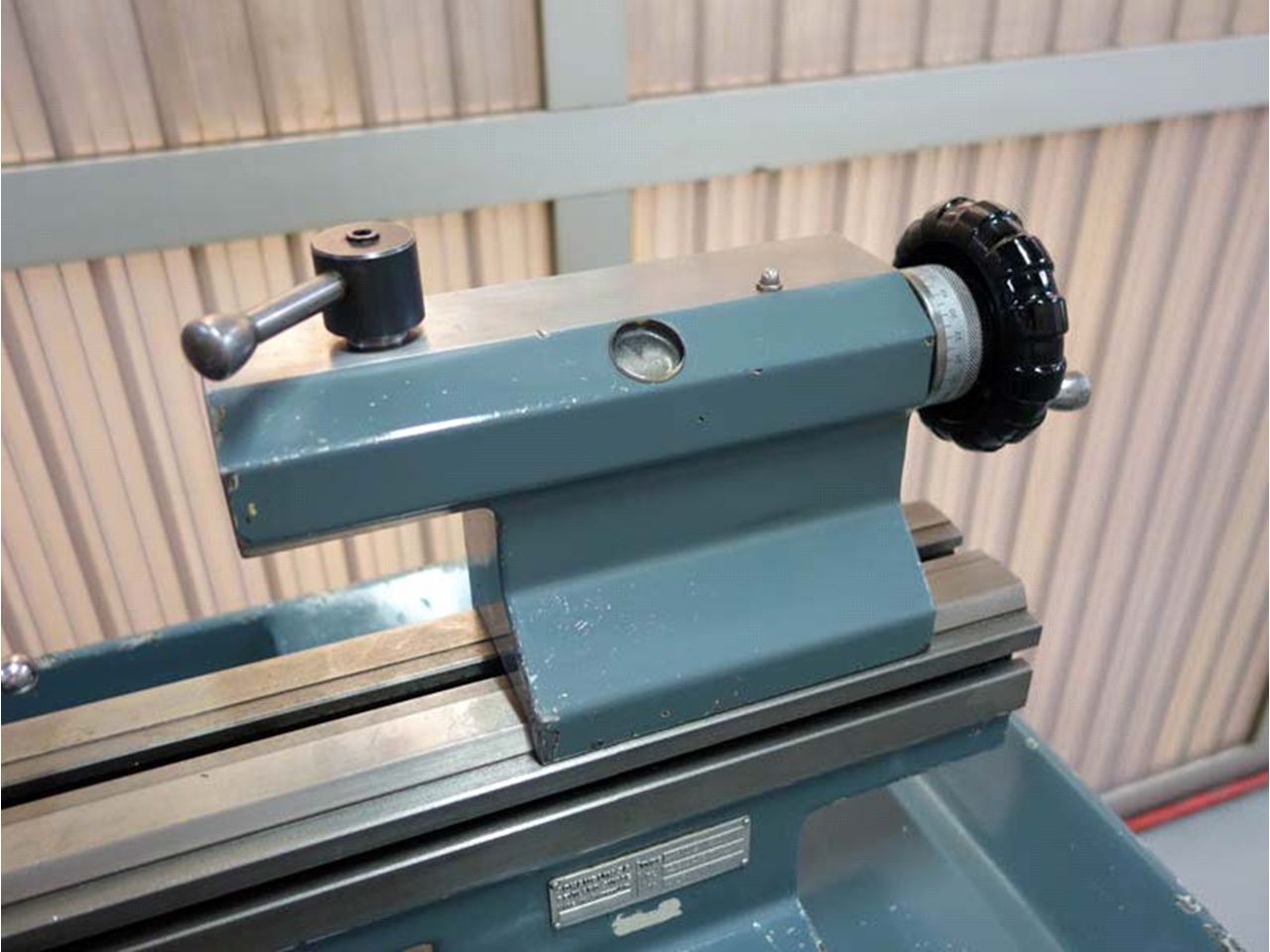

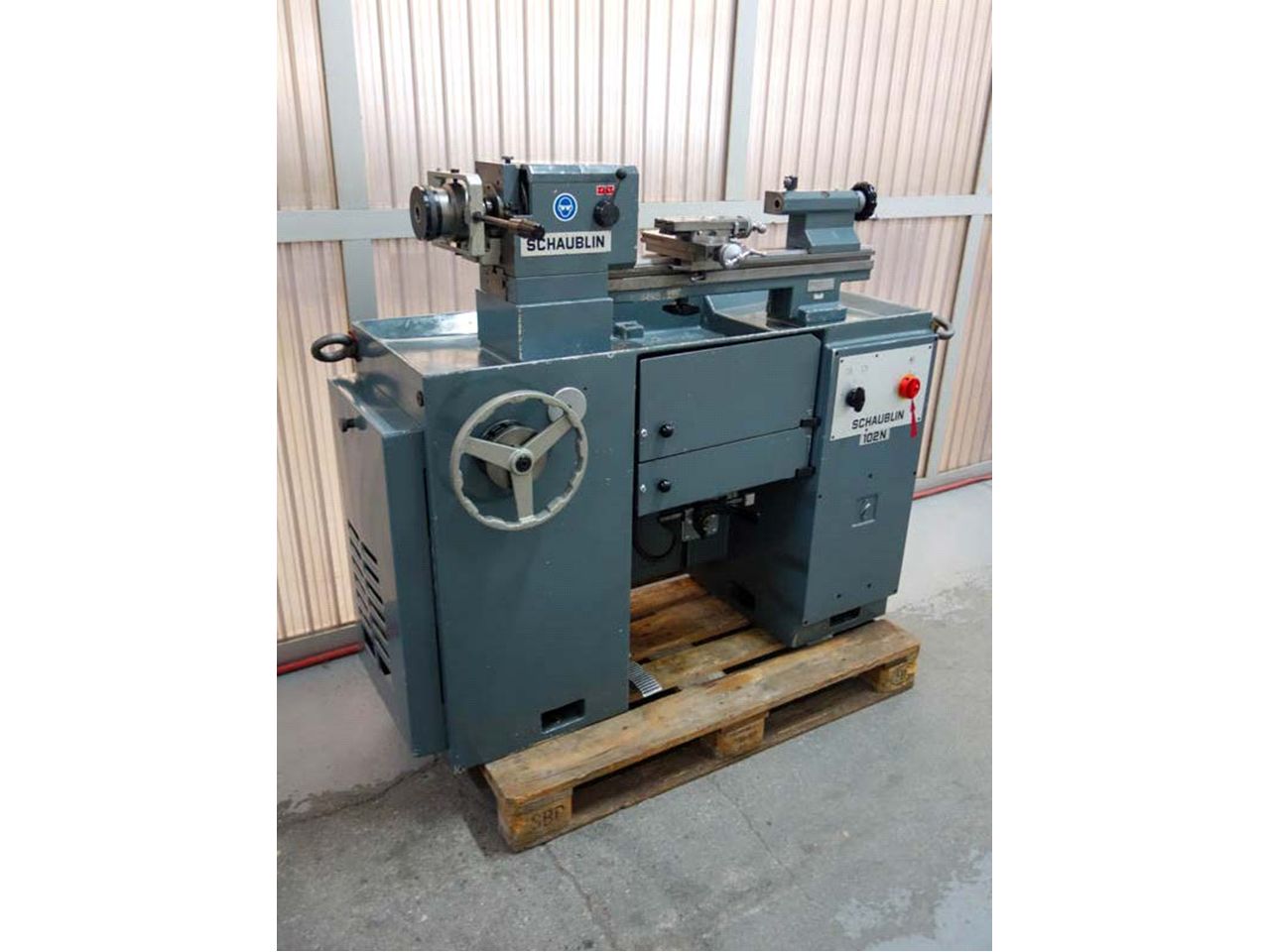

| Tailstocks : | |
| - internal taper of tailstock spindle | Morse 2 |
| - spindle stroke, screw- and handwheel-operated | 80 mm |
| Cast iron base | |
| errors and omissions excepted-data gived without obligation | |
