MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:

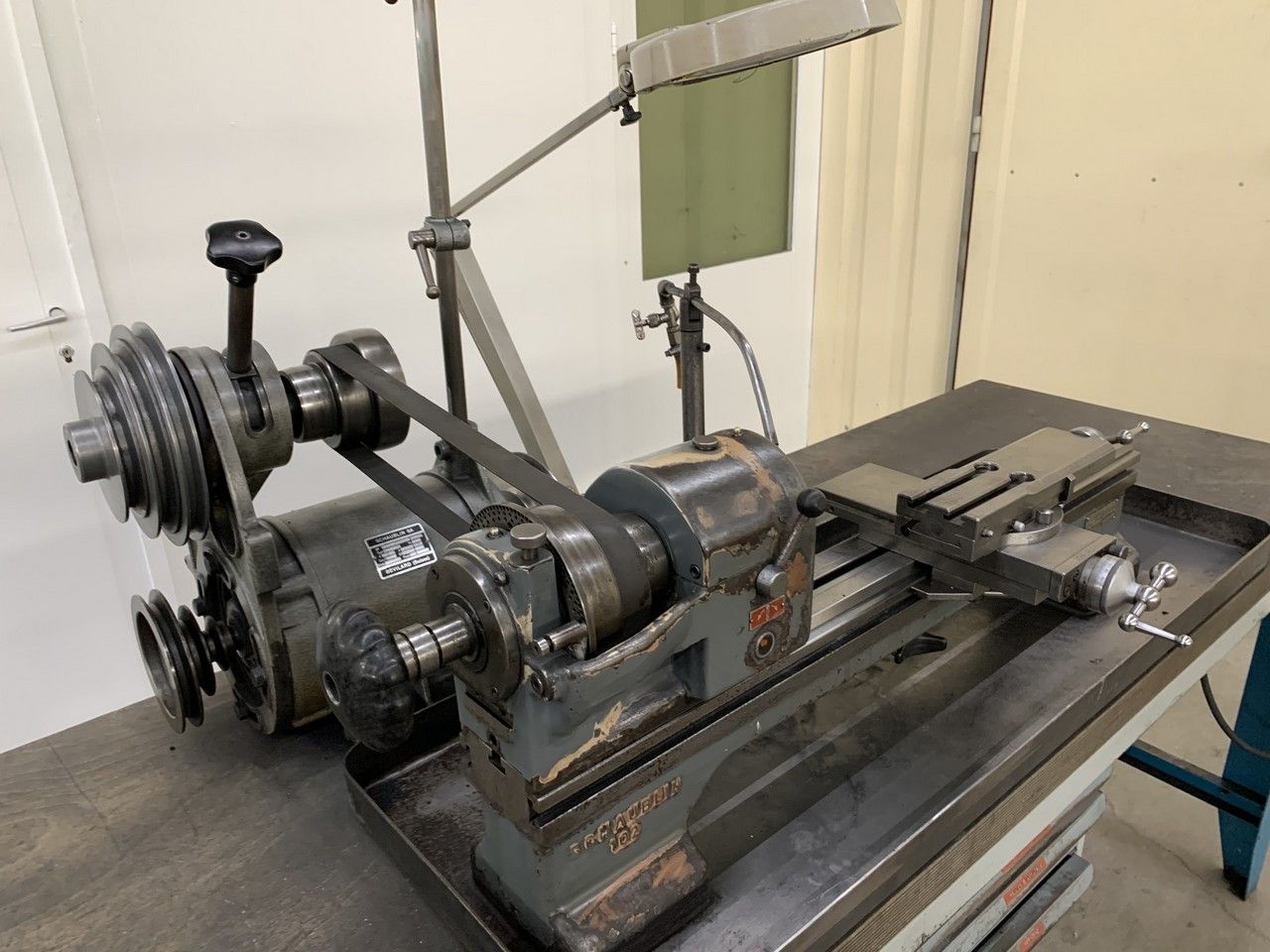

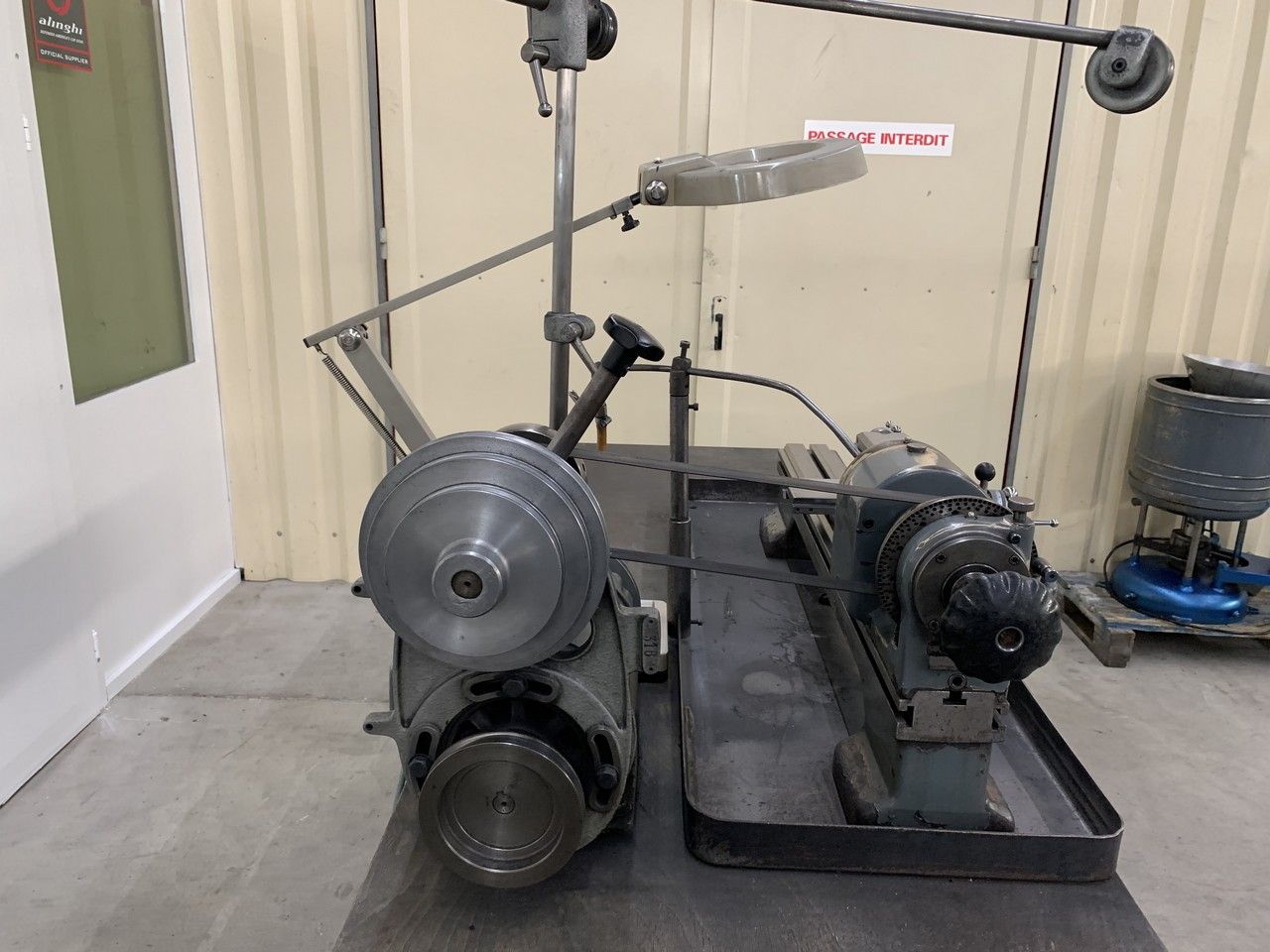

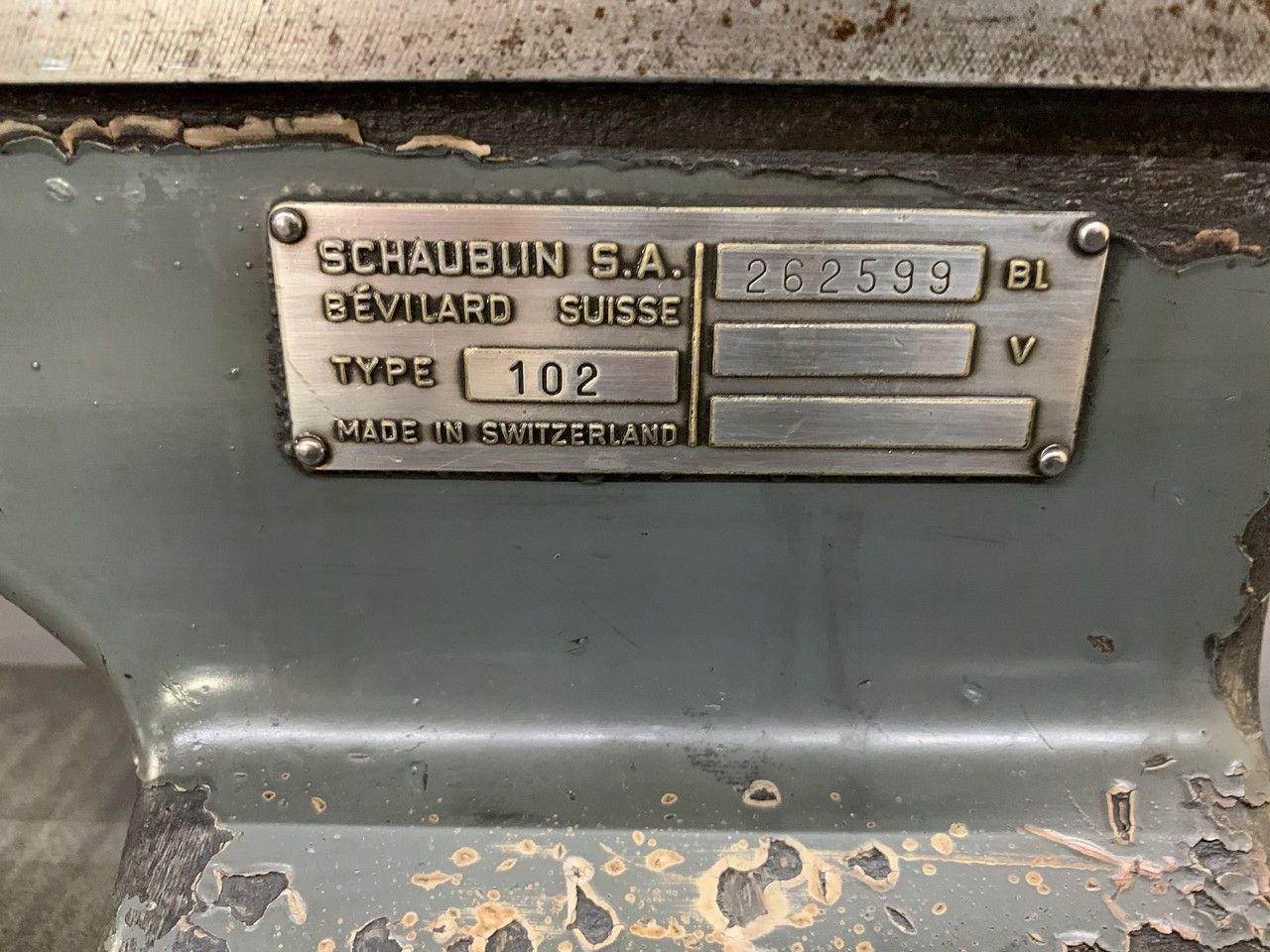

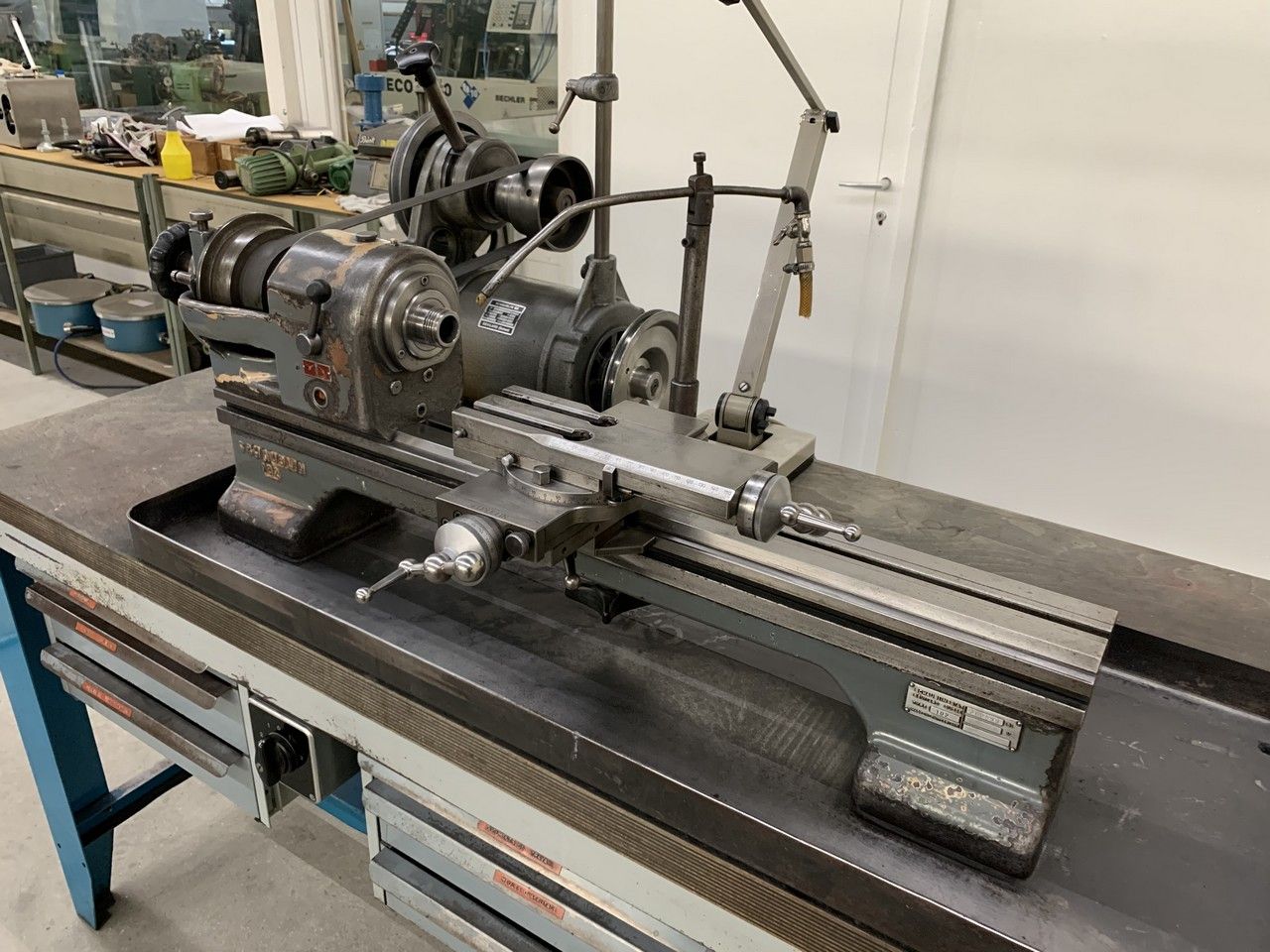

  • TOOLROOM LATHE SCHAUBLIN TYPE 102 TO W-20
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

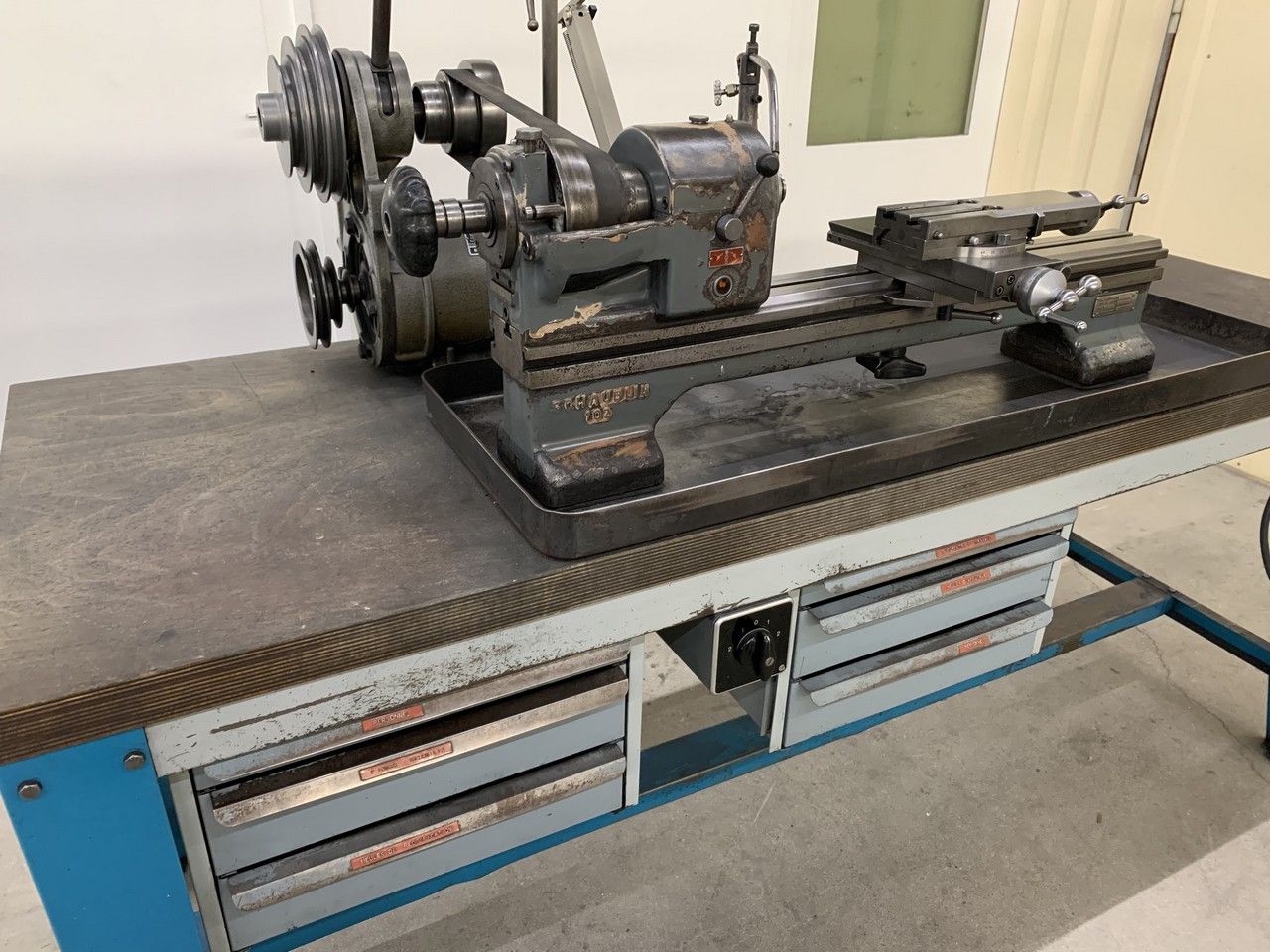

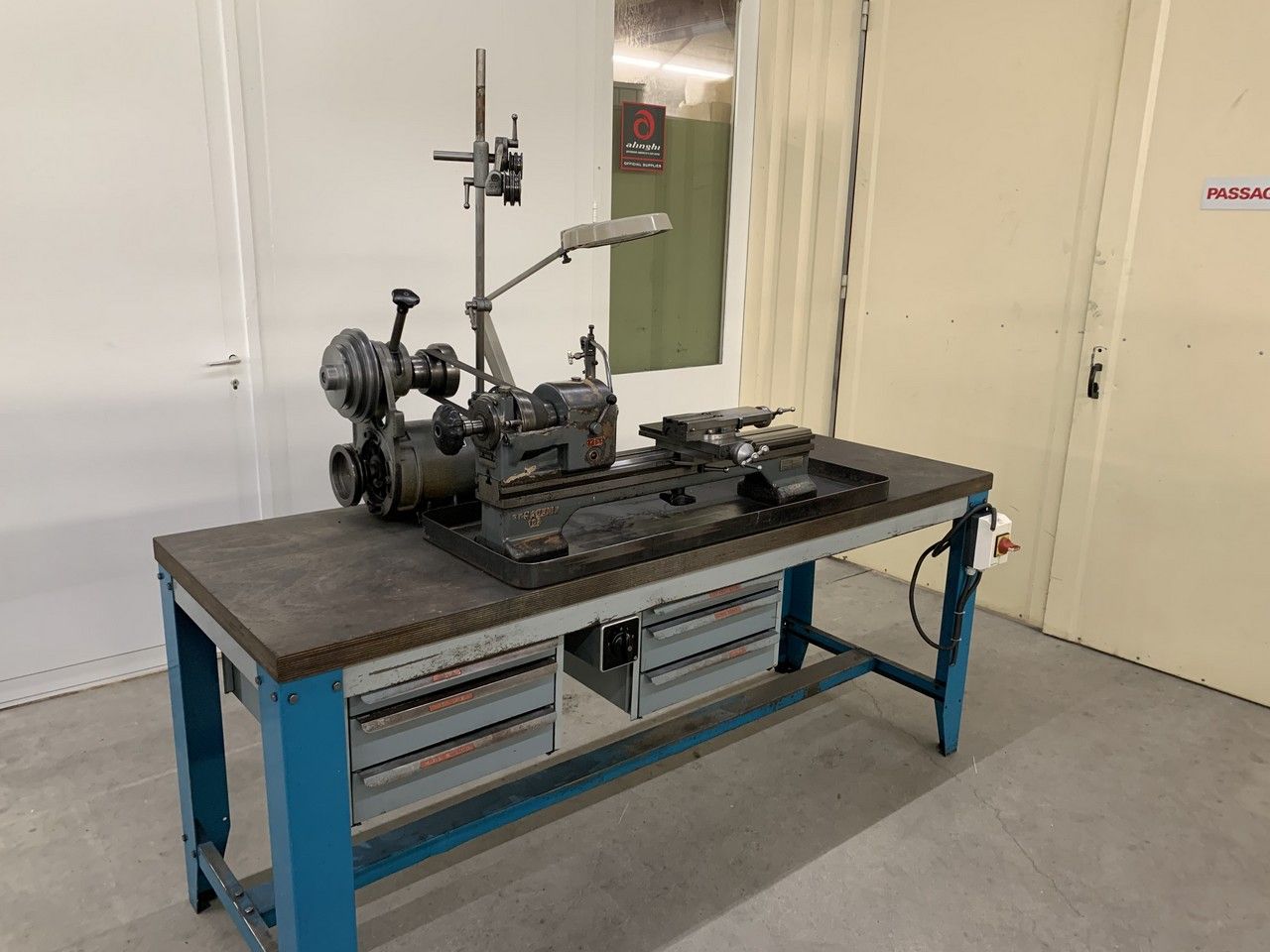

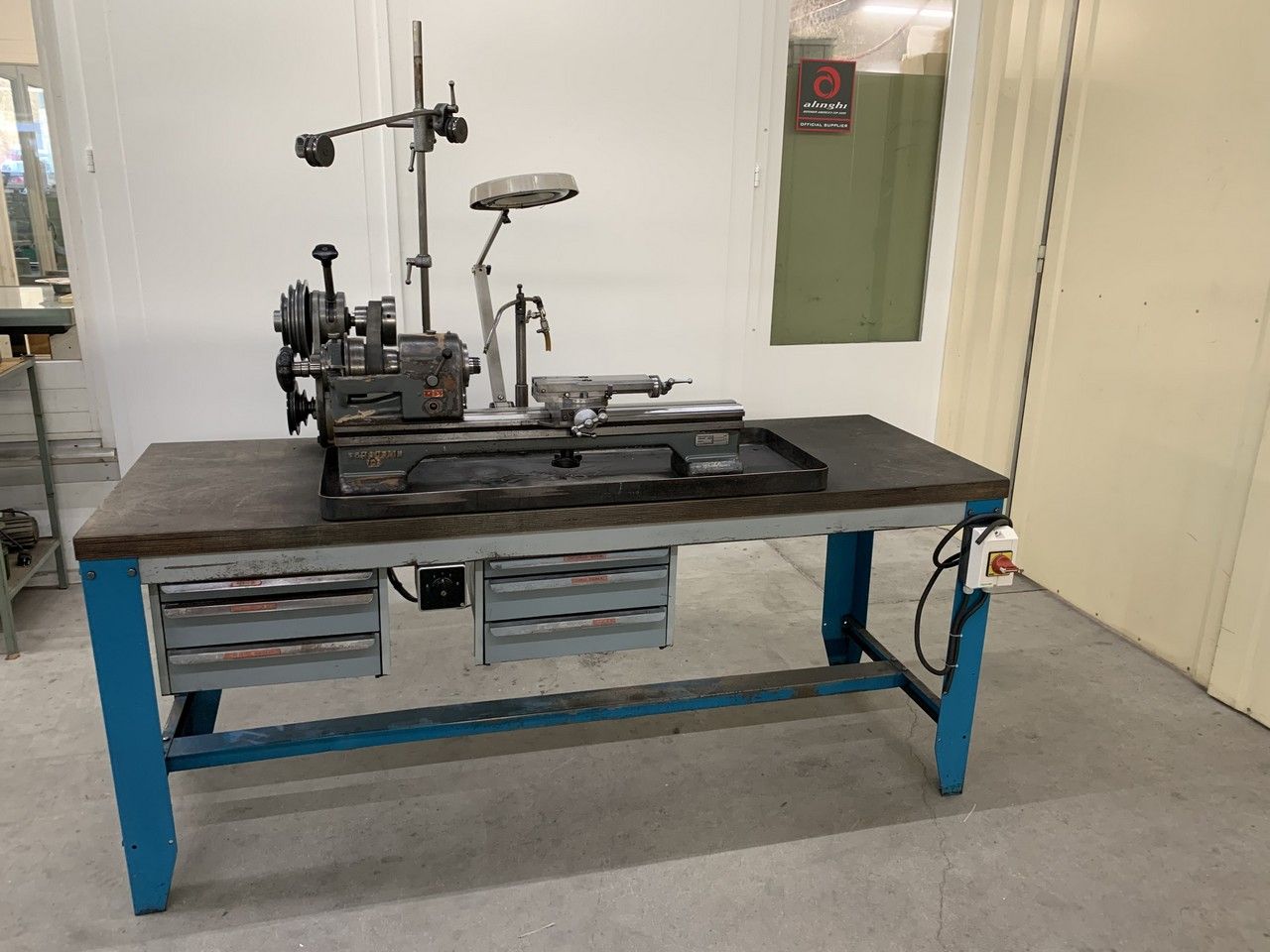

<section id="description"> <div class="detail_title_1"> <h1>TOOLROOM LATHE "SCHAUBLIN" TYPE 102 TO W-20</h1> </div> <p> <b>Reference</b>: 2200015 </p> <p>on workbench </p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td></td><td></td></tr><tr><td>Manufacturing origin </td><td>Swiss</td></tr><tr><td>Voltage </td><td>380V 50Hz 3Ph</td></tr><tr><td>Netweight </td><td>300 kg</td></tr><tr><td>Customs position </td><td>8458.1930</td></tr><tr><td></td><td></td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA</h3><table class="table table-striped add_bottom_45"><tbody><tr><td colspan="2">Capacities :</td></tr><tr><td>- height of centres </td><td>102 mm</td></tr><tr><td>- distance between centre, standard headstock </td><td></td></tr><tr><td> type W </td><td>470 mm</td></tr><tr><td colspan="2">- distance between centres, headstock type W with</td></tr><tr><td> reduction unit </td><td>375 mm</td></tr><tr><td>- swing over bed </td><td>200 mm</td></tr><tr><td>- swing over carriage </td><td>120 mm</td></tr><tr><td colspan="2">Bed :</td></tr><tr><td>- height-width-length </td><td>168-100-1000 mm</td></tr><tr><td> cast-iron bed with ground inverted-V profile </td><td></td></tr><tr><td colspan="2">Headstocks :</td></tr><tr><td>- spindle nose for collets </td><td>W-25</td></tr><tr><td>- maximum bore through collet </td><td>19.0 mm</td></tr><tr><td>- headstock with reduction unit, ratio </td><td>1:5</td></tr><tr><td colspan="2">Carriages :</td></tr><tr><td>- stroke of longitudinal tool slide </td><td>90 mm</td></tr><tr><td>- stroke of transverse tool slide </td><td>100 mm</td></tr><tr><td>- size of tools </td><td>12x12 mm</td></tr><tr><td colspan="2">Tailstocks :</td></tr><tr><td>- internal taper of tailstock spindle </td><td>Morse 2</td></tr><tr><td>- spindle stroke, screw- and handwheel-operated </td><td>80 mm</td></tr><tr><td colspan="2">errors and omission excepted-data given without obligation</td></tr></tbody></table></div> </section>.
