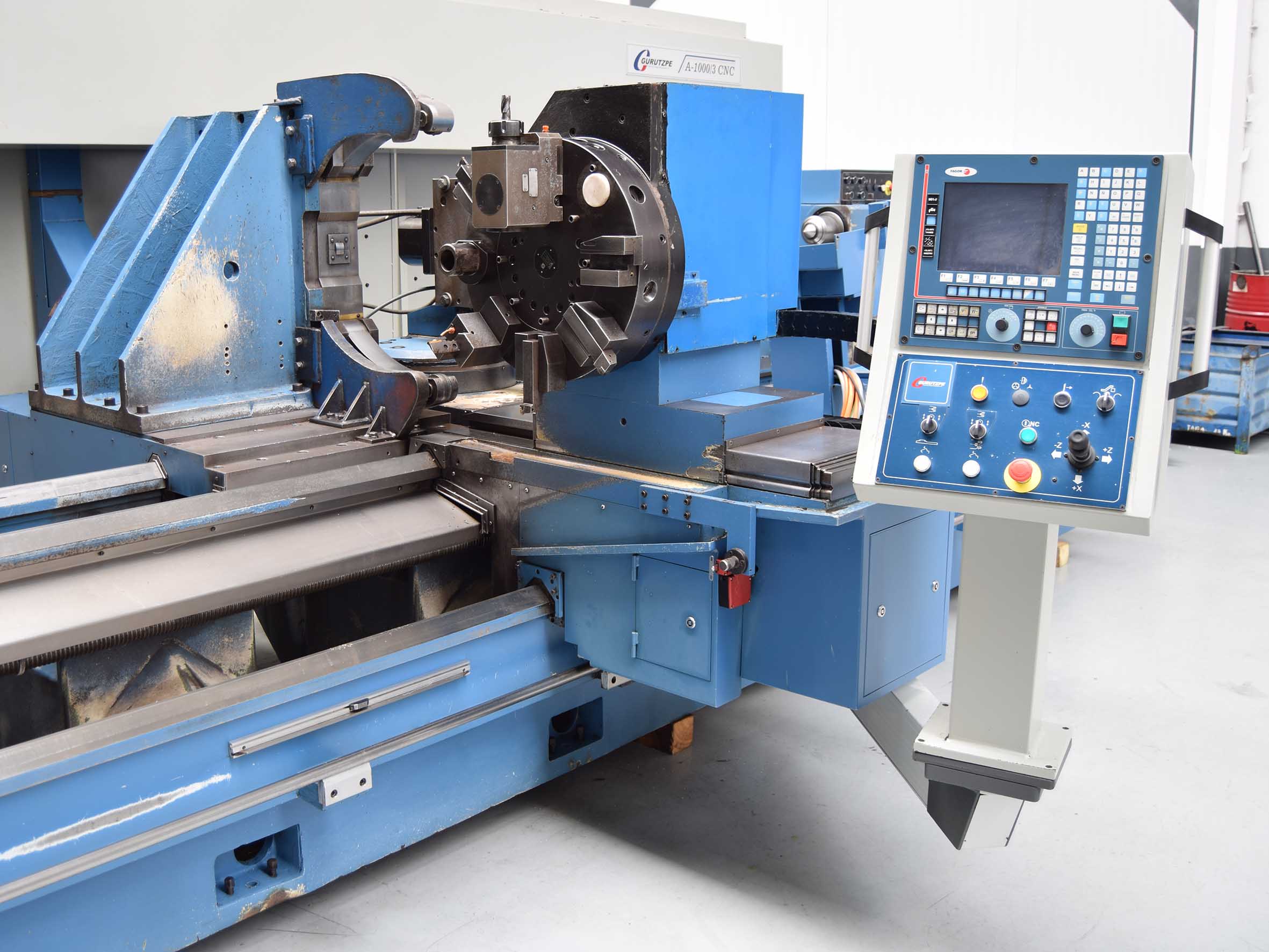

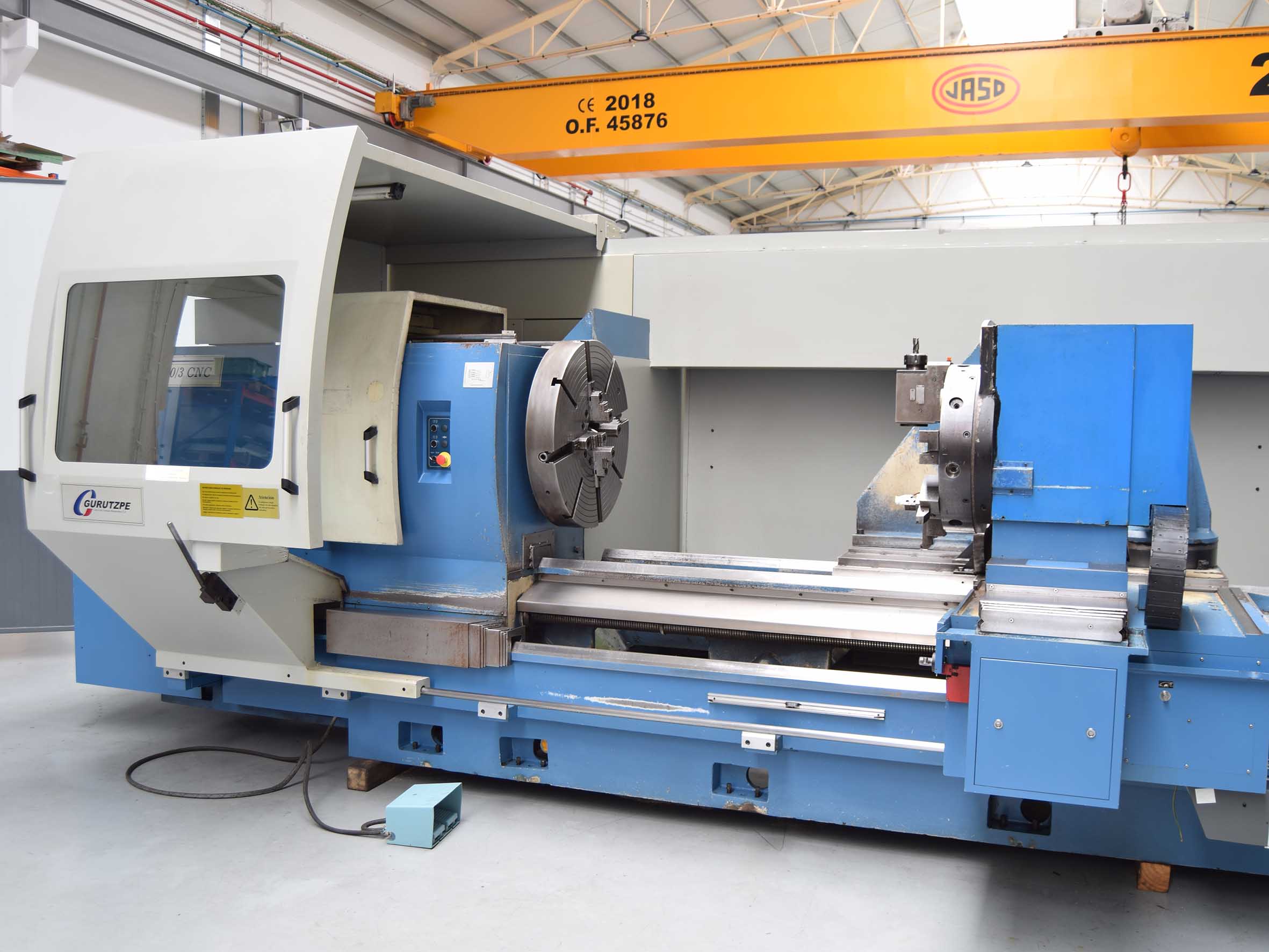

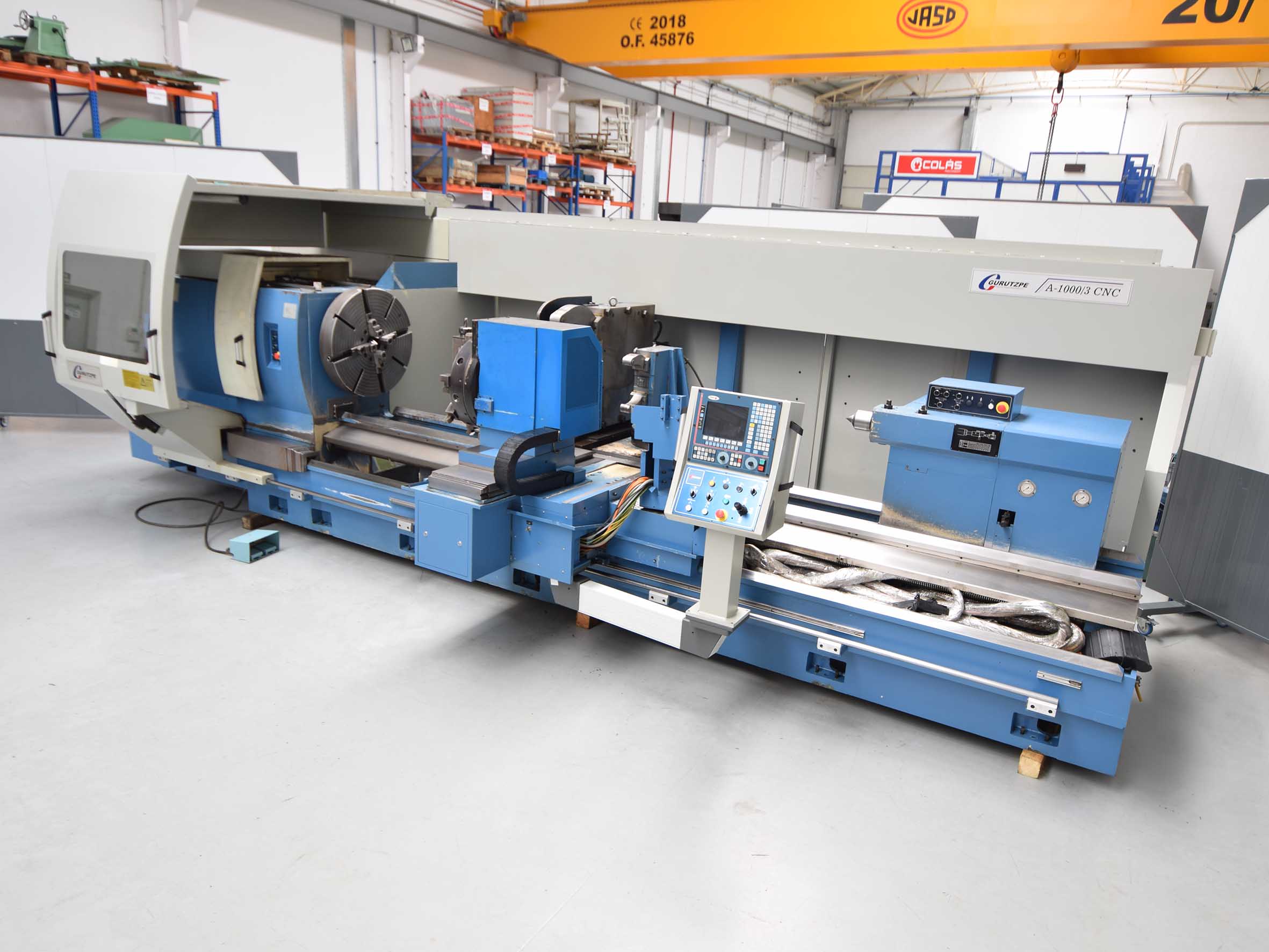

Manufacturer GURUTZPE
Model A1000 / 3 CNC
Year 2004
CNC FAGOR 8055 TC
Distance Between Centres 4.000 mm.
Support Guides Number 4
Max. Ø Swing Over Bed 1.000 mm.
Rapid Traverse X Axis 10 m/min
Rapid Traverse Z Axis 10 m/min
Turning Speeds 20-1.000 rpm
Head Automatic Range Number 2
Main Engine Power 39/48 kW
Quill Spindle 105 mm.
Driven tailstock (CNC Managed) INCLUDED
Chuck Protection INCLUDED
C Axis and Driven Tools INCLUDED
Turret SAUTERVDI 50 8 Positions
1 axial driven tool holder INCLUDED
1 radial driven tool holder INCLUDED
Complete Rear Protection INCLUDED
Steady Rest SHW Autoblock 150/650 INCLUDED
U axis longitudinal CNC movement Z axis for steady rest SHW Autoblock 150/650 INCLUDED
Steady Rest SHW Autoblock 150/650 INCLUDED
V axis longitudinal CNC movement Z axis for steady rest SHW Autoblock 30/295 INCLUDED
Automatic Tur 0-180 for steady rest SHW Autoblock 30/295 INCLUDED
Chuck with 3 Jaws Ø 500 mm INCLUDED
Chuck with 4 Independent Hard Jaws Ø1.00 mm INCLUDED
Chip Conveyor INCLUDED
Portable Handwheel FAGOR INCLUDED
Total power 60 kW
Machine Weight 20.000 kg.
Machine dimensions 9.775 x 3.100 mm
CMT
09670
CNC FAGOR 8055
Height of centers 300 mm
Distance between centers 1500 mm
Swing diameter on the bed 600 mm
Swing diameter on the slide 365 mm
Z-axis longitudinal stroke 1500 mm
Cross X-axis controlled stroke 250/300 mm
Spindle nose C.L. 8''
...
