Manufacturer
Harrison
Model

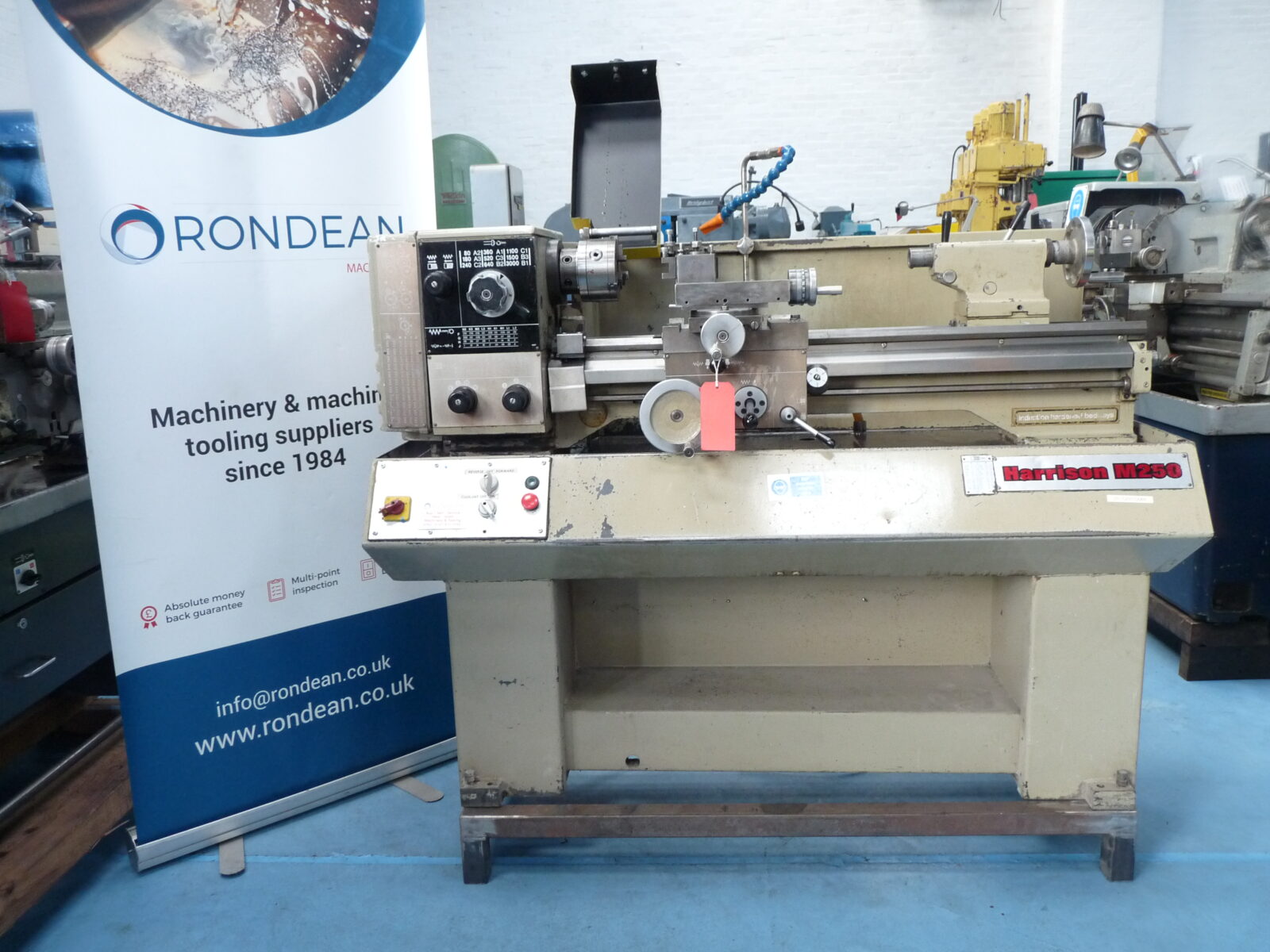

M250 Straight Bed Centre Lathe
Capacity
30" (750mm) Between Centres
11" (280mm) Swing Over Bed
7" (178mm) Swing over cross slide
3MT Tail Stock
Spindle Bore
1 3/8" (35mm)
Spindle Nose
D1-3” Camlock
Equipment
3 Jaw Chuck
Quick Change Tool Post (holds two tools)
Coolant
Splash Back
Safety
Lead Screw Covers
Chuck Guard

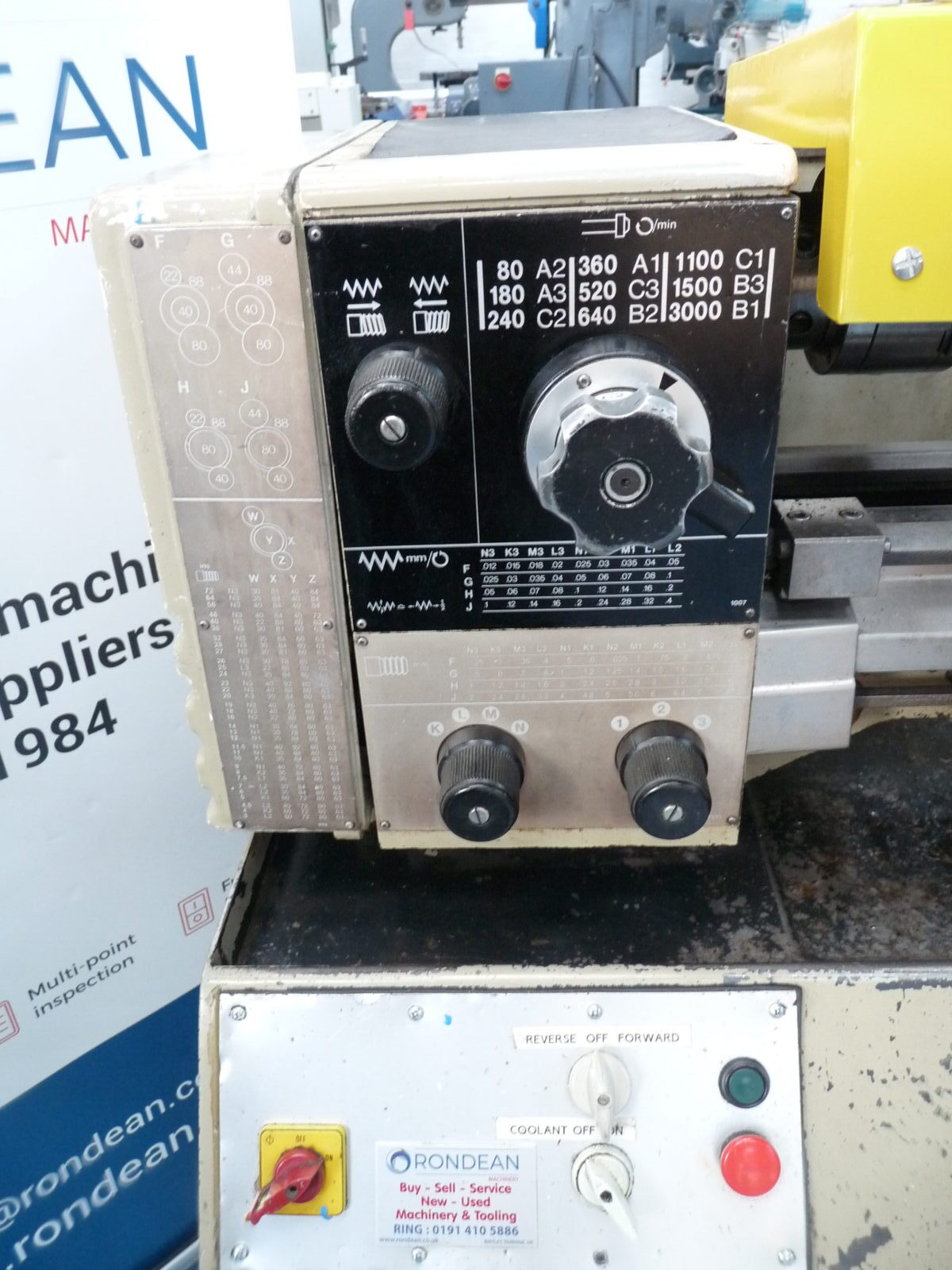

Speeds
9: 80 to 3000rpm (80, 180, 240, 360, 520, 640, 1100, 1500, 3000 rpm)
Main Motor
1.3 kW (1.8hp)
Power
Three Phase Electric's 2.9 amps
Dimensions
1605 x 735 mm weighs approx 500 Kg
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery Options
To suit your needs, call us for a quote.
