Manufacturer
Colchester
Model

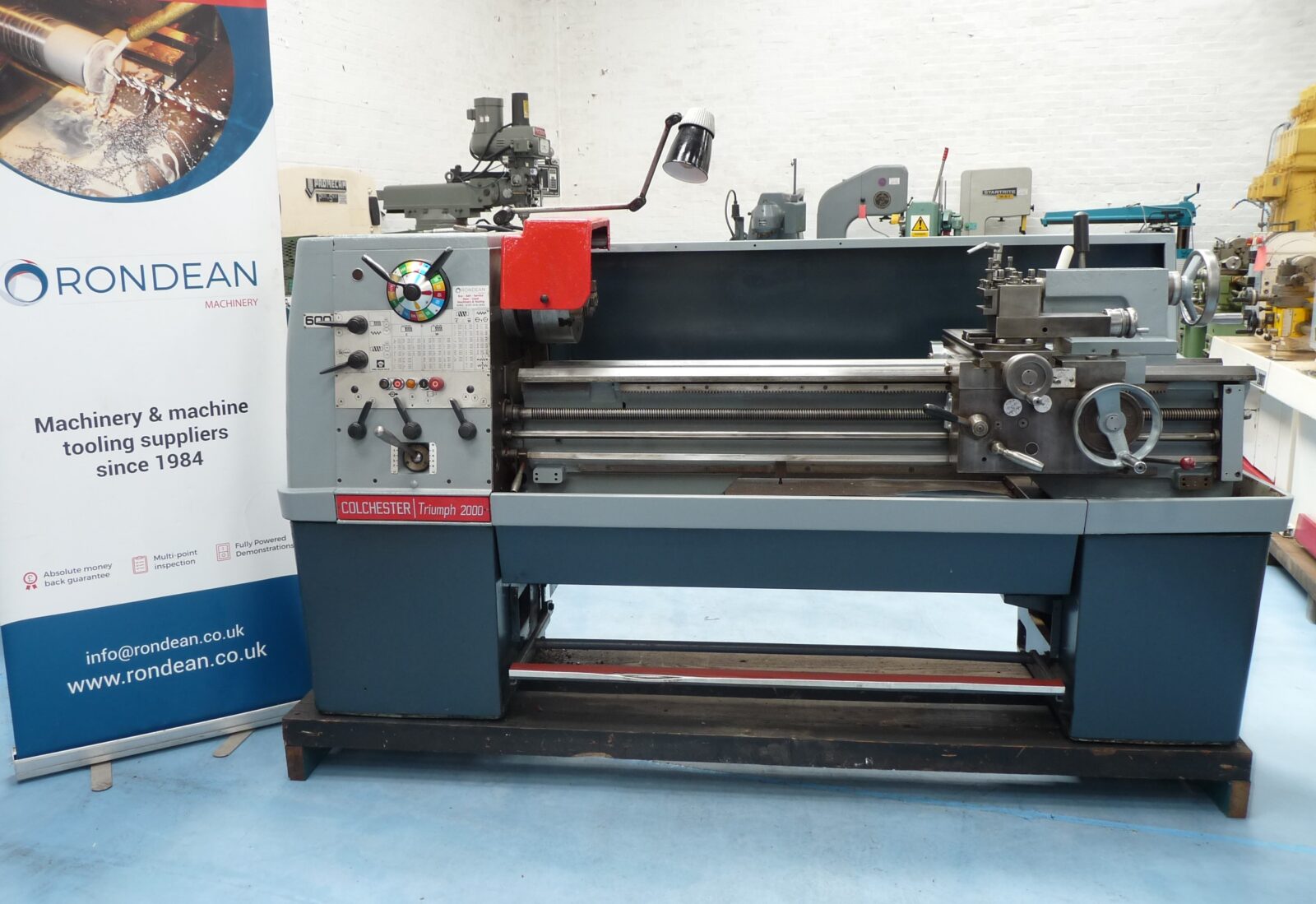

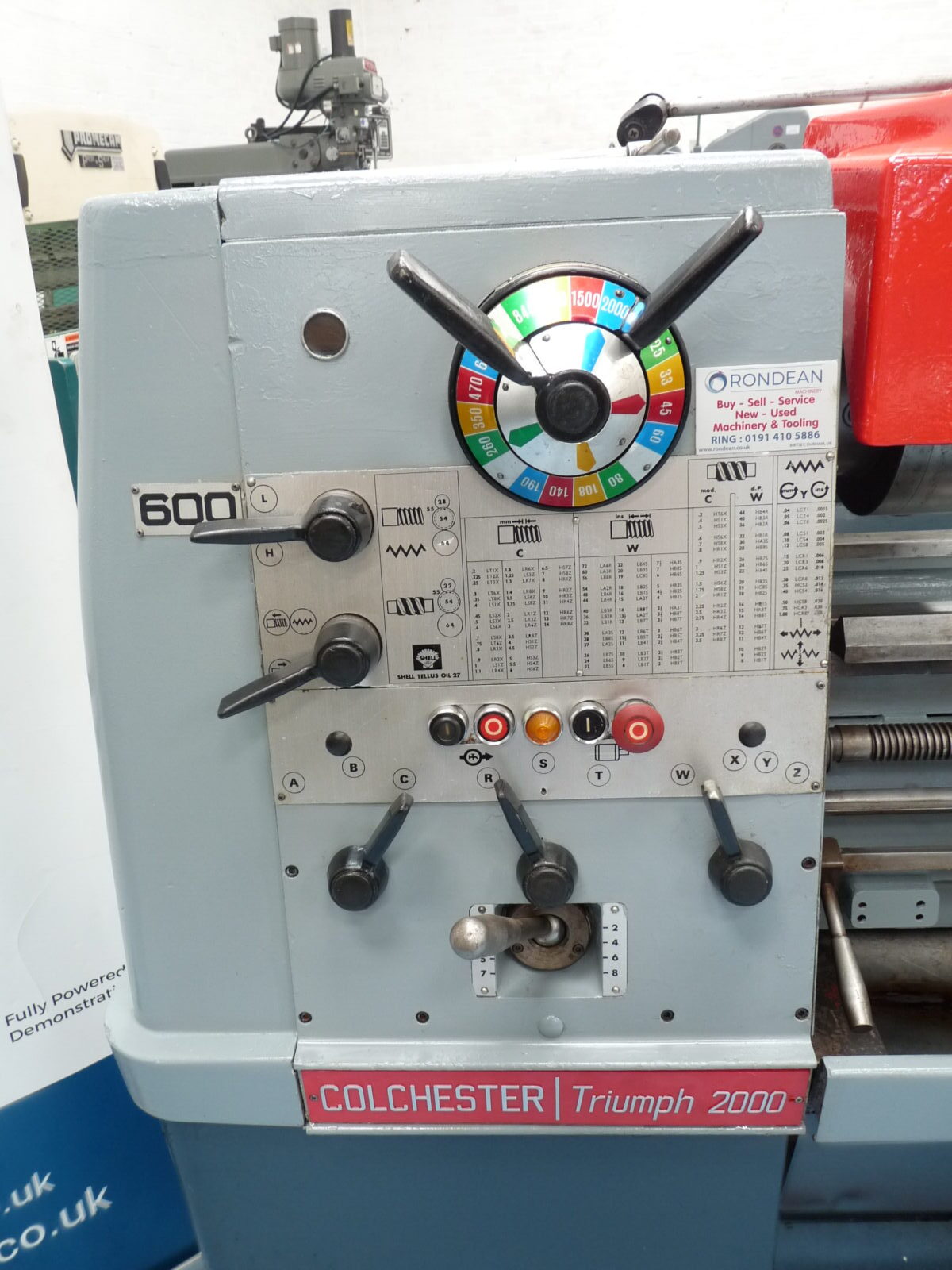

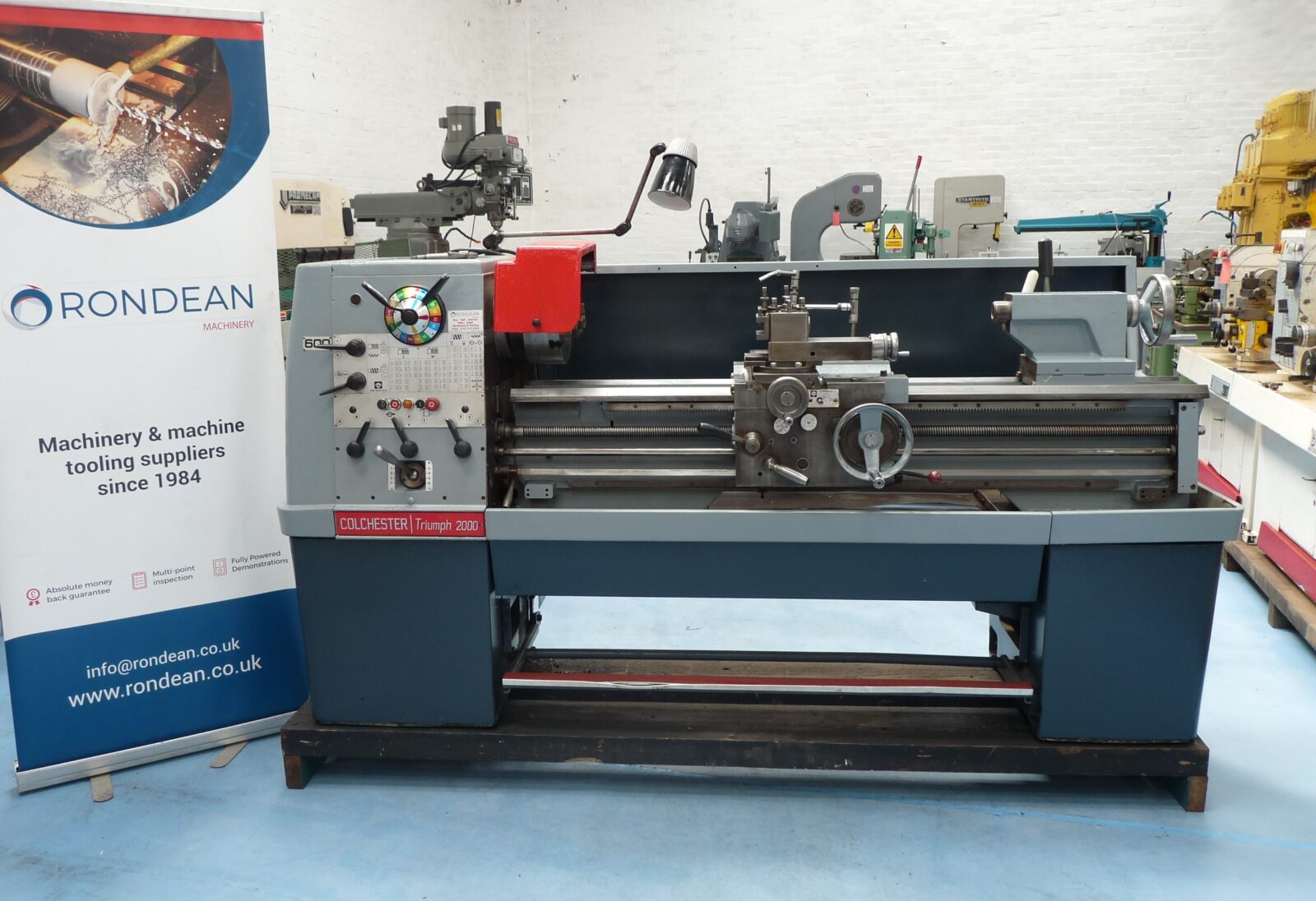

Triumph 2000 Gap Bed Centre Lathe
Distance between centres
50” (1270mm)
Height of centres
7 ½” (190mm)
Swing over bed
15” (380mm)
Swing in gap
23” (585mm)
Gap piece length
10.25” (260mm)
Gap in front of face plate
6” (150mm)
Swing over crosslide
9” (228mm)
Spindle nose
D1-6” Camlock
Spindle Bore
2 3/16” (55.5mm)
Speeds
25-2000 RPM
Tailstock Spindle Taper
4 Morse
Equipment
3 Jaw Chuck
Quick Change Tool Post & 2 tool holders
Coolant
Work Light
Footbrake
Motor Size
7.5 Horse Power 12 amps max load
Power
Three Phase Electric's
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery Options
To suit your needs, call us for a quote.
