  • Manufacturer:
  • SCHAUBLIN
  • Model:

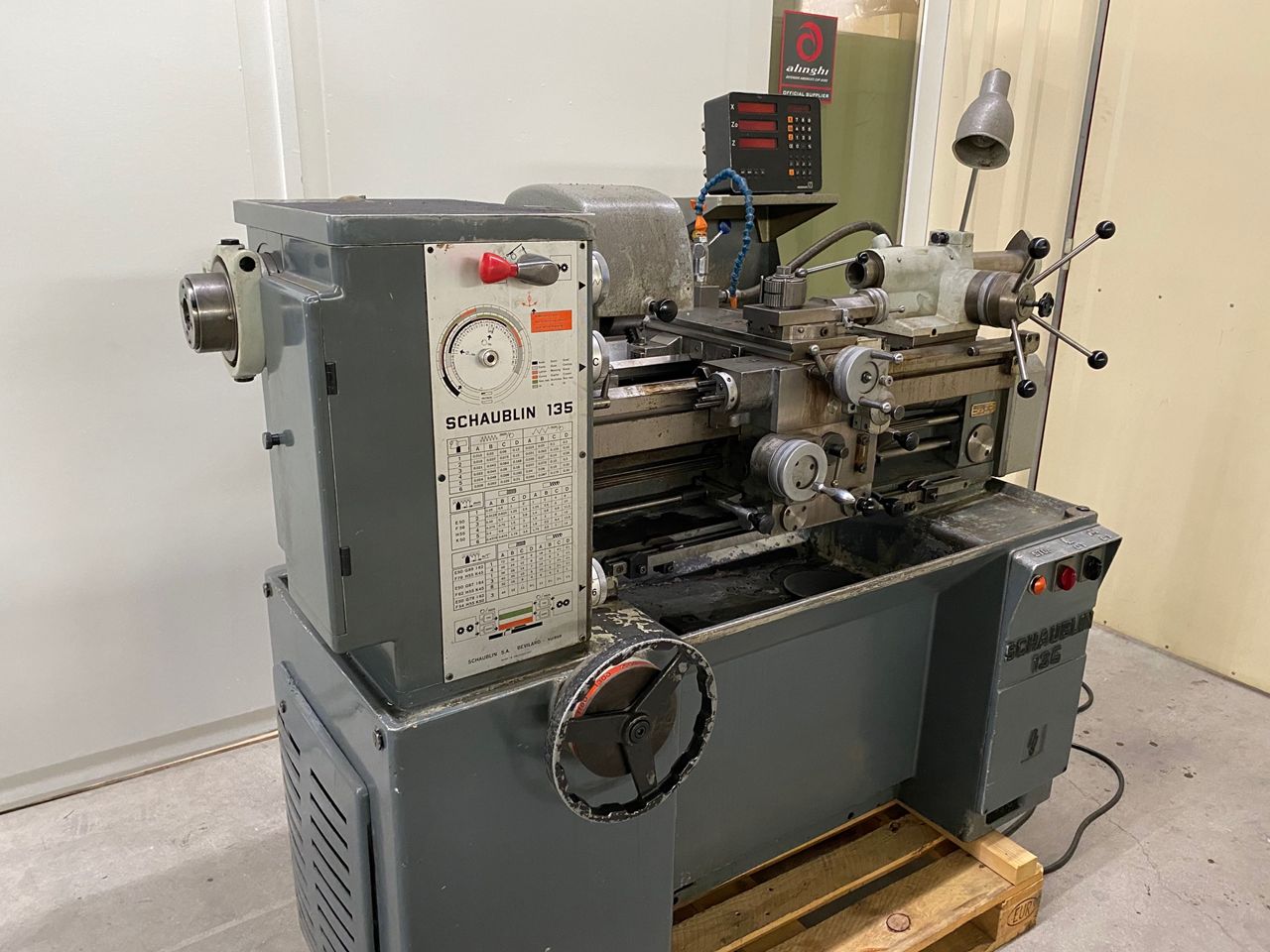

  • LEADSCREW LATHE SCHAUBLIN TYPE 135
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

<section id="description"> <div class="detail_title_1"> <h1>LEADSCREW LATHE SCHAUBLIN TYPE 135</h1> </div> <p> <b>Reference</b>: 2320012 </p> <p> </p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Manufacturing origin </td><td> Swiss</td></tr><tr><td>Netweight </td><td> 1200 kg (gross 1350 kg)</td></tr><tr><td>Custom position </td><td> 8458.1920</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA :</h3><table class="table table-striped add_bottom_45"><tbody></tbody></table><h3>CAPACITY :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Height of centres </td><td> 135 mm</td></tr><tr><td>Distance between centres </td><td> 630 mm</td></tr><tr><td>Swing over bed </td><td> 315 mm</td></tr><tr><td>Swing over carriage </td><td> 150 mm</td></tr></tbody></table><h3>HEADSTOCK :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Spindle speeds, infinitely varaible </td><td> 55-3000 rpm.</td></tr><tr><td>Spindle speeds, with open belt drive </td><td> 220-3000 rpm.</td></tr><tr><td>Spindle speeds, with reduction gears </td><td> 55-750 rpm.</td></tr><tr><td>Spindle nose </td><td> Camlock D1-4"</td></tr><tr><td>Spindle bore dia. </td><td> 40 mm</td></tr><tr><td>Spindle clamping taper </td><td> Morse No. 5</td></tr><tr><td>Reduction bush for collet type </td><td> B-32</td></tr><tr><td>Bar capacity of collet </td><td> 24 mm</td></tr></tbody></table><h3>BED :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Height x width x length </td><td> 320 x 270 x 1300 mm</td></tr></tbody></table><h3>TAILSTOCK :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Spindle dia. </td><td> 50 mm</td></tr><tr><td>Internal spindle taper </td><td> Morse No. 3</td></tr><tr><td>Spindle traverse </td><td> 120 mm</td></tr><tr><td>Transversal adjustment </td><td> = 10 mm</td></tr></tbody></table><h3>FEED AND SCREWCULTING GEAR BOX :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Number of metric pitches </td><td> 48</td></tr><tr><td>Pitches </td><td>25 to 14 mm</td></tr><tr><td>Number of english pitches </td><td> 48</td></tr><tr><td>Pitches </td><td> 72 to 1 t.p.i.</td></tr><tr><td>Number of module pitches </td><td> 48</td></tr><tr><td>Modules </td><td>125 to 7.5</td></tr><tr><td>Number of longitudinal and transversal feeds per revolution of spindle </td><td> 96</td></tr><tr><td>24 fine feeds </td><td>015 to. 21 mm</td></tr><tr><td>24 feeds </td><td>025 to .35 mm</td></tr><tr><td>48 feeds by the use of screwcutting gears </td><td>25 to 14 mm</td></tr></tbody></table><h3>CARRIAGE :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Travel along bed </td><td> 630 mm</td></tr><tr><td>Tool slide, width x length </td><td> 95 x 225 mm</td></tr><tr><td>Traverse </td><td> 100 mm</td></tr><tr><td>Height of centres above slide </td><td> 26 mm</td></tr><tr><td>Dimensions of tools </td><td> 16 x 16 mm</td></tr><tr><td>Cross slide, width x length </td><td> 155 x 420 mm</td></tr><tr><td>Traverse </td><td> 180 mm</td></tr><tr><td>Carriage body, guiding length on bed </td><td> 400 mm</td></tr></tbody></table><h3>STEADIES :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td colspan="2">Diameter of stock accommodated in both stationary</td></tr><tr><td>and travelling steadies </td><td> 5 to 100 mm</td></tr></tbody></table><h3>COOLANT SYSTEM :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Tank capacity </td><td> 27 litres</td></tr></tbody></table><h3>MOTOR :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>Speeds </td><td> 750 / 3000 rpm.</td></tr><tr><td>Power </td><td> 2 / 4 HP</td></tr><tr><td colspan="2">errors and omissions excepted data gived without obligation</td></tr></tbody></table></div> </section>.
