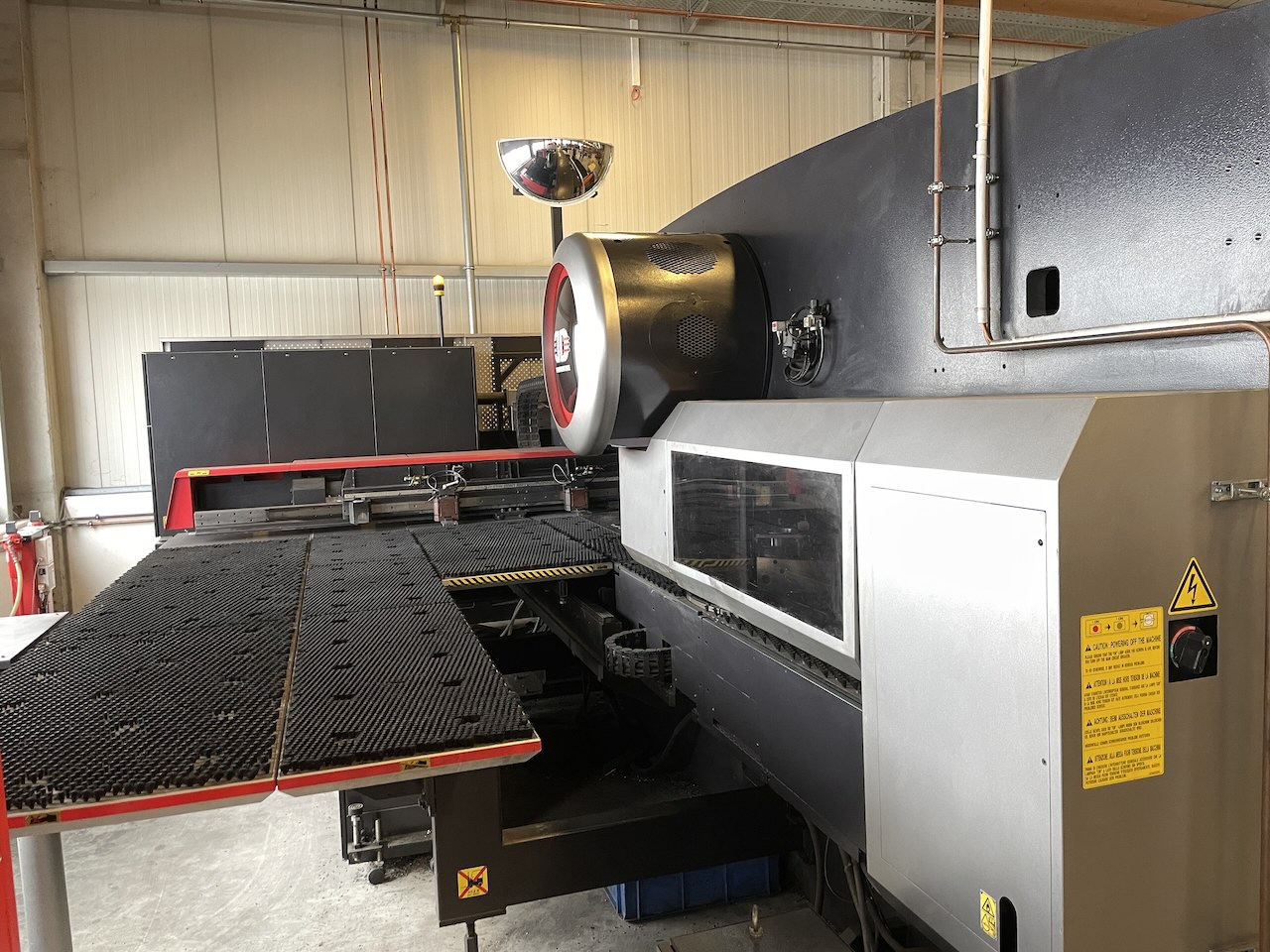

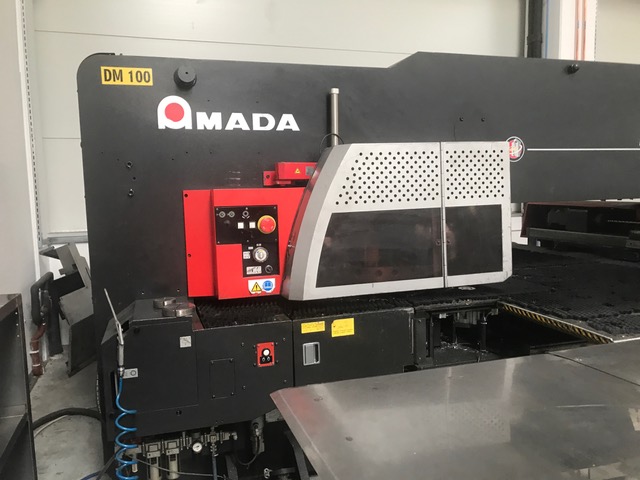

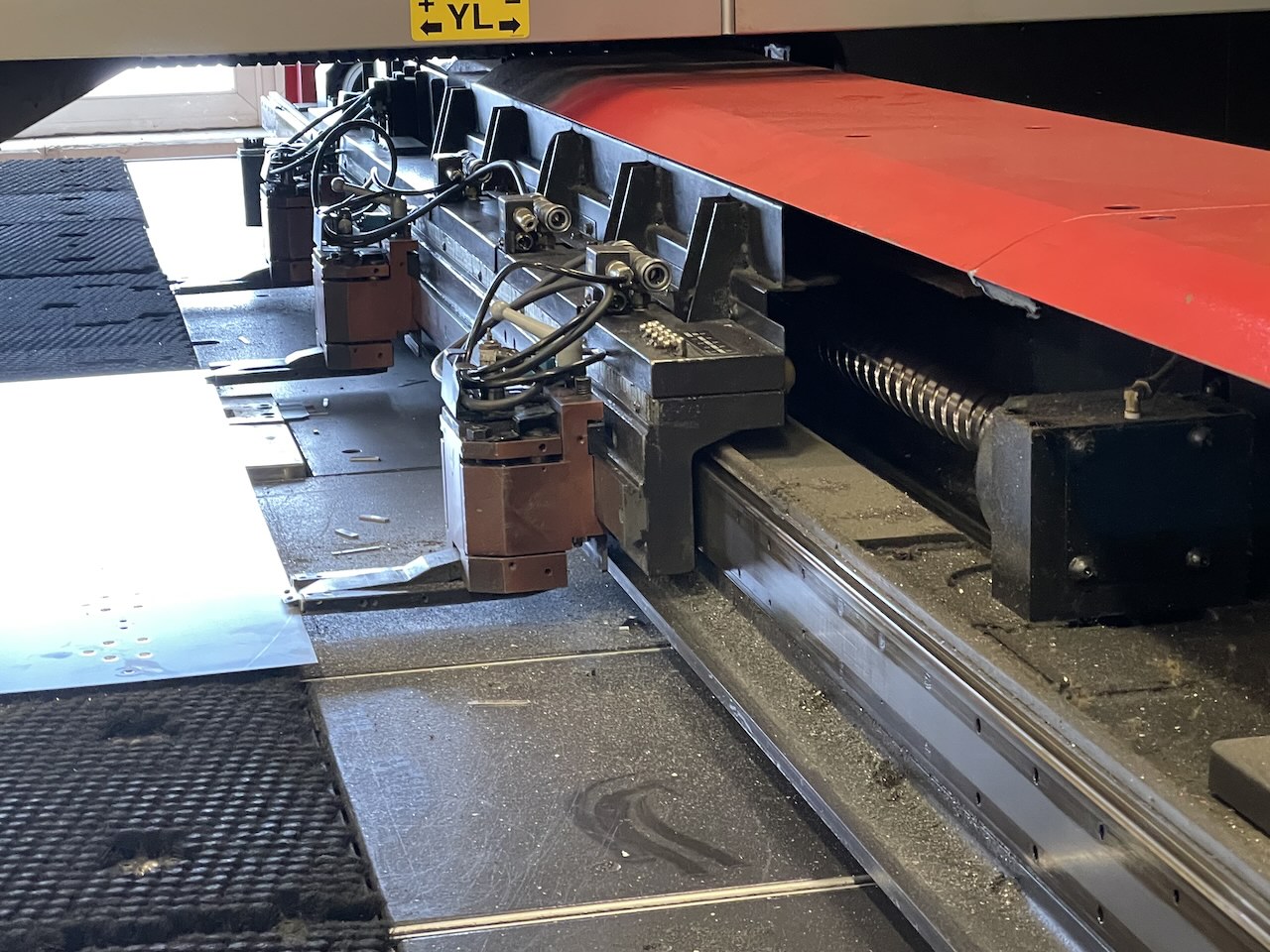

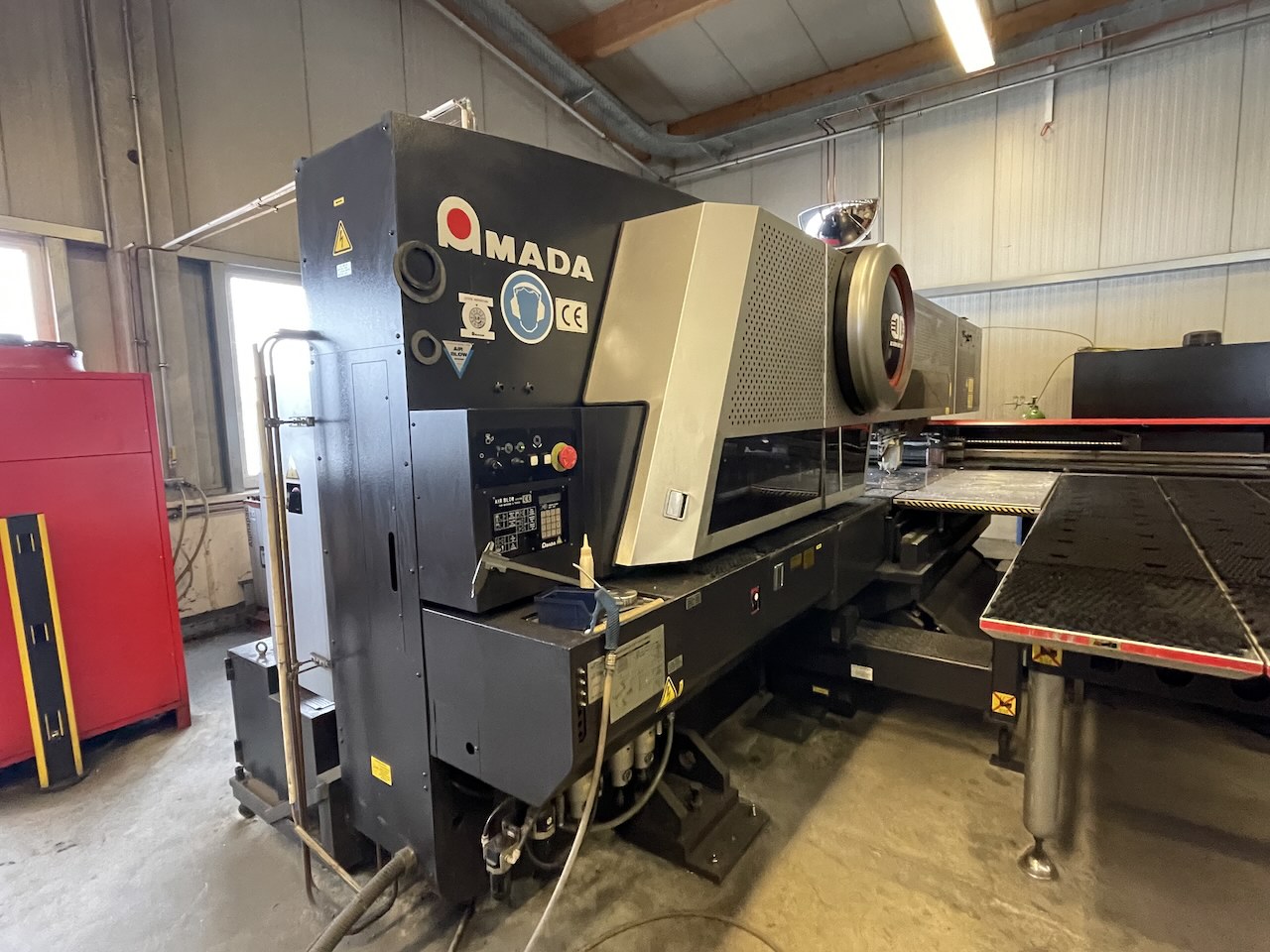

MACHINE INFORMATION AND SPECIFICATION
- Category:
- Punching
- Subcategory:
- Laser Punching
- Manufacturer:
- Amada
- Model:

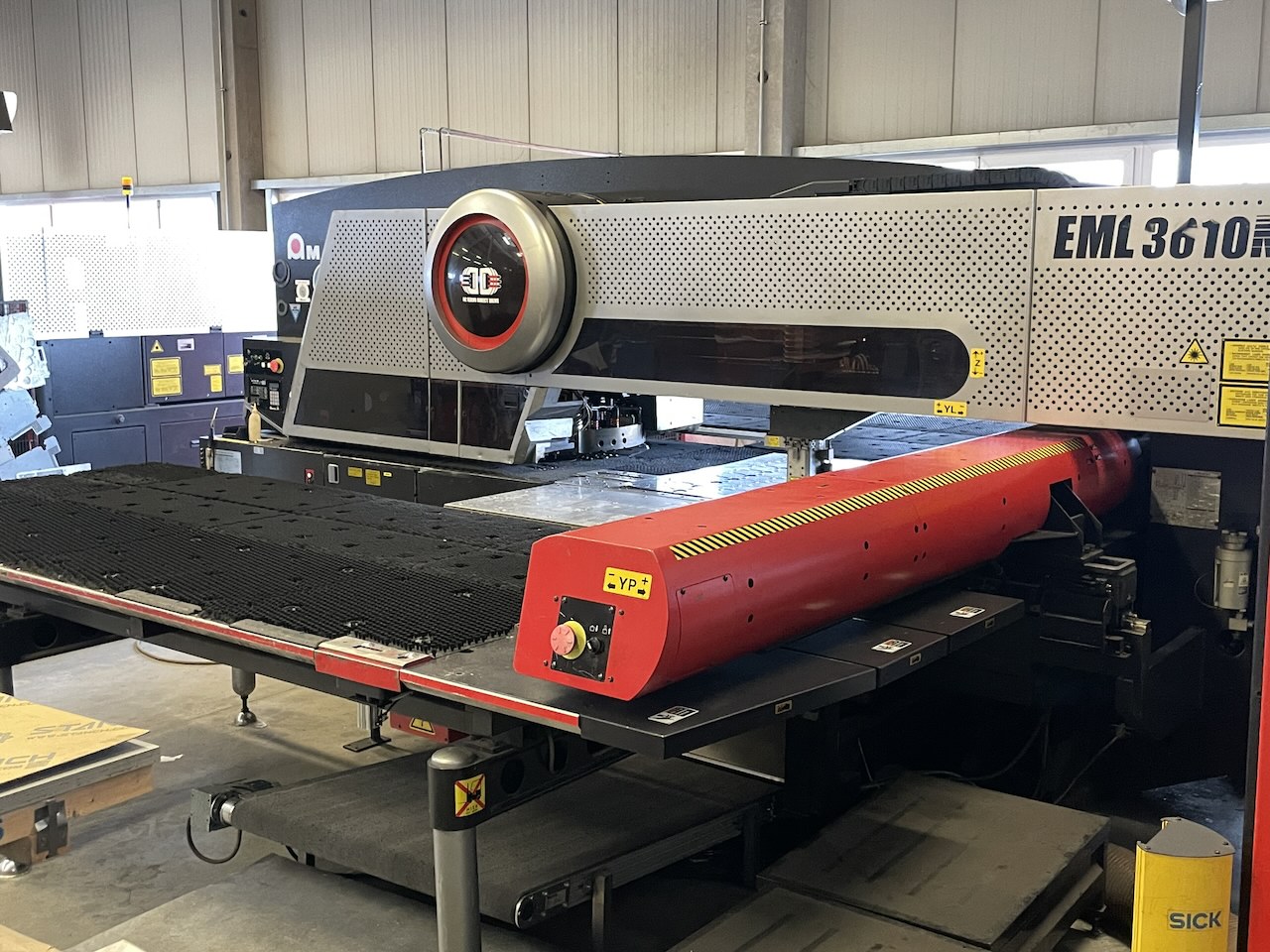

- Amada - EML 3610
- Condition:
- Used
- YOM:
- 2006
- Control:
- AMNC-F
- Price:
- POA
- Seller:
- PTF-GmbH
- Country:
- Germany
DESCRIPTION
- Working hours machine: 51137 h

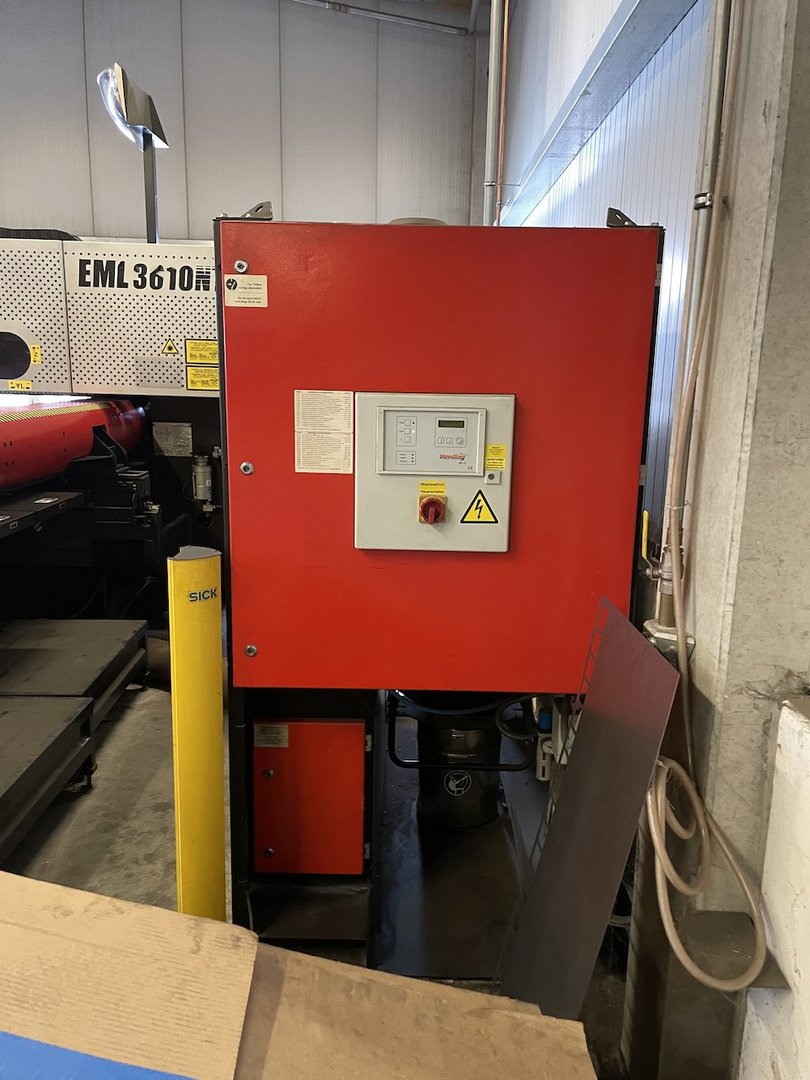

- Laser power: 4000 Watt
- Max. punching force: 300 kN

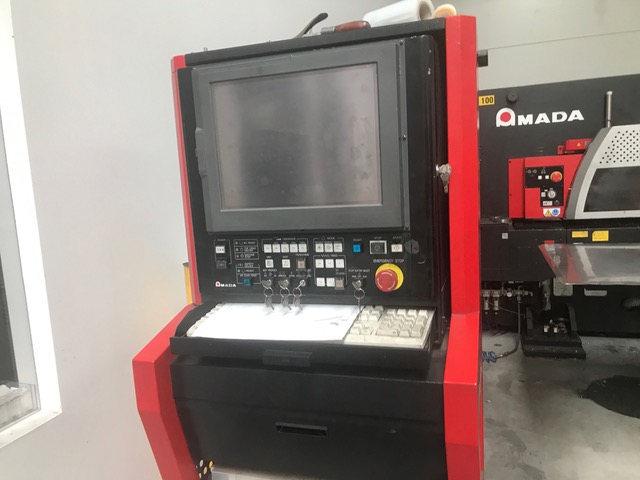

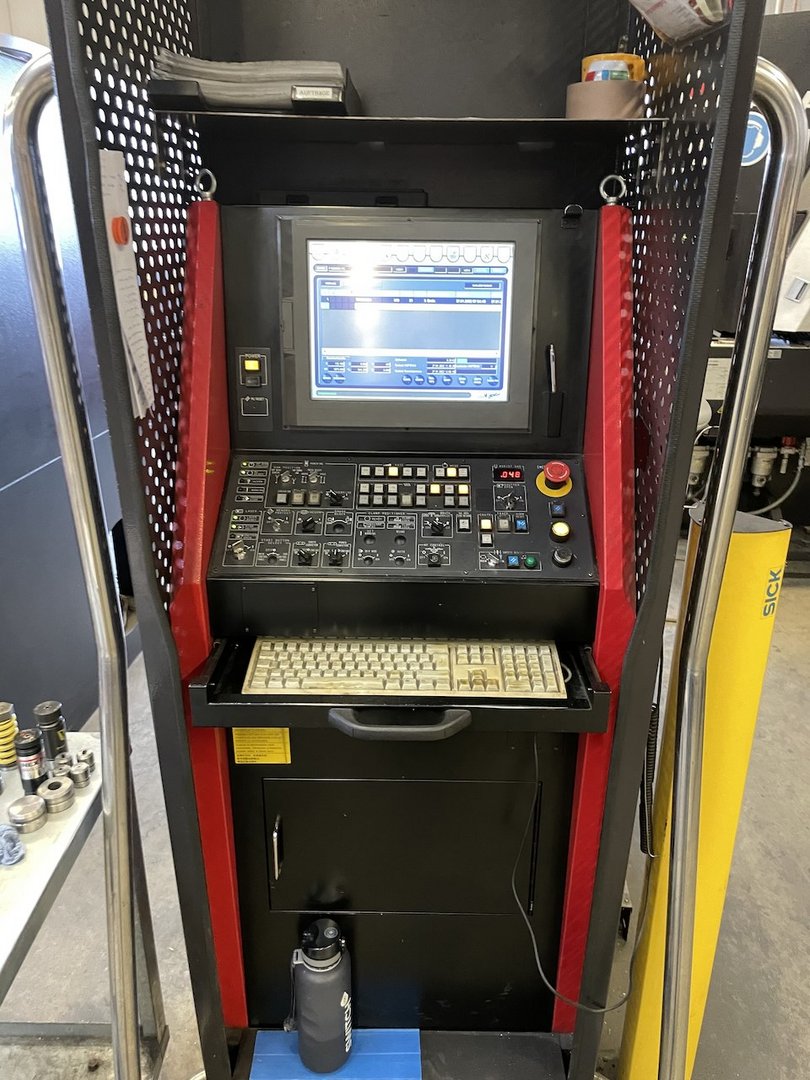

- Control: AMNC-F
- Working range laser: 2500 x 1525 mm
- Working range punching: 3050 x 1875 mm
- Length: 6354 mm Width: 5880 mm
- Height: 2517 mm
- Machine weight: 30000 kg
- Electrical connected load: 85 kVA
- x-axis: 100 m / min
- y-axis: 80 m / min
- simultanes (x and y): 128 m / min
- Patented servo-electric double drive
- Punching force 300 kN
- low energy consumption of the punching unit (maximum 7 kW, 1 kW in stand-by mode)
- smooth-running, low-noise, low-wear and almost maintenance-free
- 780 punching strokes per minute
- Optimum use of sheet metal
- Punch & Forming for forming up to 20 mm in height
- Multiple thread unit with four inserts from M 2.5 to M 6
- brush table for scratch-free processin
- Z-revolver with 45 turrets (2 x B Station Auto Index / 2 x C Station Auto Index)
- punch & forming
- tapping
