MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRUMPF
  • Model:

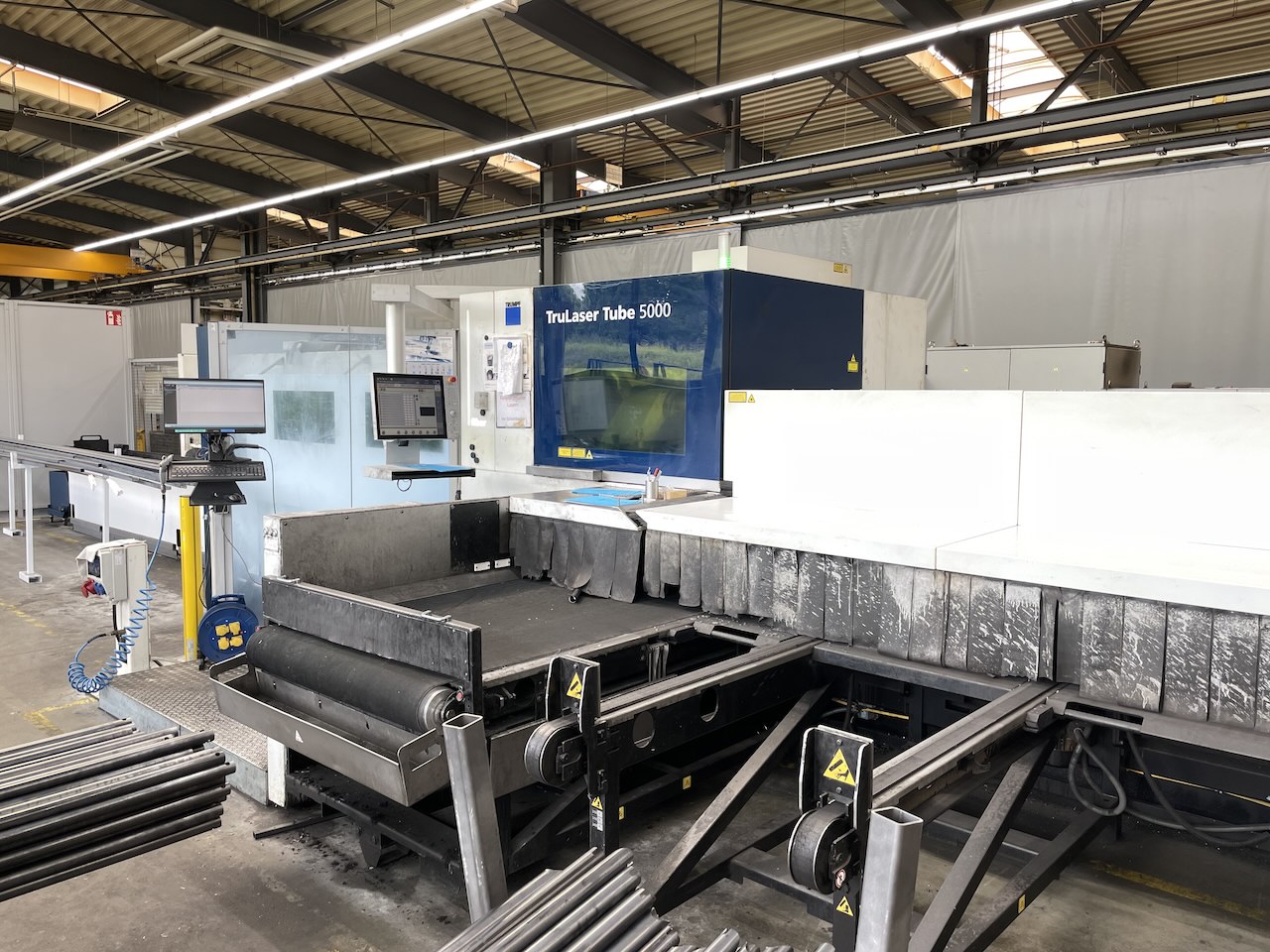

  • Trumpf - TruLaser Tube 5000 FIBER 3kW
  • Condition:
  • Used
  • YOM:
  • 2015
  • Control:
  • Sinumerik 840 D SL
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

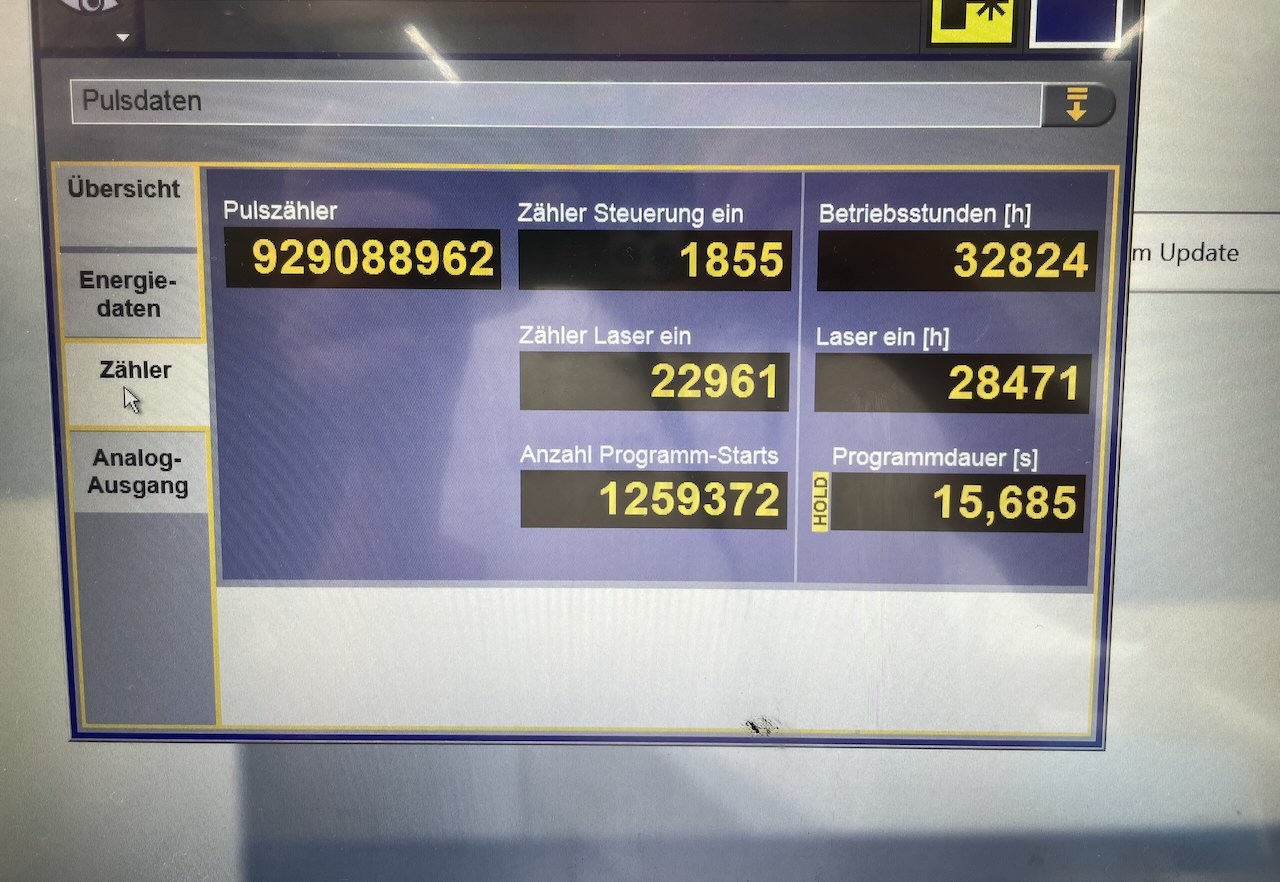

  • Working hours laser on: 28500 h
  • Laser power: 3000 kW
  • Working range laser: 6500 x 250 x 150 mm
  • Max. steel: 8 mm
  • Max. stainless steel: 5 mm
  • Max. aluminium: 6 mm
  • Max. copper: 4 mm
  • Max. brass: 4 mm
  • Length: 18000 mm
  • Width: 9000 mm
  • Height: 2800 mm
  • Machine weight: 21000 kg
  • max. tube length: 6500 mm
  • max. length finished parts: 4500 mm
  • max. tube diameter: 152 / 170 mm
  • min. tube diameter: 12 mm
  • max. tube weight: 25 kg/m
  • Standard configuration: Machine:

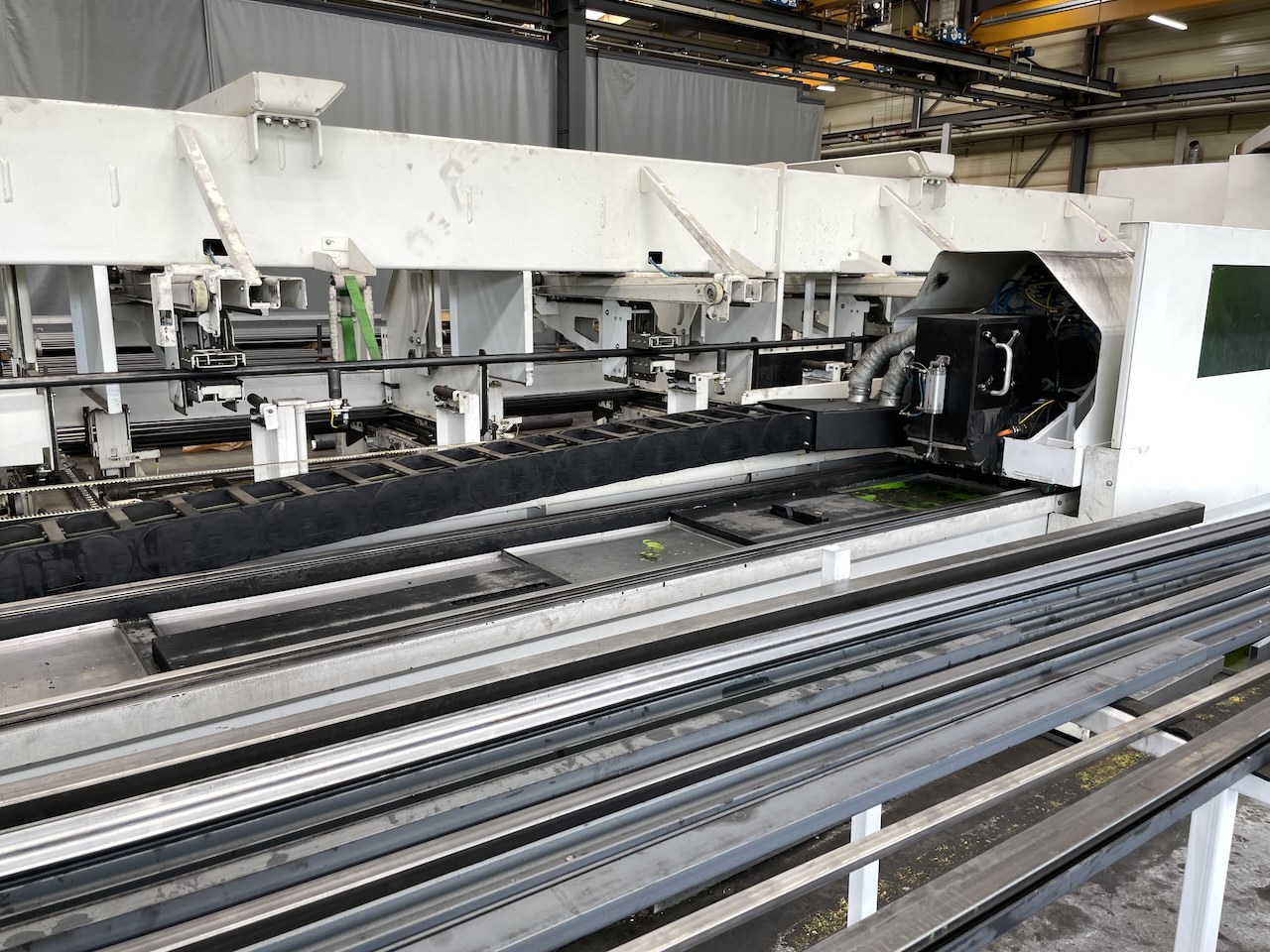

  • Stable machine frame Pipe support raw material with automatically retractable pipe supports Push-through chuck with self-centering parallel clamping rollers
  • High-precision drives

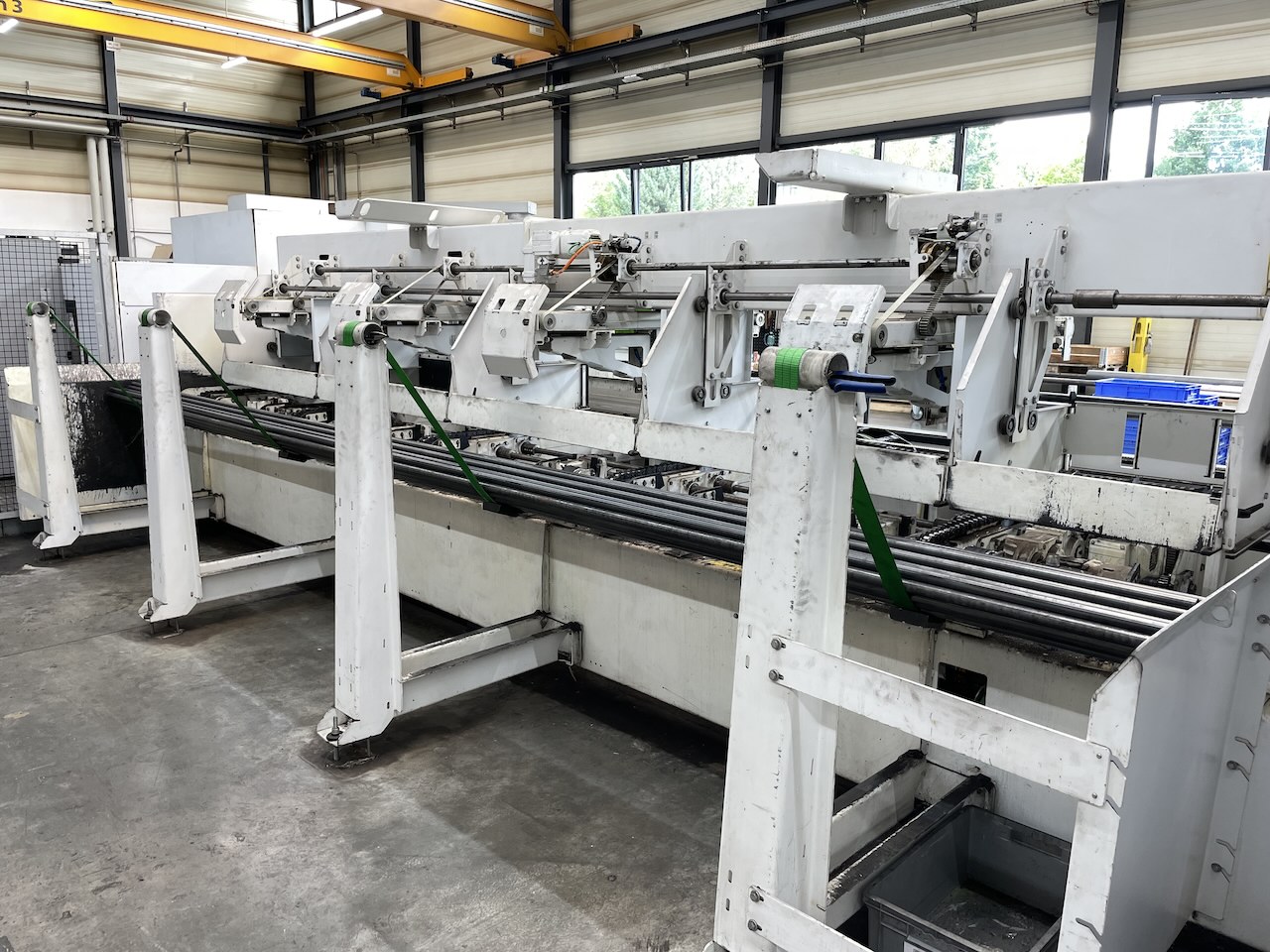

  • LoadMaster Tube 6.5m with bundle trough
  • exclusion station
  • parts tray
  • Pipe support finished part with extendable guide rollers

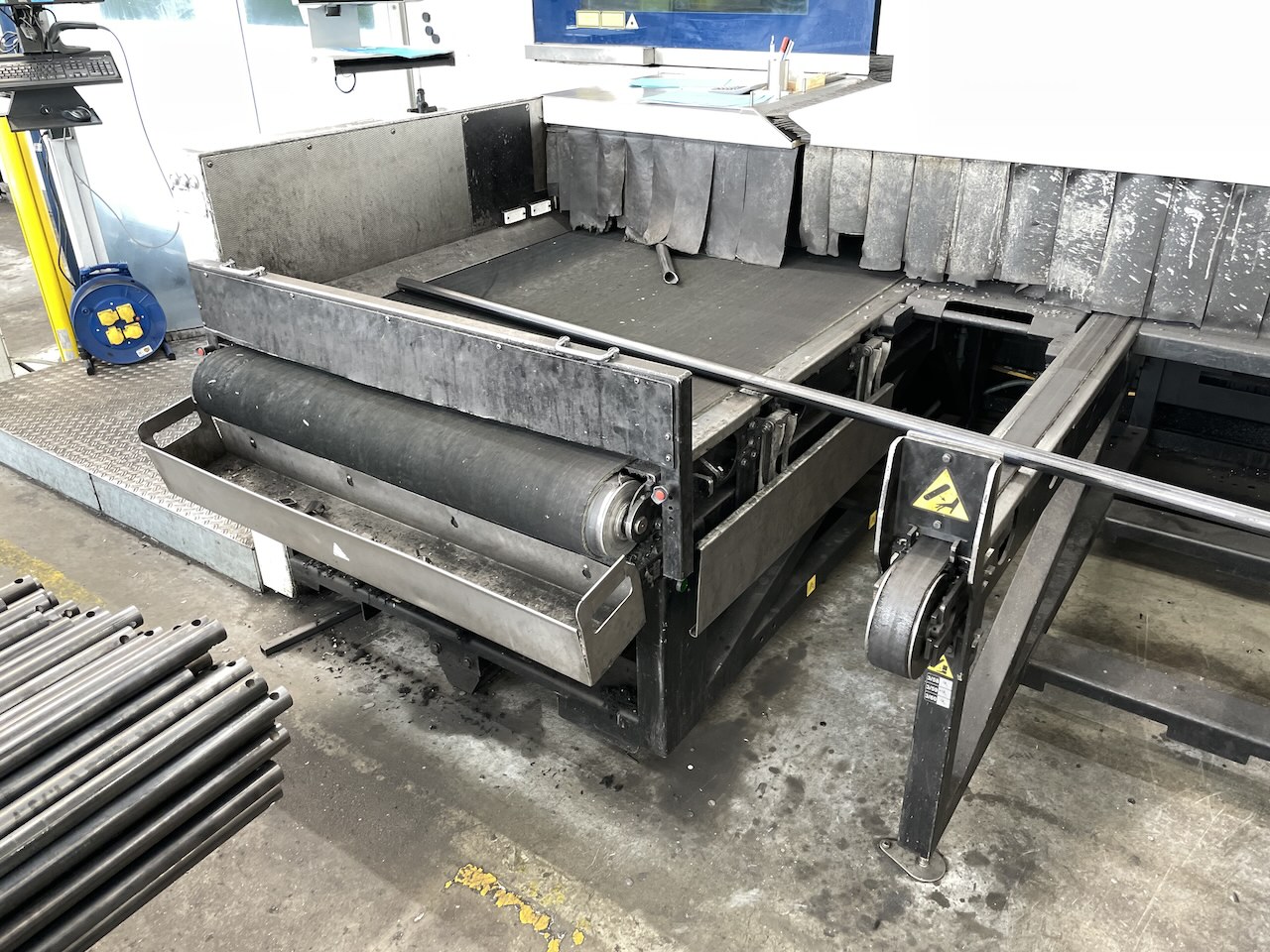

  • Scrap conveyor belt with bin
  • Closed beam guidance via fiber optic cable (LLK)
  • PierceLine
  • NitroLine
  • FocusLine
  • Programmable cutting gas pressure
  • automatic switch-off
  • Ergonomic control panel with color touch screen
  • Trump TruLaser

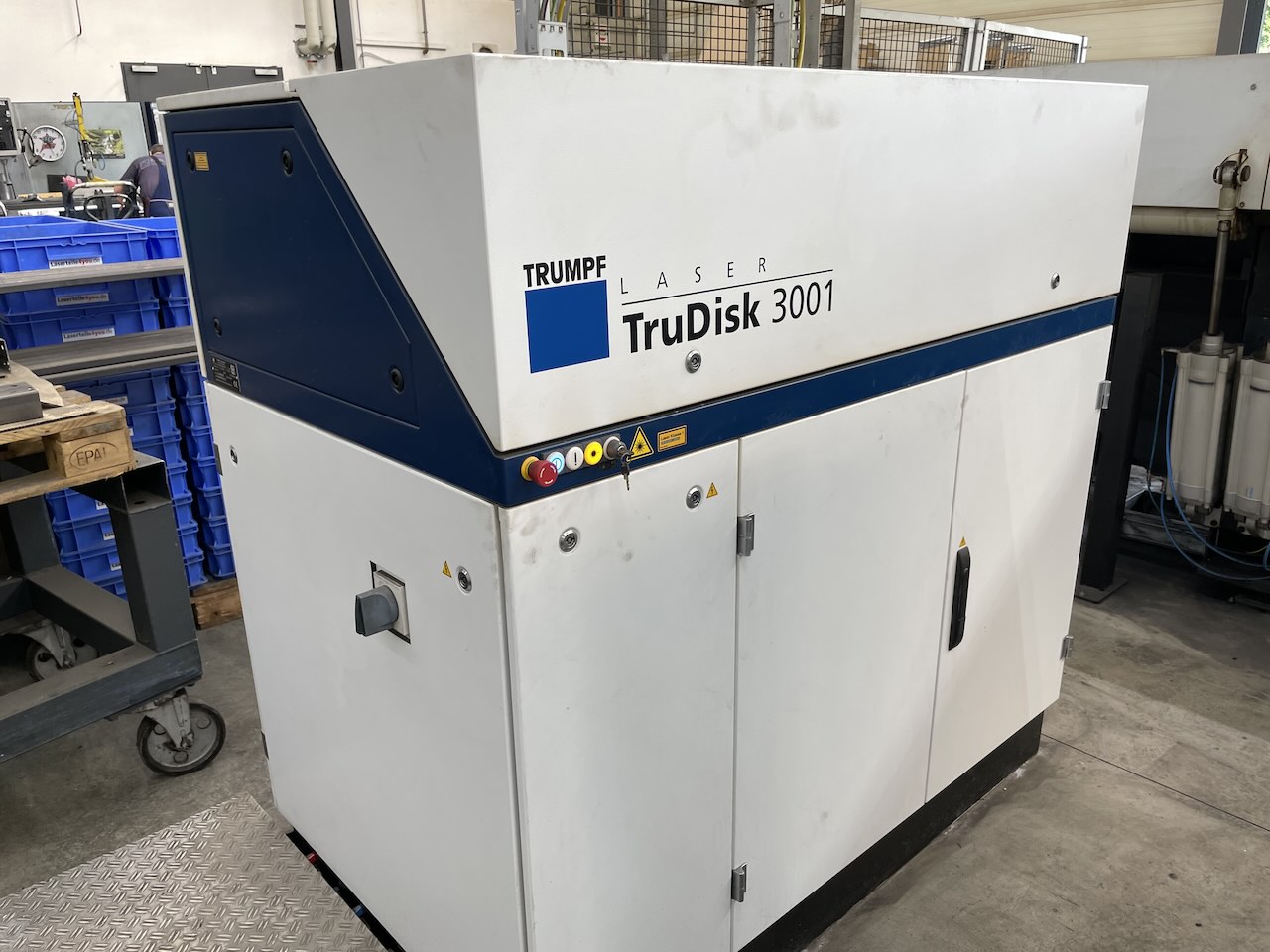

  • External solid-state laser TruDisk 3001 with 1 LLK outlet, diode-pumped disk laser with a wavelength of 1.03 nm
  • Excitation via pump diodes
  • laser power control
  • Logbook function LAser
  • cutting unit:
  • universal cutting unit
  • One cutting head strategy
  • ControlLine
  • control:
  • Sinumerik 840 D SL
  • easy handling
  • Online help
  • Integrated technology
  • data Teleservice via the Internet
  • Data transfer:
  • RJ45 network connector
  • USB
  • Security:
  • CE marking multi-beam light barriers
  • Monitoring system for gas pressure temperature and cooling water

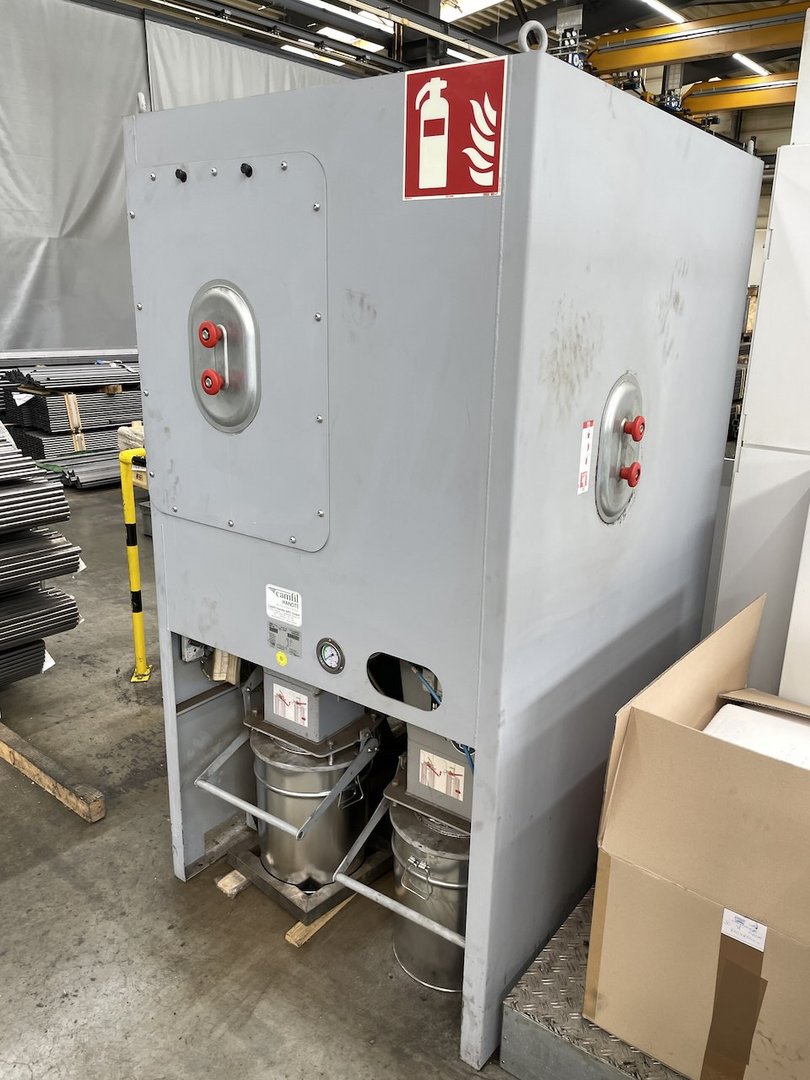

  • Compact dedusting system
  • Protective cabin with certified safety panes
  • Extended machine accessories:
  • Rapid Cut
  • Bevel cut technology package
  • Finished part length +1.5 m (to 4.5 m)
  • SeamLine Tube
  • Wireless Operation Point
  • Low-scratch version LoadMaster Tube 6.5 m
  • Tube diameter 15 mm
  • Automation:
  • LoadMaster Tube 6,5 m with bundle support
  • This reliable all-around machine replaces conventional, sepa- rate manufacturing operations such as sawing, drilling, milling and punching, and enables the ideal entry into the laser tube processing industry. It owes its high productivity to the perfectly coordinated operation of its components, from the laser unit and its beam guidance system to the clamping units and system control software as well as the tube and profile handling modules.
