MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • COMESSA
  • Model:
  • COMESSA PHM 2000 / 800
  • Condition:
  • Used
  • YOM:
  • 1978
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Pressure total: 200 ton
  • Stroke: 630 mm
  • Daylight: 1000 mm
  • Table surface area : 1.600 x 1.250 mm
  • Slide area: 1.600 x1.250 mm
  • Die cushion capacity in table: 80 ton
  • Die cushion stroke: 320 mm
  • Die cushion pad area: 1.250 x 1.000 mm
  • Distance between the columns: 1.650 mm
  • Distance between the columns F - B: 500 mm
  • Approach speed: 300 mm / sec
  • Working speed: 10 - 30 mm / sec
  • Return speed: 50 - 140 mm / sec
  • Required power: 37 kW
  • Height over floor approx.: 5.200 mm
  • Weight of machine approx.: 25 ton

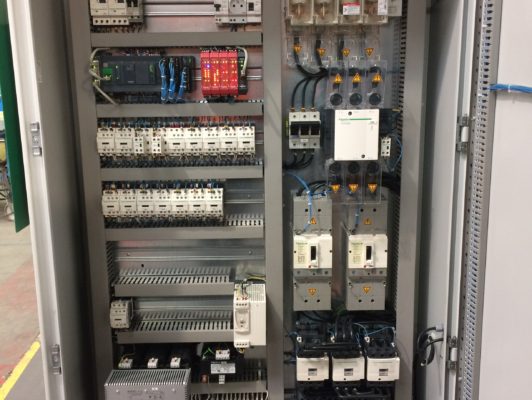

  • electric revised
