MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • FEINTOOL
  • Model:

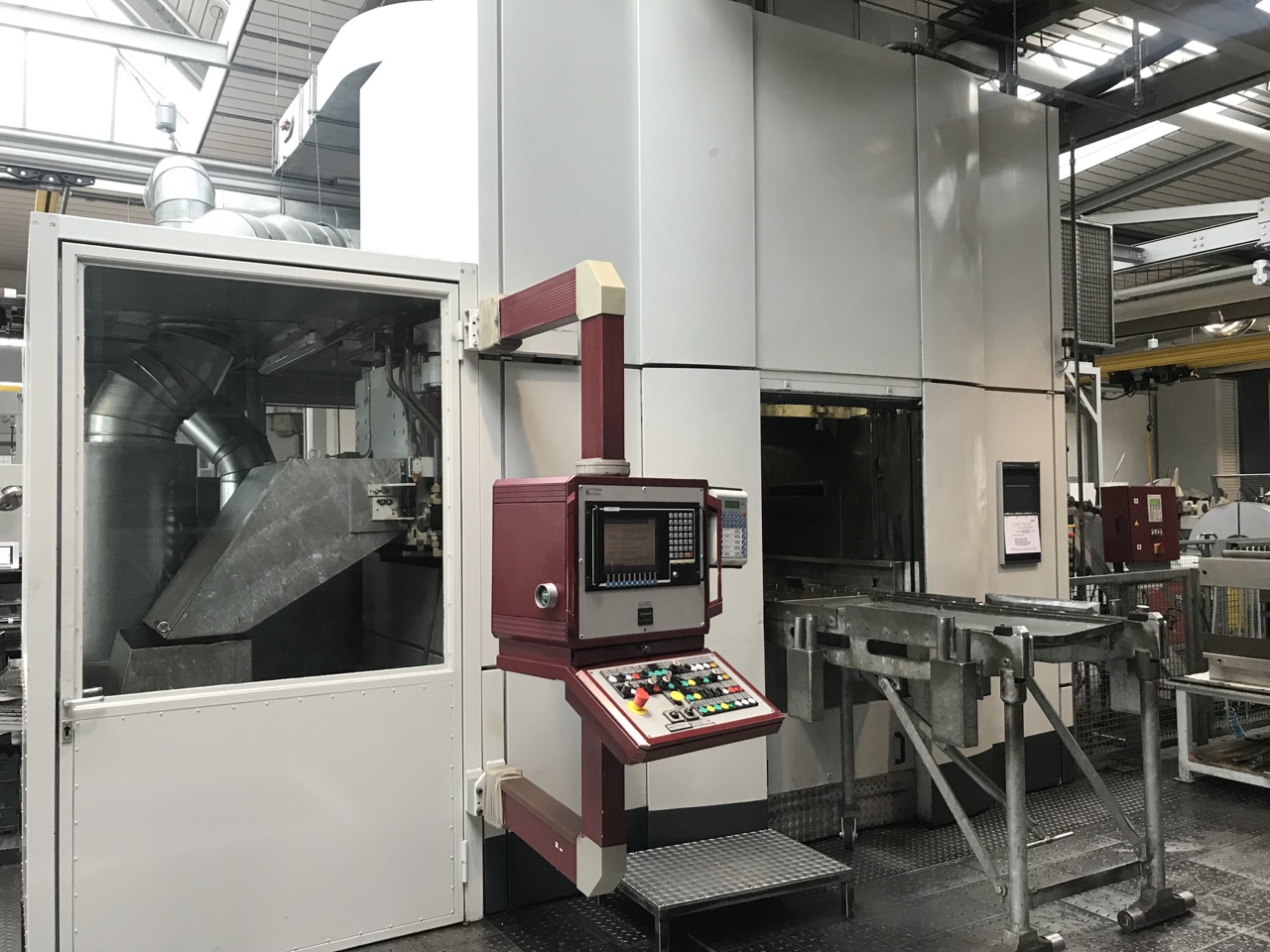

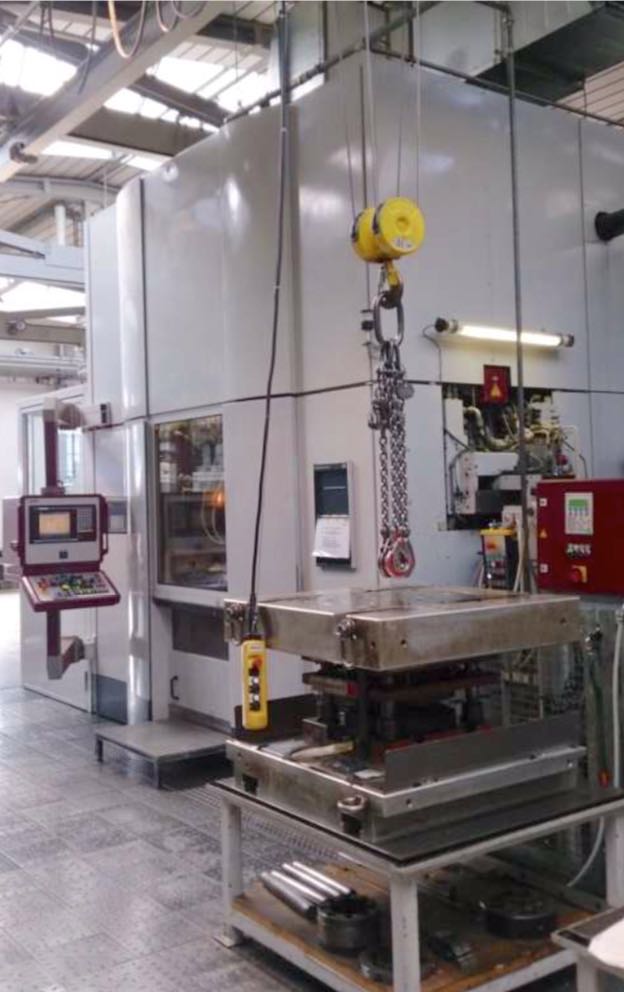

  • FEINTOOL HFA 8000
  • Condition:
  • Used
  • YOM:
  • 1997
  • Control:
  • SIEMENS S5 controller
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Capacity: 500 - 800 ton
  • V – Ring nominal force: 40 - 400 ton
  • Counter ram nominal force: 20 - 200 ton
  • Ejector Force: 65 ton
  • Ram stroke: 30 - 200 mm
  • V-Ring stroke: 40 mm
  • Counter ram stroke: 40 mm
  • Ram surface: 1.000 x 1.000 mm
  • Table surface: 1.010 x 1.600 mm
  • Number of strokes: 40 s.p.m.
  • Feeding speed: 5 - 50 mm
  • Approach speed: 120 mm / sec
  • Return speed: 135 mm / sec
  • Working speed: 5 - 50 mm / sec
  • Required power: 179 kW

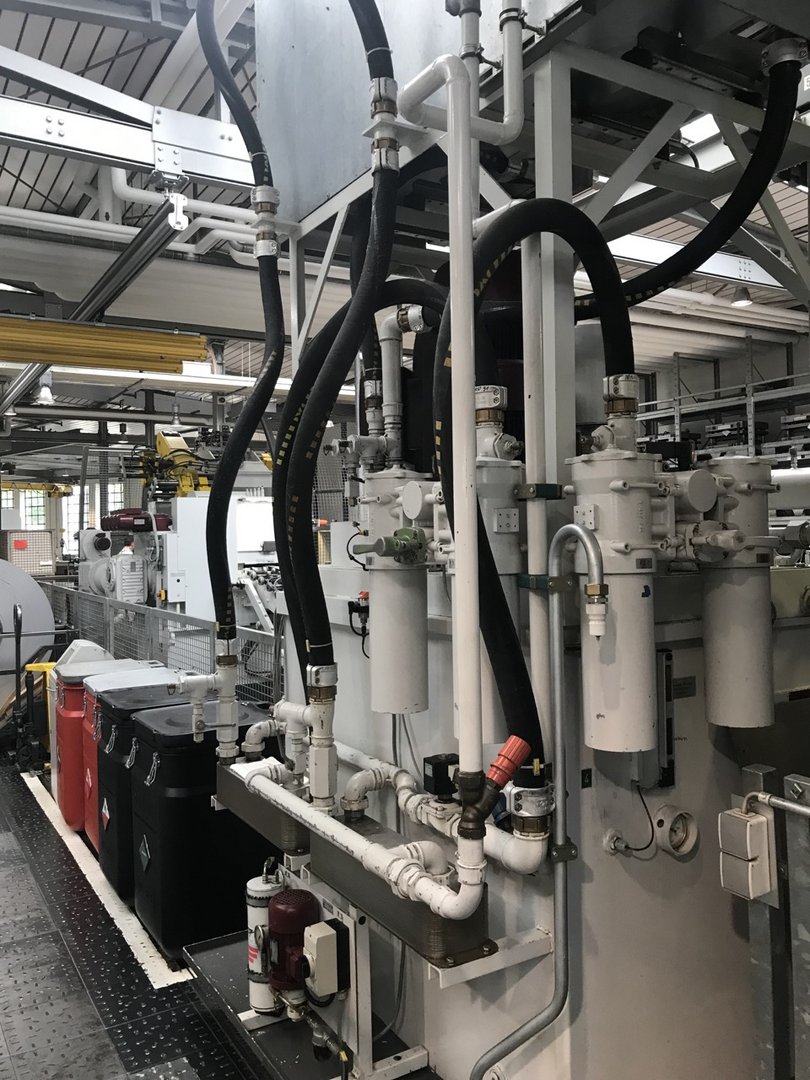

  • Oil volume: 2.200 l
  • Machine weight: 45,2 ton
  • SIEMENS S5 controller
  • BECKHOFF roll feed control including measuring wheel

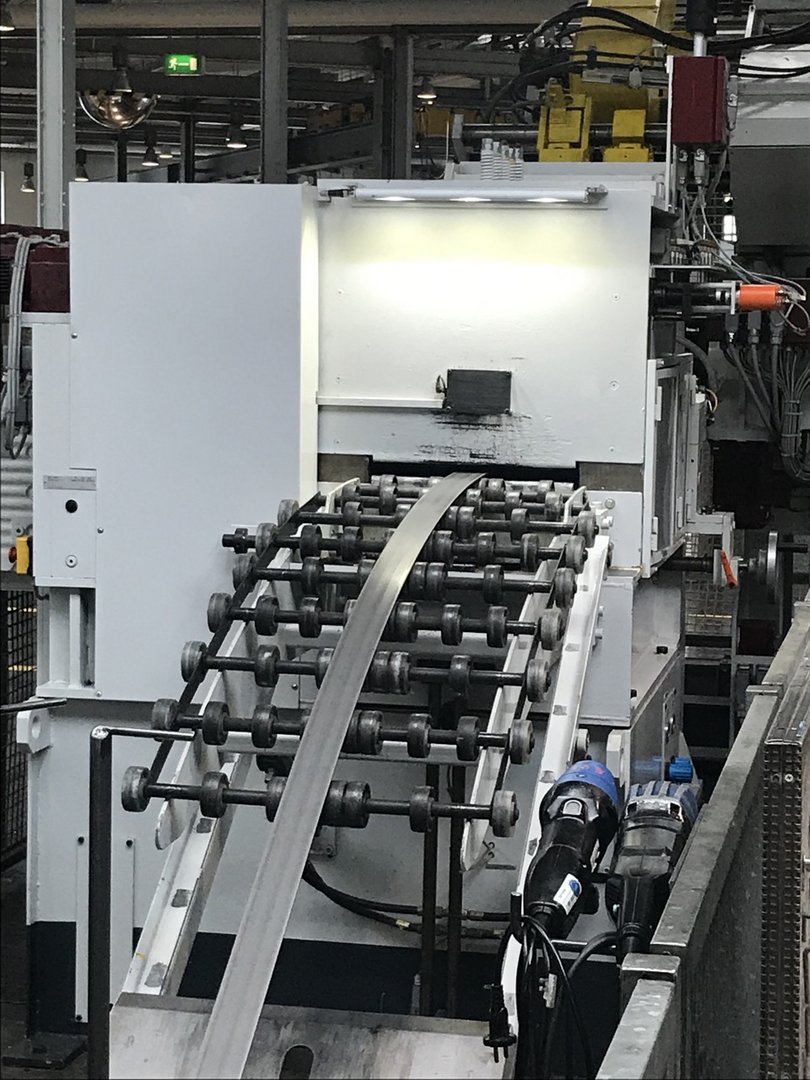

  • Feeding line consisting of:
  • Working direction from right to left
  • SMG roll feeder
  • Diameter of the rolls ca. 115 mm
  • Material width 40 - 450 mm
  • Material thickness 0,5 - 16 mm
  • Material minimum length 3.300 mm
  • Entrance length 1 - 1.000 mm

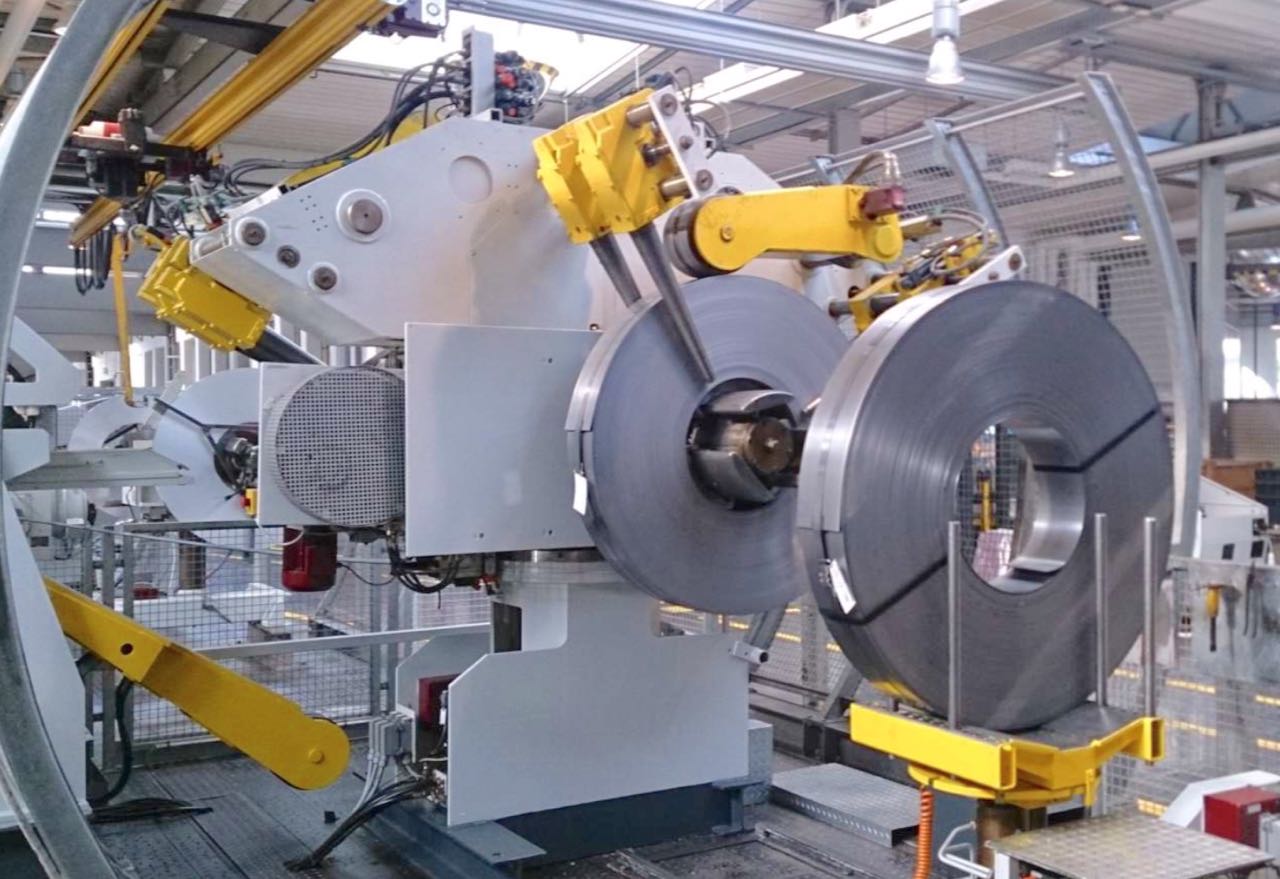

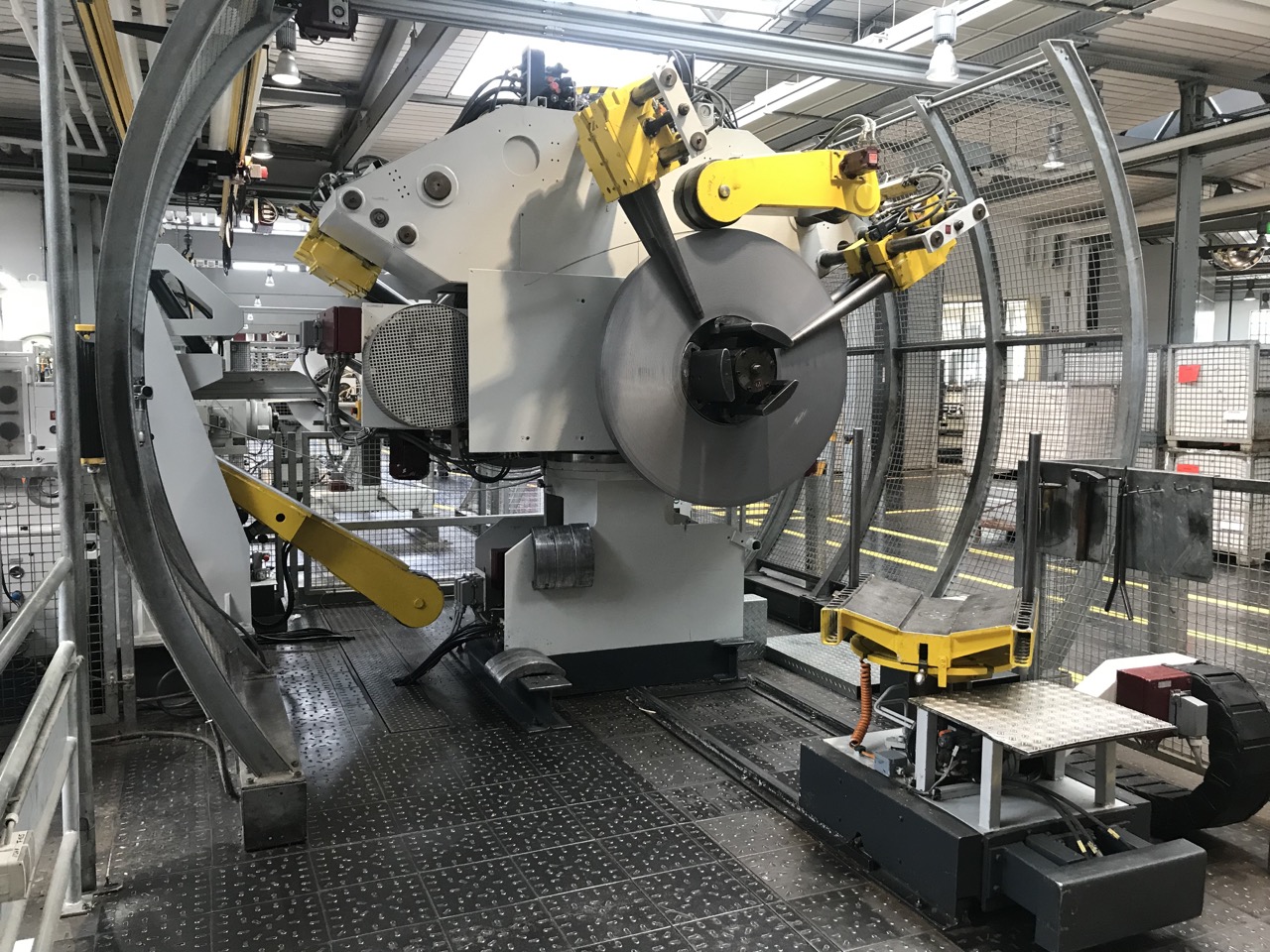

  • SCHLEICHER double - decoiler Type HDM-10-650
  • Coil weight each side 6 t
  • Coil exterior diameter min. 1.000 mm
  • Coil exterior diameter max. 1.000 mm
  • Coil interior diameter 400 + 500 mm
  • SCHLEICHER leveler Type RMS-Vario-70-96/160-450
  • 2 piece - swing in rolls - diameter 160 mm
  • 8 piece - leveler rolls - diameter 96 mm
  • 2 piece - leveler rolls - diameter 70 mm
  • Distance of straightening rolls 104 mm
  • Levelling speed 0 - 25 m/min
  • Coil loading chart
  • Very good condition.
  • 2015 all zylinders have been get new sealings. 2
  • 011 PLC for Feeder unit has been renewed (Beckhoff).

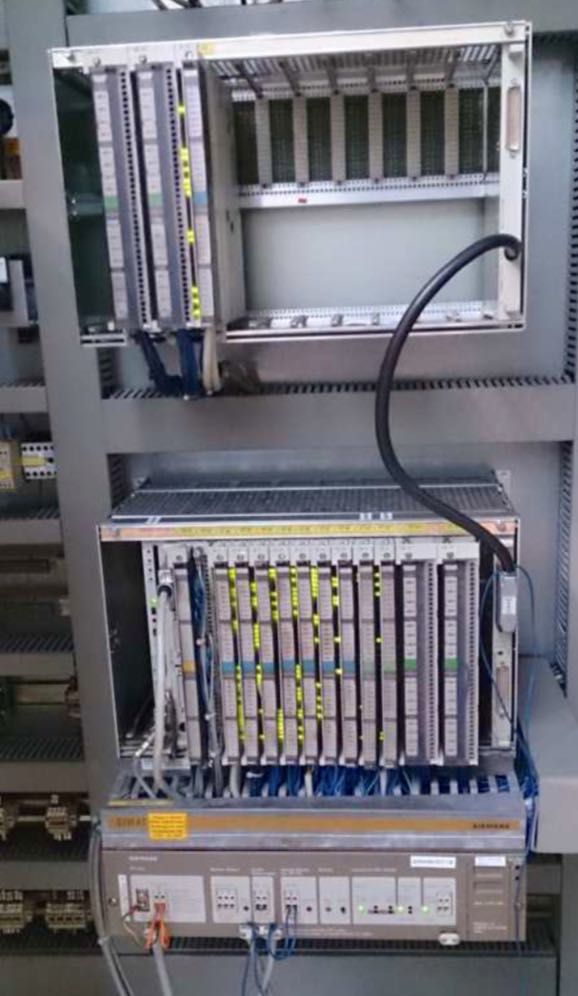

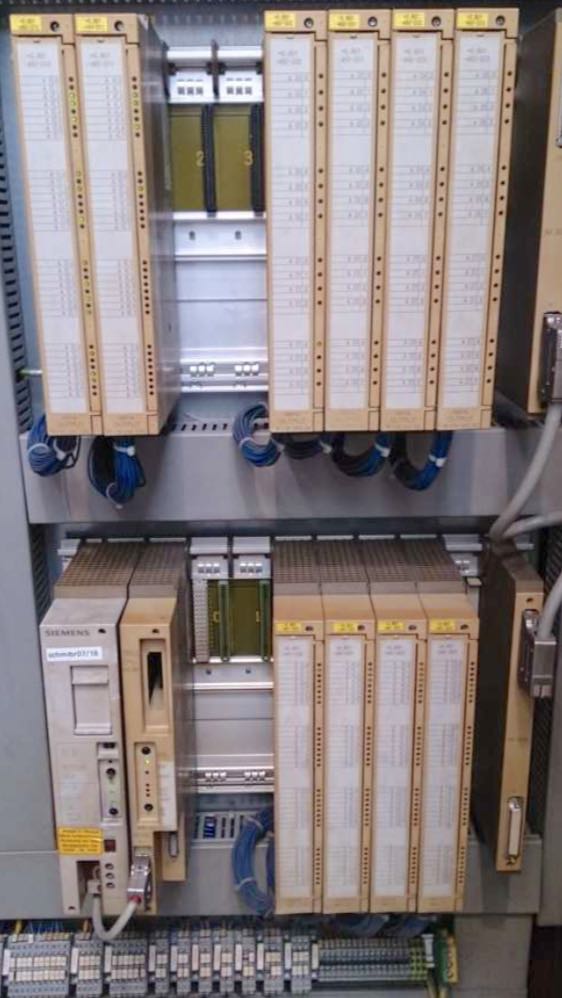

  • PLC of Press is SIEMENS S5.
