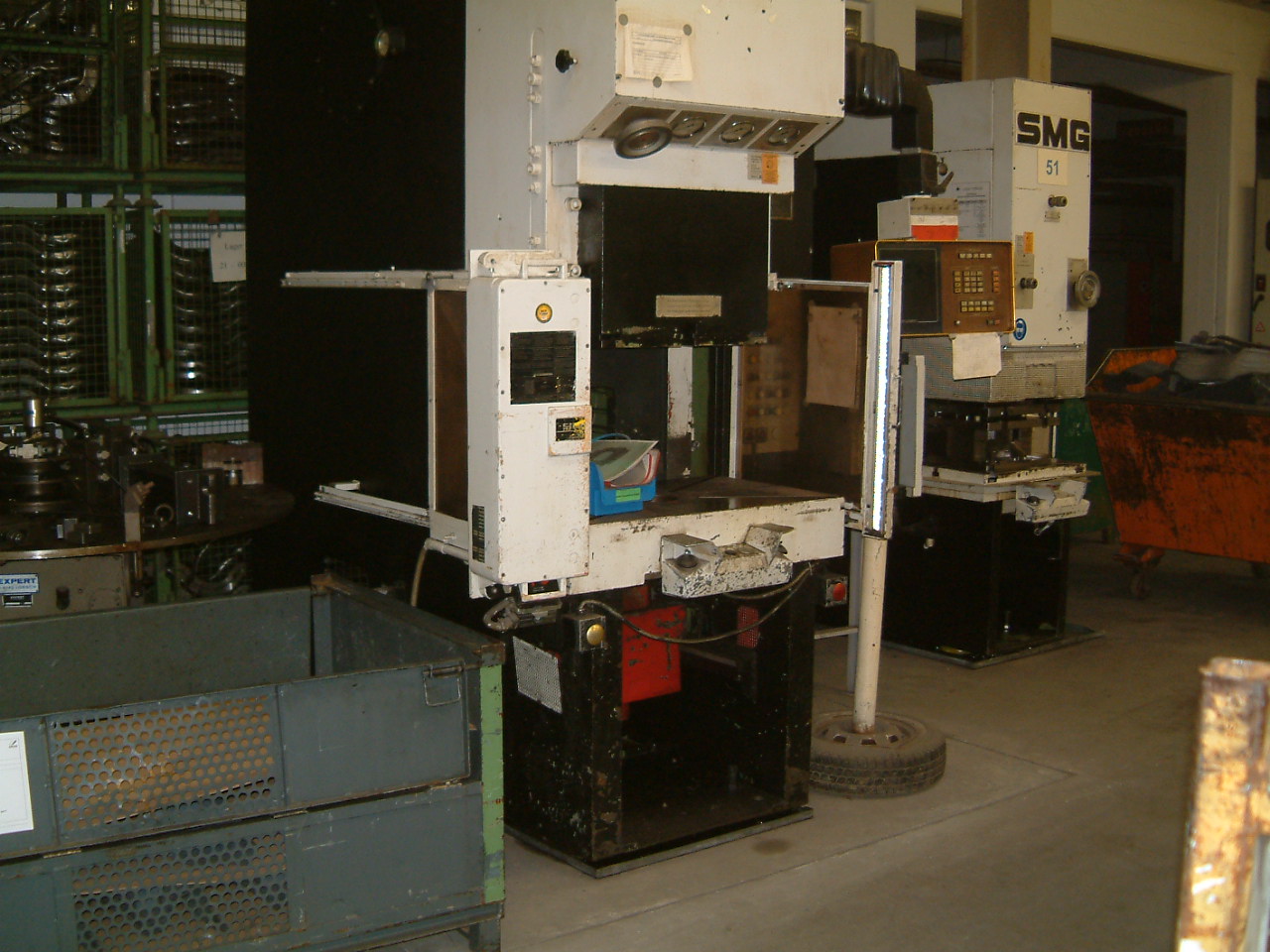

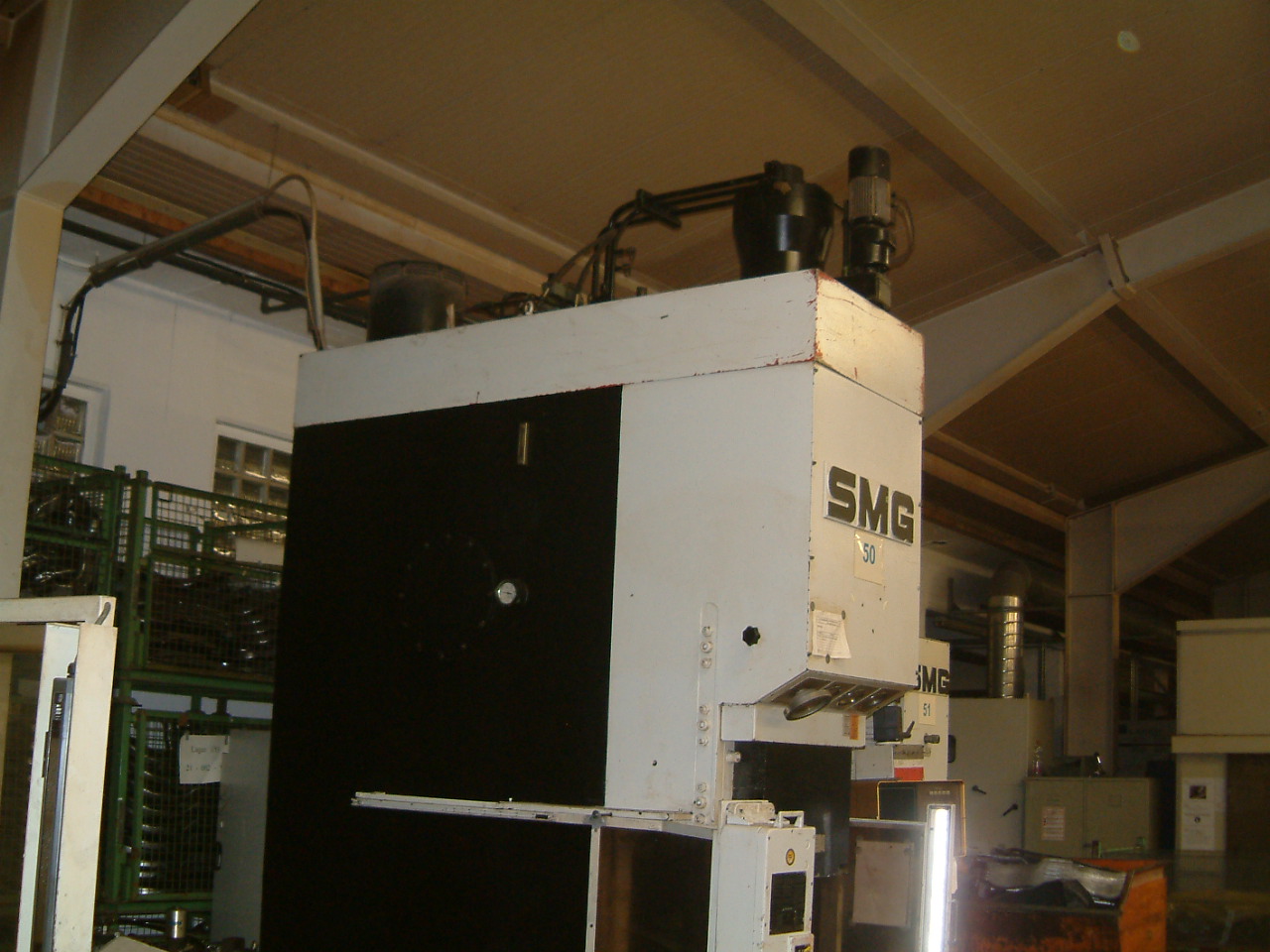

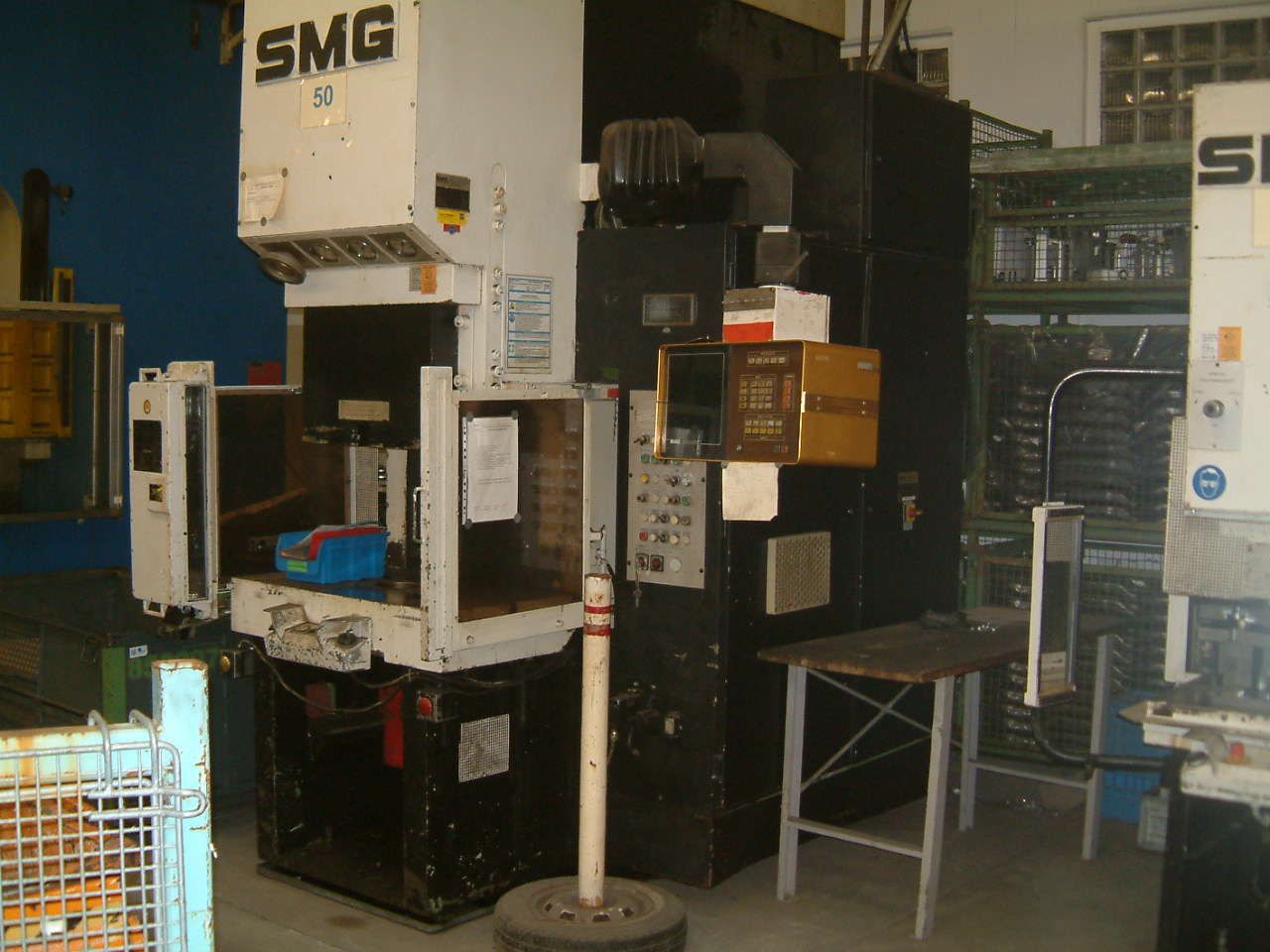

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SMG
  • Model:
  • SMG CSZ 100-1000/600
  • Condition:
  • Used
  • YOM:
  • 1984
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Press capacity: 100 ton
  • Throat depth: 320 mm
  • Stroke: 300 mm Daylight: 500 mm
  • Table surface area : 1.000 x 600 mm
  • Slide area: 600 x 320 mm
  • Table height over floor: 950 mm
  • Approach speed: 400 mm / sec
  • Working speed: 50 mm / sec
  • Return speed: 400 mm / sec
  • Die cushion capacity in table: 25 ton
  • Die cushion stroke: 100 mm
  • Ejector in ram: 5 ton
  • Ejector stroke in ram: 50 mm
  • Required power: 45 kW
  • Machine weight: 11,8 ton
.
