MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Haas
  • Model:
  • Haas VF4
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Haas VF4

Name of Machine: Haas VF4
YOM: Dec 2006
Stock Numnber: cmu/0288

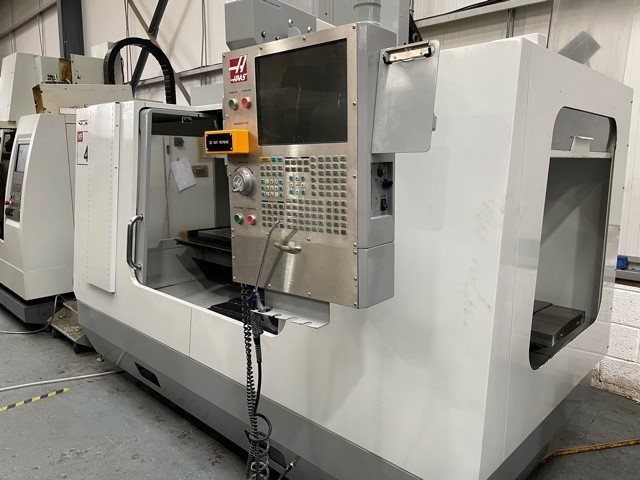

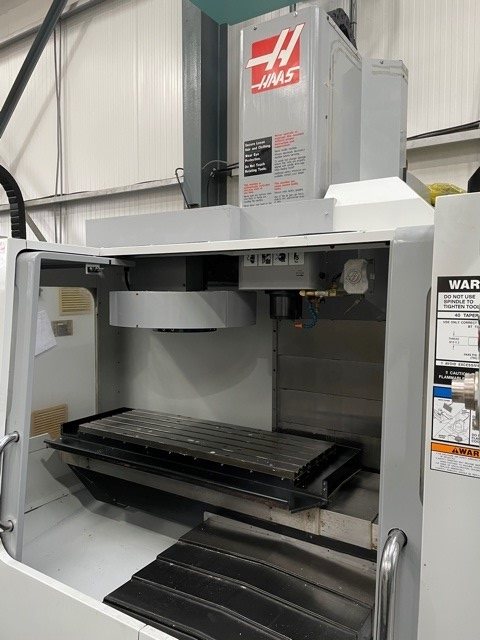

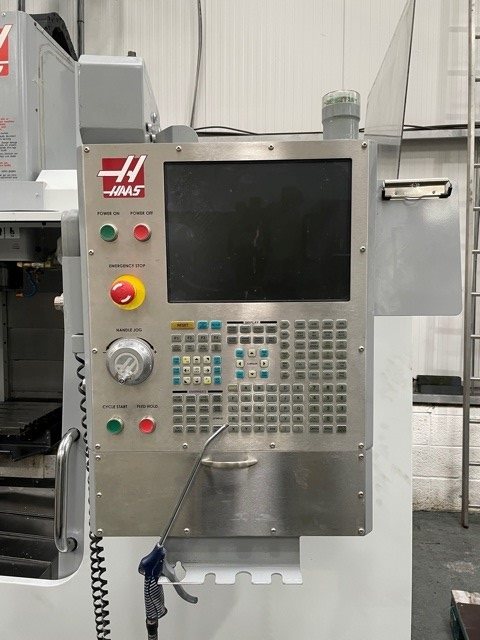

A superbly well maintained, supplied in 2007, Haas VF4 Vertical Machining Centre

Specification:

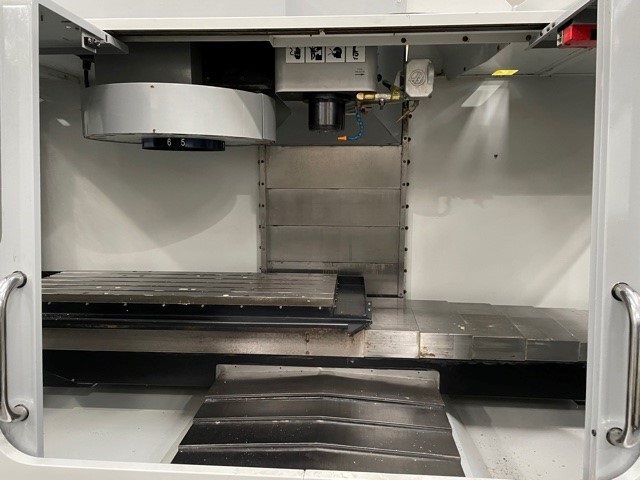

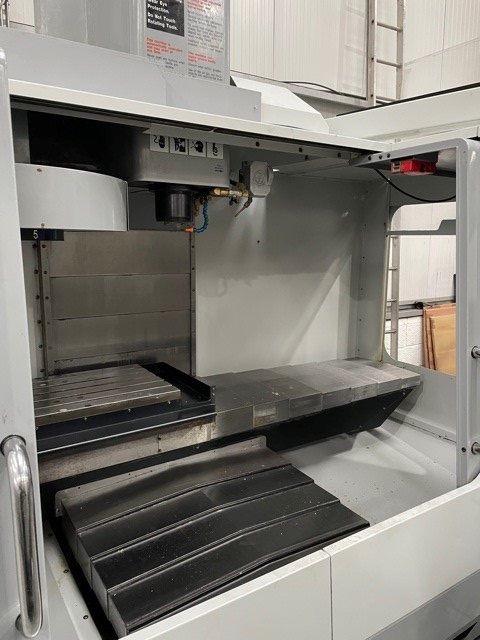

Table size: 1321mm x 457mm
Movements X, Y, Z: 1270mm x 508mm x 635 mm
Spindle spec: 40 taper, 30 hp, 8100 rpm
ATC: 20-station carousel tool changer
Feed rates: 25 m/min rapids
55-gallon (208 litre) flood coolant system
Condition: Used
Location Fishponds, Bristol
Price: POA
Shipping Details: A VAT invoice will be supplied within 48 hours of the sale end date. Delivery off loading and siting are all available with this machine at extra cost.
