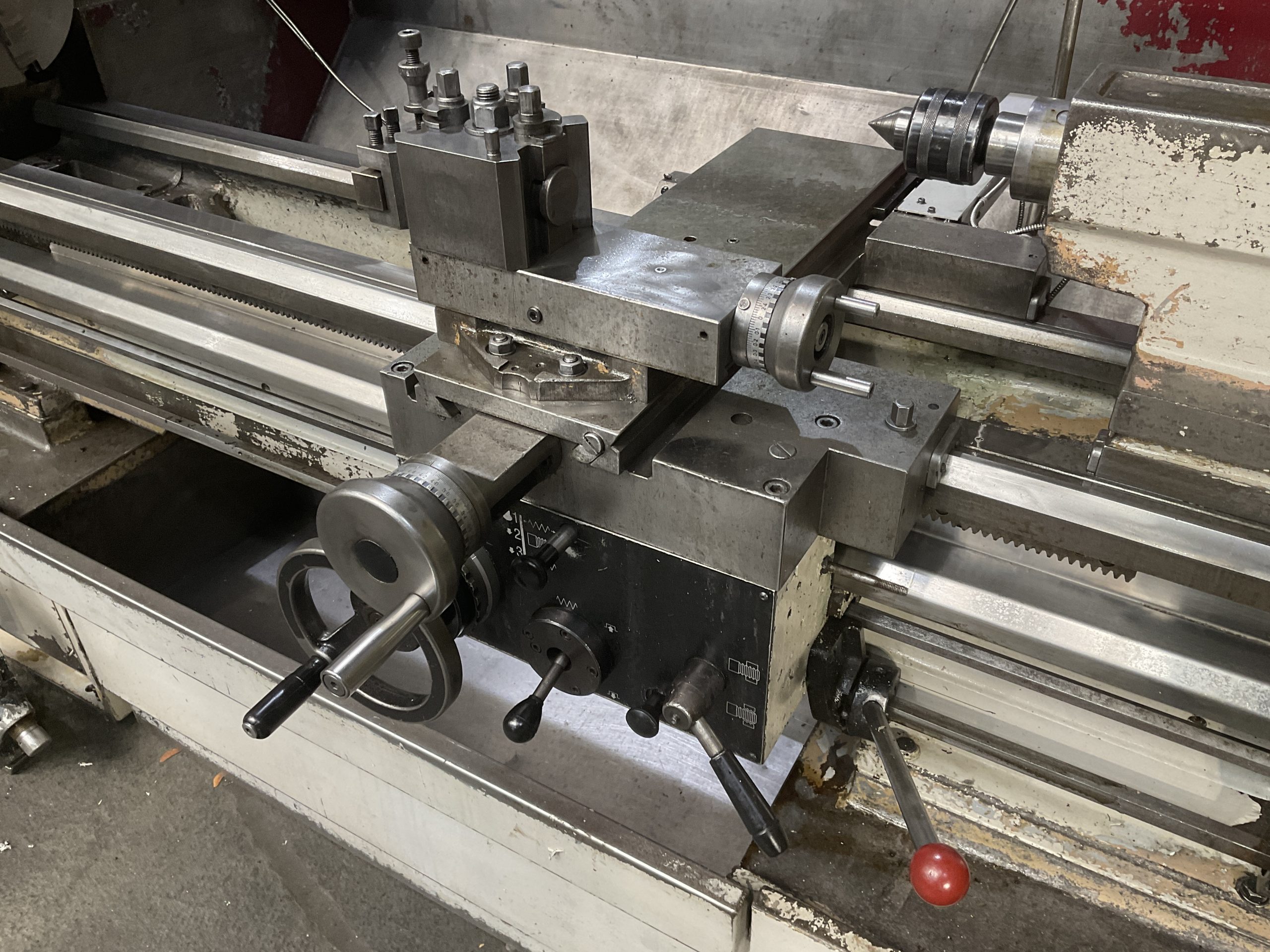

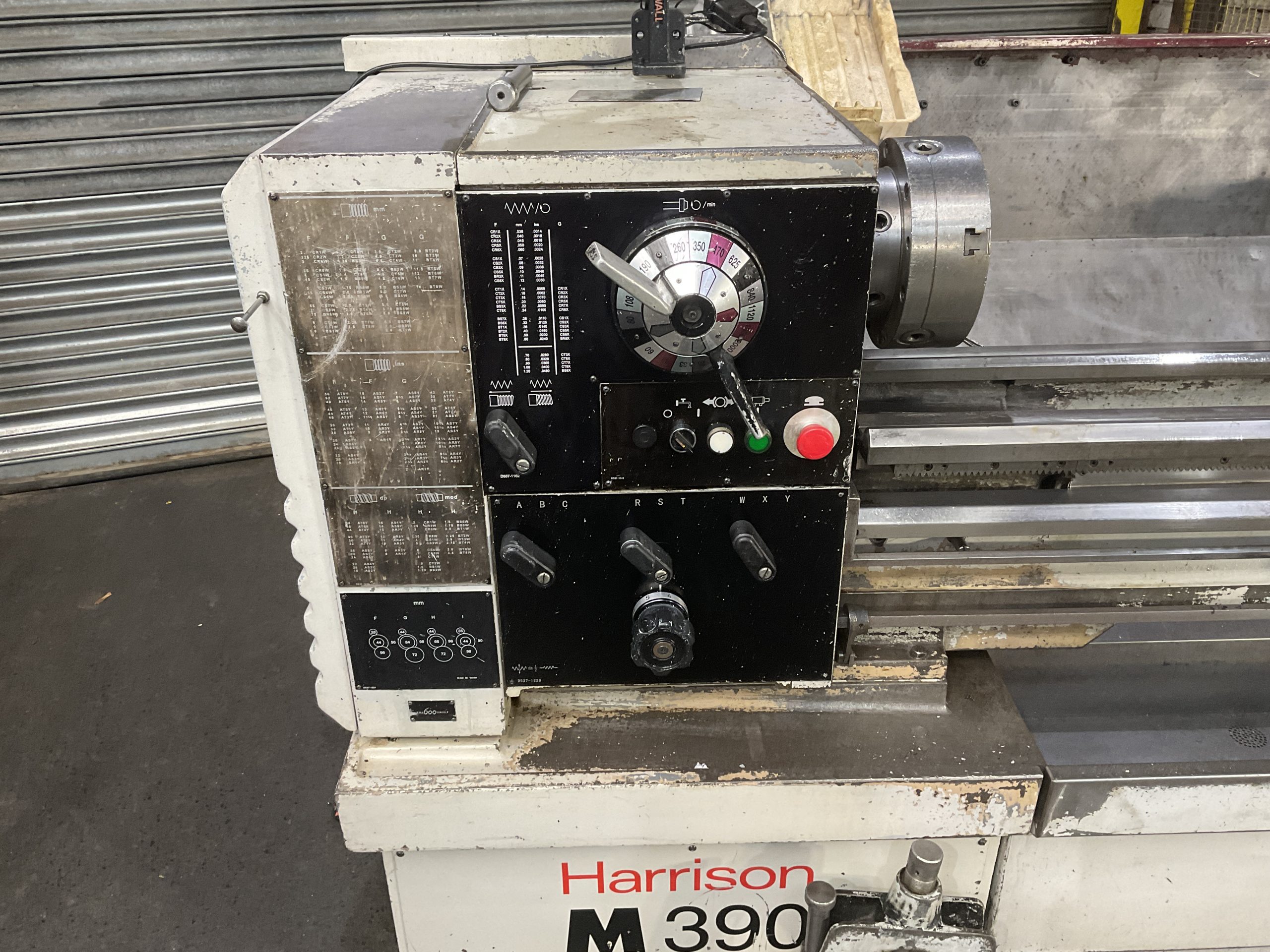

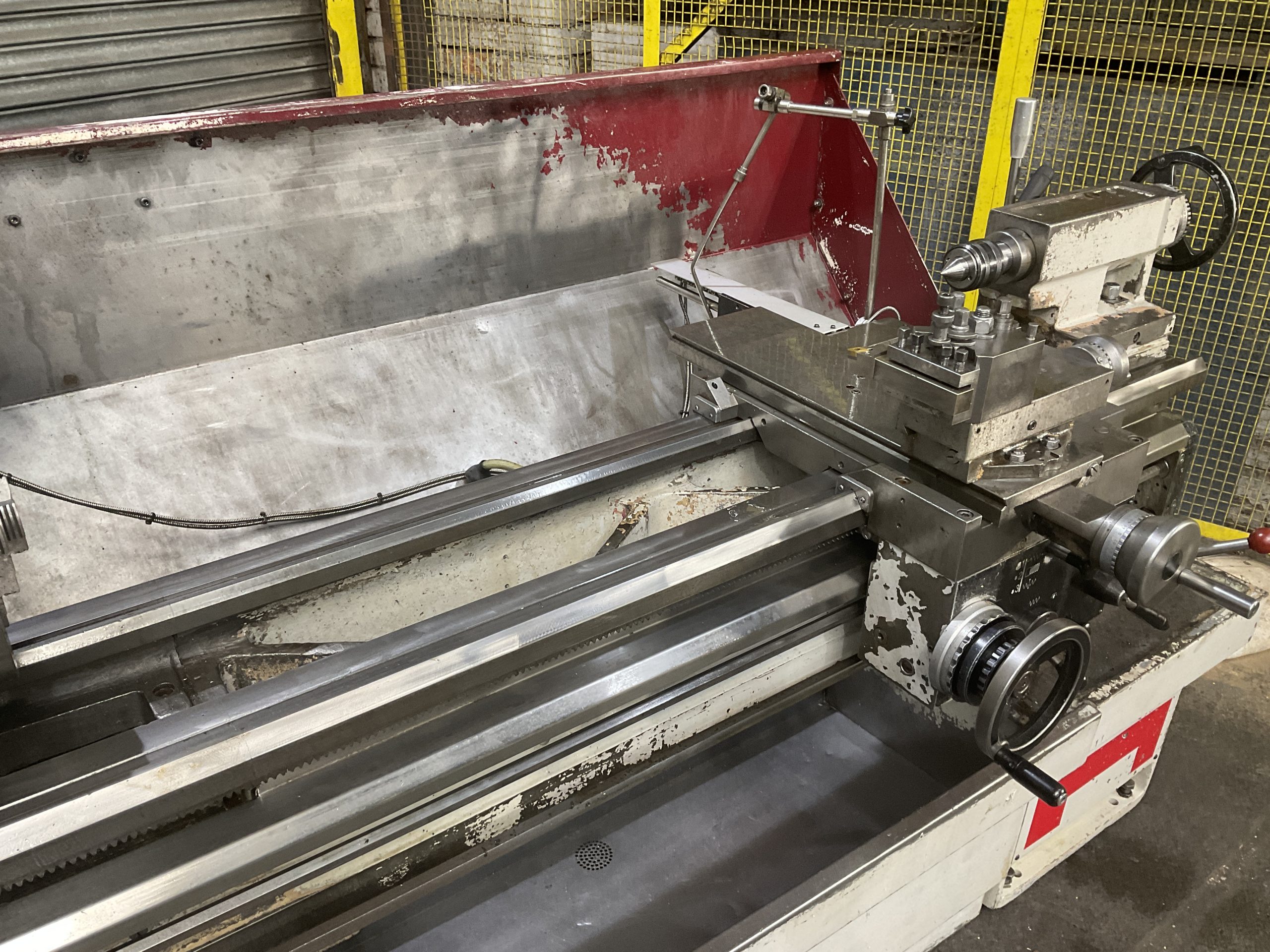

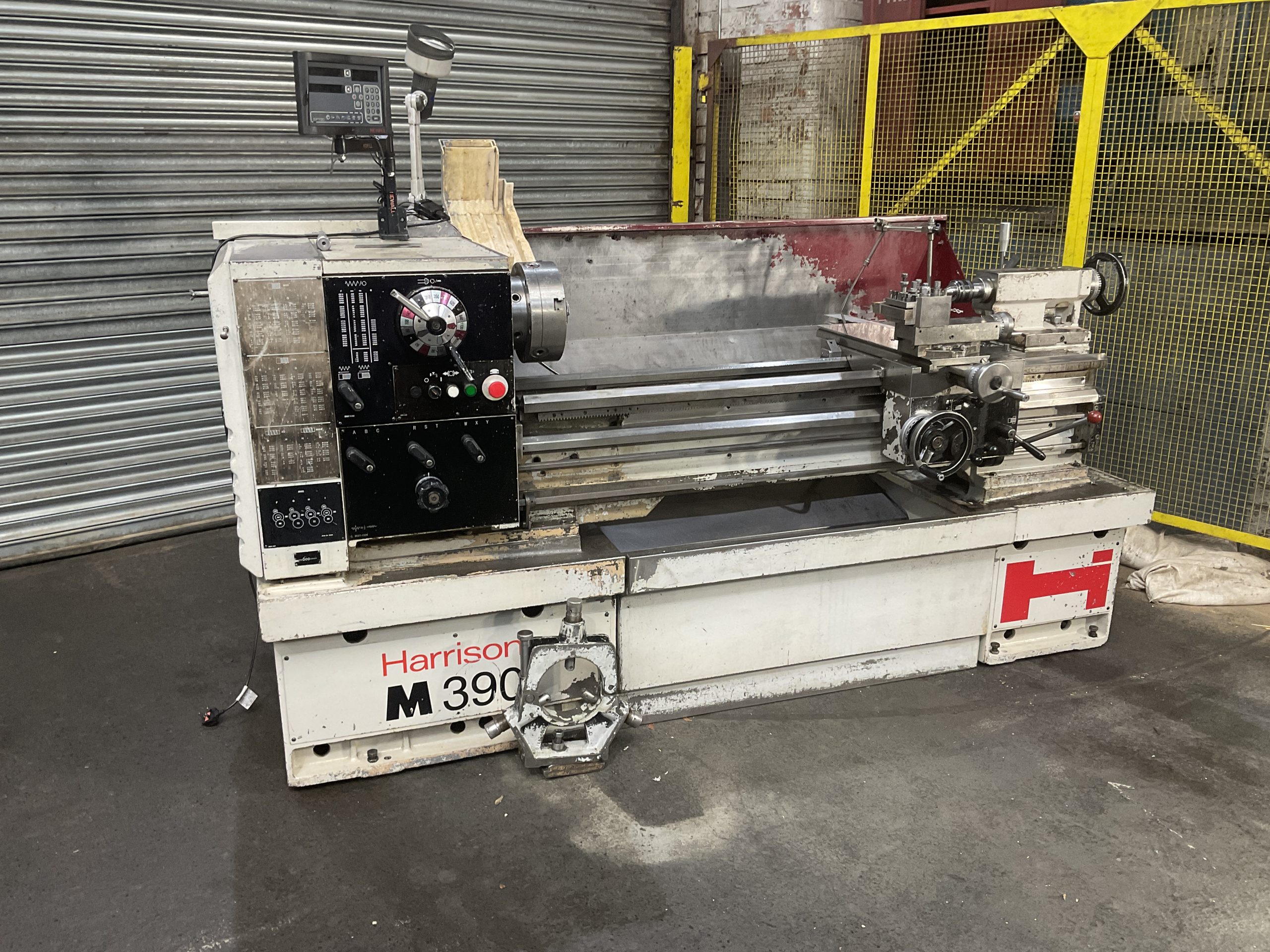

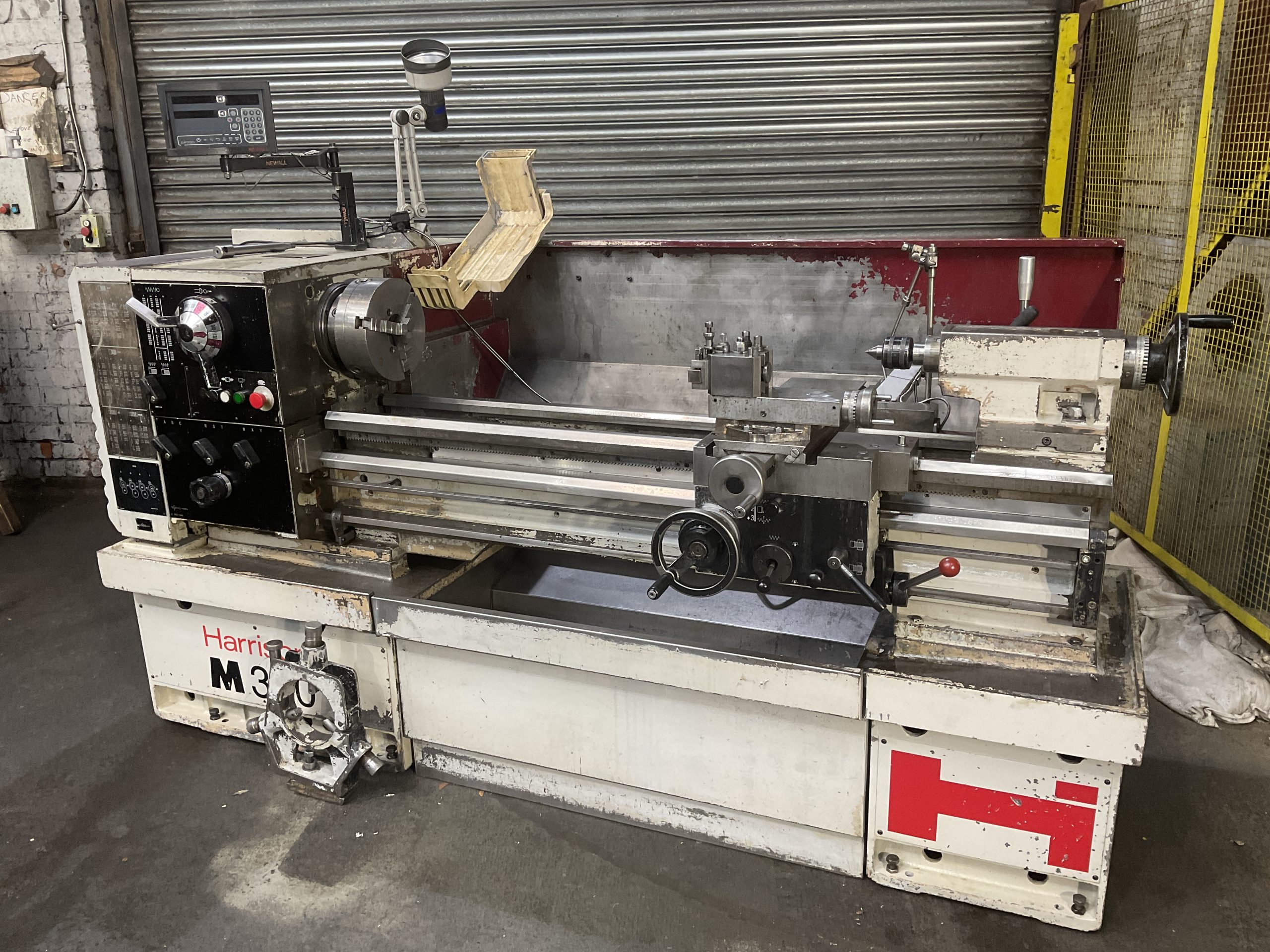

Centre Height 195 mm Swing over bed 400 mm Swing over cross slide 246 mm Swing in gap 585 mm Distance between centres 1250 mm Spindle Bore 54 mm Speed Range 25-2000 rpm C/w 3- 4jaw Chucks, Quick Change tool-post, Fixed Steady and DRO
