Grinding/HAUSER 3-SMO COORDINATE GRINDING MACHINE

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Cutting

Subcategory:
Grinding

Manufacturer:
GRINDING

Model:
HAUSER 3-SMO COORDINATE GRINDING MACHINE

Condition:
Used

YOM:
N/A

Control:

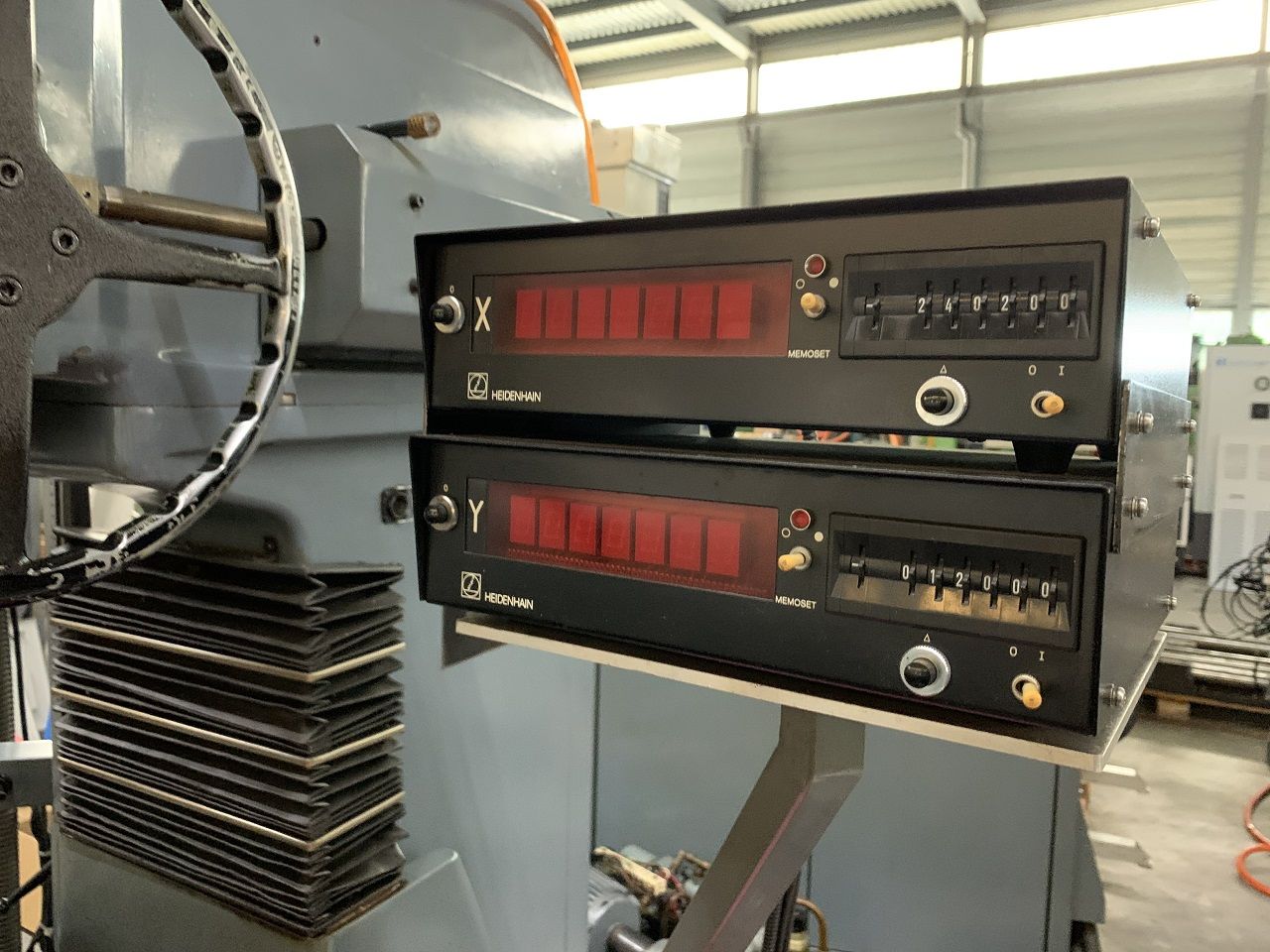

Heidenhain digital read-out on 2 axis

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

INFORMATION
Manufacturing origin : Swiss
Voltage : 380 / 50 / 3
Netweight : 2405 kg
Dimensions : 210x150x250 cm
Total power : 6,6 kW
Custom position : 8460.2920
TECHNICAL DATA
CAPACITY

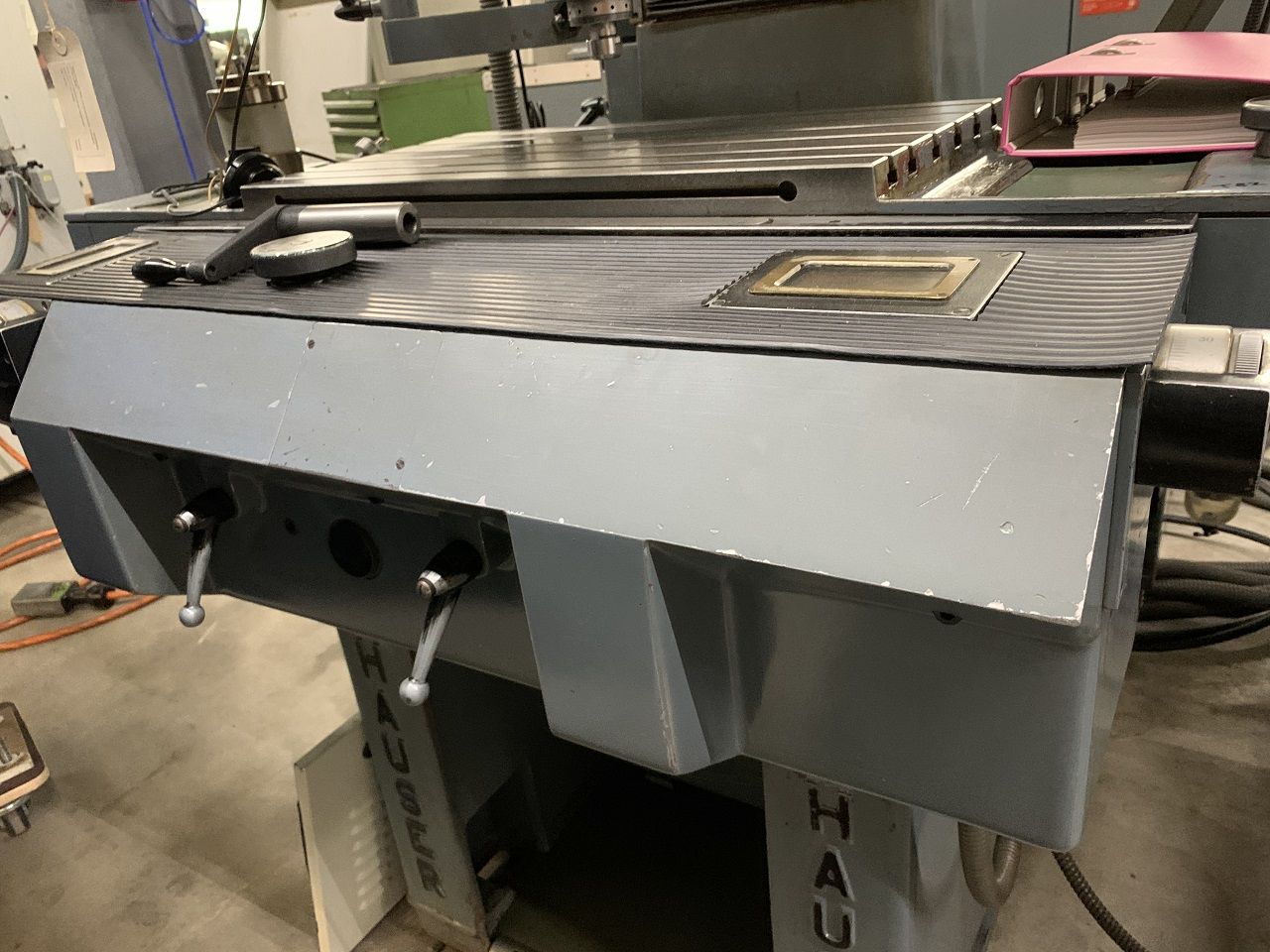

Working surface of table : 595×320 mm
Range of table travel : 400×250 mm
Travel of vertical slide : 400 mm
Max. clearance between spindle and table : 420 mm
Depth of throat : 310 mm
Diameter of largest bore to be ground : 220 mm
by means of the adapter plate approx. : 280 mm
Maximum taper tobe ground (included angle, in
either direction) : 12°

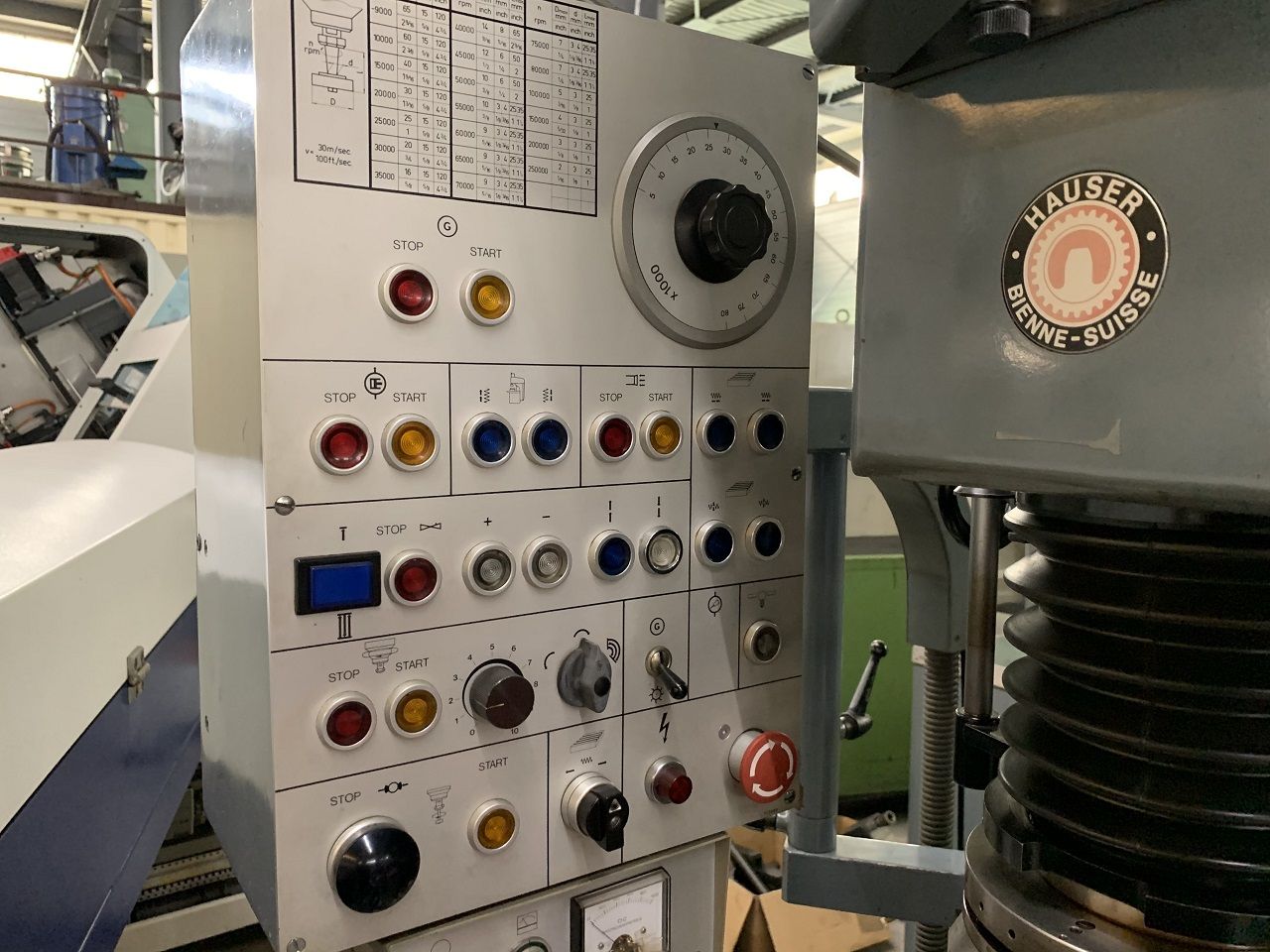

GRINDING HEAD
Axial stroke of grinding spindle, infinitely
variable between : 5 and 90 mm
Speed of reciprocating motion, infinitely variable,
up to : 6 m/min
Speed of planetary motion, infinitely variable
between approx. : 10 – 300 rpm
Spindle speed, infinitely variable between : 9000 – 80000 rpm
with air driven grinding spindle up to max. : 250000 rpm
ACCURACY
Reading on projection screens and dividing drums : 0,001 mm
Guaranteed accuracy of settings : 0,002 mm
errors and omissions excepted data given without obligation
Inventory no. 2030009, consisting of :
1 frequence converter Aconel S1,5-16
1 separat electrical cabinet
1 separat hydraulic groupe

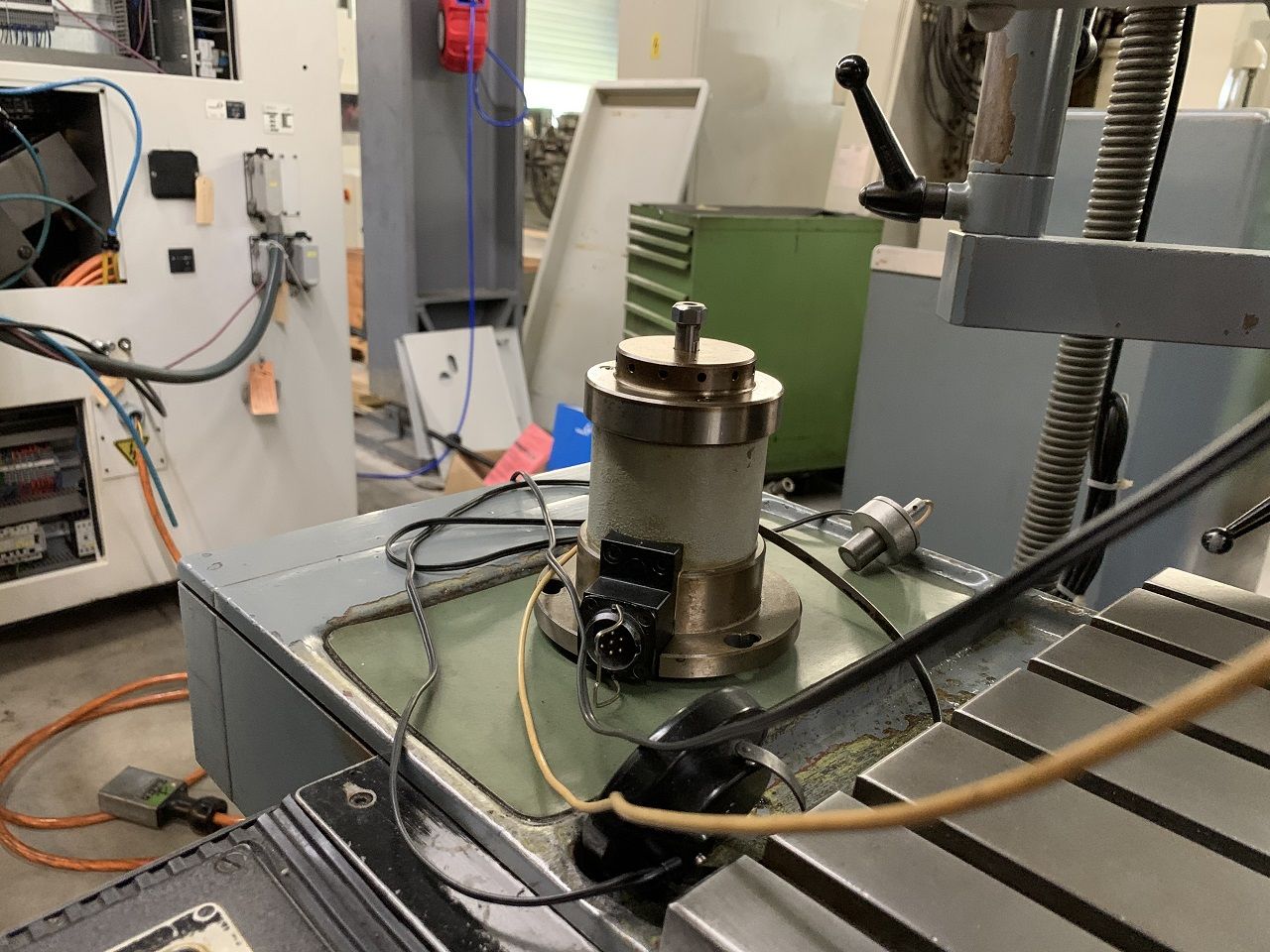

1 suction de vice réf.2951
1 frequence amplificator to control the grinding through optic and accoustic réf.2320
1 grinding motor S45 9’000 à 45’000 t/min for collet E-19
1 grinding motor S80 40’000 à 80’000 t/min for collet F-6
5 collets E-19 Ø 3 – 4 – 6 – 8 and 10 mm
2 collets F-6 Ø 1,0 – 1,5 – 2,5 – 3,5 – 4,0 – 4,5 and 5,0 mm
1 centering attachment without comparator
1 toolcabinet
