MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • BLOESCH
  • Model:
  • DRILLING MACHINE BLOESCH TYPE I
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

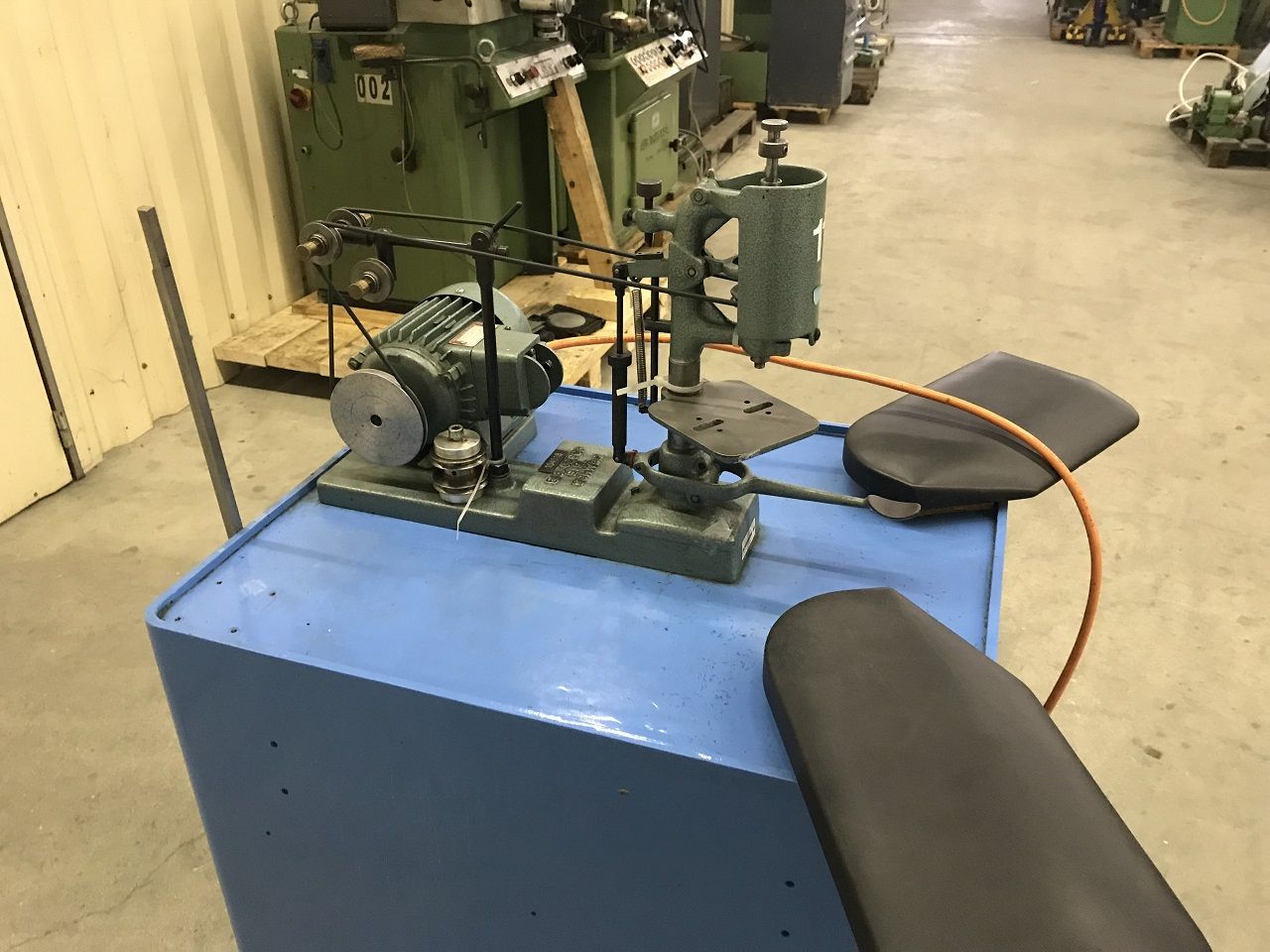

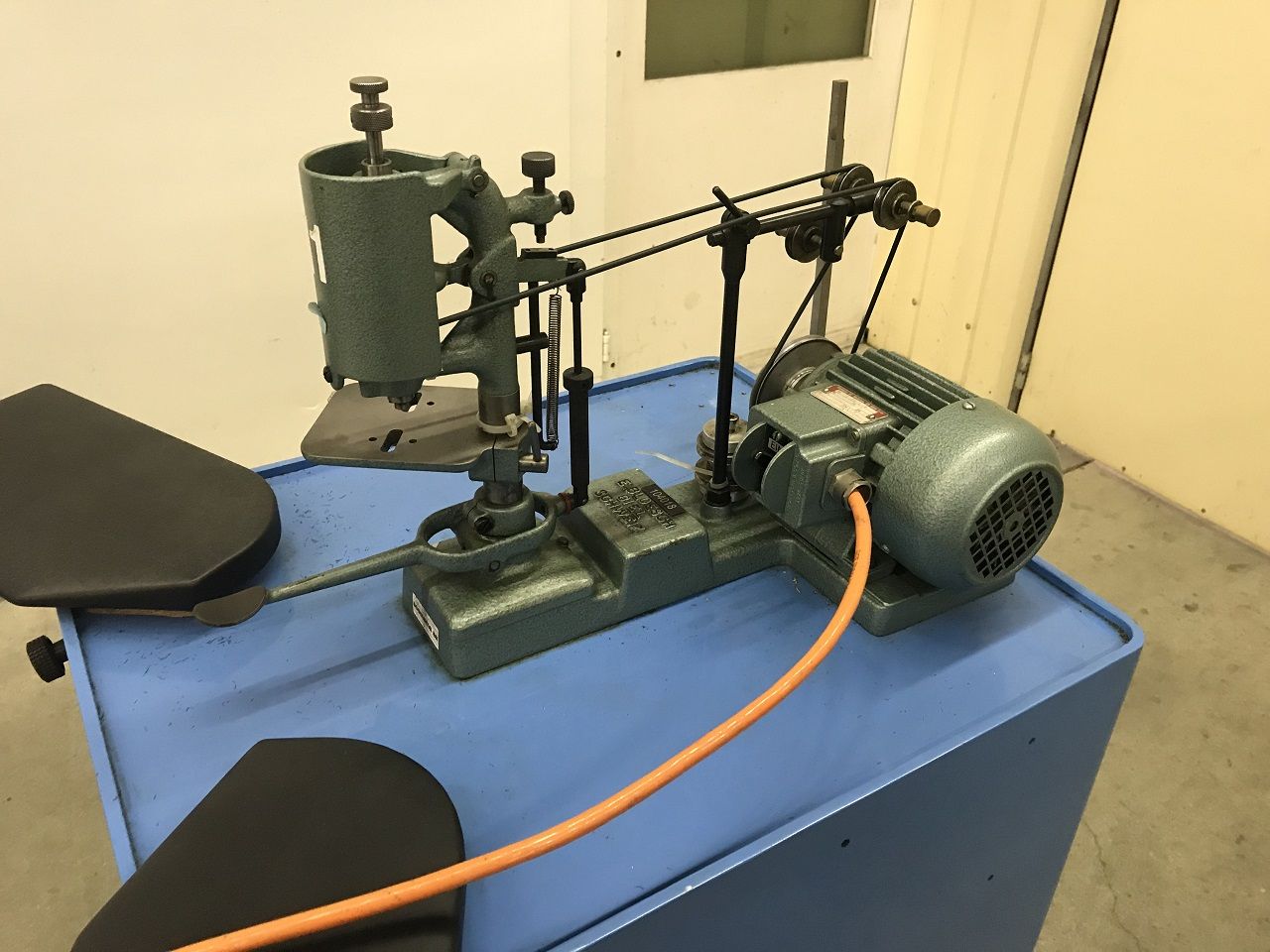

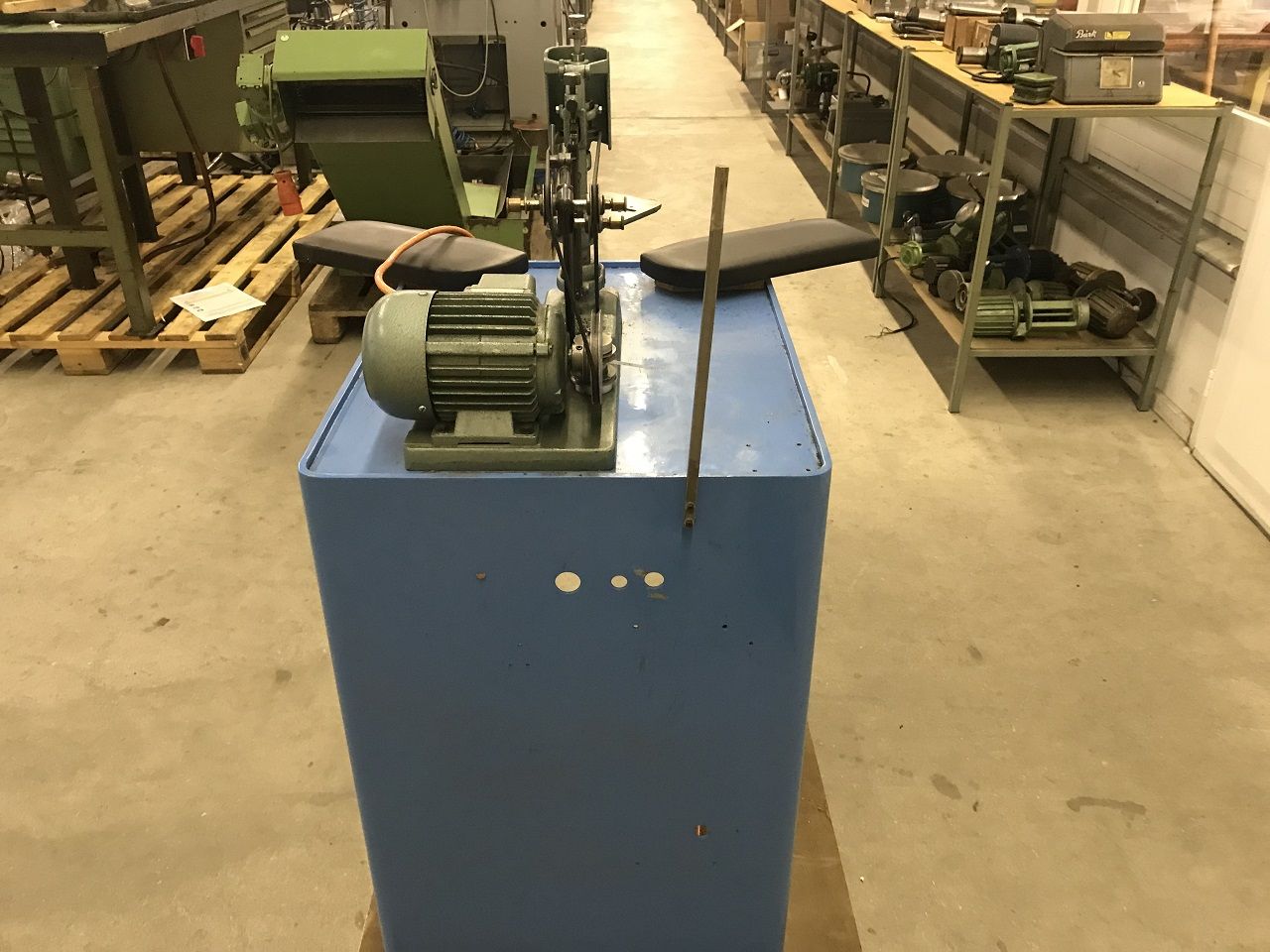

DRILLING MACHINE "BLOESCH" TYPE I

Reference: 2170136

spindle for collet P-4,5 (76.153) - on workbench with set of pulley for threading


Information

Manufacturing originSwiss
Voltage380/50/3
Netweightabt.20 kg
Customs position8459.69 30

TECHNICAL DATA

Drilling capacity3 mm
Diameter of spindle8 mm
Collets type SchaublinP-4,5
Distance between spindle axis and column48 mm
Maximal height between table and collet45 mm
Stroke of spindle18 mm
Table surface95x105 mm
4 speeds of spindle6600-5000-3300-2500 rpm
errors and omisisons excepted-data given without obligation
