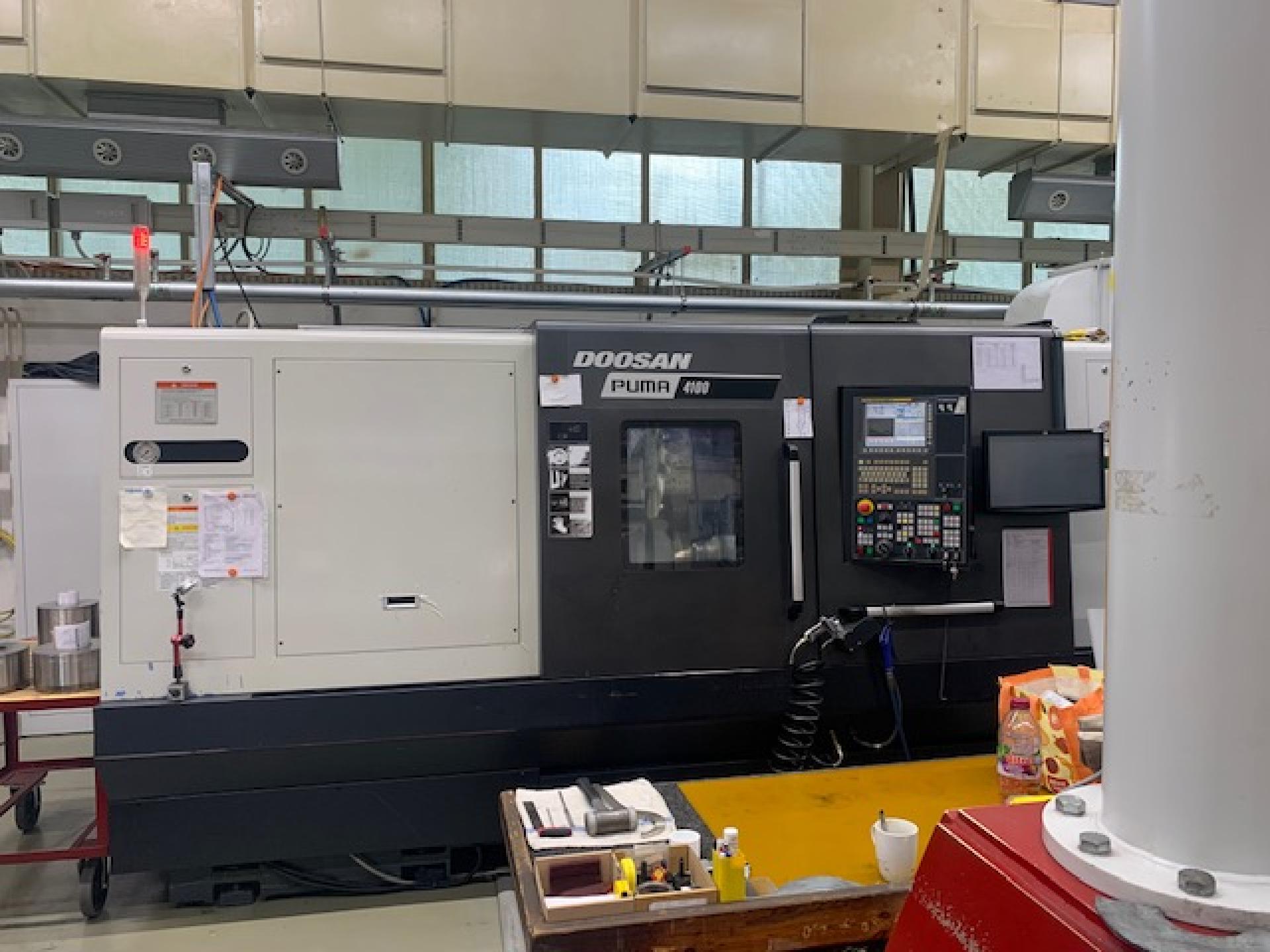

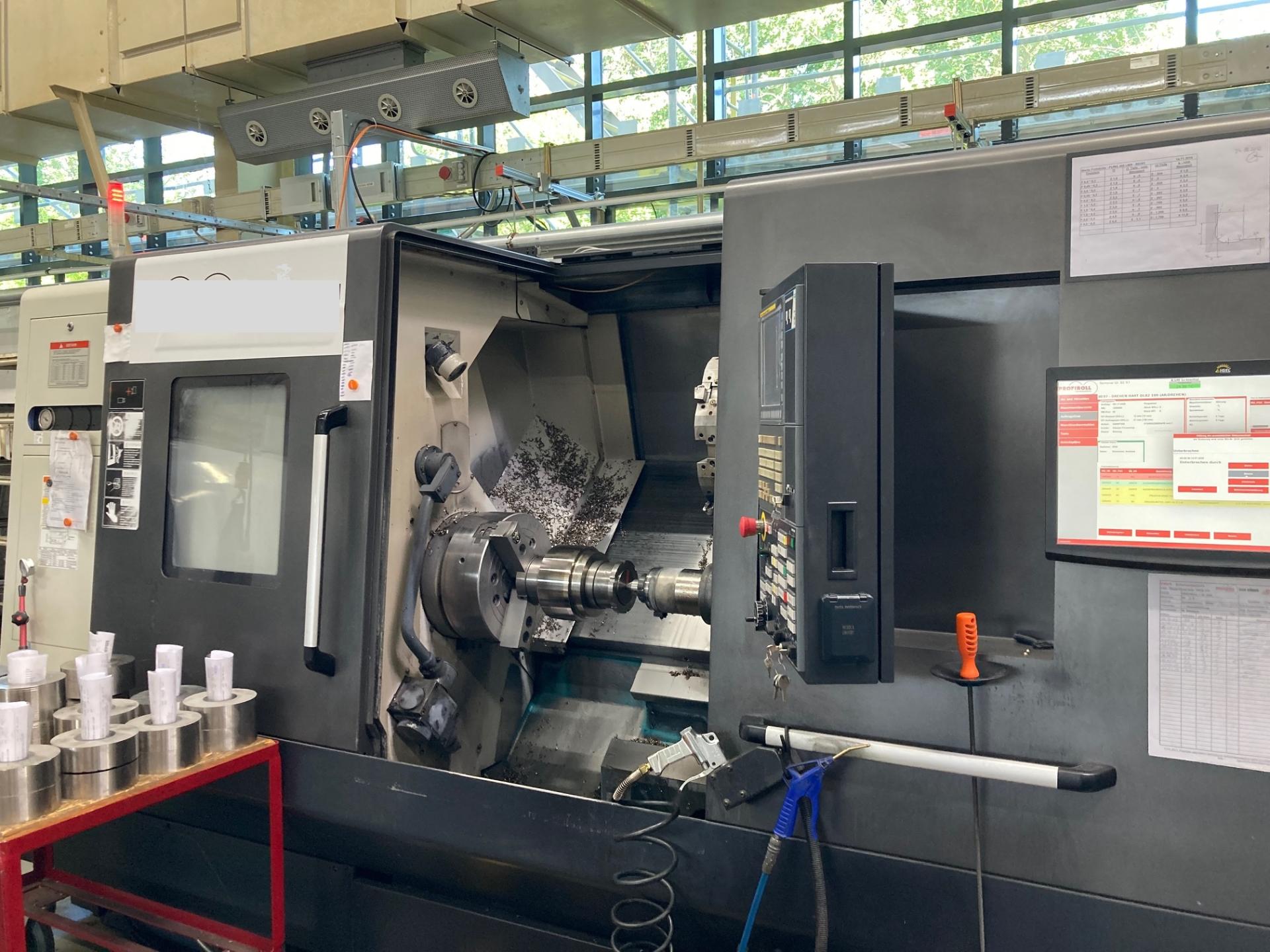

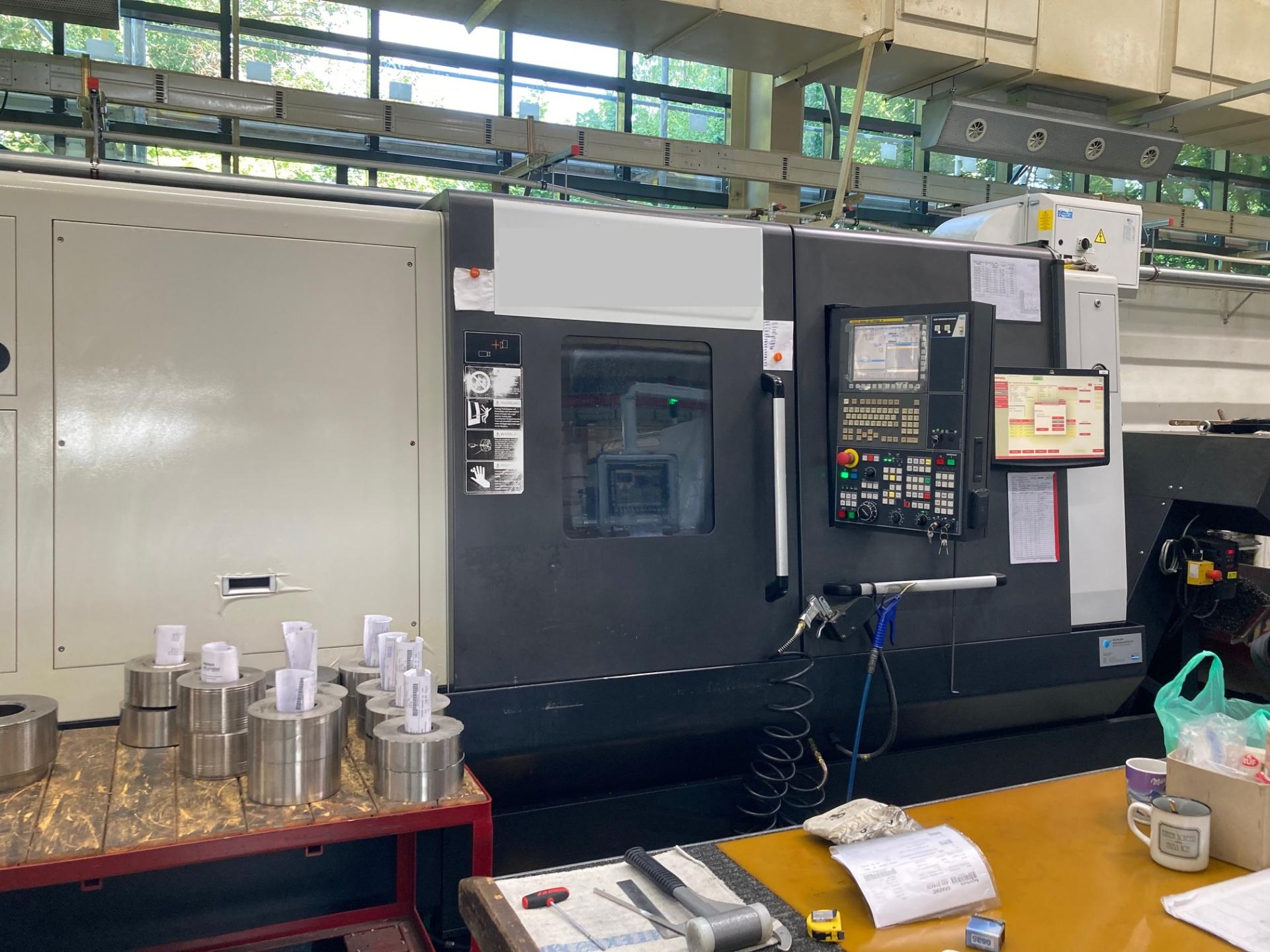

DOOSAN - PUMA 4100B

MACHINE INFORMATION AND SPECIFICATION

    Manufacturer:

  • Doosan

    Model:

  • DOOSAN - PUMA 4100B

    Condition:

  • 1

    YOM:

  • NA

    Control:

  • NA

    Price:

  • POA

    Country:

DESCRIPTION

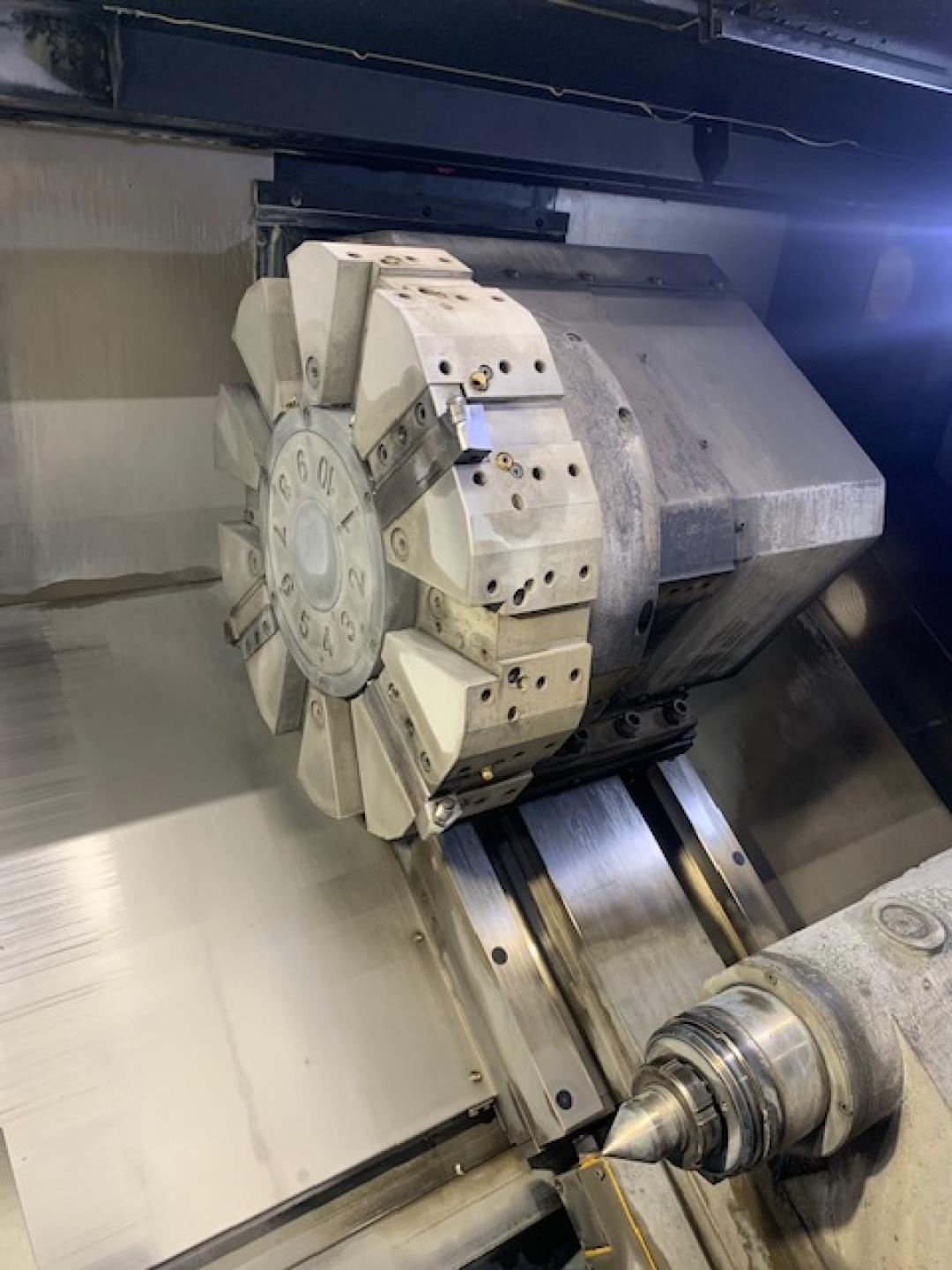

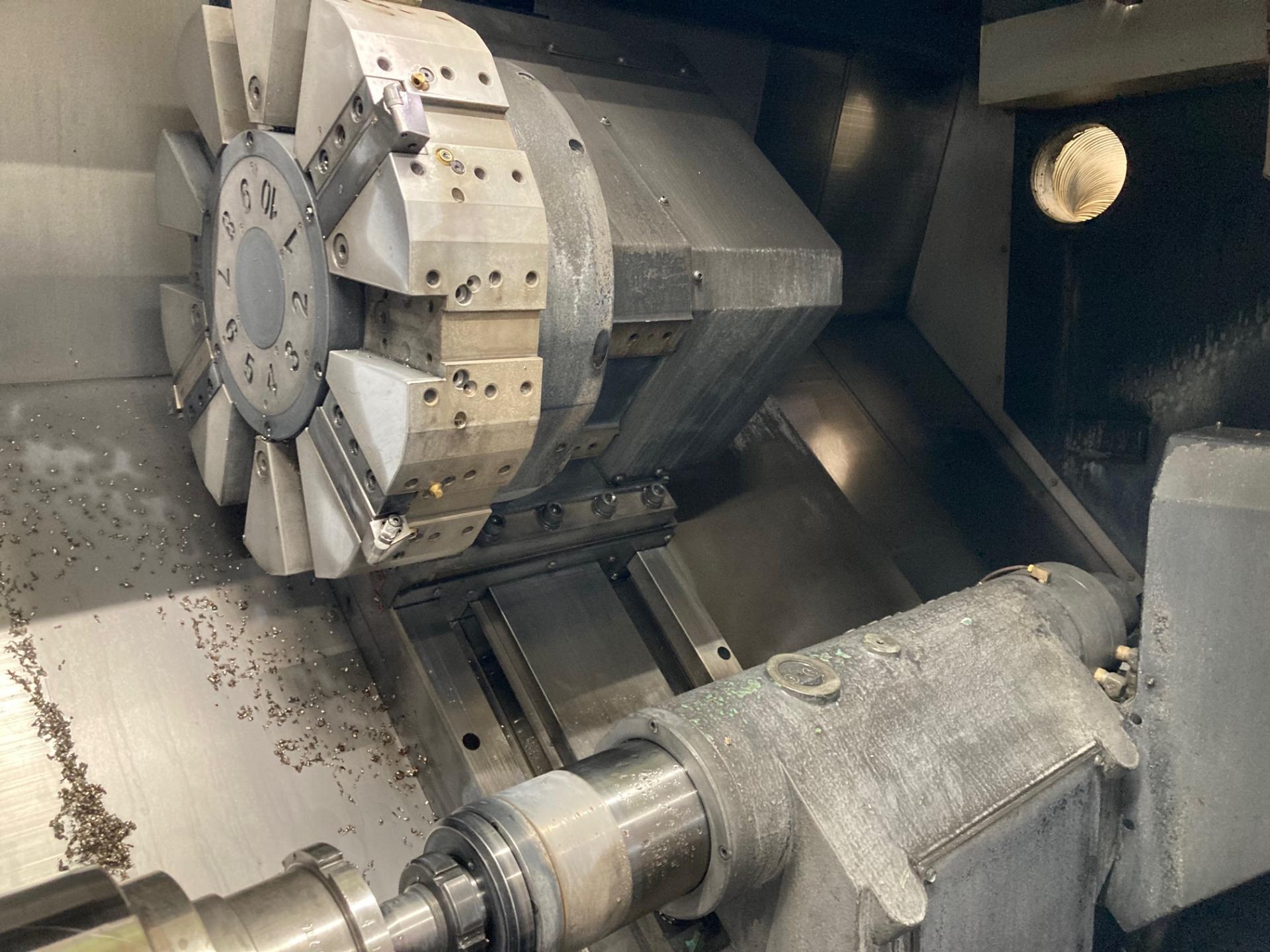

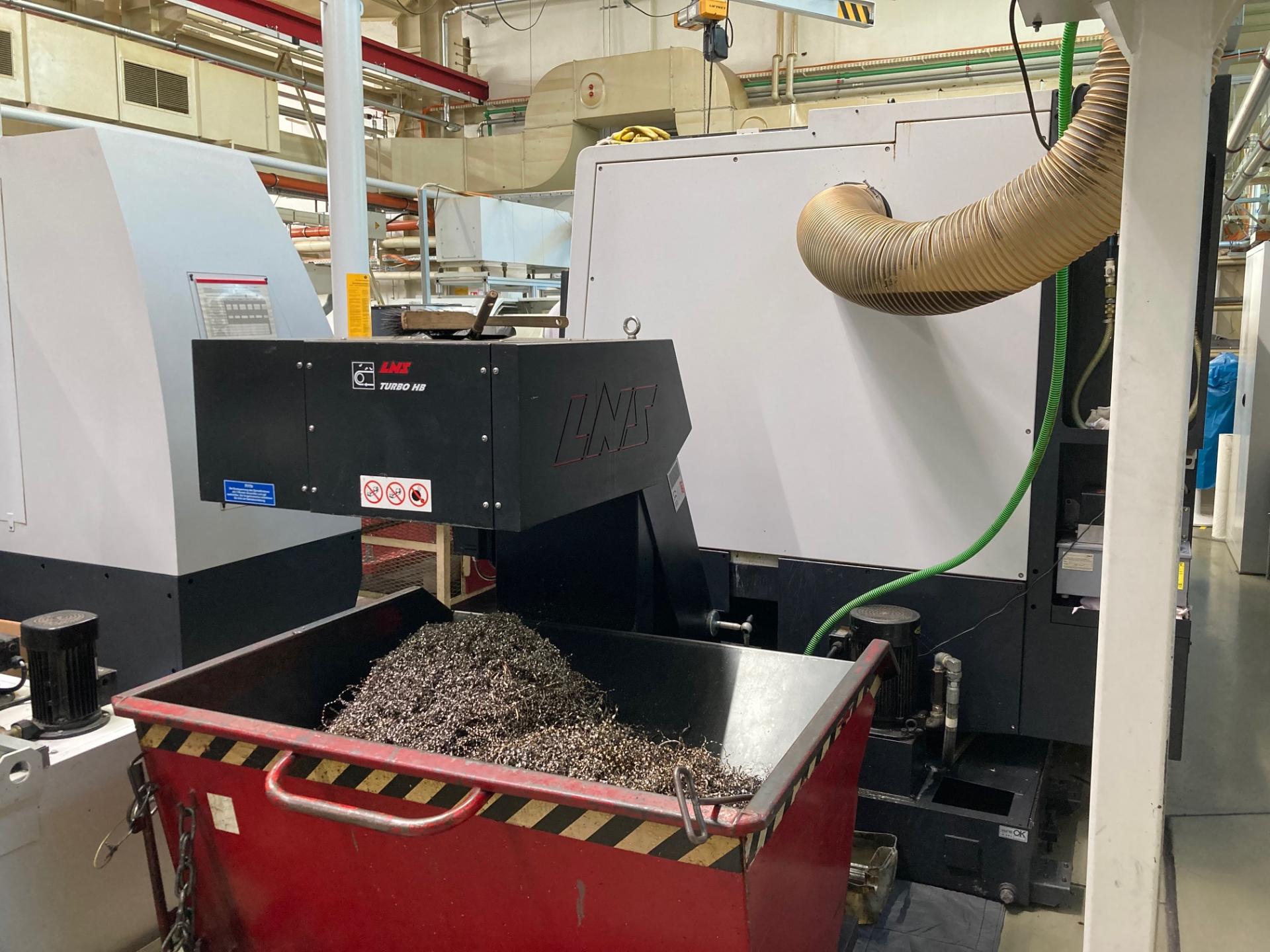

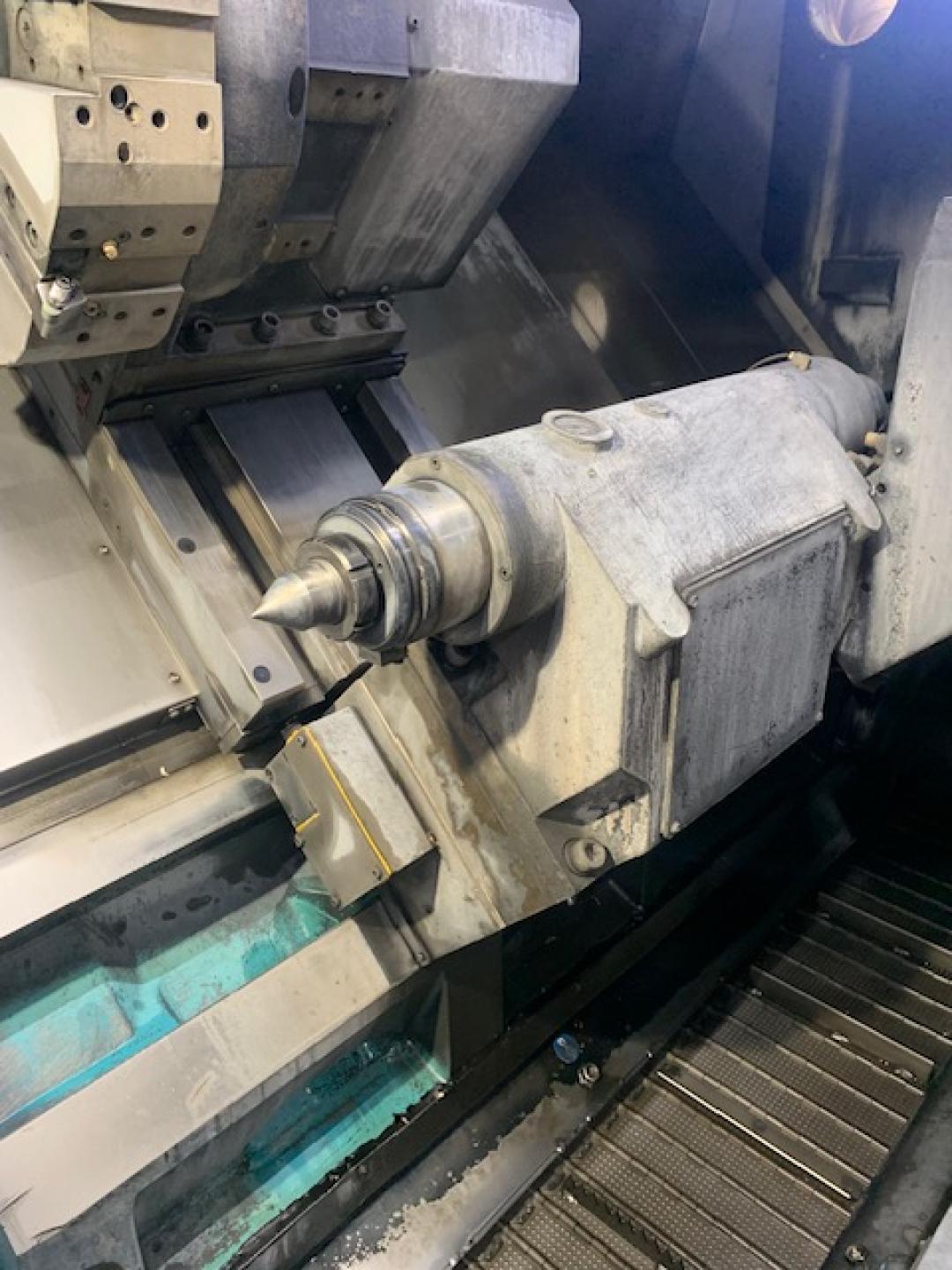

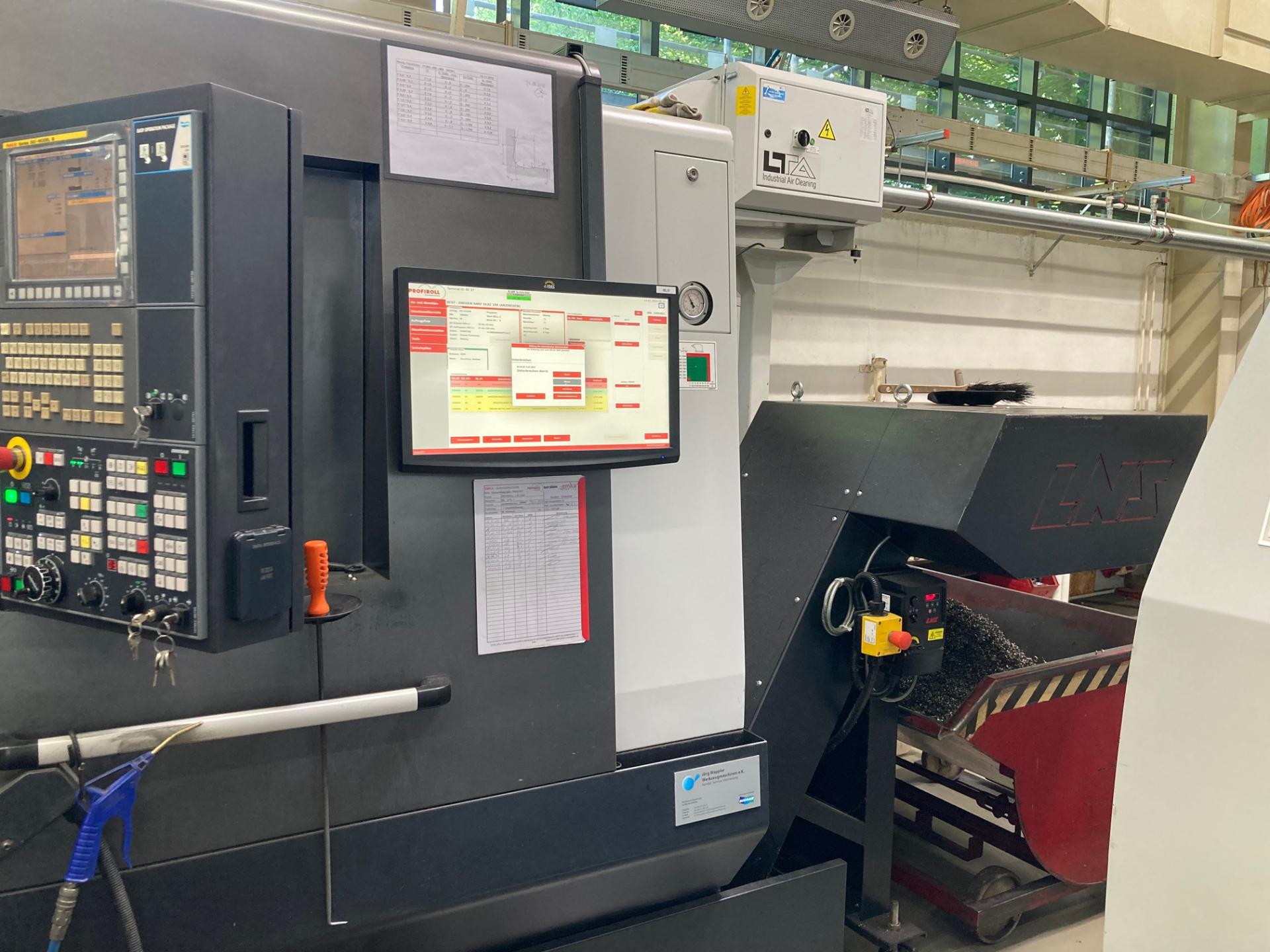

Max. turning Ø: 790mm | X-Axis: 352mm | Z-Axis: 1105mm | Spindle bore: 116.5mm | Speedrange: 2000Rpm | Spindle power: 37kW | ATC / revolver: 10 | Speed live tools: 4000Rpm | Power live tools: 25kW | Chip conveyor: Yes | Tool eye: Yes | Pinole taper: 6Mk | Stroke pinole: 120mm | Quill Ø: 120mm | Workpiece load: 1700 | Length: 4600mm | Width: 2056mm | Height: 2195mm | Weight: 11050kg
+ request more information
