MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

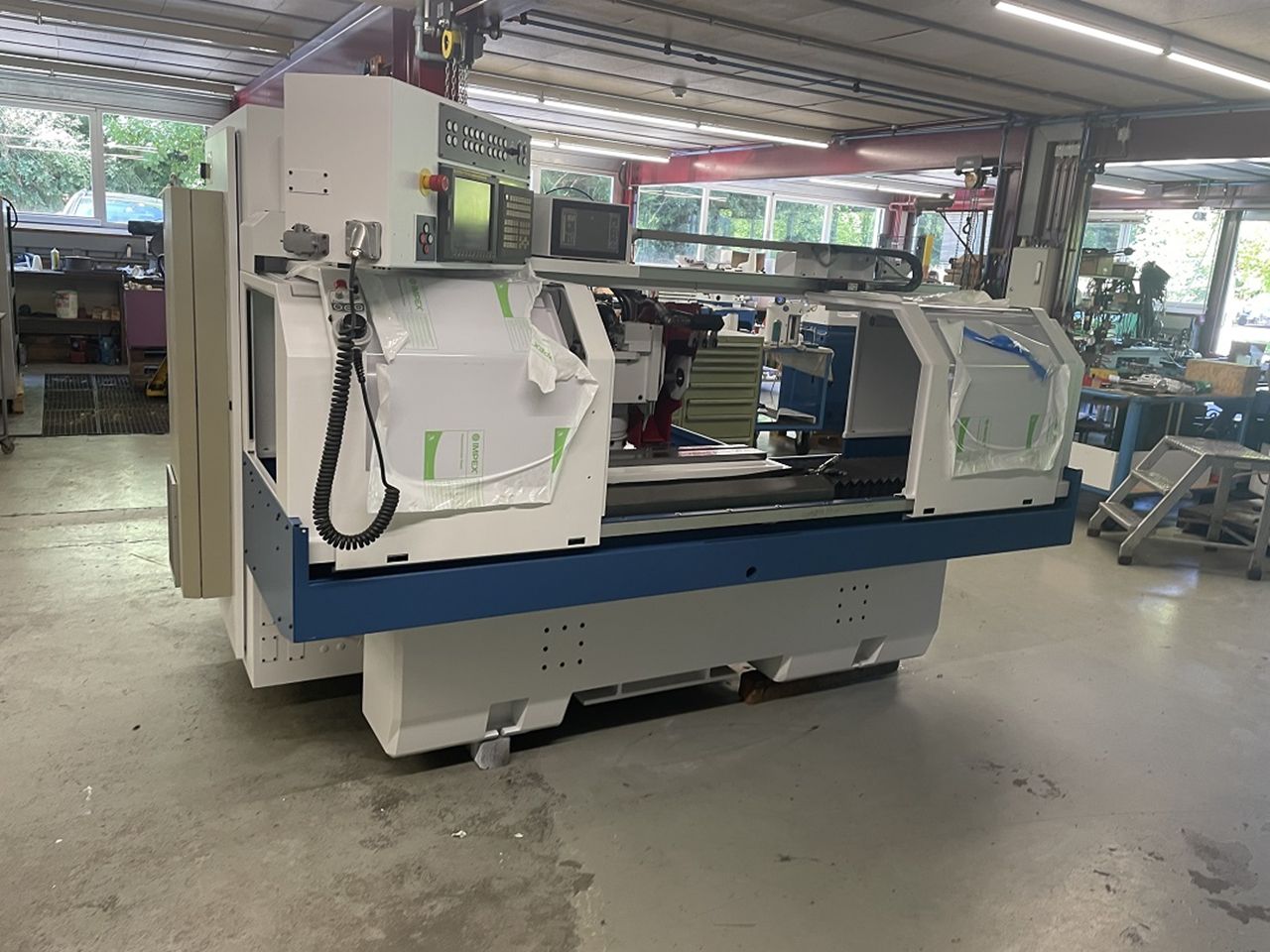

  • STUDER S-33 CNC CYLINDRICAL GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • Fanuc Oi-TD Standalone Panel i
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

  • INFORMATION
  • Manufacturing origin: Swiss
  • Netweight : 4000 kg
  • Custom position : 8460.2320 :
  • TECHNICAL DATA
  • (standard)
  • Distance between centers : 650 mm or 1000 mm
  • Centers height : 175 mm
  • Max. workpiece weight : 80 or 120 kg
  • Longitudinal slide Z
  • Max. travel : 1000 – 1150 mm
  • Speed : 0.001 to 10’000 mm/min
  • : (mod.beg.years2000 : 0.001-5’000 min-1)
  • Resolution : 0.0001 mm
  • Cross slide X
  • Max. travel : 285 mm
  • Speed : 0.001 to 20’000 mm/min
  • : (mod.beg.years2000 : 0.001-10’000 min-1)
  • Resolution : 0.0001 mm
  • Wheel headstock (universal variant)
  • Pivoting : -15 to 225°
  • : (mod.beg.years2000 : -15 to 195°)
  • Pivoting axis : 2.5 / 1 ° Hirth
  • Drive power : 7.5 or 9 kW or 11 kW
  • Wheel : 500×63 (80/110F5) x203 mm
  • Workpiece headstock
  • Speed : 1 – 1500 min-1
  • Fitting taper : MT4 or MT5 / ISO 50
  • Drive power : 1.6 or 3.0 kW or 4.0 kW
  • Tailstock
  • Fitting taper : MT3 or MT4
  • Barrel travel : 35 / 50 mm mm
  • : (mod.beg.years2000 : 35 mm.)
  • Barrel diameter : Ø 50 mm
  • Smooth setting : +/- 40 µ
  • Control : Fanuc Oi-TD Standalone Panel i
  • : (mod.beg.years2000 : Fanuc 21i-TB
  • errors and omissions excepted-data given without obligation



.
