MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • GRINDING
  • Model:
  • CYLINDRICAL GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

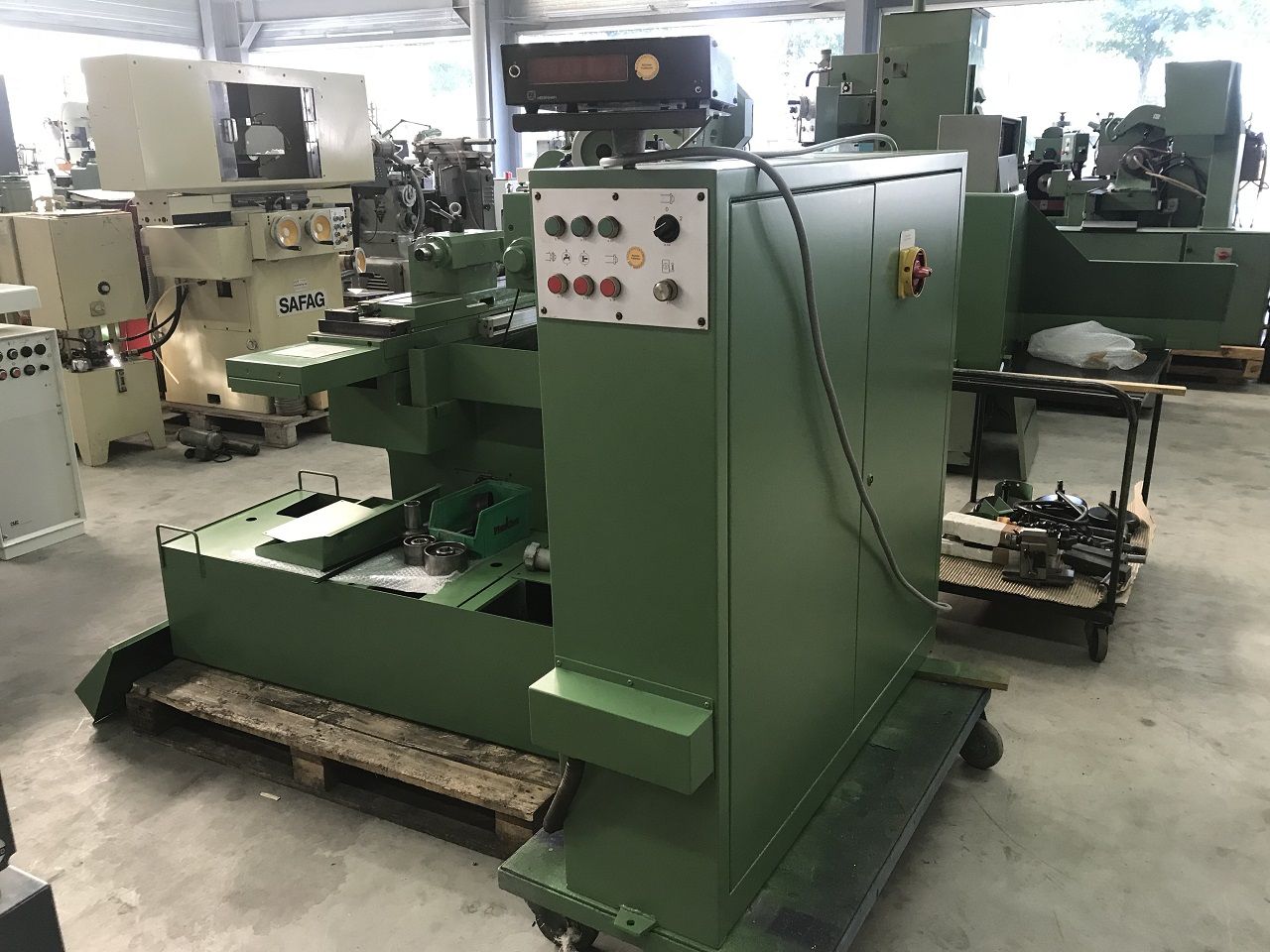

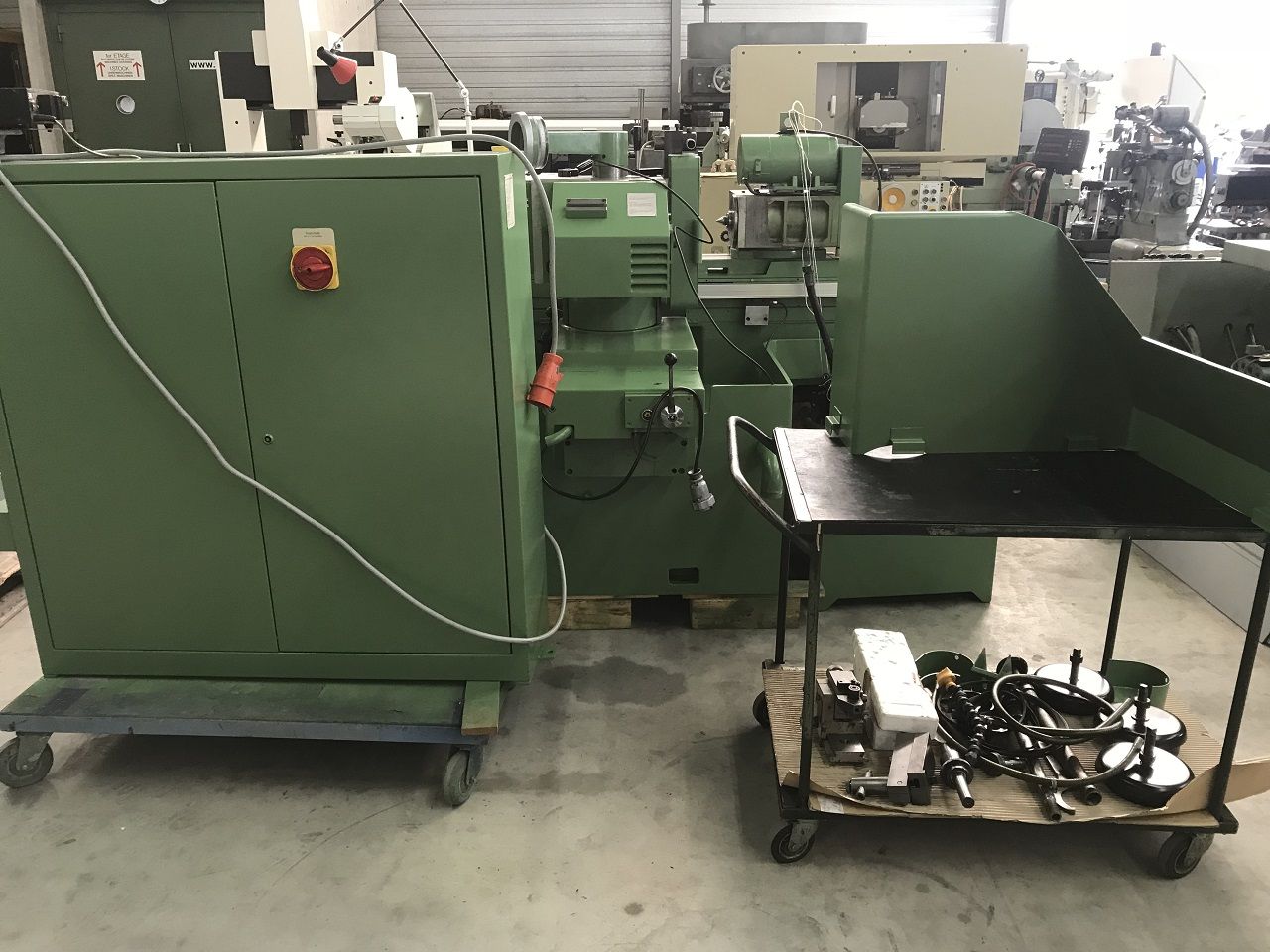

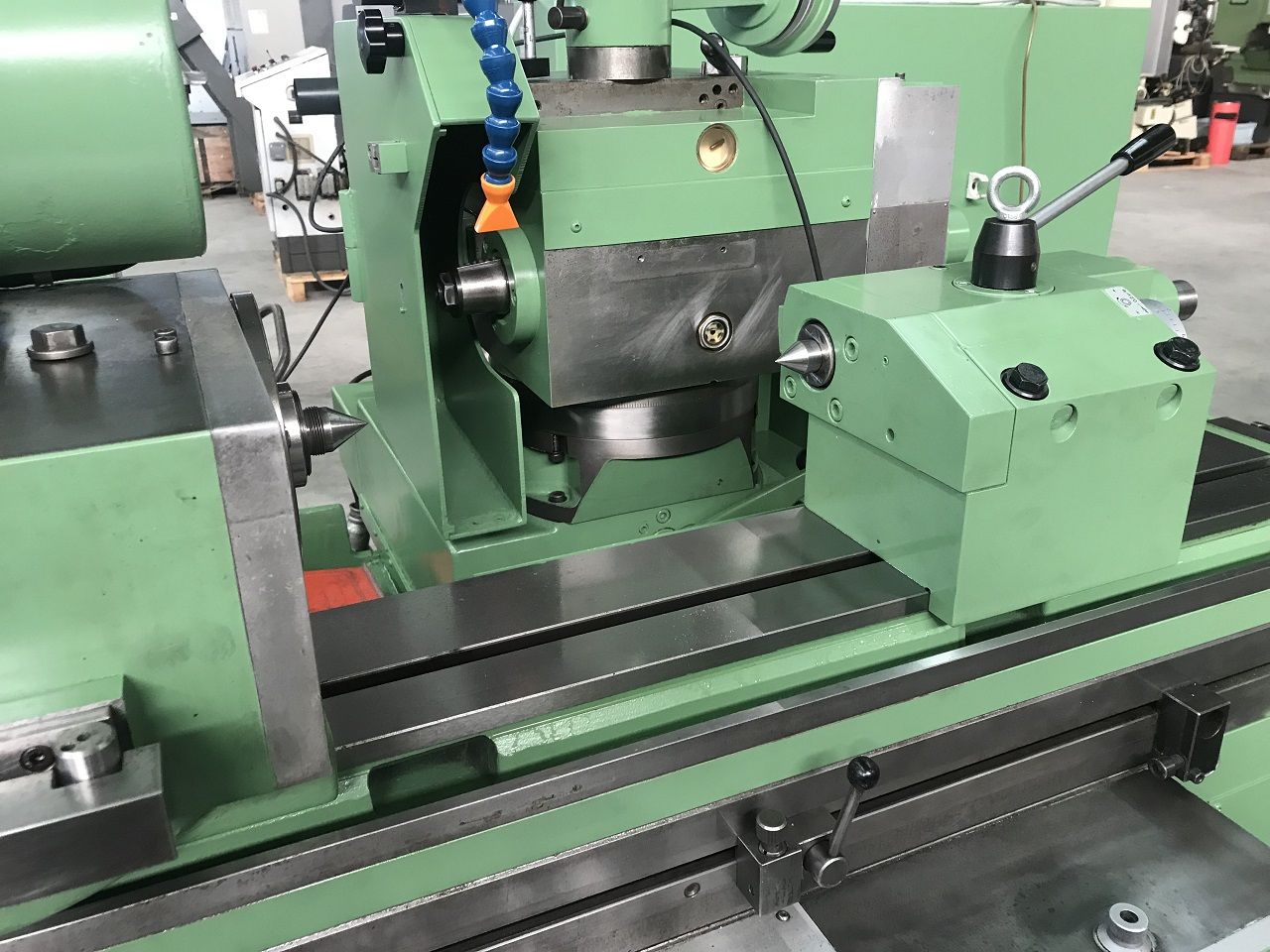

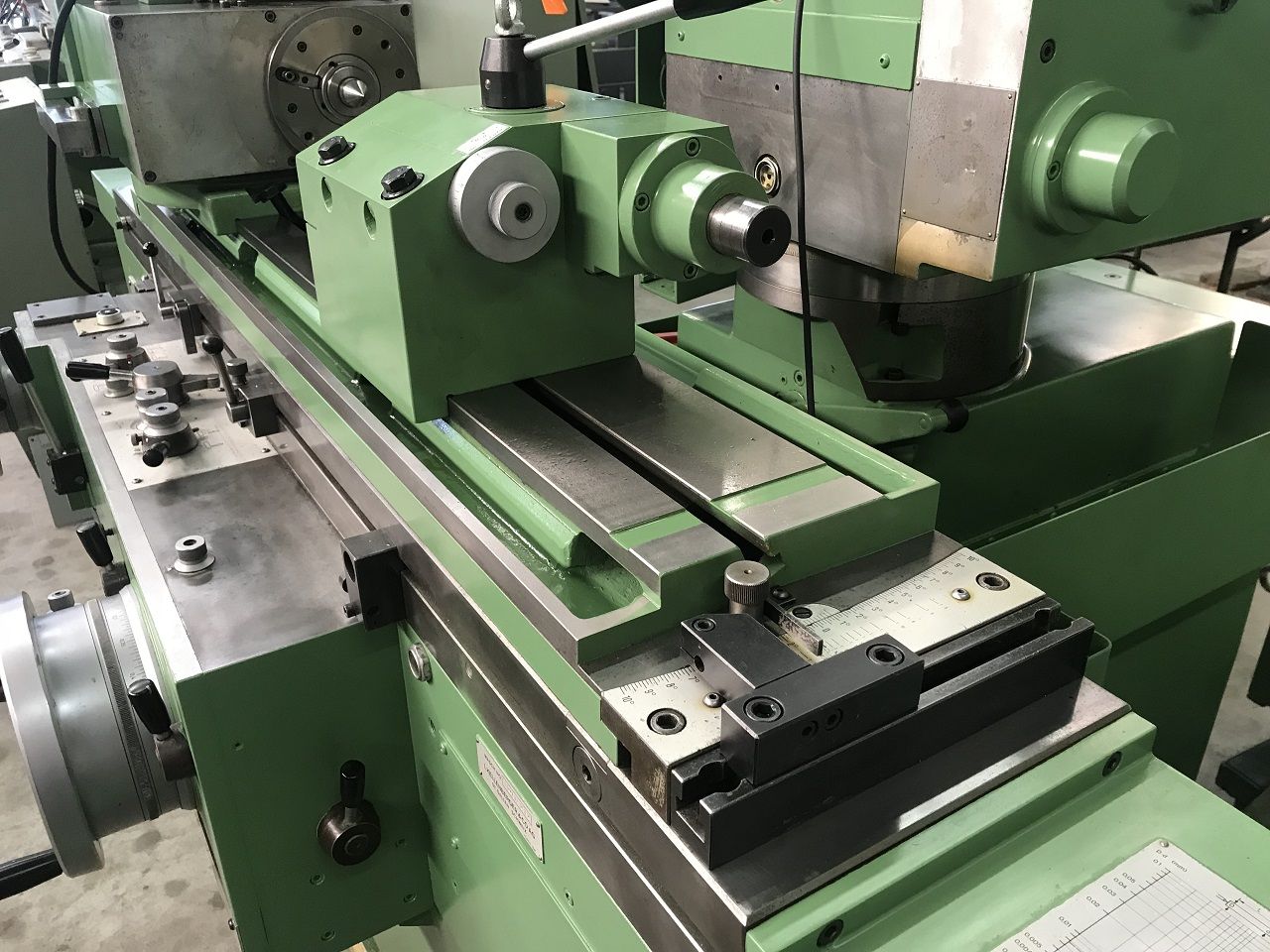

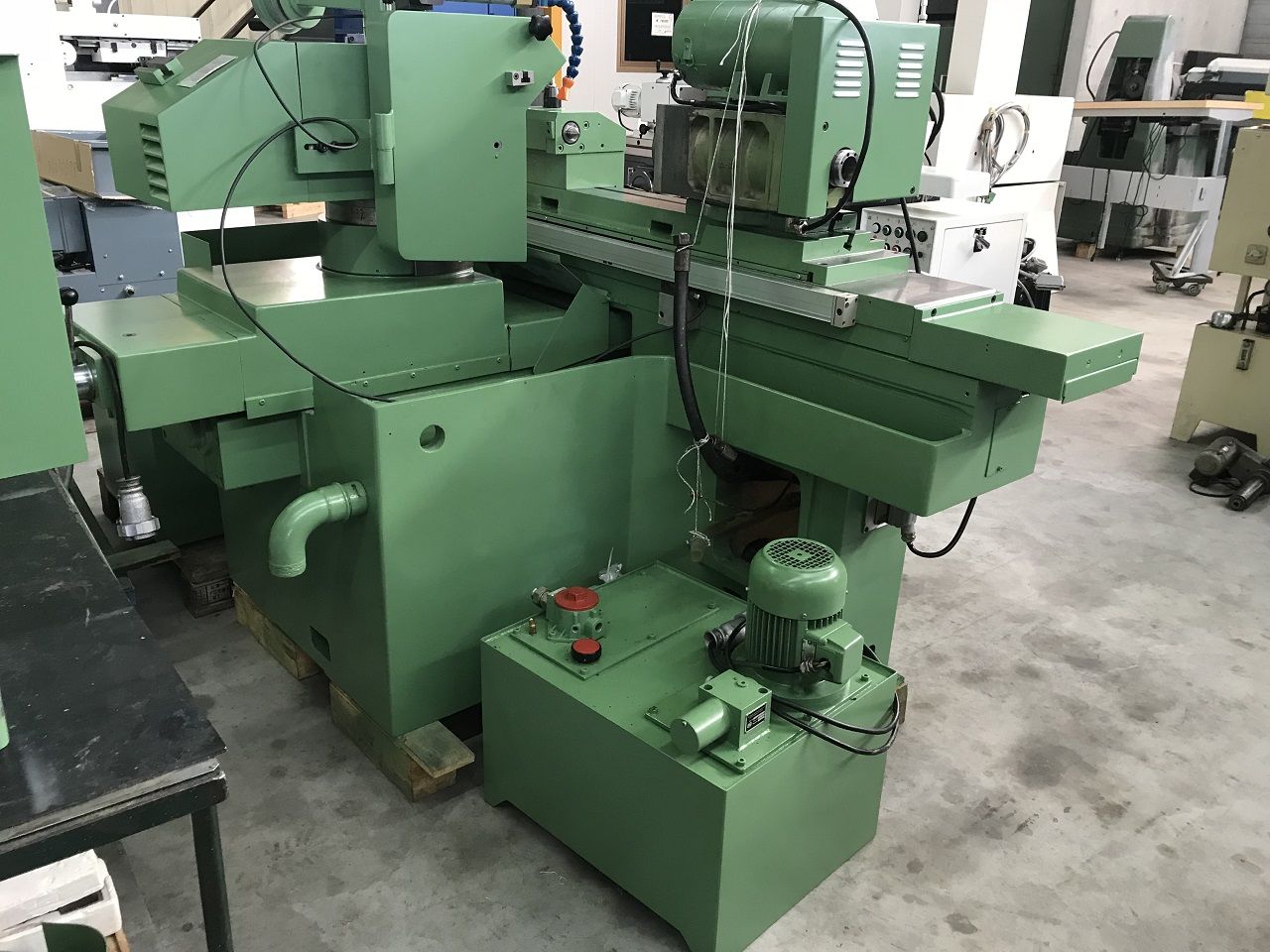

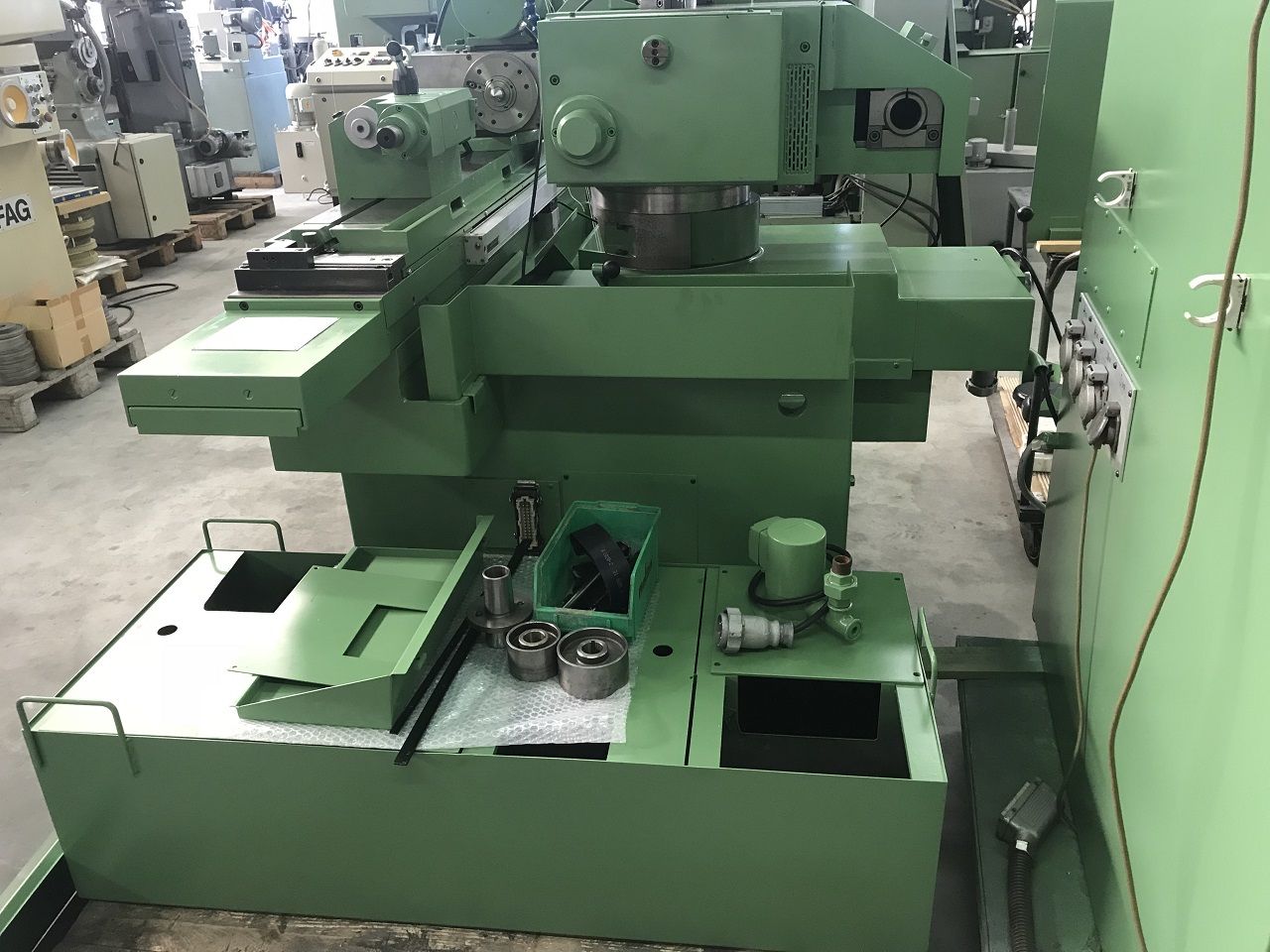

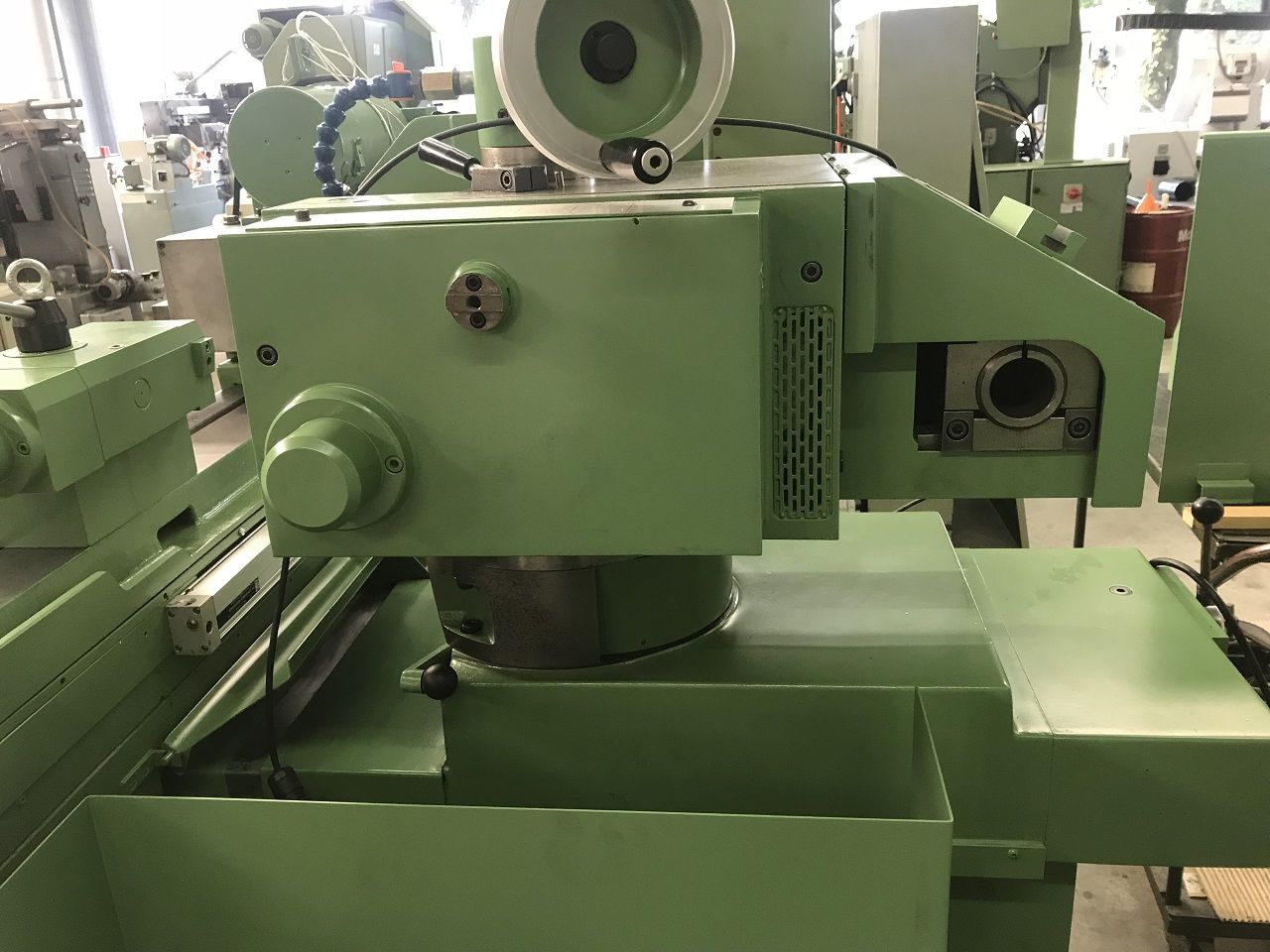

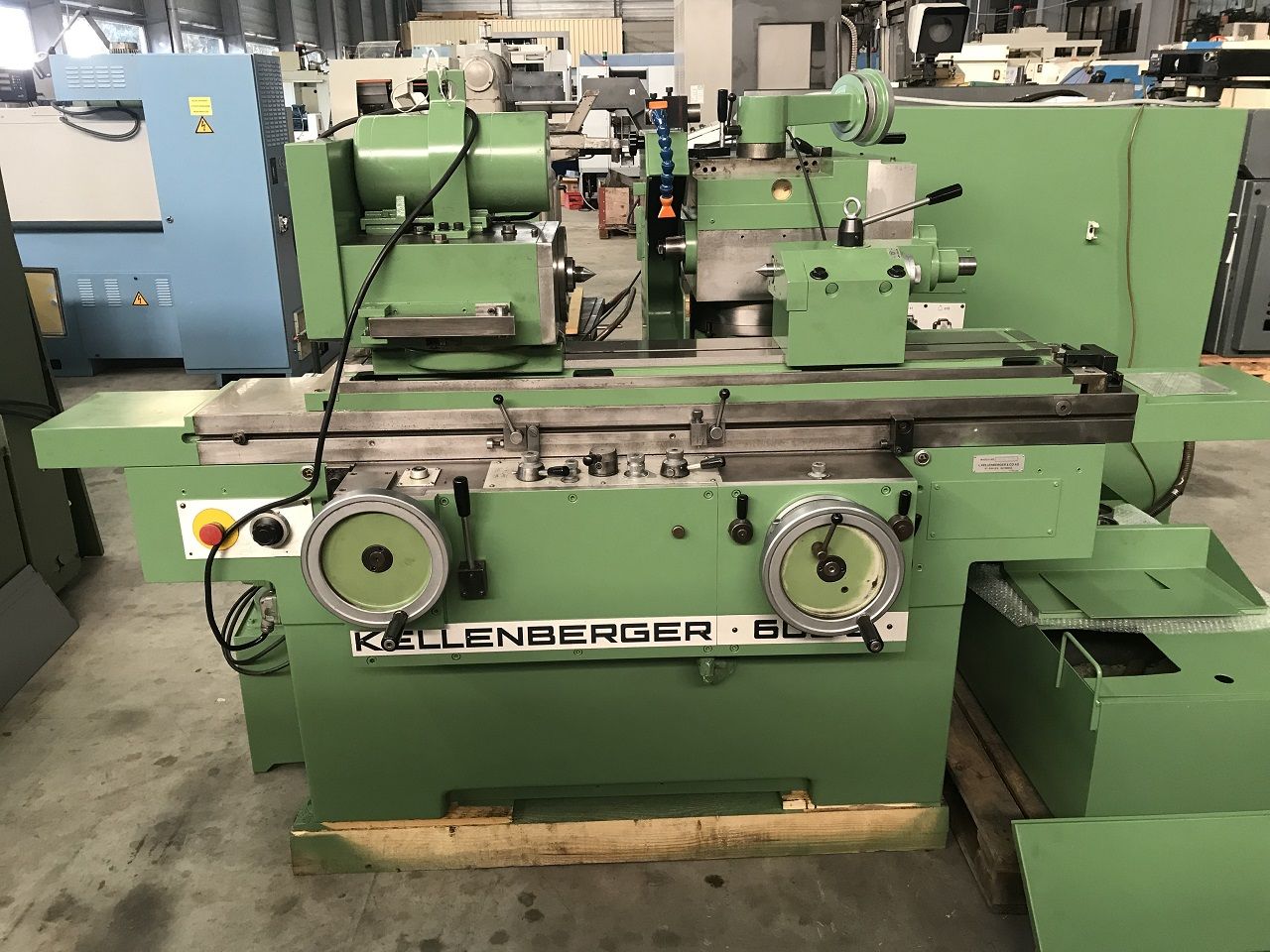

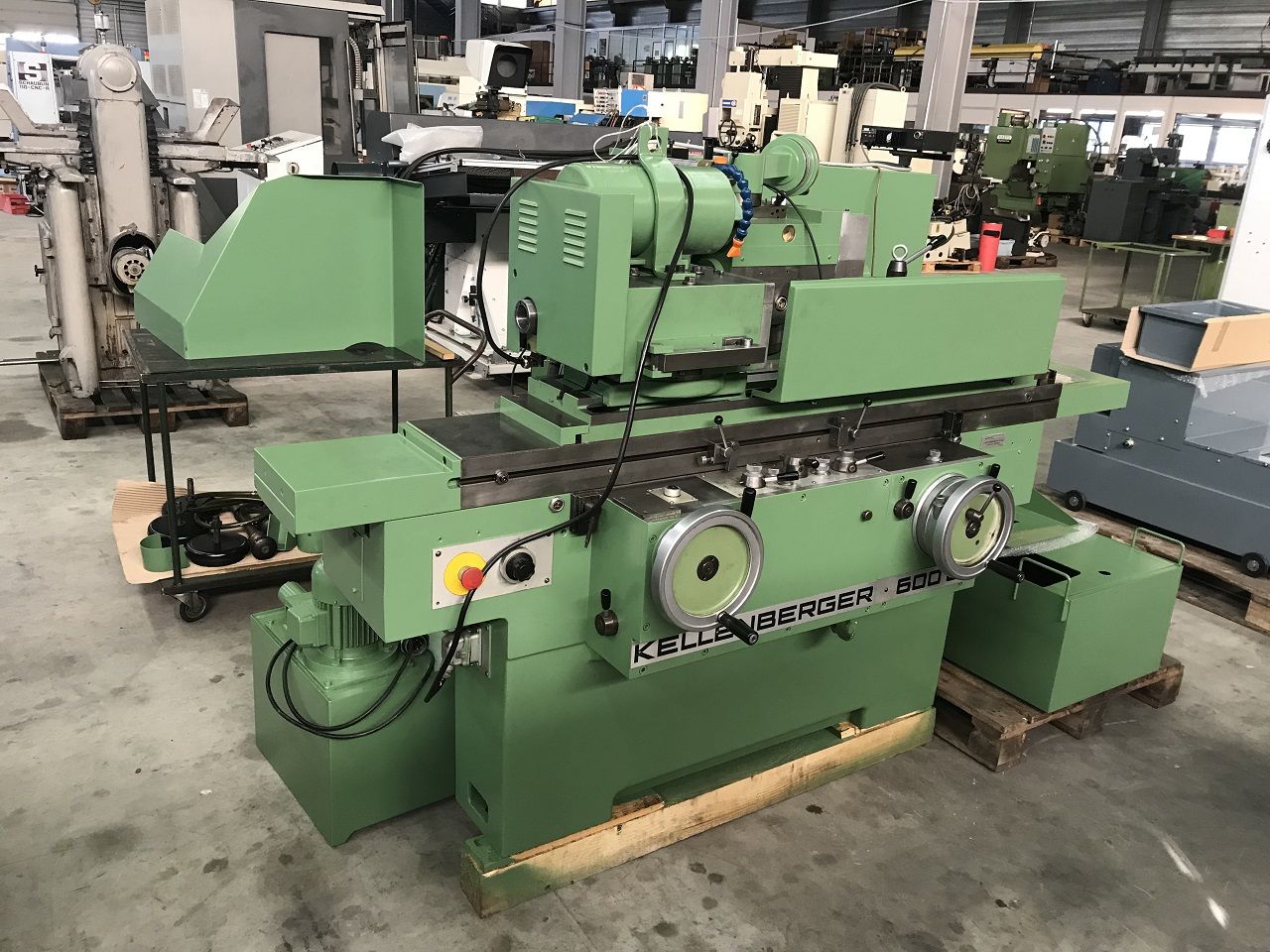

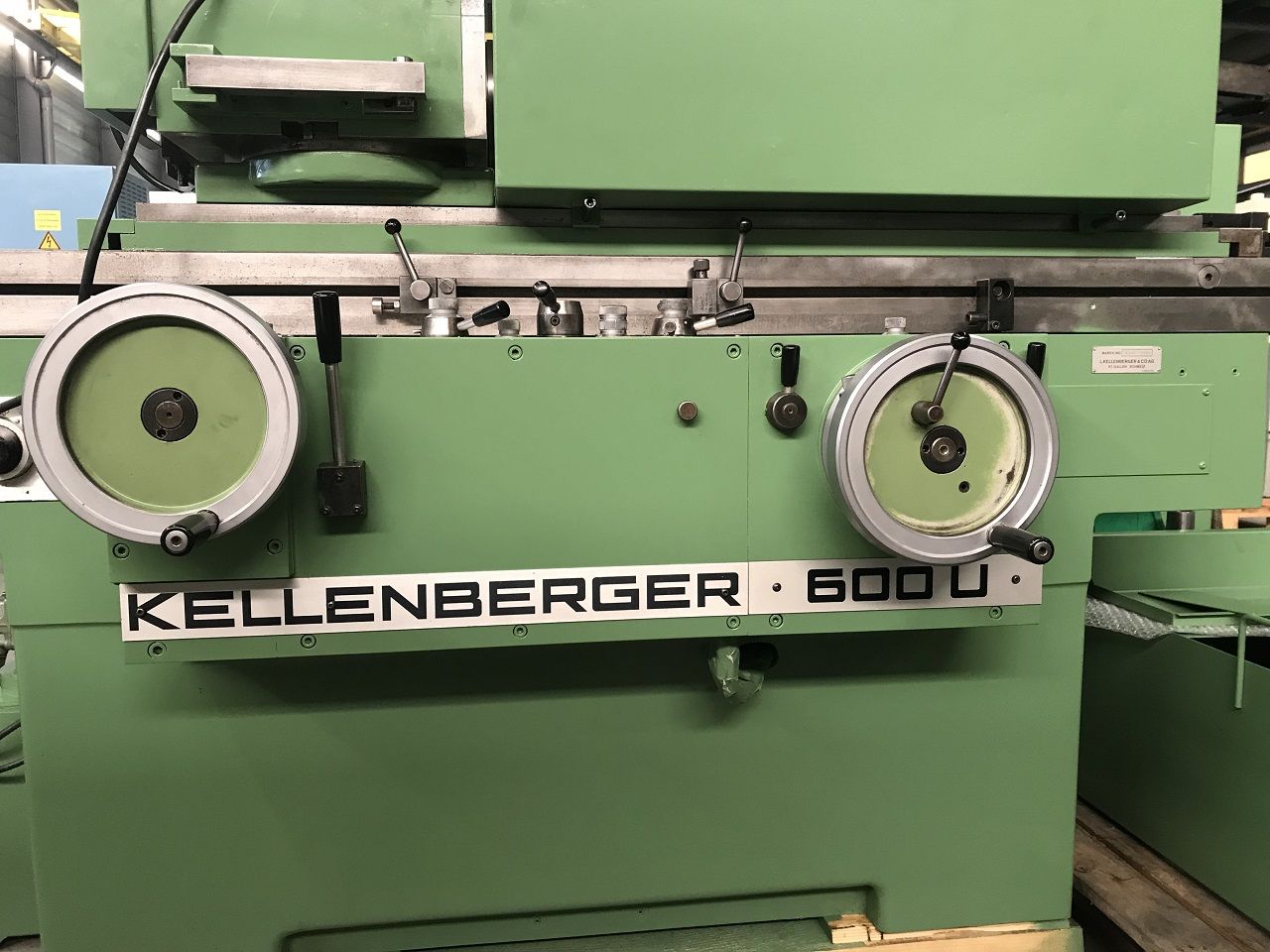

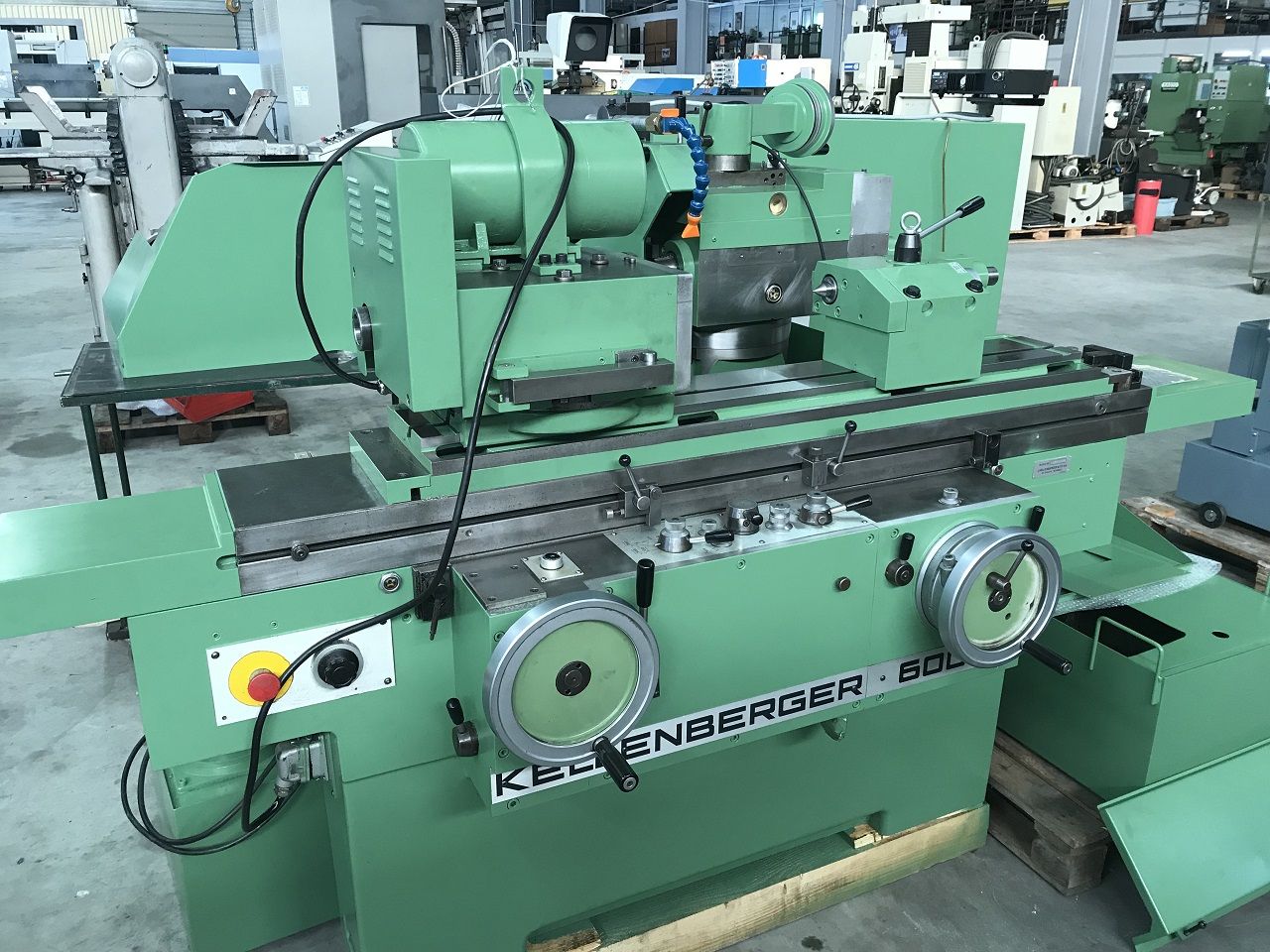

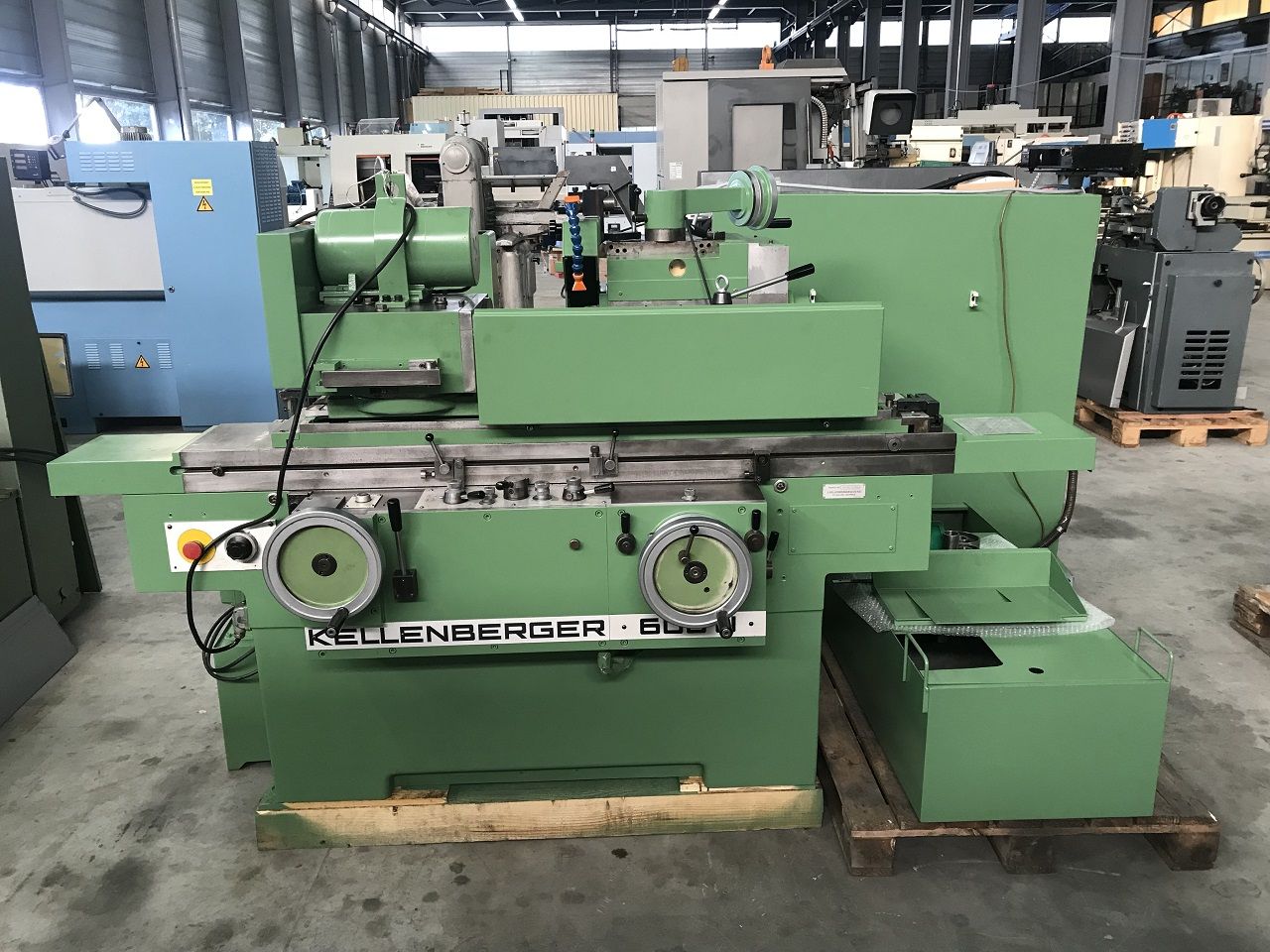

CYLINDRICAL GRINDING MACHINE "KELLENBERGER" TYPE 600-U

Reference: 2170089



Information

Manufacturing origin Swiss
Voltage 380 / 50 / 3
Netweight 4900 lbs
Custom position 8460.2920

TECHNICAL DATA

Nominal distance between centre 600 mm
Max. distance between centres, headstock and tailstock
projecting 750 mm
Height of centres, standard 125 mm
Height of centres by means of raising blocks for work
head-and tailstock 175 => 250 mm
Max. swing diameter with 125 mm height of centres 250 mm
Max. swing diameter with raising blocks 350 => 500 mm
Table swivels each side 10�
Max. lenght for surface grinding (width=200 mm) 900 mm
Table speed infinitely viable by hydraulic drive, approx. .. 6 m/min
Dwell of table reversal 0 - 5 sec.
Grinding wheel for cylinrical grinding
(diameter x width x hole) 350/400x50x127mm
Grinding wheel for surface grinding diameter x width x hole 250 x 13 x 76
Speeds of grinding wheel spindle 1500/1700/2200/3600
Grinding wheel head swivels 270�
with indexed stop each 90�
Vertical movement of grinding wheel head, height of
centres -350 mm
Cross movement of grinding wheel head 285 mm
Rapid advance and withdrawal of wheelhead 40 mm
Intermittent infeed per reversal of table 0,001-0,03 mm/dia
Infeed for plunge grinding 0-0,9 mm/dia
Micro-corrector of infeed, 1 division of dial 0,001 mm/dia
Swivel of work headstock 360�
work speeds infinetely viable, normal/special 20-400/10-400
Internal taper of headstock/tailstock 5/3 Morse
Grinding wheel motor, approx. 4 HP
errors and omissions excepted data given without obligation
