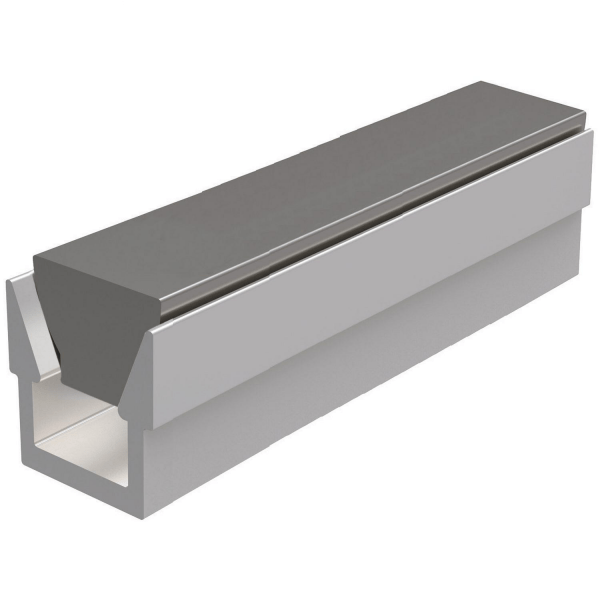

The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. This form of Uniforce is supplied as separate channel and wedge in undrilled lengths of 508mm and can be cut to length to suit the workpiece.
GRAZIANO
08072
MOD. SAG 210N
Height of center mm 210
Max swing diameter over cross slide mm 270
Max swing diameter over gap mm 600
Distance between centre mm 1500
Bed widht mm 330
Spindle bore mm 57
Spindle nose CAMLOCK D1-6''
Spindle speed n.24, Rpm...
