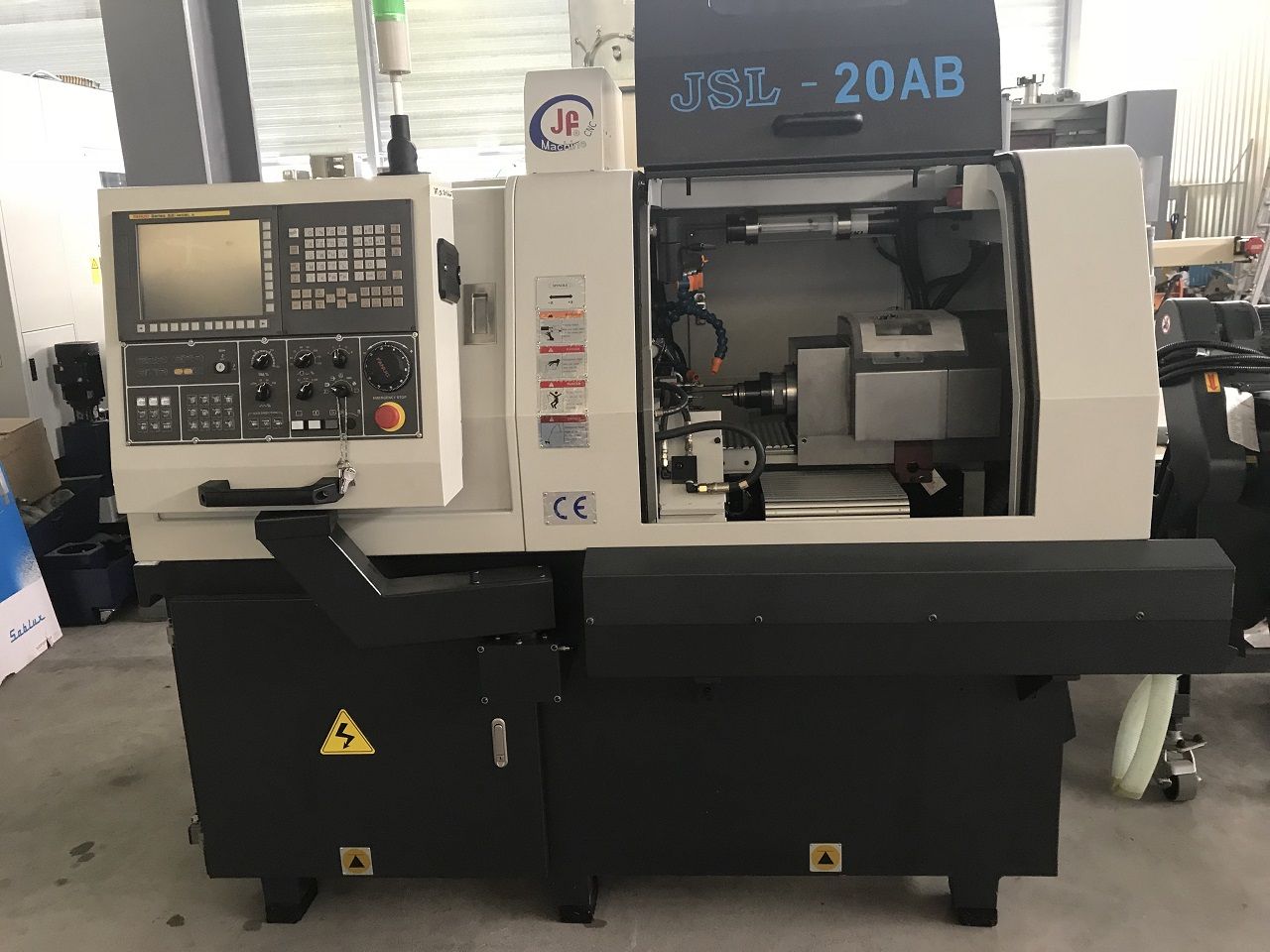

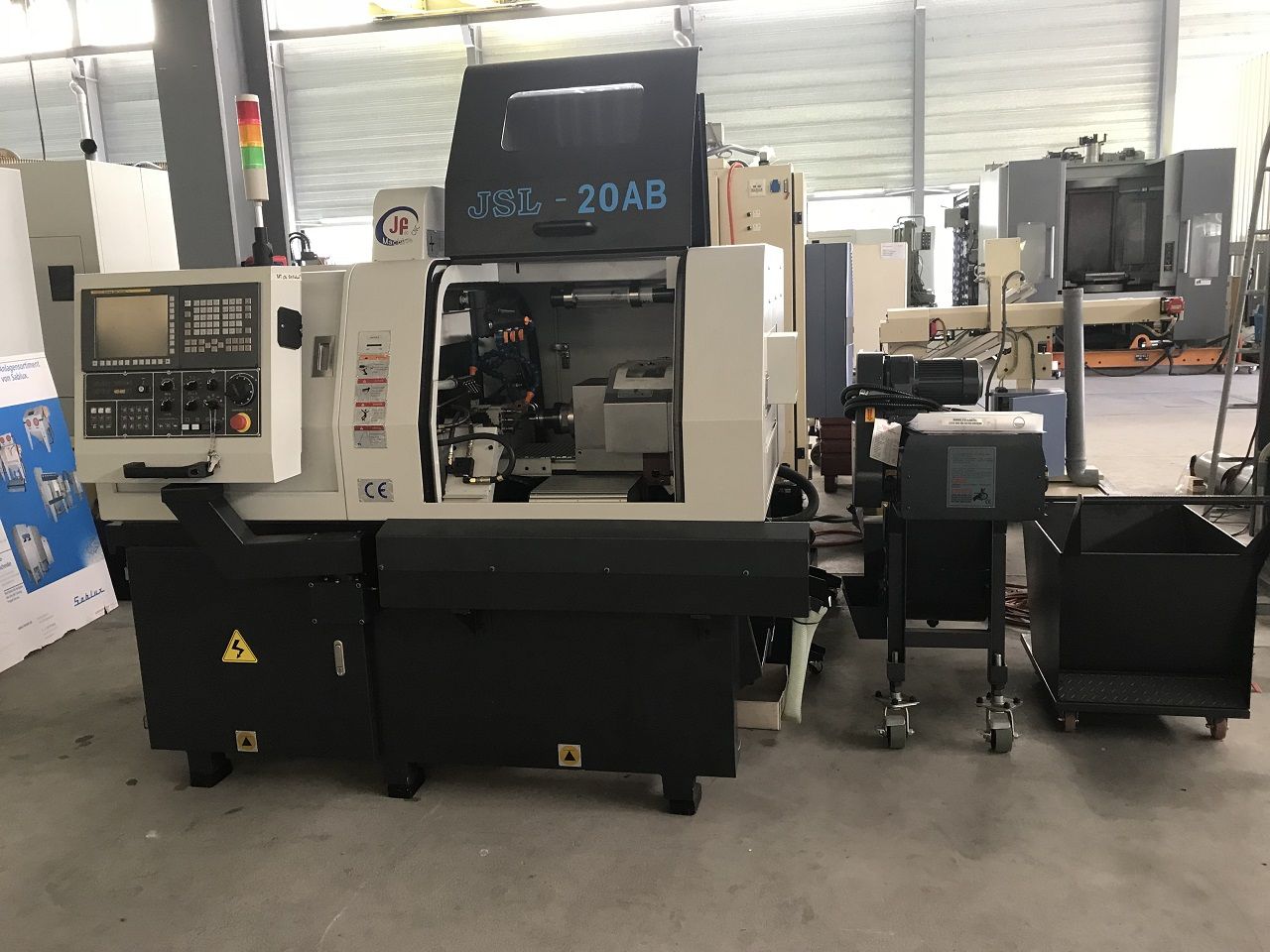

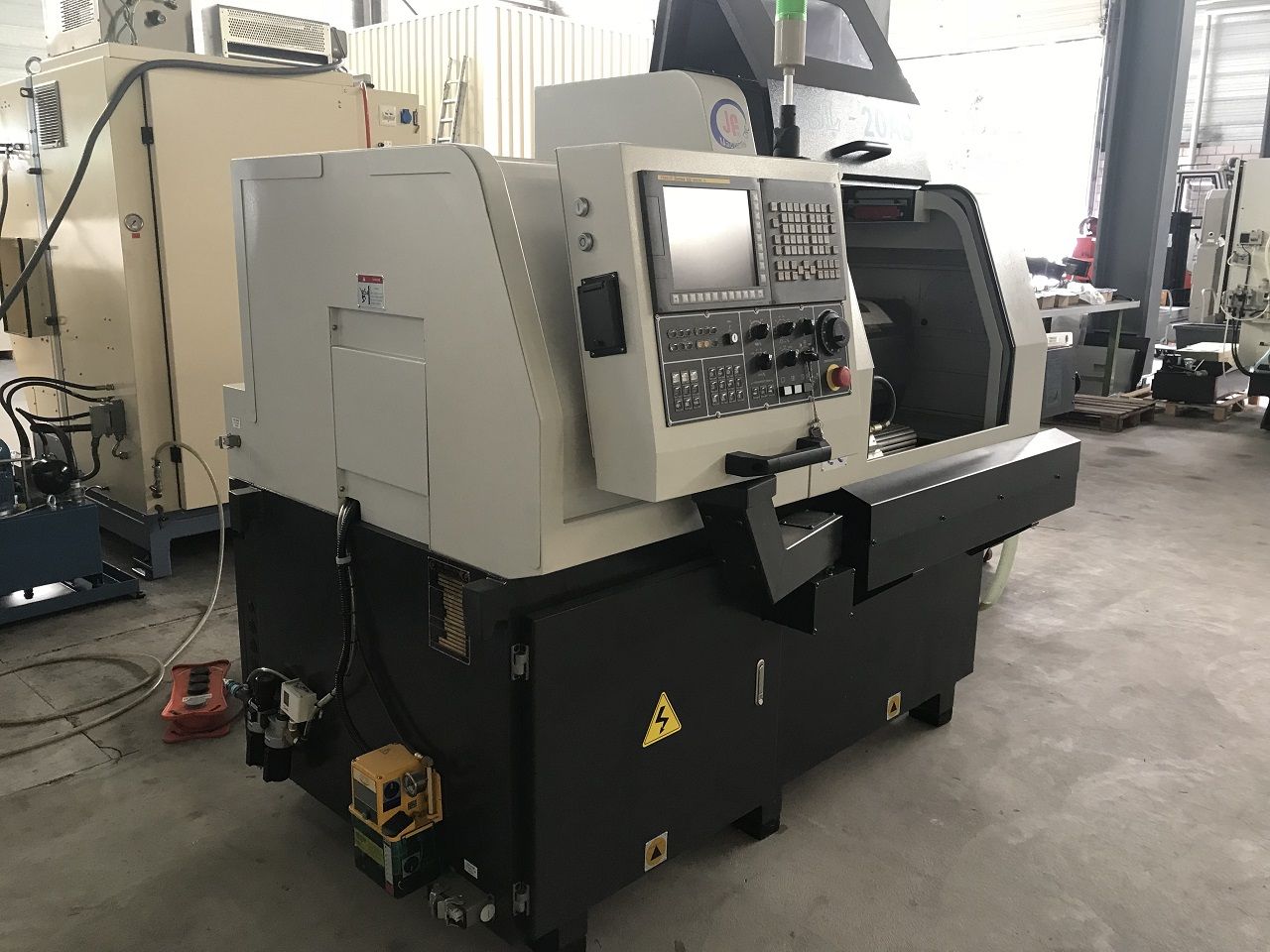

CNC Lathes/AUTOMATIC CNC-LATHE JINN FA TYPE JSL-20AB

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Lathes (CNC and Manual)

Subcategory:
CNC Lathes

Manufacturer:
JINN FA

Model:
AUTOMATIC CNC-LATHE JINN FA TYPE JSL-20AB

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

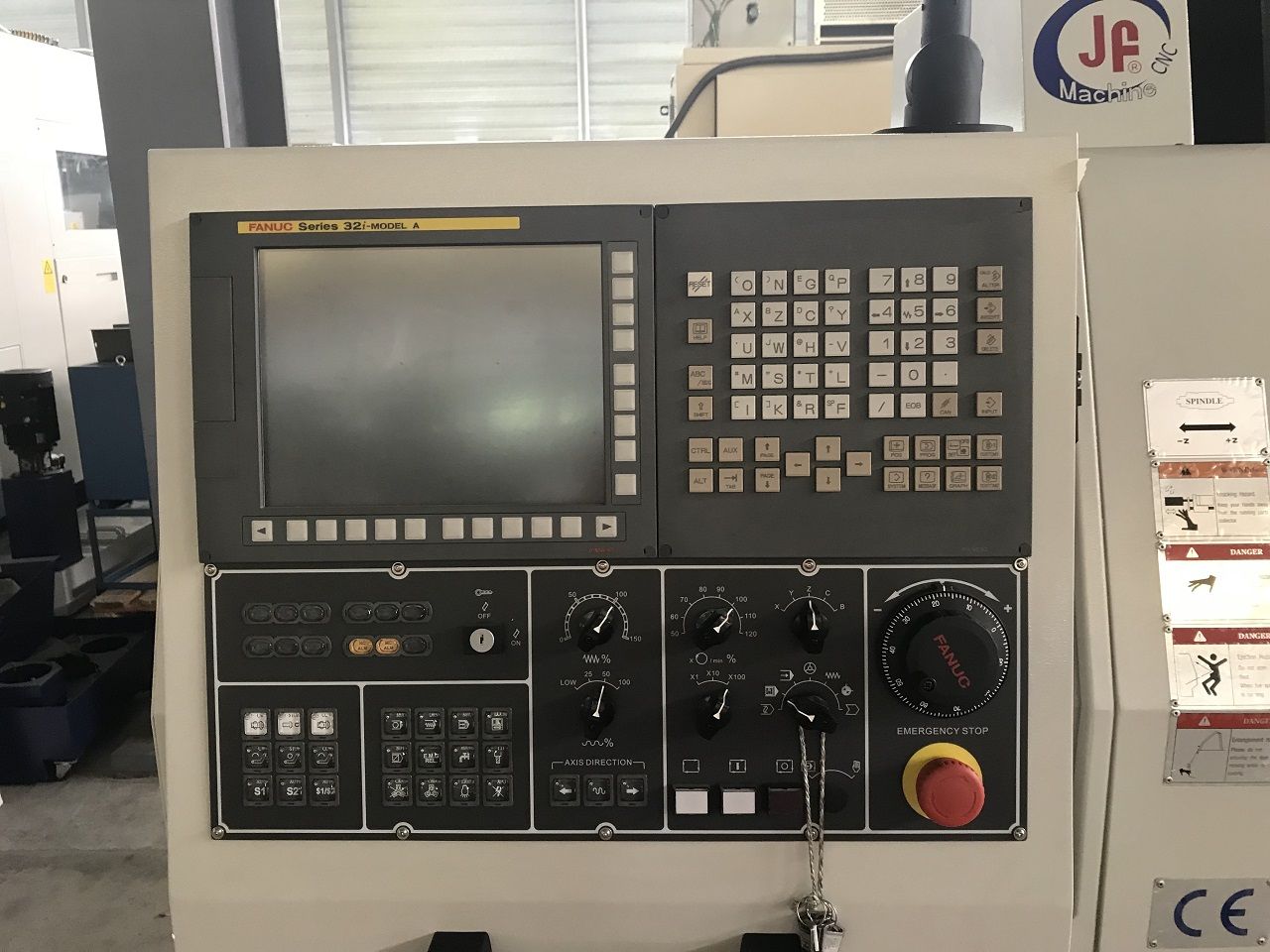

<section id="description"> <div class="detail_title_1"> <h1>AUTOMATIC CNC-LATHE "JINN FA" TYPE JSL-20AB</h1> </div> <p> <span class="status status-new"><i class="icon-star"></i> New</span> - <b>Reference</b>: 1120009 </p> <p>7 axes simultaneous, control Fanuc 32i-A </p> <hr> </section><br/><section id="details"> <h3>Information</h3><table class="table table-striped add_bottom_45"><tbody><tr><td> Manufacturing number</td><td></td></tr><tr><td> Manufacturing year</td><td></td></tr><tr><td> Manufacturing origin</td><td>Taiwan</td></tr><tr><td> Voltage </td><td>400/50/3</td></tr><tr><td> Netweight </td><td>2400 kg</td></tr><tr><td> Custom position </td><td>8458.11 20</td></tr><tr><td> Colour </td><td></td></tr><tr><td> Dimensions </td><td>2605 x 1420 x 2150 mm</td></tr></tbody></table><a style="margin-bottom: 25px;" class="btn btn-secondary" data-toggle="collapse" href="#collapse_product_specs" role="button" aria-expanded="false" aria-controls="collapse_product_specs">See more</a><div class="collapse" id="collapse_product_specs"><h3>TECHNICAL DATA :</h3><table class="table table-striped add_bottom_45"><tbody><tr><td>- max turning dia of main spindle </td><td>20 mm</td></tr><tr><td>- max turning dia of sub spindle </td><td>20 mm</td></tr><tr><td>- max turning length (fixed guide bush)</td><td>200 mm</td></tr><tr><td>- max turning length (rotary guide bush)</td><td>85 mm (option : 150 mm)</td></tr><tr><td>- max turning length (non guide bush)</td><td>45 mm</td></tr><tr><td>- max drilling capacity of main spindle </td><td>10 mm</td></tr><tr><td>- max drilling capacity of sub spindle </td><td>10 mm</td></tr><tr><td>- max tapping capacity of main spindle </td><td>M8</td></tr><tr><td>- max tapping capacity of sub spindle </td><td>M8</td></tr><tr><td>- max cross drilling capacity </td><td>10 mm</td></tr><tr><td>- max cross tapping capacity </td><td>M6</td></tr><tr><td>- number of external turning tools </td><td>8 pcs</td></tr><tr><td>- number of internal turning tools </td><td>5 pcs</td></tr><tr><td>- number of cross drillings </td><td>4 (option : 7)</td></tr><tr><td>- face tool holder (sub spindle)</td><td>4 pcs</td></tr><tr><td>- size of tool</td><td>12 x 12 x 90 mm</td></tr><tr><td>- number of axis controls </td><td>7 (X1/Y1/Z1/X2/Z2/C1/C2)</td></tr><tr><td>- bore of spindle </td><td>29 mm</td></tr><tr><td>- spindle speed range </td><td>200 ~ 8000 t/min</td></tr><tr><td>- rapid traverse X / Z</td><td>24 m/min</td></tr><tr><td>- main spindle motor </td><td>3.7 kW</td></tr><tr><td>- sub spindle motor </td><td>2.2 kW</td></tr><tr><td>- motor axis X1 / Z1</td><td>0.5 / 0.75 kW</td></tr><tr><td>- motor axis Y</td><td>0.75 kW</td></tr><tr><td>- cross drilling motor </td><td>0.75 kW</td></tr><tr><td>- end drilling motor </td><td>0.75 kW</td></tr><tr><td>- motor axes X2 / Z2</td><td>0.5 / 0.5 kW</td></tr><tr><td>- coolant motor </td><td>0.375 kW</td></tr><tr><td>- power requirement </td><td>15KVA</td></tr><tr><td colspan="2">errors and omissions excepted data gived without obligation</td></tr></tbody></table></div> </section>.
