MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Citizen
  • Model:

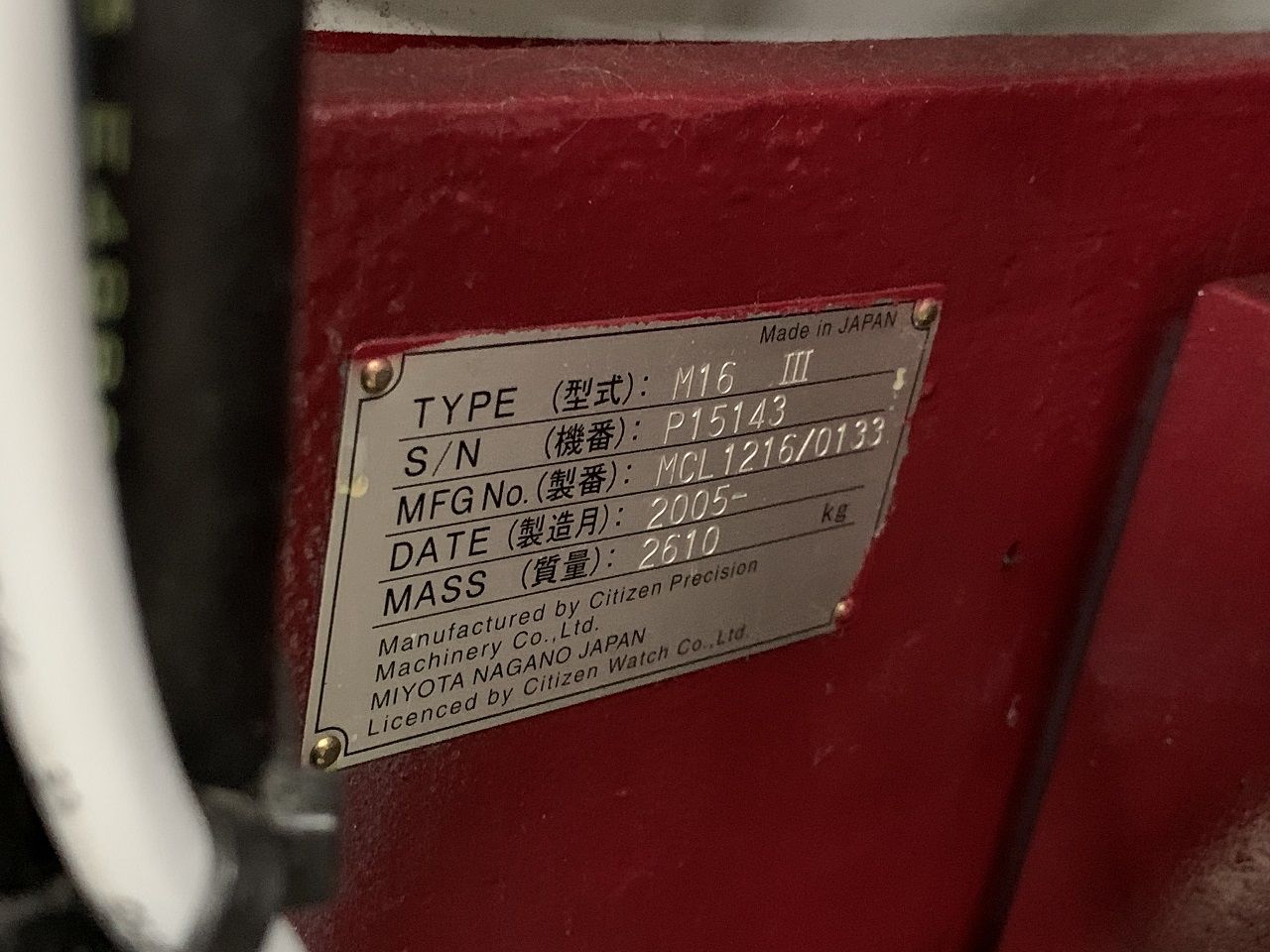

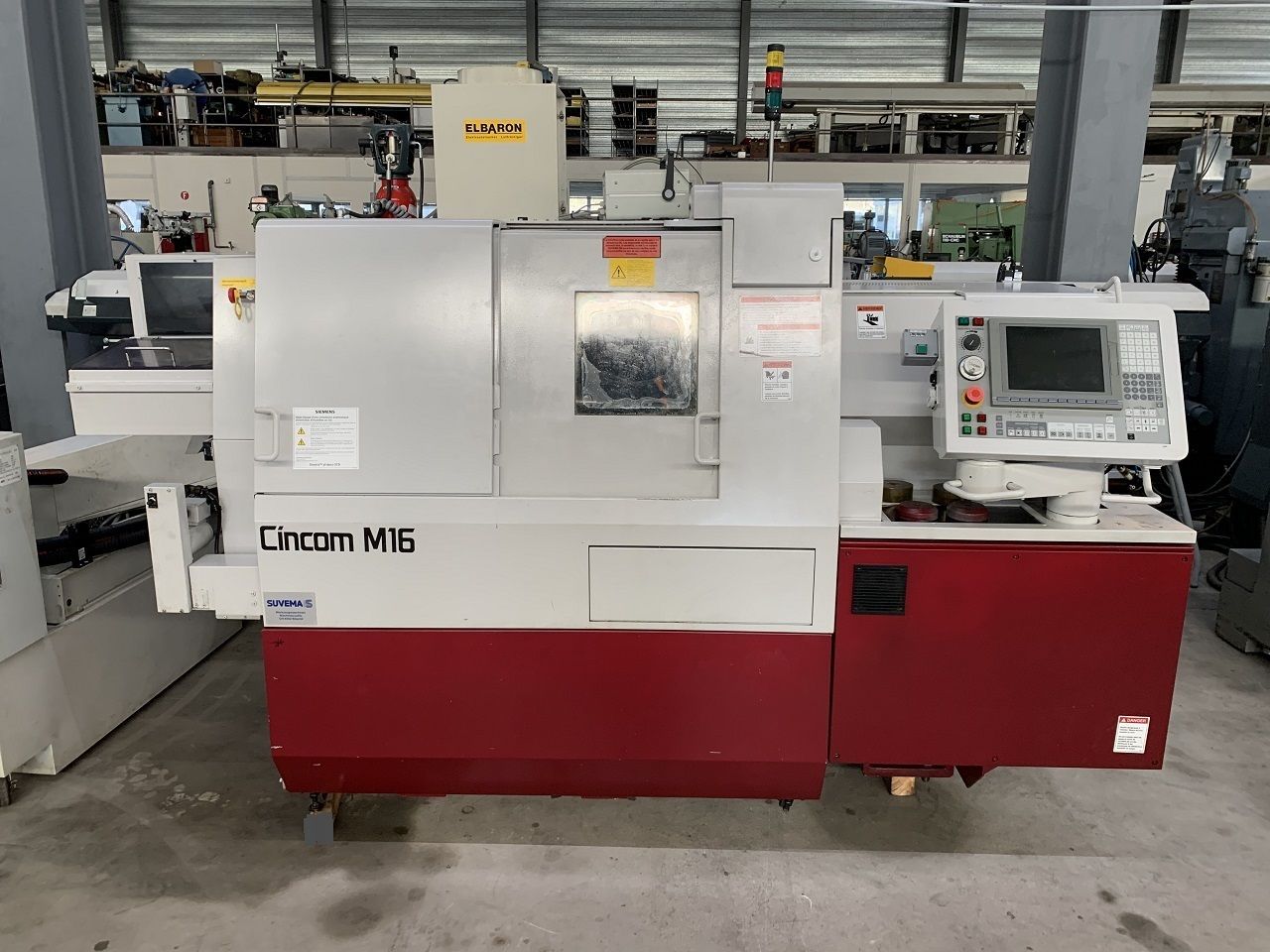

  • CITIZEN CINCOM M16-III
  • Condition:
  • Used
  • YOM:
  • 2005
  • Control:

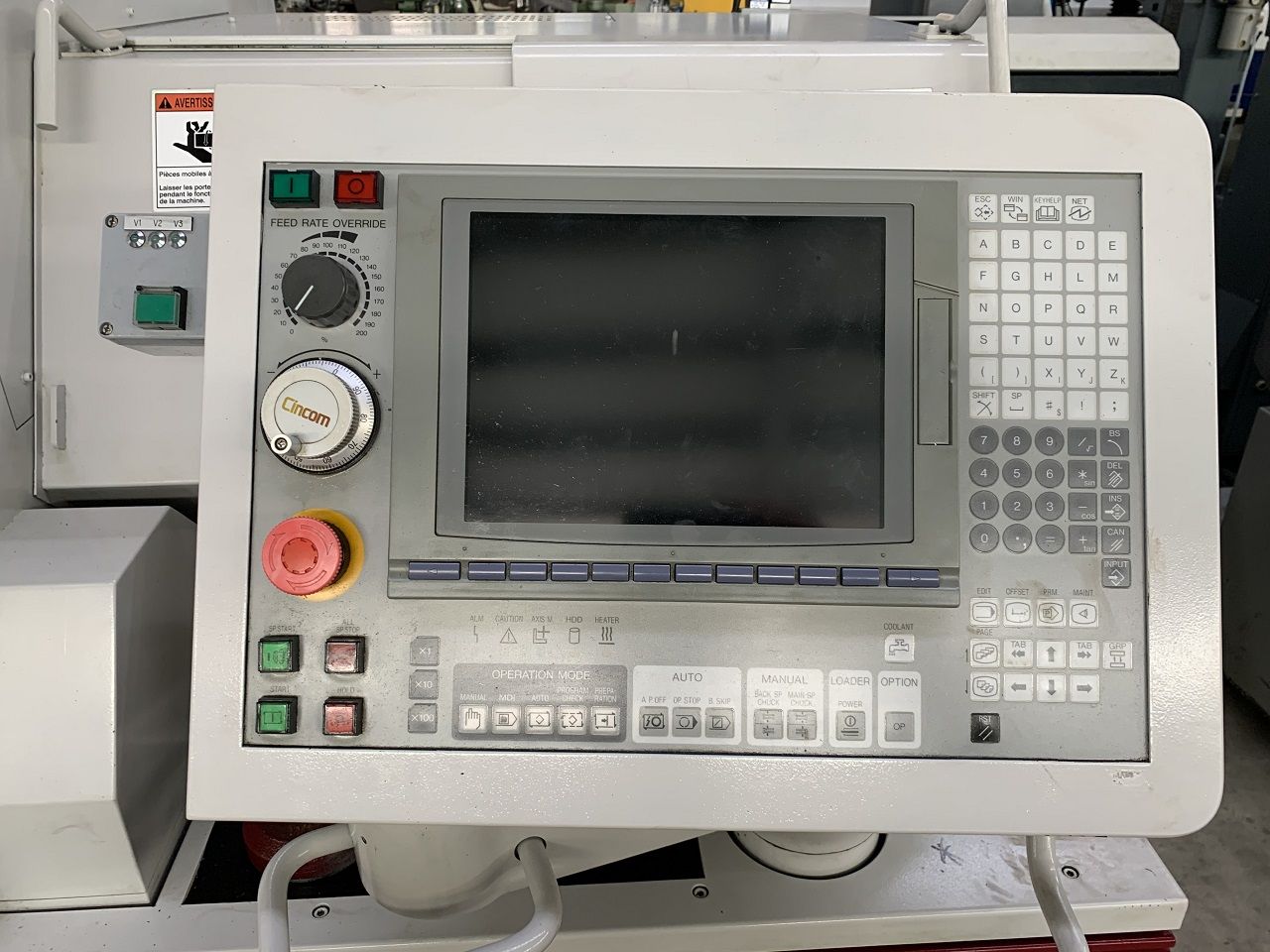

  • CNC Control
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

  • INFORMATION

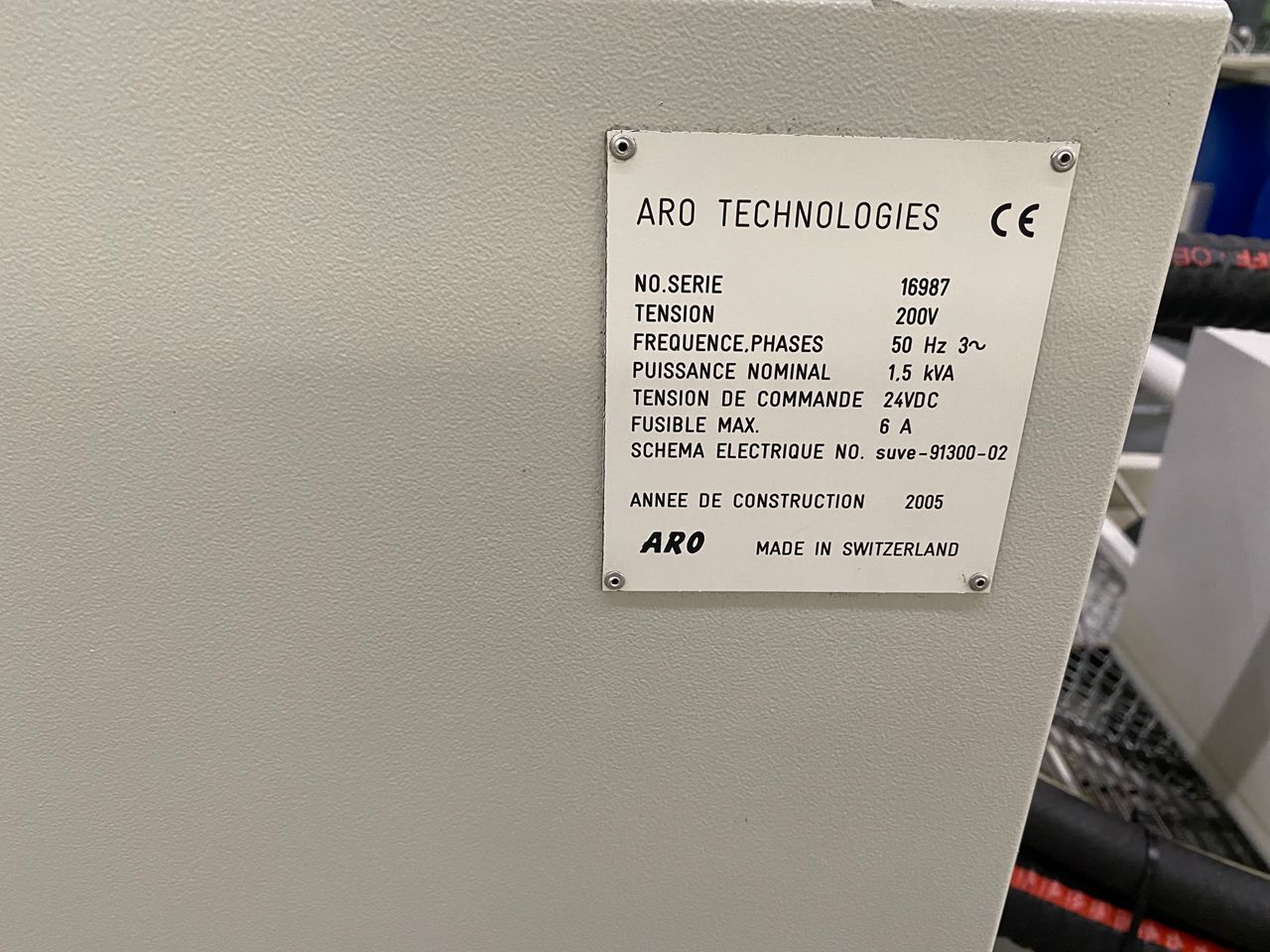

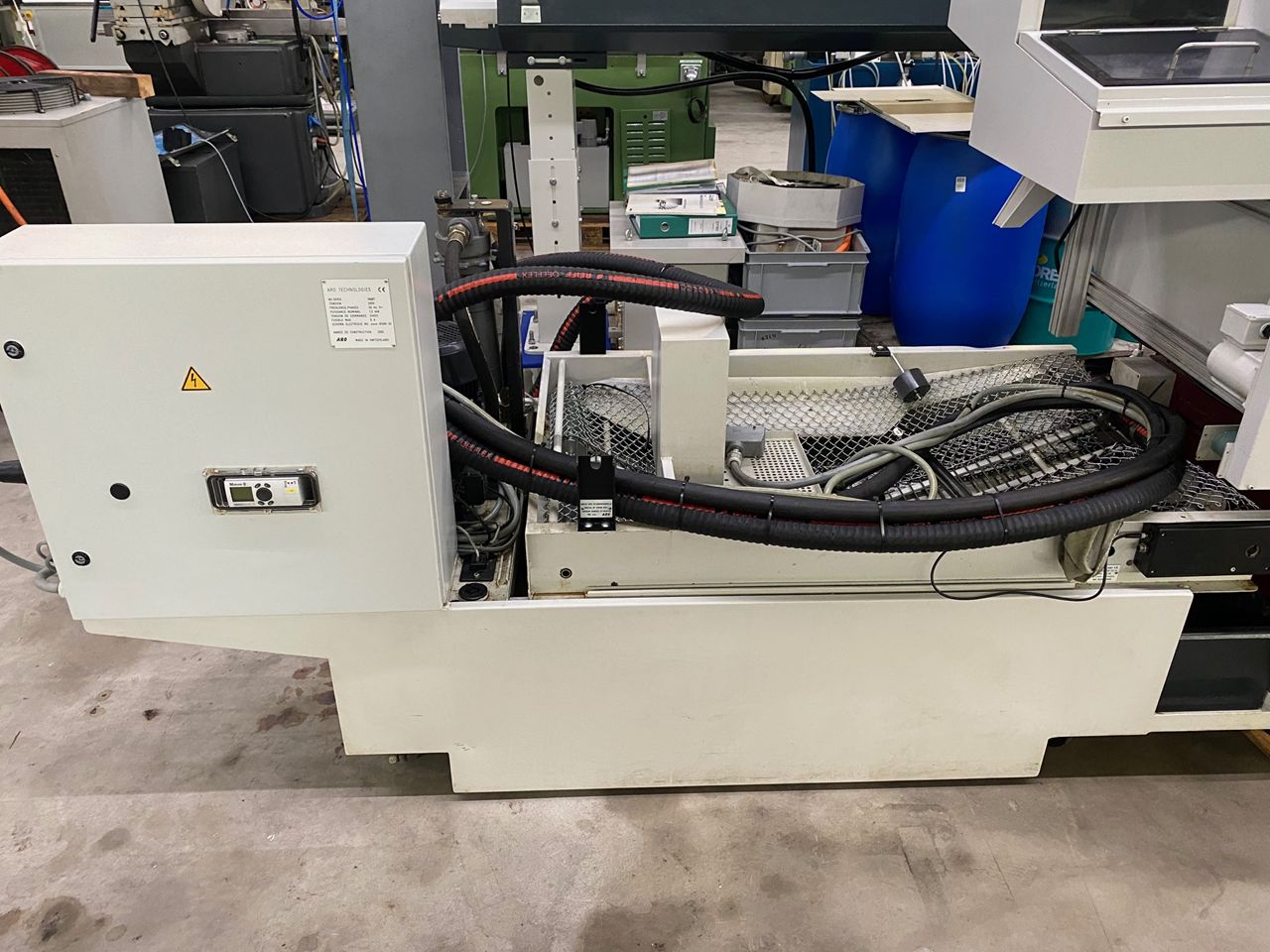

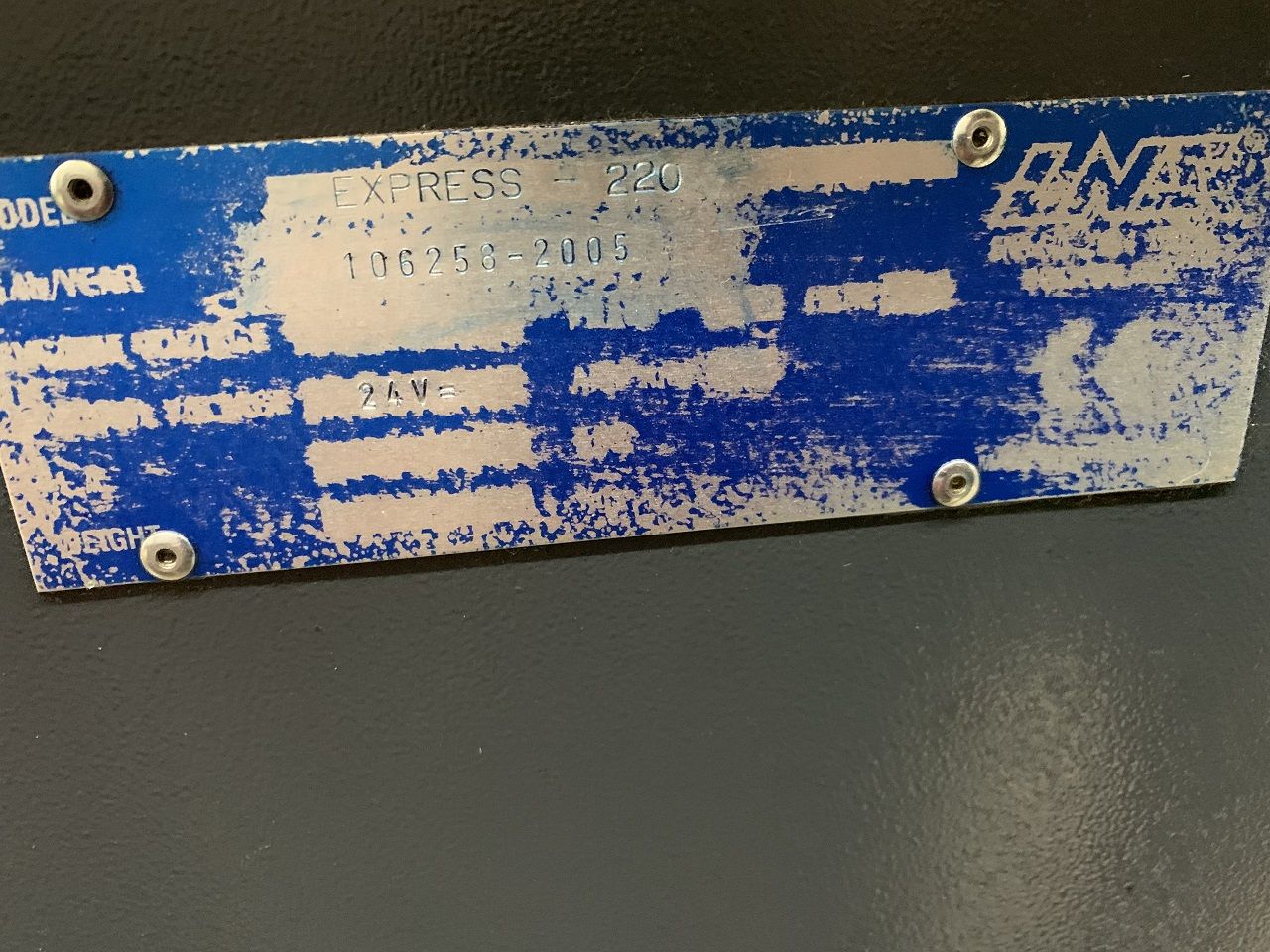

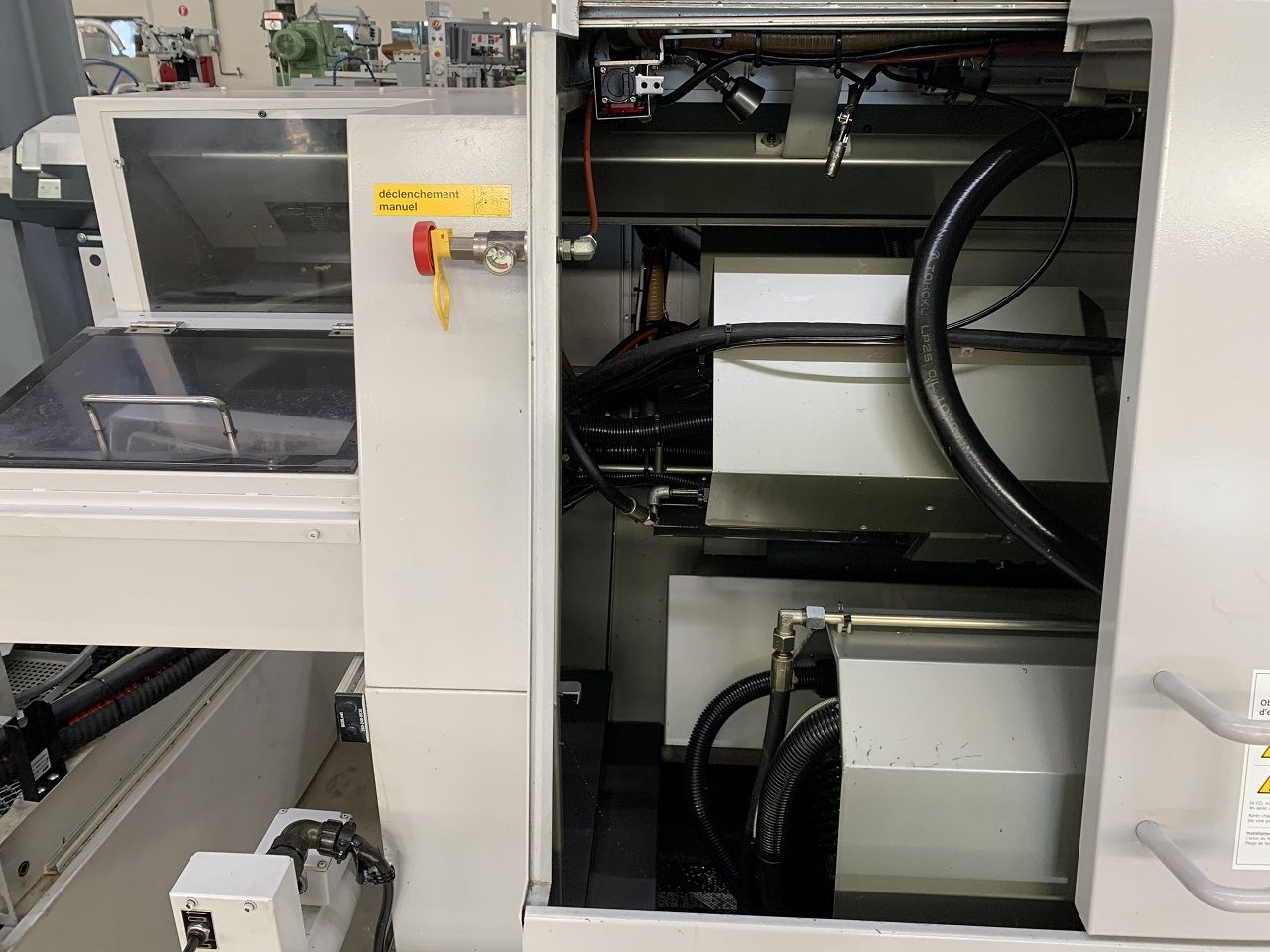

  • 2005, with bar-feeder LNS Express 200 chip conveyor ARO
  • Manufacturing origin: JP
  • Voltage : 400 V
  • Netweight : 2400 kg
  • Dimensions : 2450x1320x1700 mm mm
  • TECHNICAL DATA

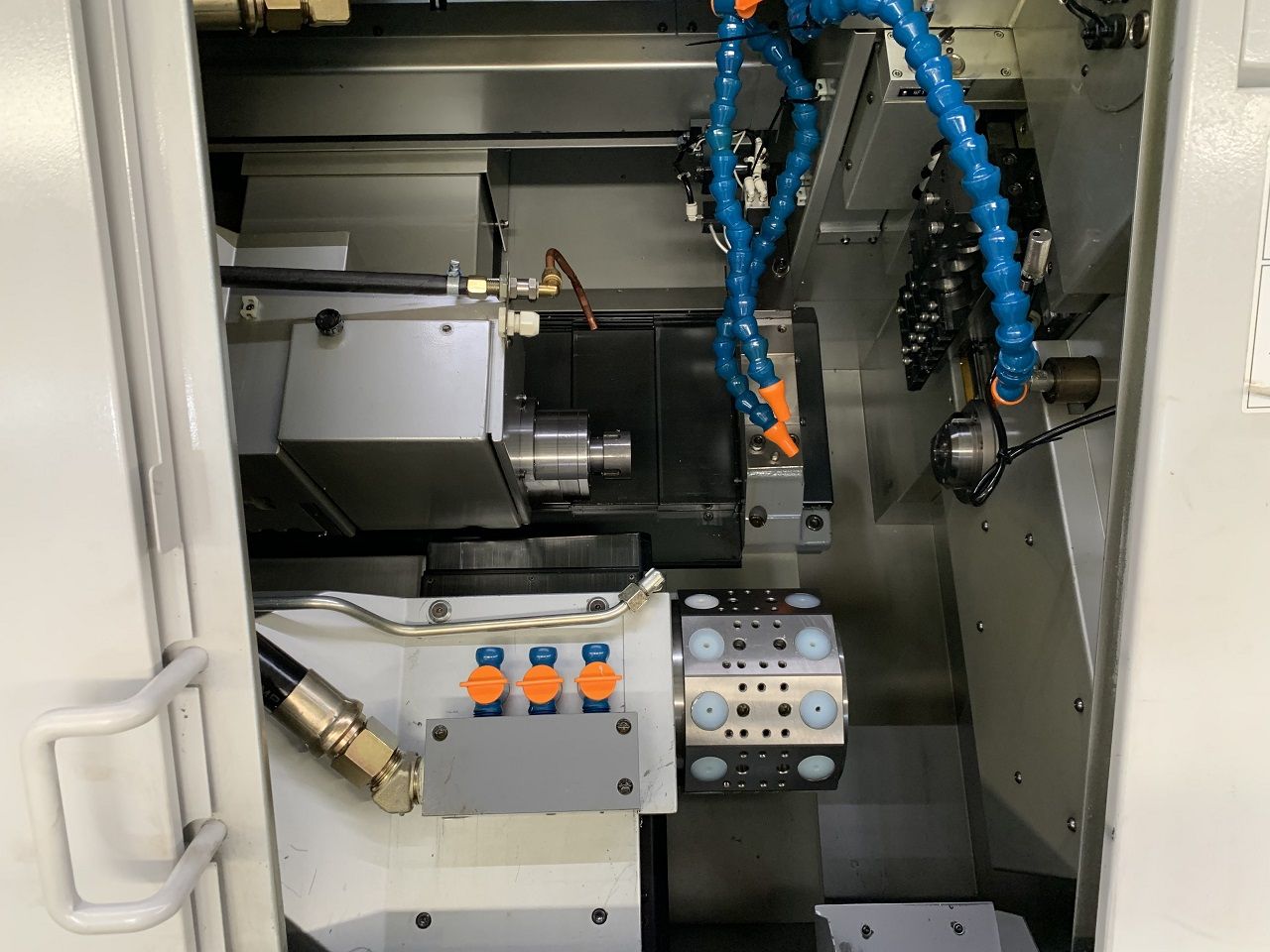

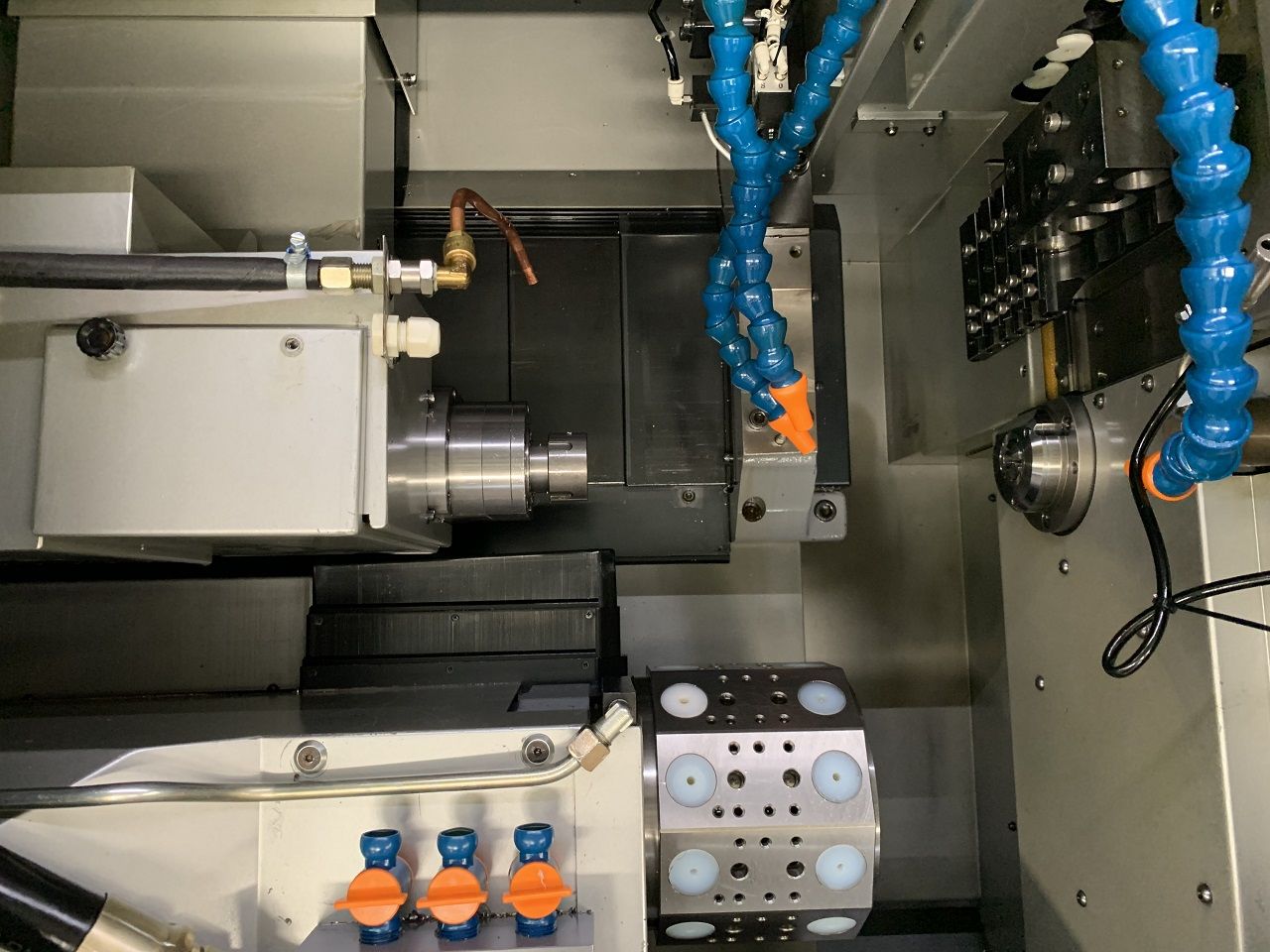

  • Main spindle
  • Max machining diameter : Ø 16 mm
  • Max turning length, without re-chucking : 200 mm
  • Through-hole diameter : Ø 20 mm
  • Speed : 10’000 min-1
  • Indexing : 0,001°
  • Drive : 2,2 kW
  • Sub-spindle
  • Max machining diameter : Ø 16 mm
  • Speed : 10’000 min-1
  • Indexing : 0,001°
  • Drive : 0,75 kW

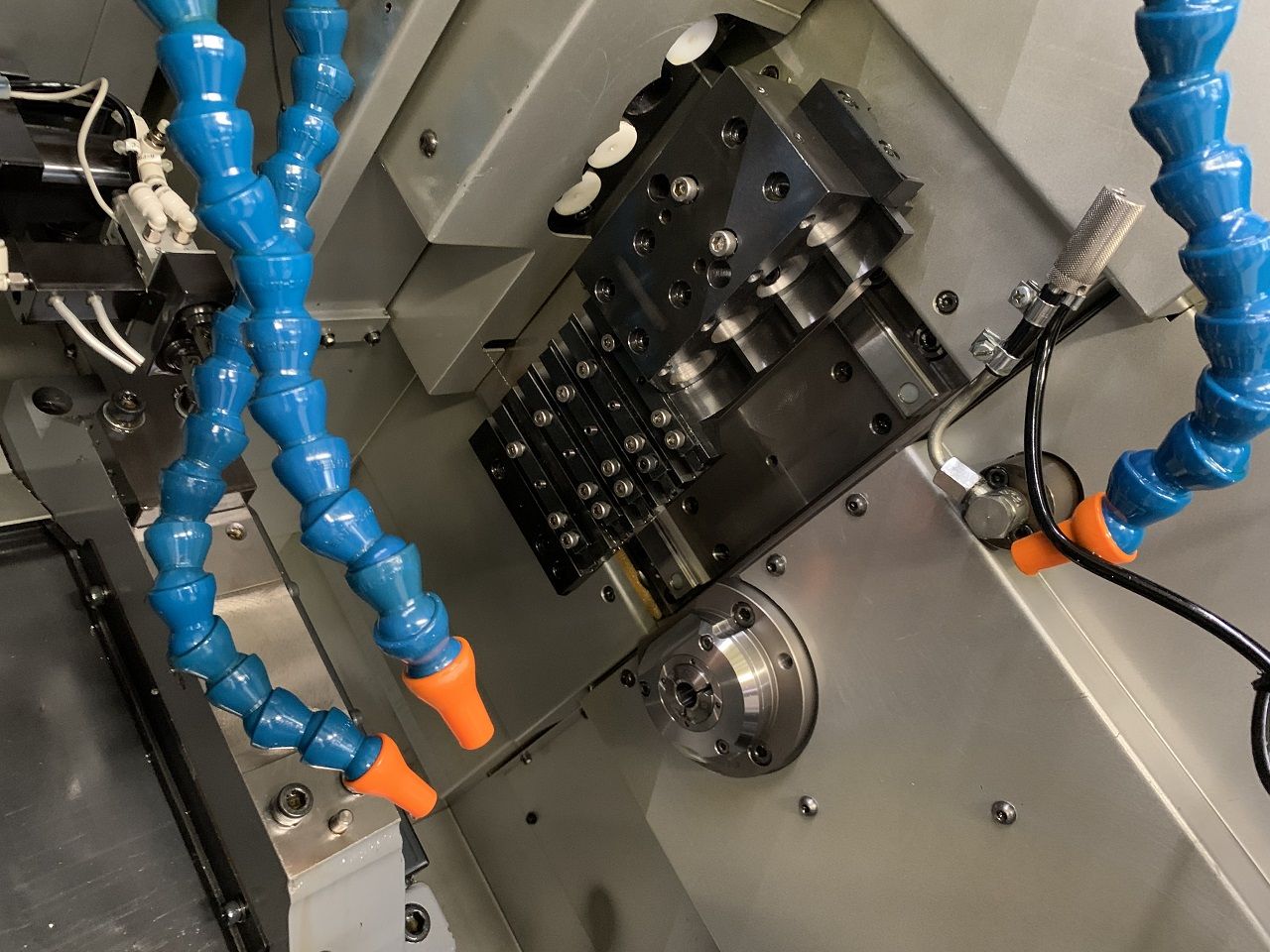

  • No. of rotary tools at vertical tool holder : 4
  • Speed of rotary tools : 8’000 min-1
  • Drive power : 0,75 kW

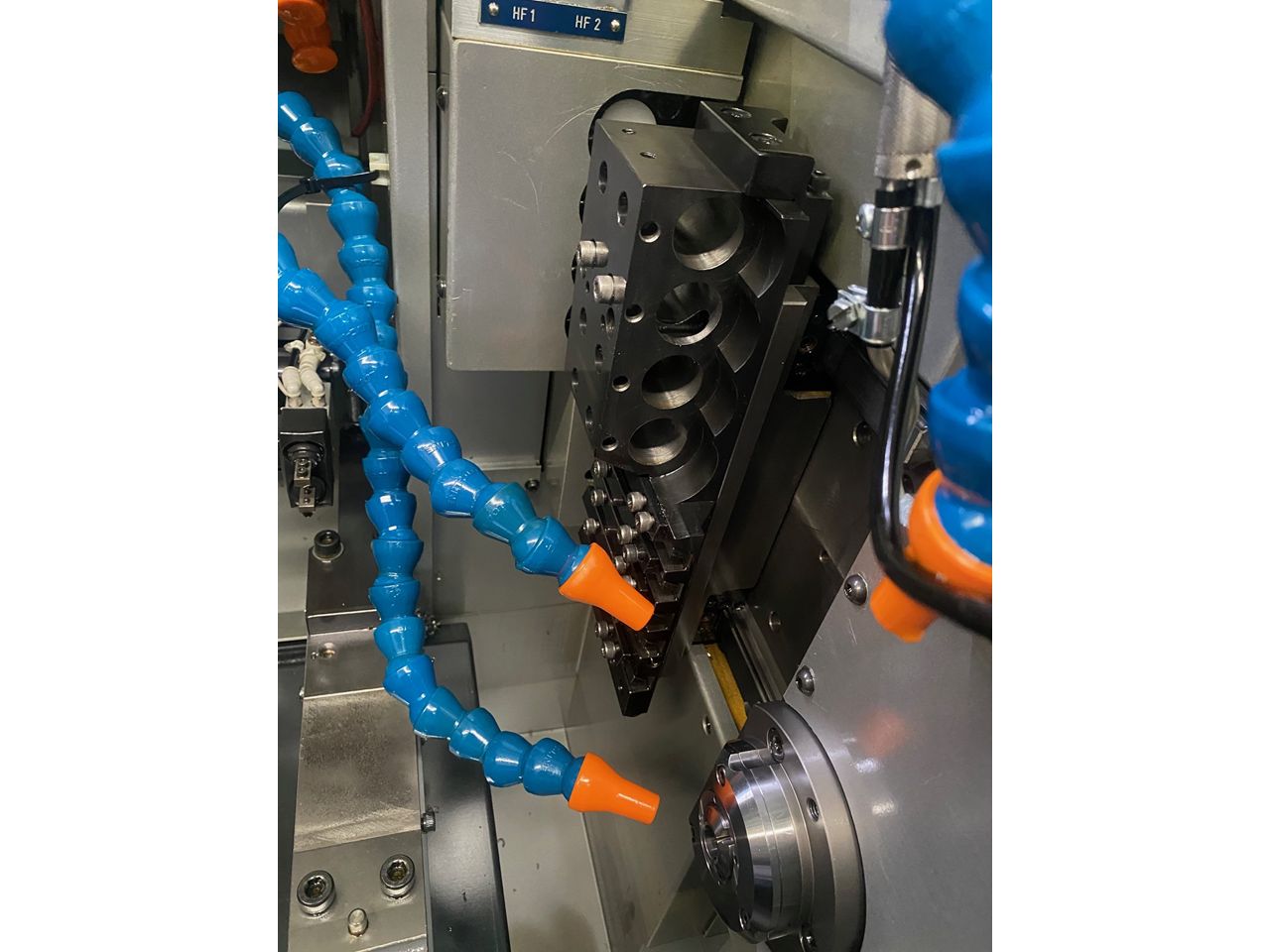

  • No. of tools at turret : 10
  • Speed of rotary tools : 6’500 min-1
  • Drive power : 0,75 kW
  • Tools : 5
  • Drill holder for back machining : 3/2 rotary (option)
  • Collet sleeve diameter : Ø 19,05 mm

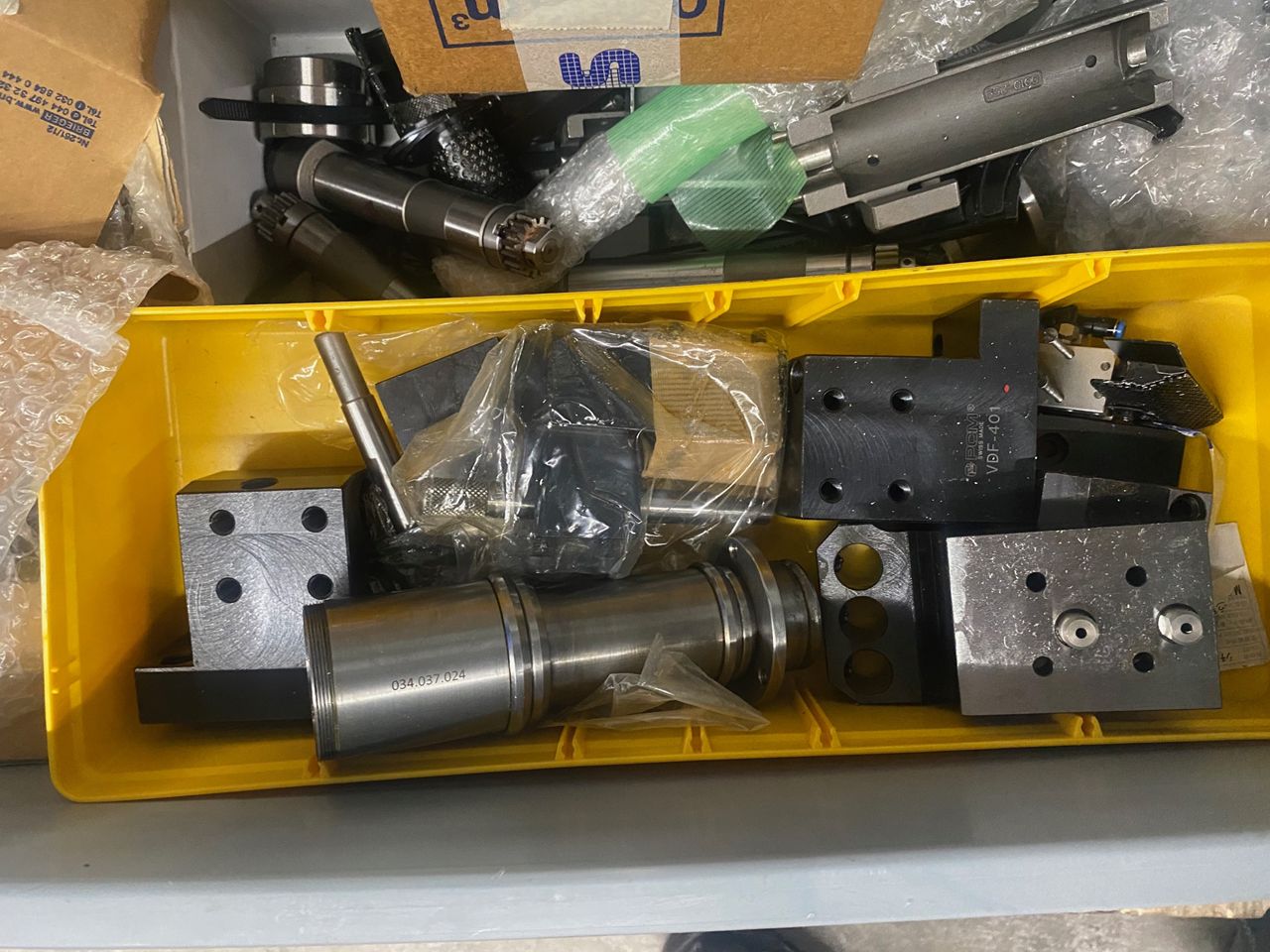

  • Tool holders, rotary tools (shank section) : 10 mm
  • Collet type (spindle and sub-spindle) : F20 (138E)
  • Drill collets : ER11
  • Guide bush(Neukomm) : F605 (61.002)
  • Rapid feed rates, all axes : 20m/min
.
