MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • XYZ
  • Model:
  • Used XYZ ProTURN RLX425 X 1.25M Lathe (4453)
  • Condition:
  • Used
  • YOM:
  • 2021
  • Control:

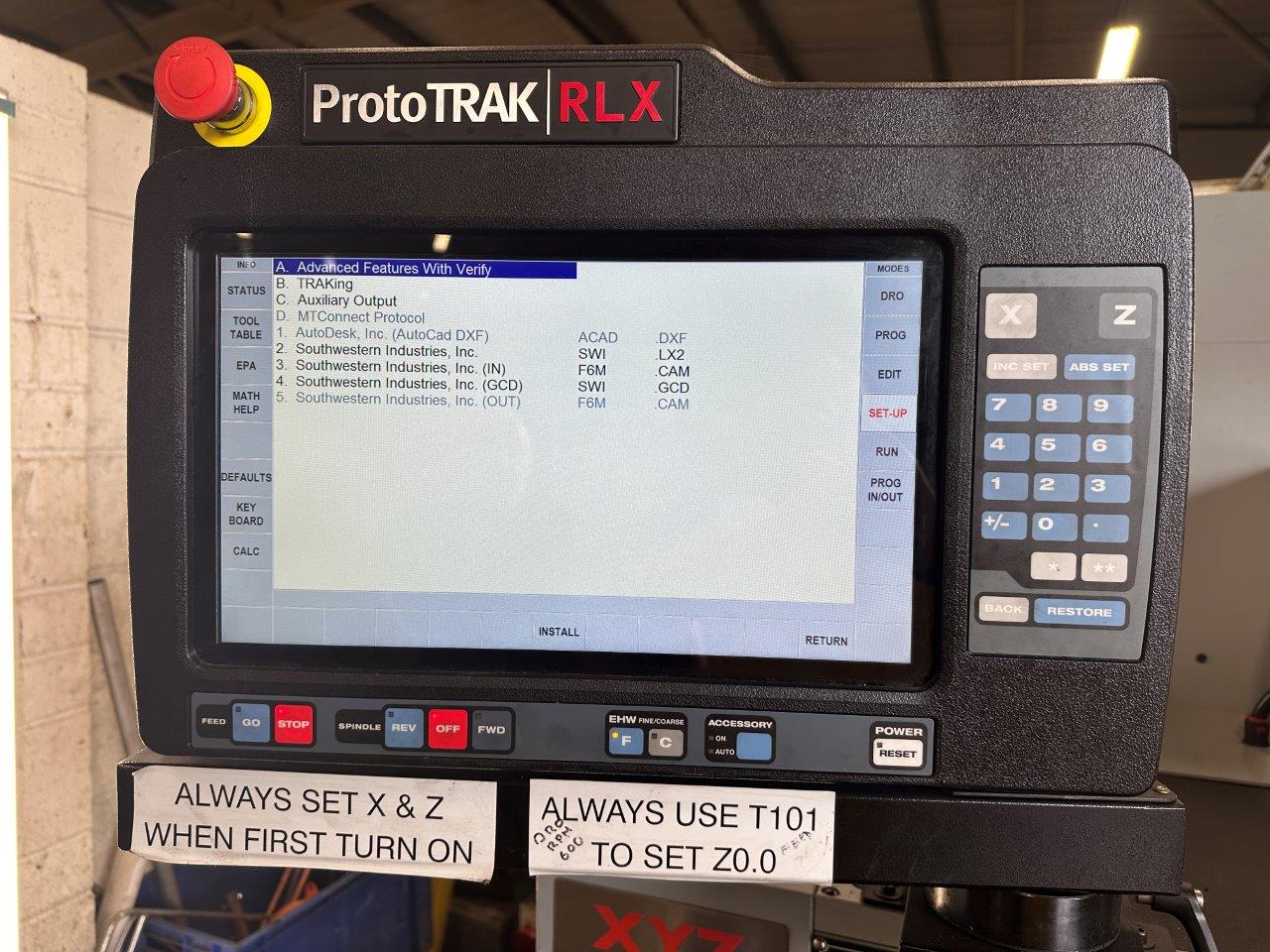

  • RLX Prototrak
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

Used XYZ ProTURN RLX425 X 1.25M Lathe, 2021, s/n RLX10073, RLX Prototrak Control, Spindle Speed 25-2500 rpm,(three ranges), Swing 480mm, Swing in gap 700mm, Gap in front of faceplate 170mm, Centres 1,250mm, Constant Surface Speed, TRAKing, 3 jaw chuck, Qctp, tailstock, Auto Lube, Coolant, Work light, Spindle Bore 80mm, D1-8 Spindle, Power 7.5kw (10Hp), Air assisted floating Tailstock MT 5, Tailstock travel 160mm, Footprint 2,600mm x 1,480mm x 1,830mm, Weight 2,700Kg.

Options - Advanced Features, Network, TRAKing, Advanced Features with Verify
