Manufacturer
AVM Angelini Tornio
Type

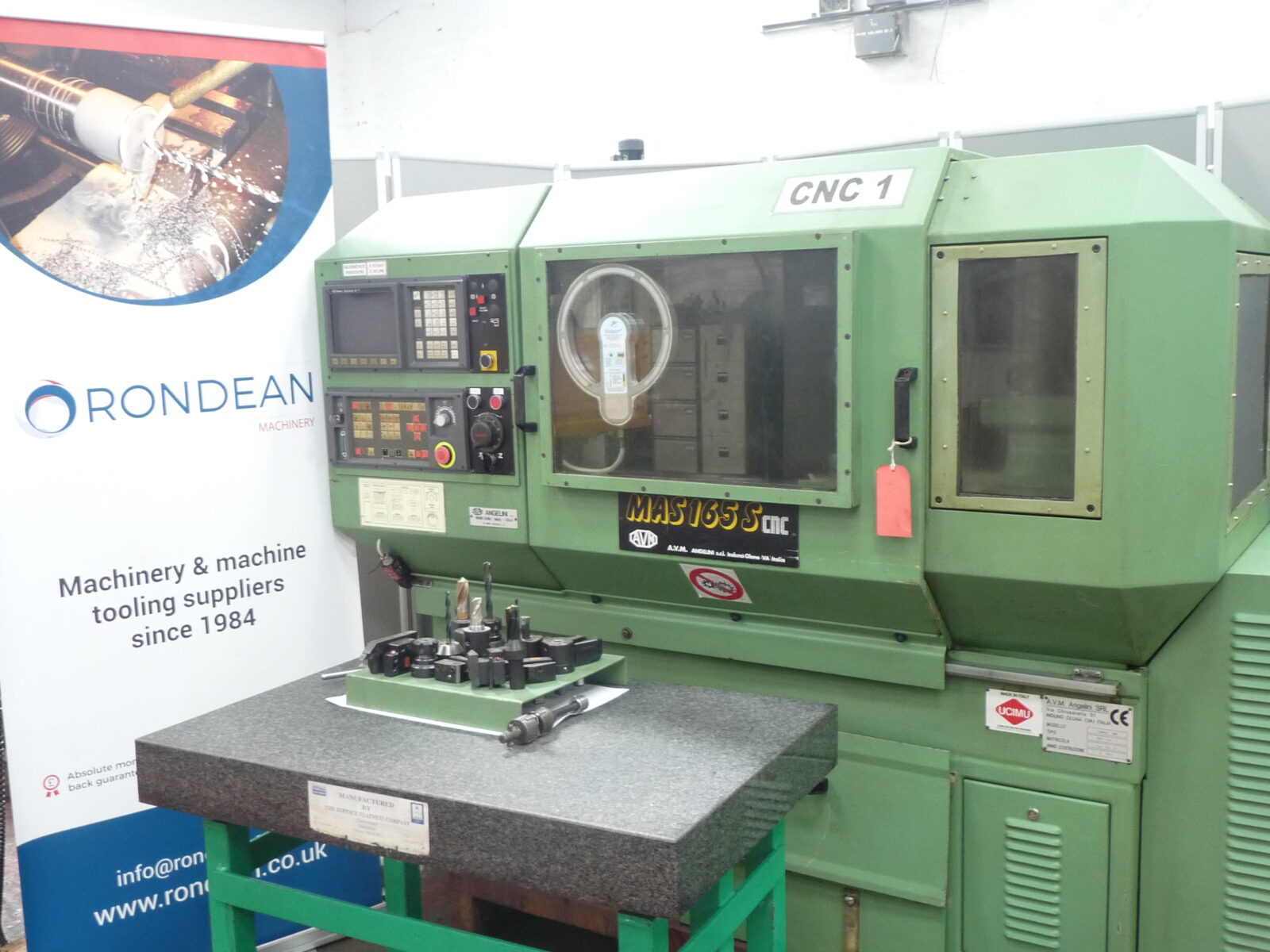

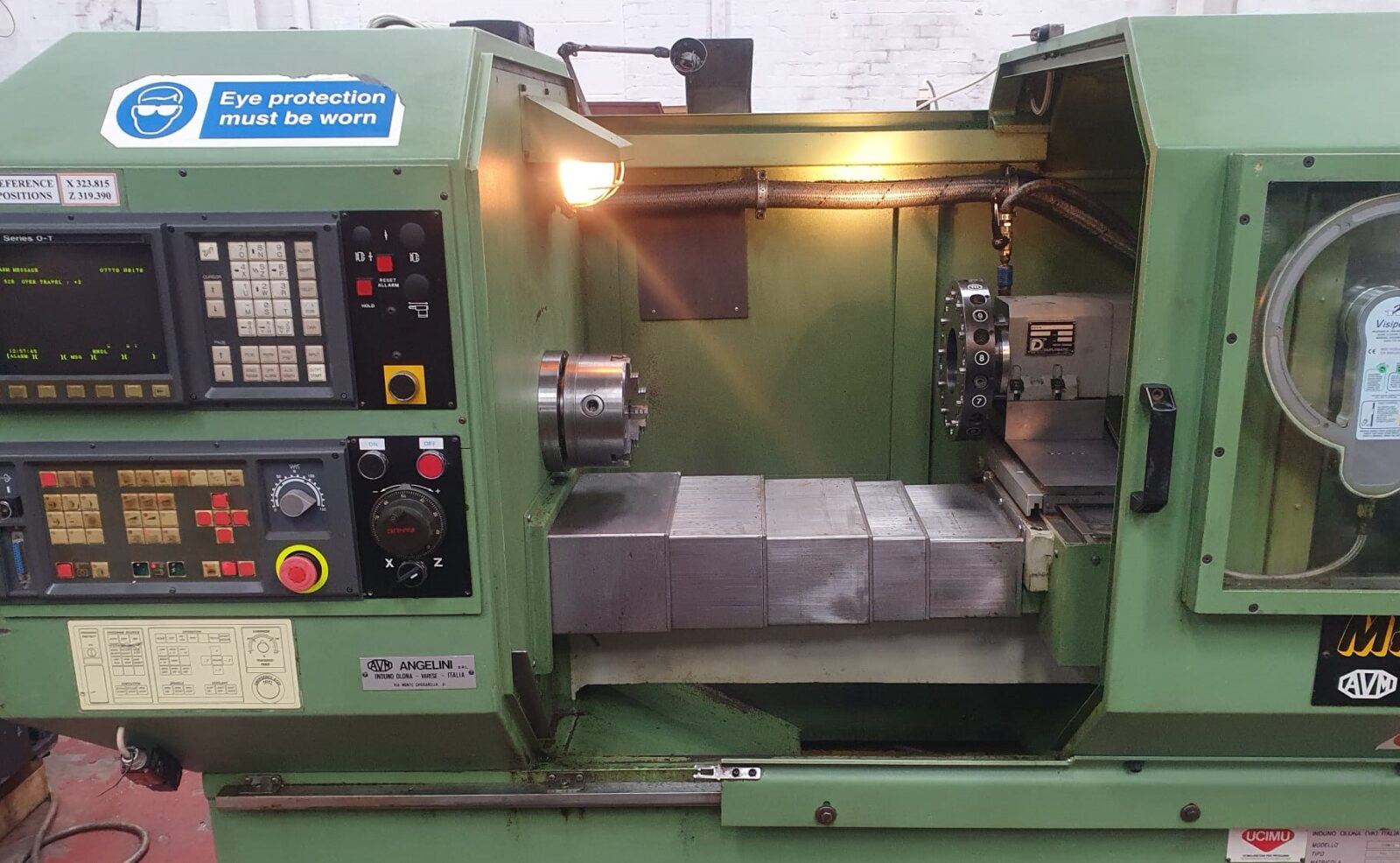

CNC Centre Lathe
Model
MAS 165S
Capacity
780mm Between Centres
26-465mm working area from chuck to turret
123mm centre height
100mm max chuck opening
Features

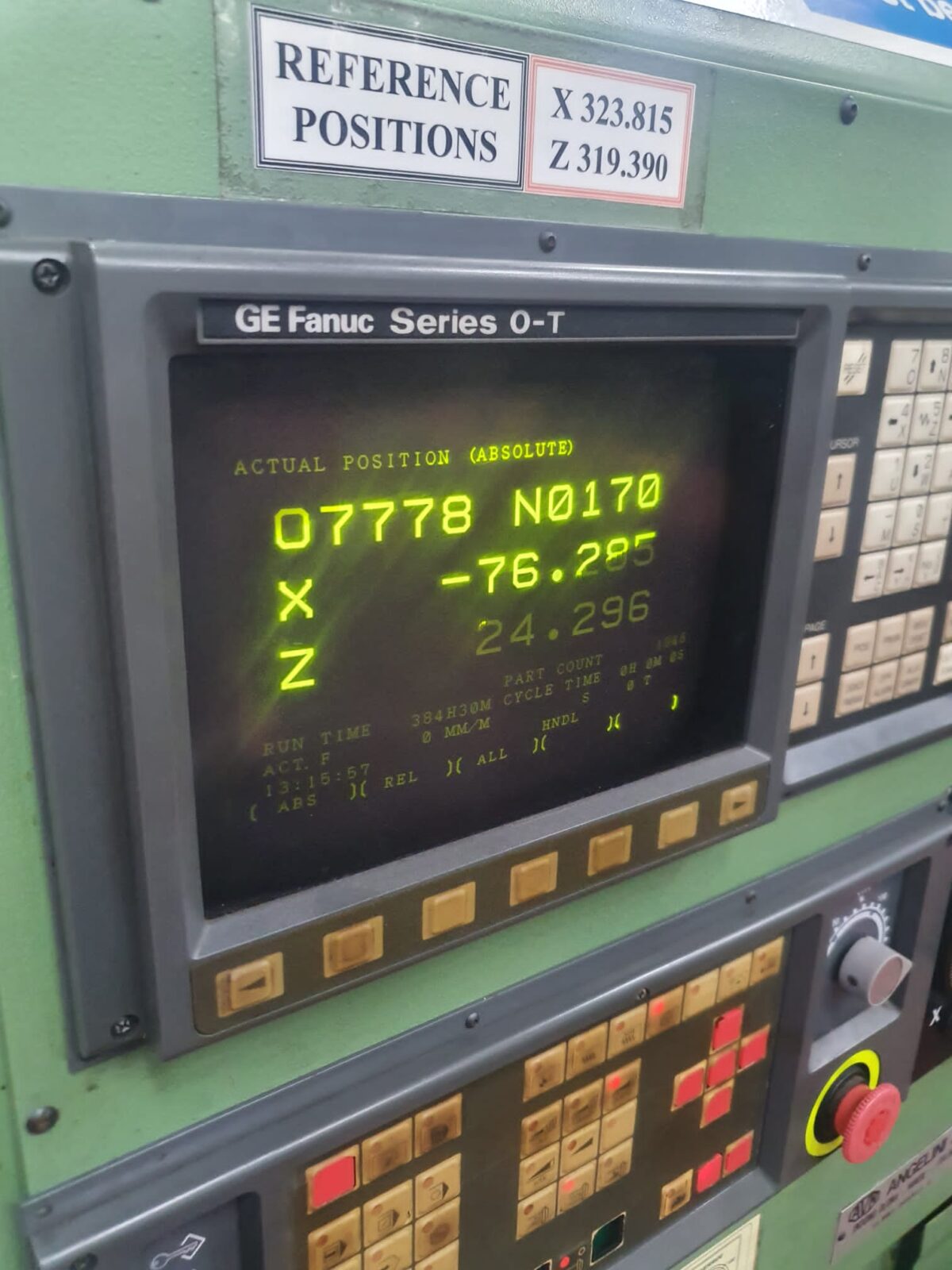

GE FANUC Series 0-T Control

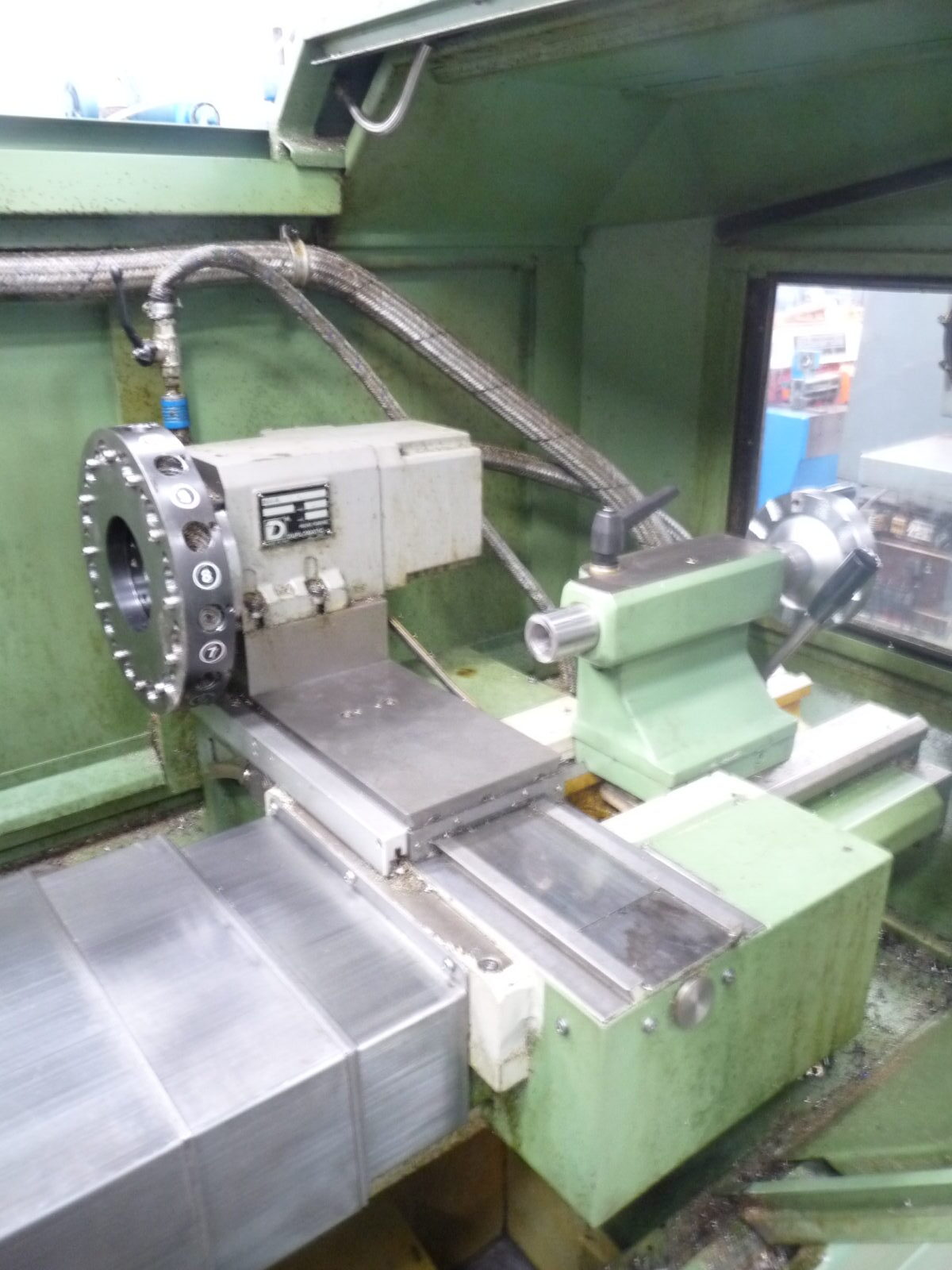

12 Station Turret

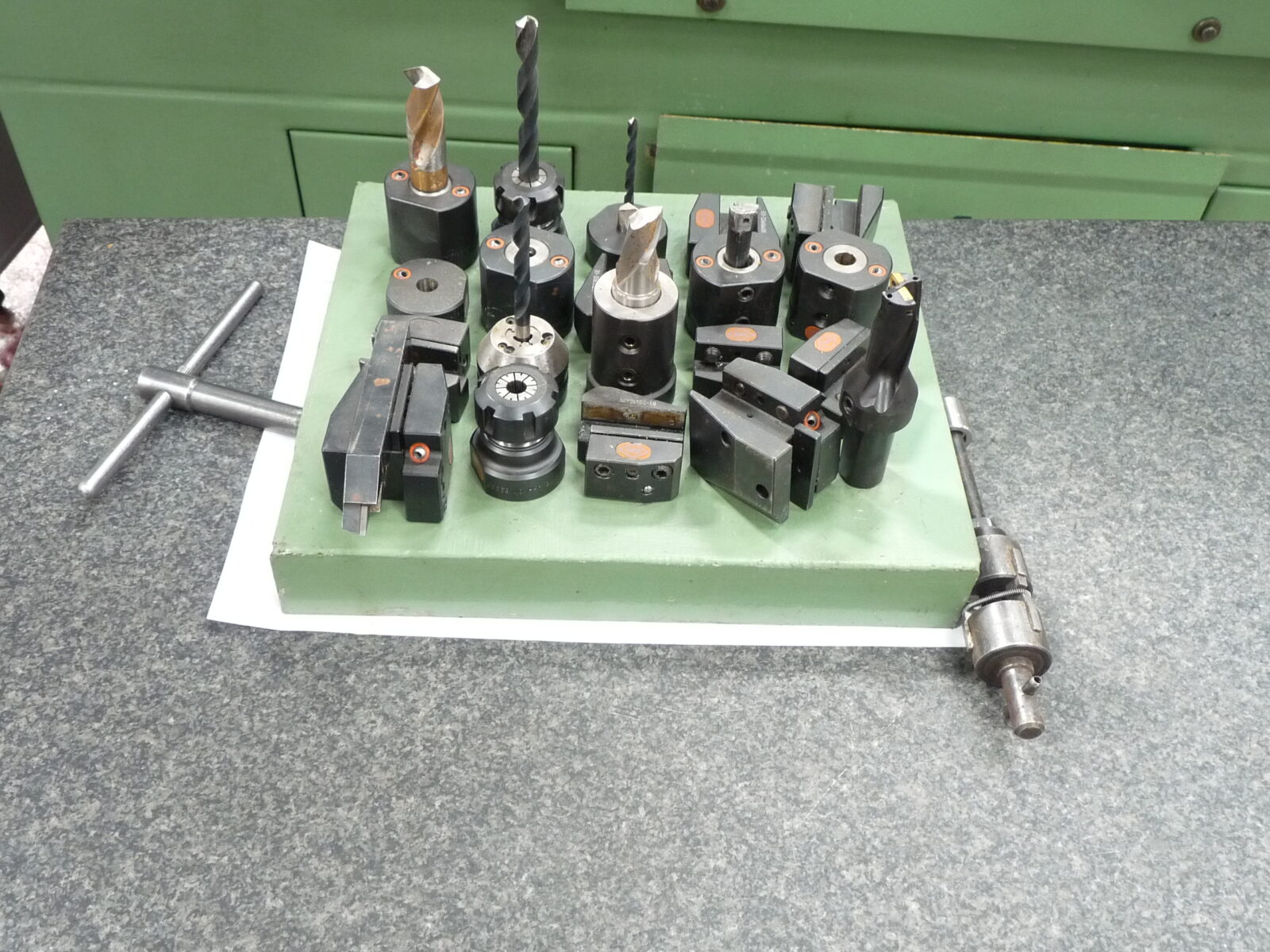

Supplied with various tool holders and tooling
Instruction manual
Power
3 Phase Electric’s 5.5kW 36 amps
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery Options
To suit your needs, call us for a quote.
