DOOSAN
10262

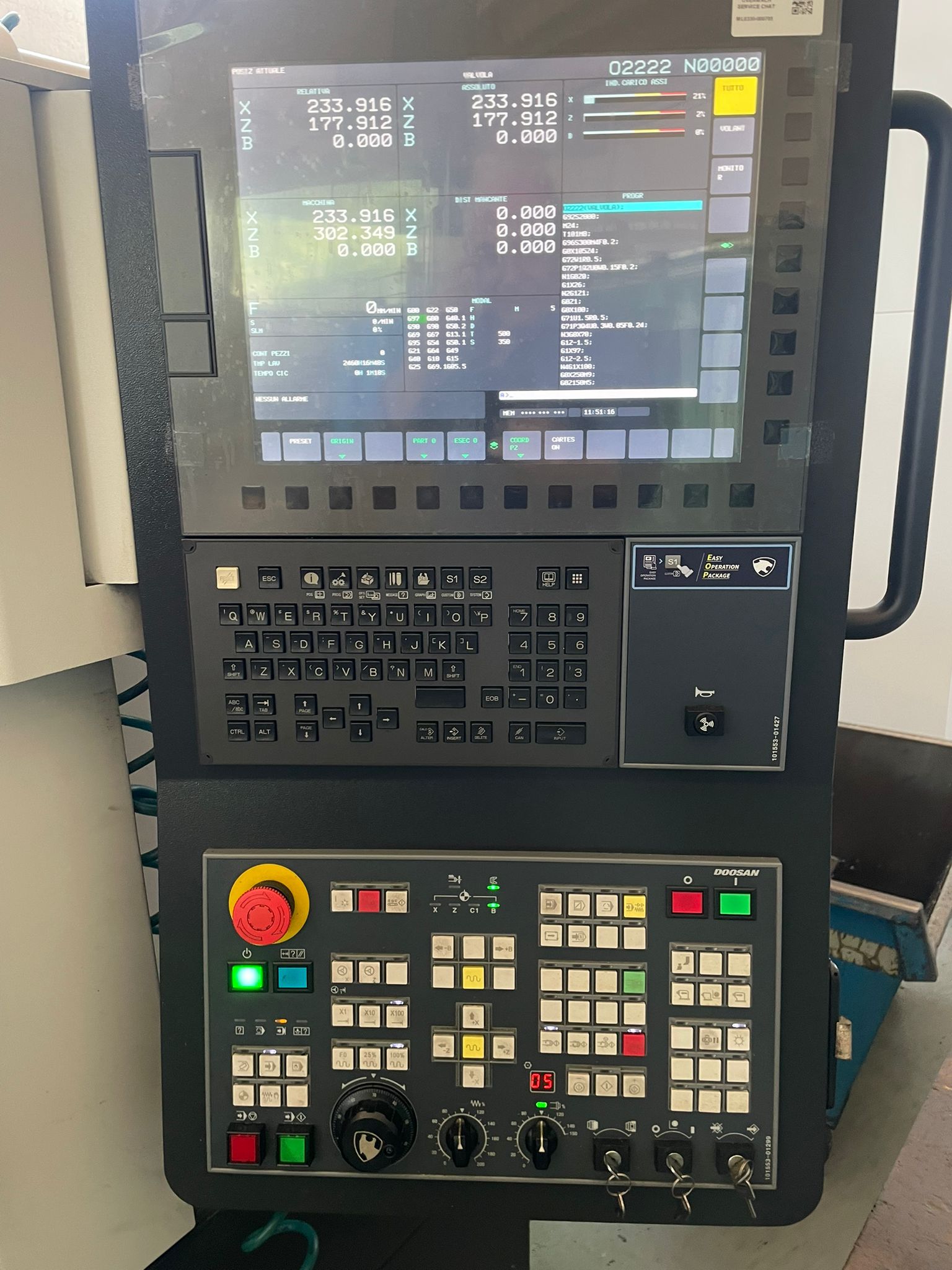

CNC Control: Fanuc i-Plus iHMI
Max turning diameter: 350 mm
Max turning length between centers: 330 mm
Swing over bed: 600 mm
Swing over carriage: 400 mm
Max turning diameter from bar: 51 mm
X-axis travel: 205 mm
Z-axis travel: 340 mm
Rapid traverse X/Z: 30 / 36 m/min
Standard hydraulic 3-jaw chuck
Spindle diameter: 170 mm
Spindle speed: 6,000 rpm
Spindle motor power: 15 kW
Spindle bore: 61 mm
Bar capacity: 52 mm
Spindle nose: ASA A2-5
Turret: 12 stations
Max overhung workpiece weight: 70 kg
Max supported workpiece weight with tailstock: 150 kg
Tailstock taper: Morse 4
Tailstock stroke: 360 mm
Tailstock thrust: 367 kg
Machine weight: 3.100 kg
Equipped with:
Tool load monitoring
Tool presetter
High-pressure coolant system, 6 bar
Chip conveyor
USED MACHINE
YEAR: 2021
ANNO: 2018
S/N: RU200301
Distanza punte: 2200 mm
Altezza punte: 480 mm
Diametro massimo rettificabile: 450 mm
Peso ammesso senza lunette: 1500 Kg
SPECIFICHE TESTA PORTA MOLA (ASSE X E SPECIFICHE MOLA)
N° di mandrini mola trascinati a cinghia OD: 1
D...
TCS
08771
Closing force kN 1000
Opening force kN 400
Lower plane size mm 2000x1500
Lower plane translation mm 1500
Max weight on the lower plane kN 200
Upper plane size mm 2000x1500
Upper plane stroke mm 1500
Max weight on the upper plane kN 80
Upper...
Siemens 850 control
Floor plate table
13,000mm x 3,660mm
Travel X 14,000mm
Between columns 4,850mm
60 ATC position
Main motor 63kW
Milling head
attachments
