MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hardinge
  • Model:
  • Hardinge Conquest T42 LSC
  • Country:
  • United Kingdom

DESCRIPTION

Hardinge Conquest T42 LSC

Name of Machine: Hardinge Conuest T42 LSC
YOM: 1998
Stock Number: clj/0138

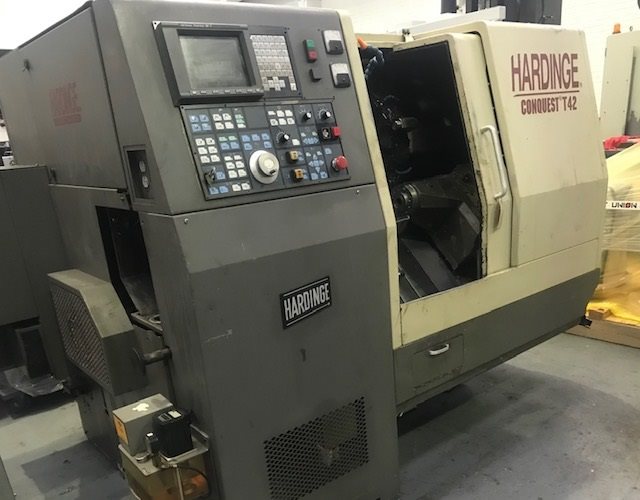

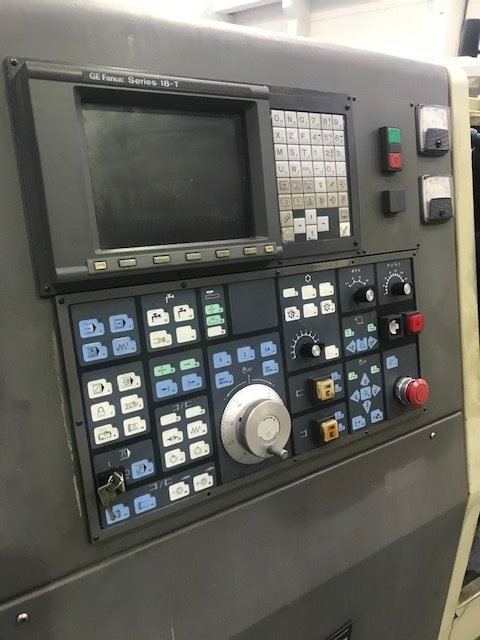

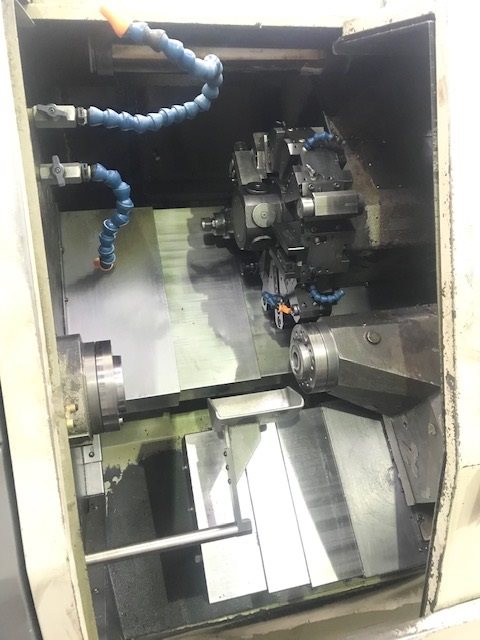

Briefly, this Fanuc controlled 1998 built Hardinge Conquest T42 LSC (Driven tools, C Axis & Sub Spindle) CNC lathe is supplied with driven tools & C-Axis, sub spindle, tailstock, parts catcher and Iemca barfeed.

Specification:

16C Collet Spindle
Spindle Configuration ANSI A2-5
Hole Through Spindle 48mm, Round 16C Collet 42mm cap
AC Digital Spindle Drive System (30 Minute Rating) 10 hp / 7.5 kW
Speed Range50 - 5,000 rpm
CARRIAGE & CROSS SLIDE
Max. Swing Over Upper Way Cover 495mm
Max. X-Axis Travel 140mm
Max. Z-Axis Travel 350mm
Max. X-Axis Traverse Rate 12 m/min
Max. Z-Axis Traverse Rate 16 m/min
Max. Distance from Spindle Face to Turret Face 355mm
Live Tooling Holders (Speed Range) 4,000 rpm
SUB-SPINDLE
Spindle Configuration ANSI A2-5"
Hole Through Spindle 48mm
Max. Travel 292mm
Rapid Traverse and Return Rate 7.6 m/min
Max. Square Shank Tool Size on Vertical Turret 20mm
Max. Round Shank Tool Size on Vertical Turret 20mm
AC Analog Drive System (Power Rating) 1.23 kW
MACHINE MEASUREMENTS
Length 2362mm
Length with End Chip Removal System 3141mm
Depth 1778mm
Height 1727mm
Weight 4445 kg
Supplied with: Driven & static tool holders, parts catcher, Iemca Servo barfeed & swarf conveyor.
Condition: Used
Location Fishponds, Bristol
Price: POA
Shipping Details: A VAT invoice will be supplied within 48 hours of the sale end date. Delivery off loading and siting are all available with this machine at extra cost.
