Home > Lathes (CNC and Manual) > Capstan Lathes Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Harrison
  • Model:

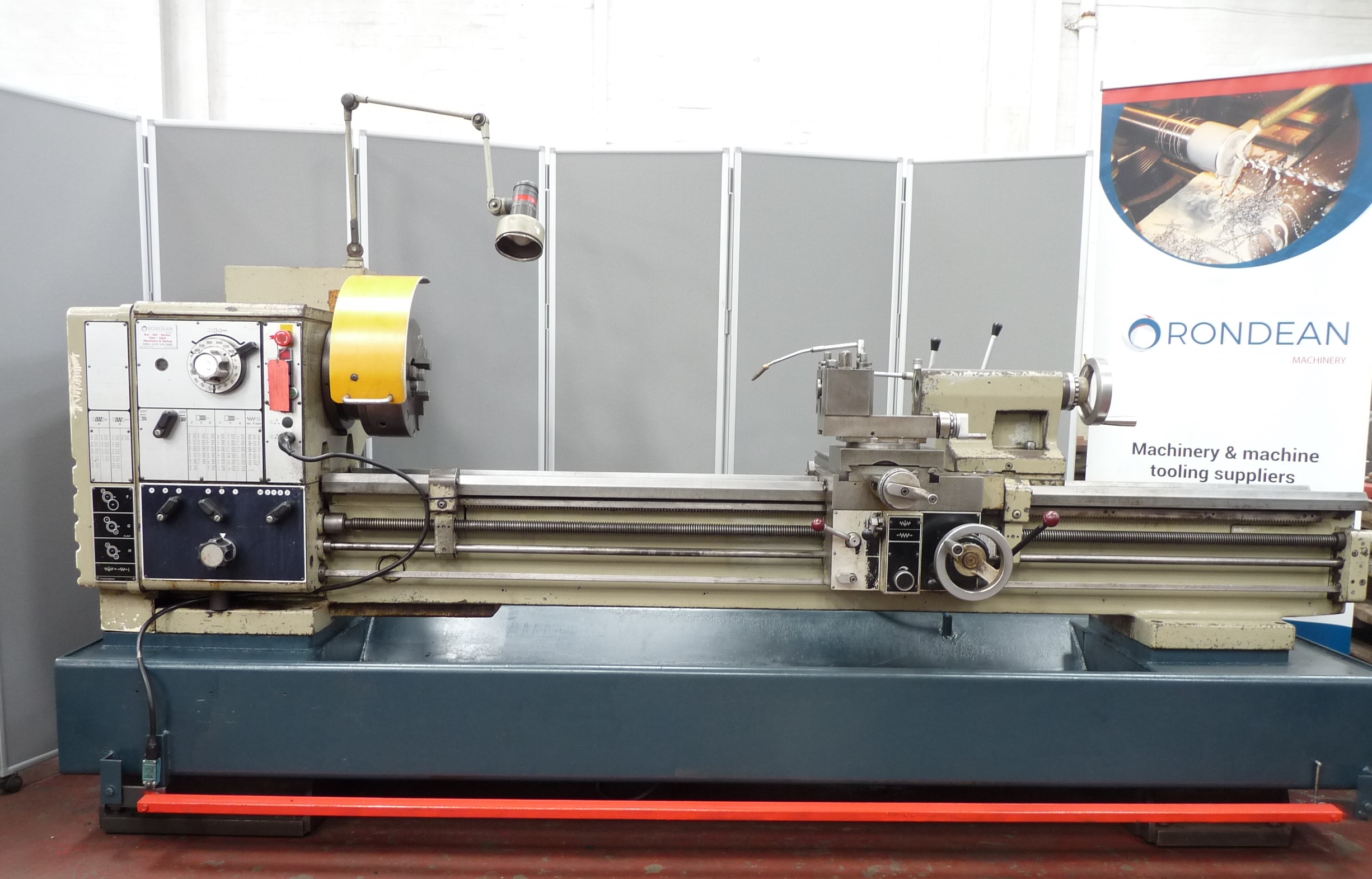

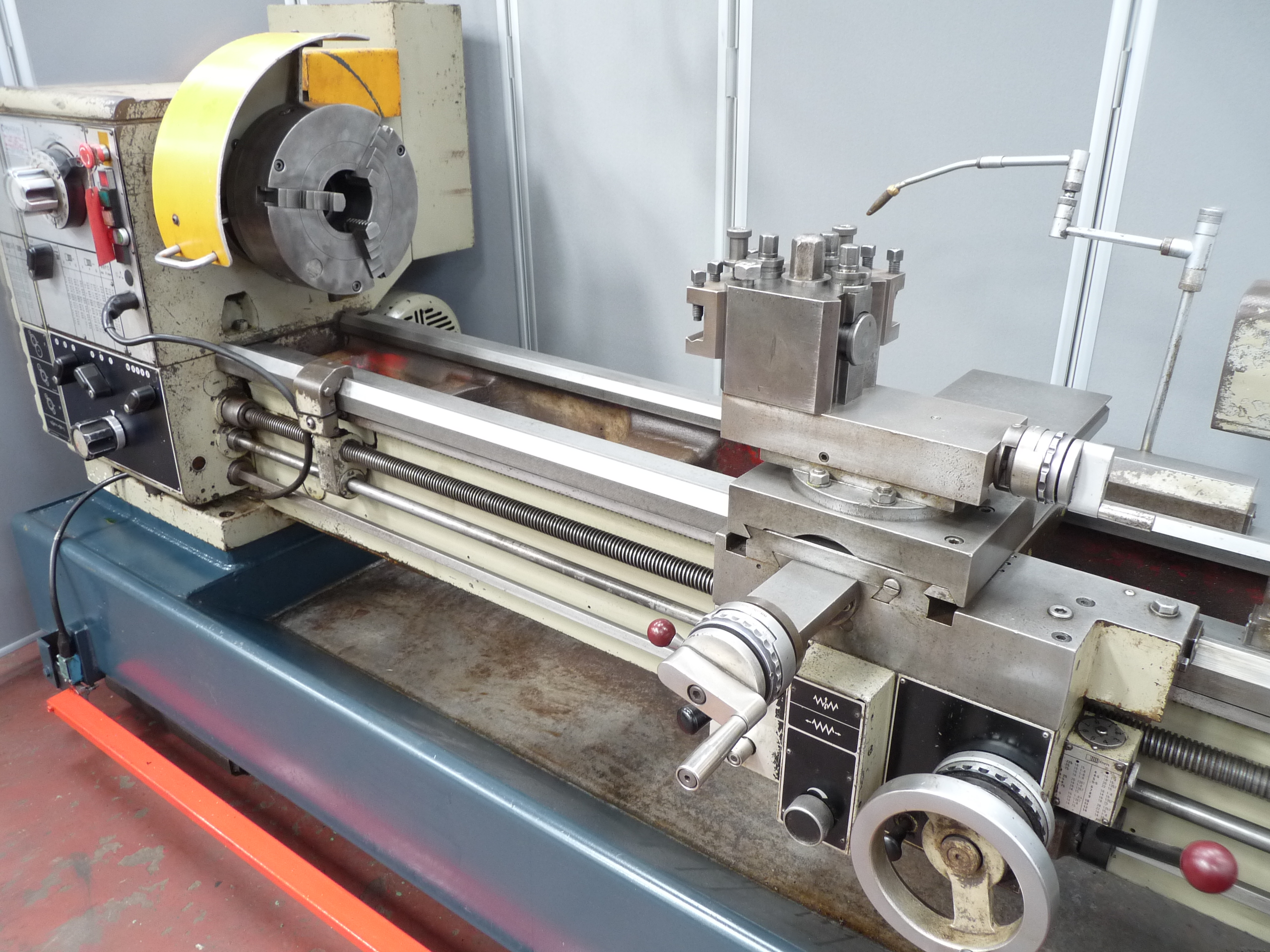

  • M500 80" Gap Bed Centre Lathe L30314.01
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • manual
  • Price:
  • £13,750 + VAT
  • Country:
  • United Kingdom

DESCRIPTION

Manufacturer Harrison Model M500 2 metre gap bed centre lathe Distance between centres 80” (2000mm) Height of centres 10 ¼” (260mm) Swing over bed 21” (530mm) Swing in Gap 28 ¾” (730mm) Gap piece length 7 7/8” (200mm) Swing over cross slide 14 ½” (370mm) Spindle Nose D1-8” Camlock Spindle Bore 3 1/8” (80 mm) Speeds 18 of: 31-1600 RPM Tailstock Spindle Taper 5 Morse Taper Equipment 3 Jaw Chuck Quick Change Tool Post 2 tool holders Coolant Dual Dials Low Volt Lighting Safety Interlocking Chuck Guard Safety Kick Stop Motor Size 12 ½ Horse Power (9.2 kW) Power Three Phase Electric's Safe lifting and handling We supply lifting and moving instructions. We also loan our specialist lifting equipment where required. Delivery options To suit your needs, call us for a quote.
