From 200 tons to 600 tons

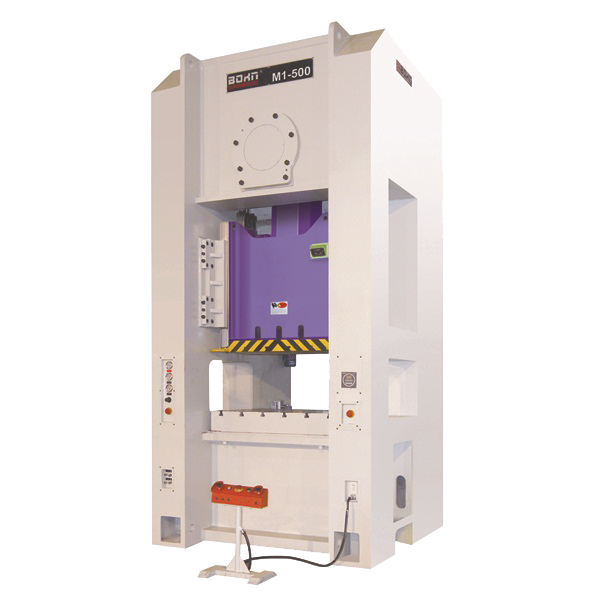

The Boxin HM1 & M1 range are a high strength mono block construction power press with stress-relieved welded steel frames and a heavy duty drive gear that runs in a self-contained oil bath thus reducing wear.
The crankshafts are manufactured from a forging that is machined and ground rated at 150% overload to provide a higher energy rating.
The HM1 & M1 design is ideally suited to heavier tonnage applications where a rigid frame and tool stability are required.
Together with a cast slide body featuring 6 & 8-point full length machined guides providing outstanding position repeat-ability allowing for a longer tool life.
The OMPI Hi Torque low noise combination dry clutch & brake operates in conjunction with a Ross dual safety solenoid valve together with a Mitsubishi plc control, PILZ safety monitoring and user friendly touchscreen operator HMI.
With hydraulic overload protection, variable speed drive, automatic lubrication systems and a centralised maintenance centre built into the main operator panel the HM1 & M1 are a highly versatile and productive range of power presses.
