MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • ROACH
  • Model:

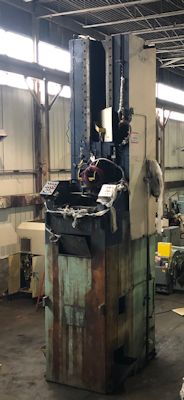

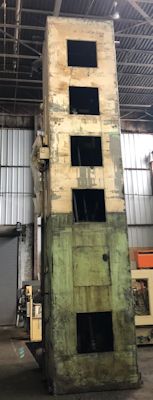

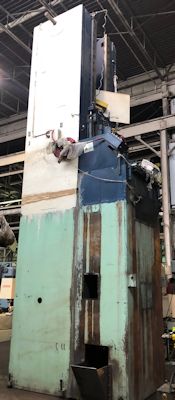

  • U.S. MODEL 50TX120 VERTICAL PULL DOWN BROACH
  • Condition:
  • NA
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

EQUIPPED WITH:

Retriever
Puller
Hydraulic System
Coolant System
Chiller
Chip Conveyor
Manuals

SPECIFICATIONS:

Normal Broaching Capacity: 100,000 Lbs @ 922 PSI
Peak Force Capacity: 133,600 Lbs @ 1350 PSI
Main Slide Stroke (Bump Inches): 106
Maximum Cutting Speed: 20 Ft/Min.
Maximum Return Speed: 40 Ft/Min.
Main Pump Motor: 75 HP @ 900 RPM
Hydraulic Reservoir: 365 Gallons
Handling Pump Motor: 10 HP @ 1200 RPM
Coolant Pump Motor: 1.5 HP @ 1800 RPM
Coolant Pump Capacity: 100 Gallons / Min @ 23 Head Ft.
Coolant Reservoir Capacity: 600 Gallons Approx.
Floor Space ( Width x Depth x Height): 65" x 96" x 243"
Net Weight, Approximate: 79,000 #
