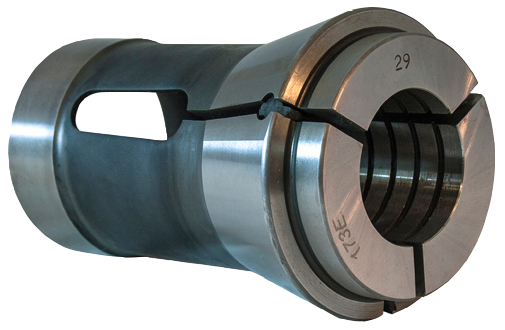

D173E spring collets, formally known as 4728, are to suit 2nd operation of finishing ops. Normally size for size to prevent marking of the component they are available in .5mm increments and imperial sizes. Specific sizes available on request. Suitable for long series collet chucks.
D173E suit the following collet chucks:
Klamp CRL42
Klamp QCRL42
Klamp QDCRL42
Crawford CDC-42
Crawford QC-42
System Specifications
Maximum Tonnage: 253 US tons
Maximum Bending Length: 167"
Distance between the Frames: 145"
Stroke Length: 17.5"
Open Height: 24.2"
Throat Depth: 16.5"
Speeds
Y-Rapid Speed: 220 mm/sec (520"/min)
Y-Return Traverse Speed: 520"/...
Capacity 146 Ton
Overall Bending Length 123"
Distance Between End Frames 106"
Working Height of Bed 38"
Length of Stroke 7.8"
Open Height 18.5"
Throat Depth 16.5"
No. of Axis 7
Fast Approach Speed (approx) 3.94 IPS
Slow Bend Speed (approx) .39 IPS
Ov...
Horizontal / Vertical working positions, 2 Driven shafts, Hydraulic adjustment of top shaft, Forward / reverse footswitch, Lateral guide rollers, Set standard rolls, DRO for top roll position, Machine manual.
