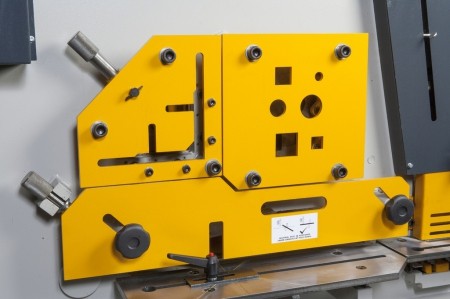

Manufacturer: Kingsland Model:: Multi 95 2 operator steelworker
Supplied with Production Pack which includes:
1000mm touch & cut ruled length stop
Low volt halogen lamp on magnetic base
Fine adjustment to punch end stroke setting
Measuring scales in notch end table Punches: 27mm through 25mm
57mm through 12mm
160mm largest diameter with optional equipment Shears: 380 x 20mm Flat bar
480 x 15mm Flat bar Crops Angles: 150 x 15mm @ 90 degrees
80 x 10mm @ 45 degrees Crops Bar: 50mm round / square Notches: 13mm thick Optional Extras: Many Extras Available including:
Linear Rails
Sheet Bending
Louvre Punching
Bar Bending
Bolsters for punching Channel / Web /Flanges
ASK FOR DEATAILS TO SUIT YOUR APPLICATION
With the pipe notcher AL2 you can notch external pipe diameters of Ø48.3 (1 ½”) and Ø60.3 (2″).Technical SpecificationsSuitable for: Extr. Pipe diameters Ø48.3-(1_1/2″) and Ø60.3-(2″)Advantage: Quick and easy notchingWall thickness (stee...
Manufacturer: KingslandModel:: Multi 70 2 operator steelworker
Supplied with Production Pack which includes:
1000mm touch & cut ruled length stop
Low volt halogen lamp on magnetic base
Fine adjustment to punch end stroke setting
Measuring scales in n...
Manufacturer: KingslandModel:: Multi 70 2 operator steelworkerPunches: 26mm through 20mm
57mm through 9mm
160mm largest diameter with optional equipmentShears: 300 x 20mm Flat bar
375 x 15mm Flat barCrops Angles: 130 x 13mm @ 90 degrees
70 x 10mm @ 4...
Make
HMW
Model
618 Fixed Angle Power Operated Corner Notcher
Capacity (mild steel):
150 x 3mm
Table
860 x 810mm (34" x 32") Table
Features:
Finger Guard
Squaring Guide
Foot Pedal – single & continuous stroke
Power
4HP
...
