MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Pfauter
  • Model:

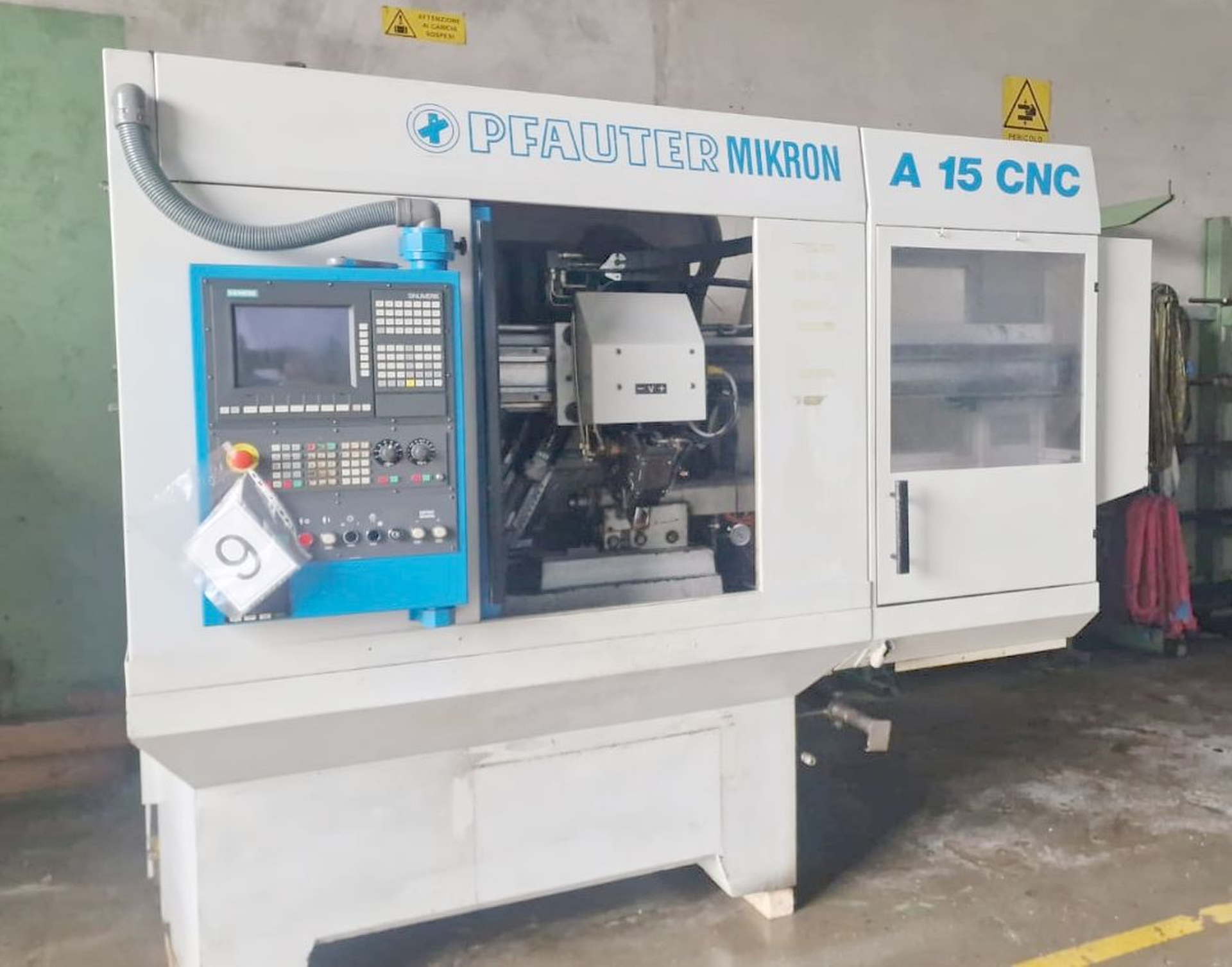

  • 023016 - PFAUTER-MIKRON A 15 CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Work-piece diameter: 100 mm.
Module max.: 2.5 mm.
Workpiece length max.: 300 mm.
Pitch min.: 1.
max.: 999.
max. diameter: 65 mm.
min. diameter: 100 mm.
from: 200 t/min.
up to: 4000 t/min.
Max. milling head inclination: -50 / + 50 °.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 12 kVA.
Machine's weight about: 5500 kg.
Length: 2617 mm.
Width: 2085 mm.
Height: 2255 mm.
