MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • CAZENEUVE
  • Model:

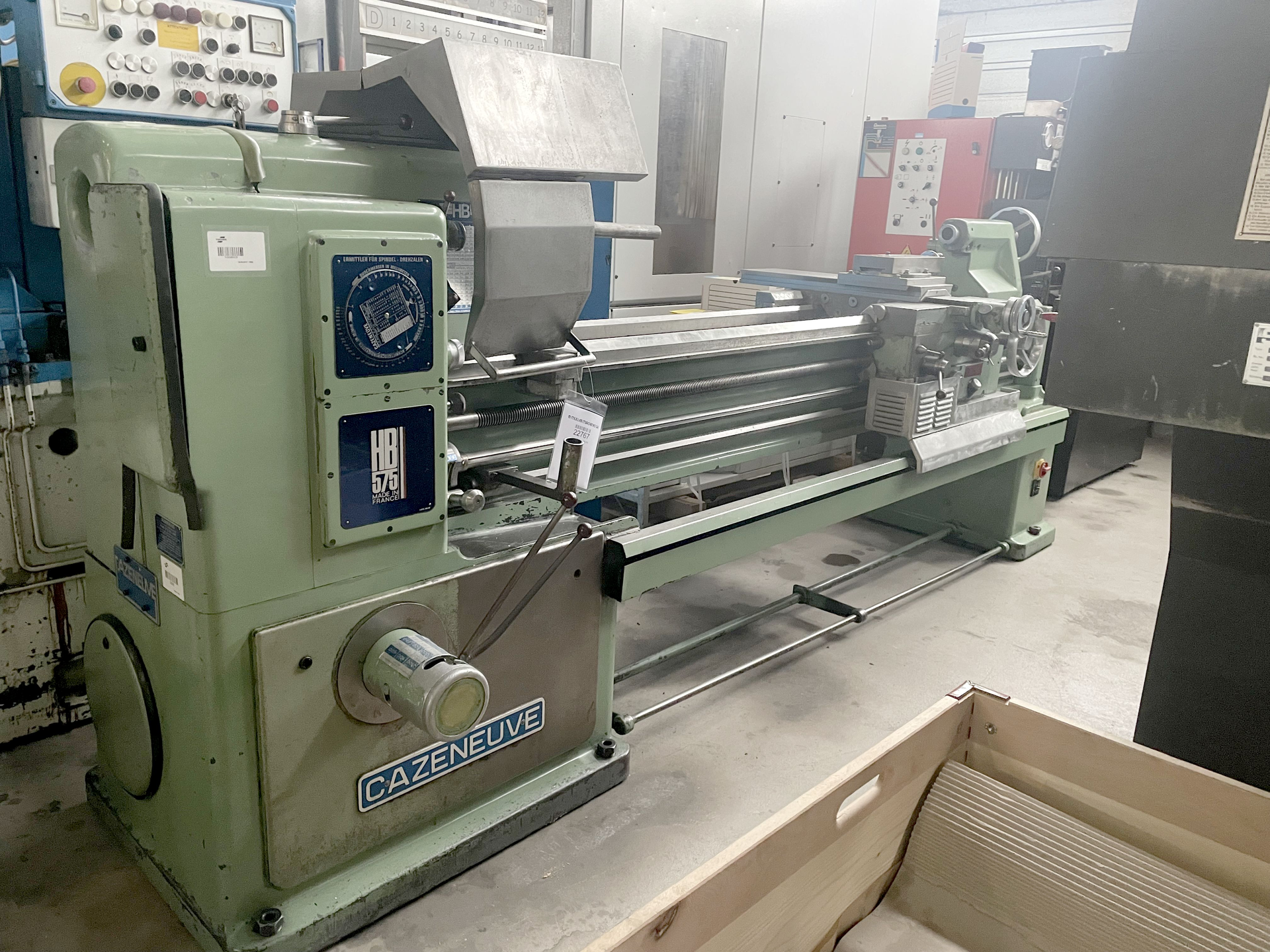

  • 022767 - CAZENEUVE HB 575
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 250 mm.
Distance between centres: 2000 mm.
Swing over bed: 575 mm.
Swing in gap: 750 mm.
Length of the gap: 235 mm.
Spindle hole: 44 mm.
number (steps): 18.
from: 20 t/min.
up to: 1600 t/min.
Taper in tailstock:: 5 CM.
Spindle diameter: 70 mm.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 5 kW.
Machine's weight about: 2200 kg.
Length: 3405 mm.
Width: 1175 mm.
Height: 1345 mm.
Spindle refurbished: 2017.
