MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Mazak
  • Model:

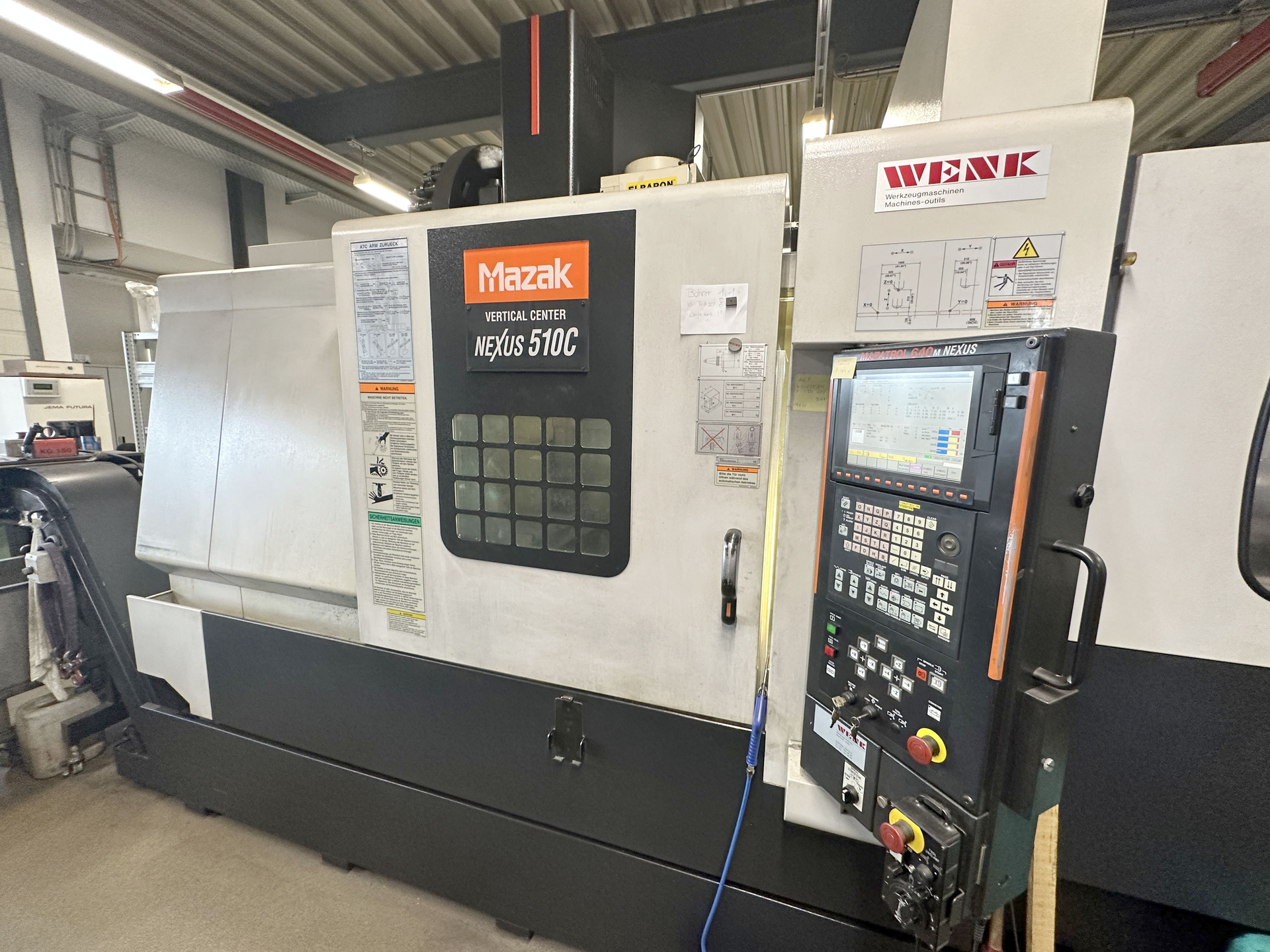

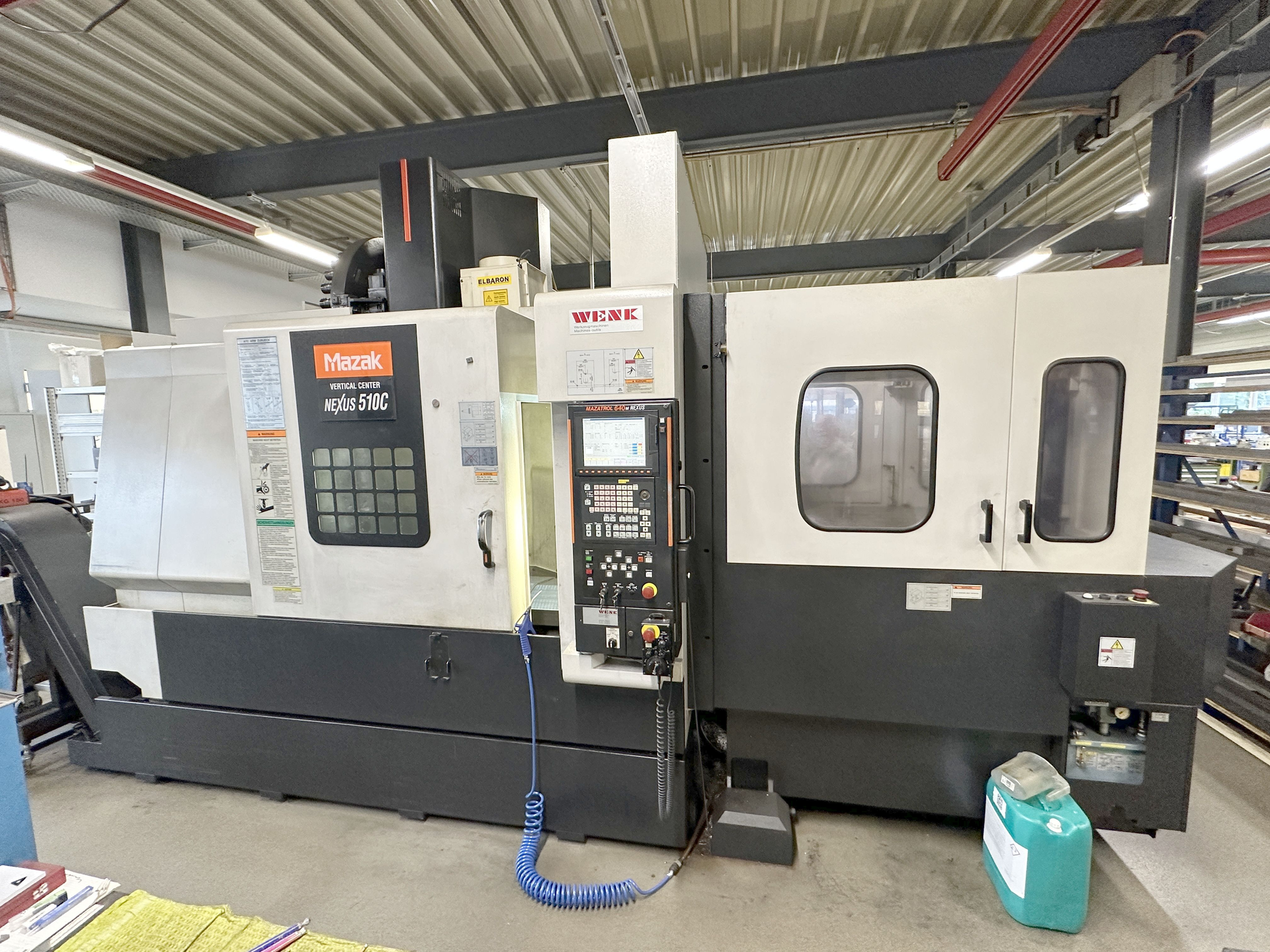

  • 022530 - MAZAK NEXUS 510C
  • Condition:
  • 1
  • YOM:
  • NA

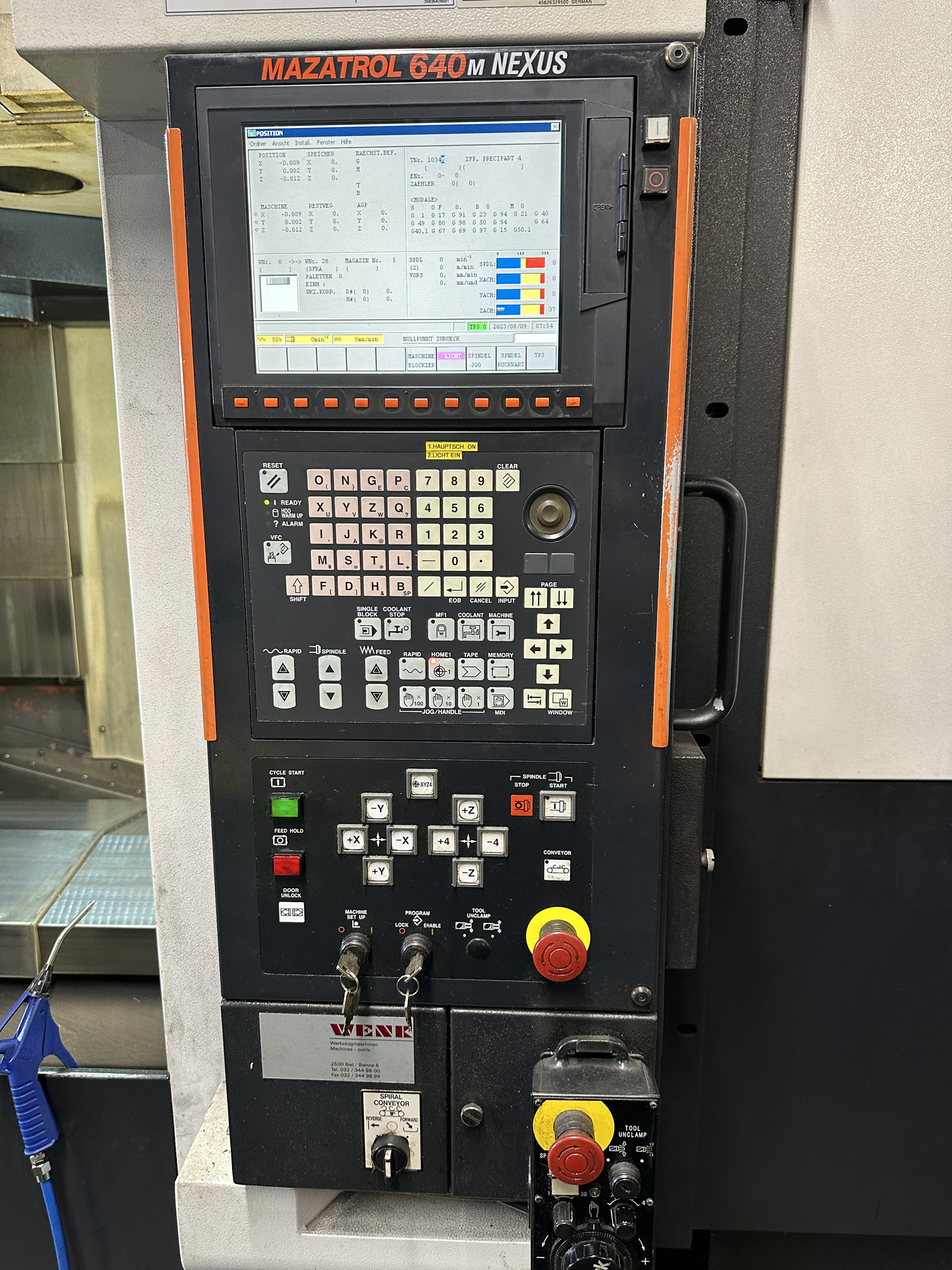

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

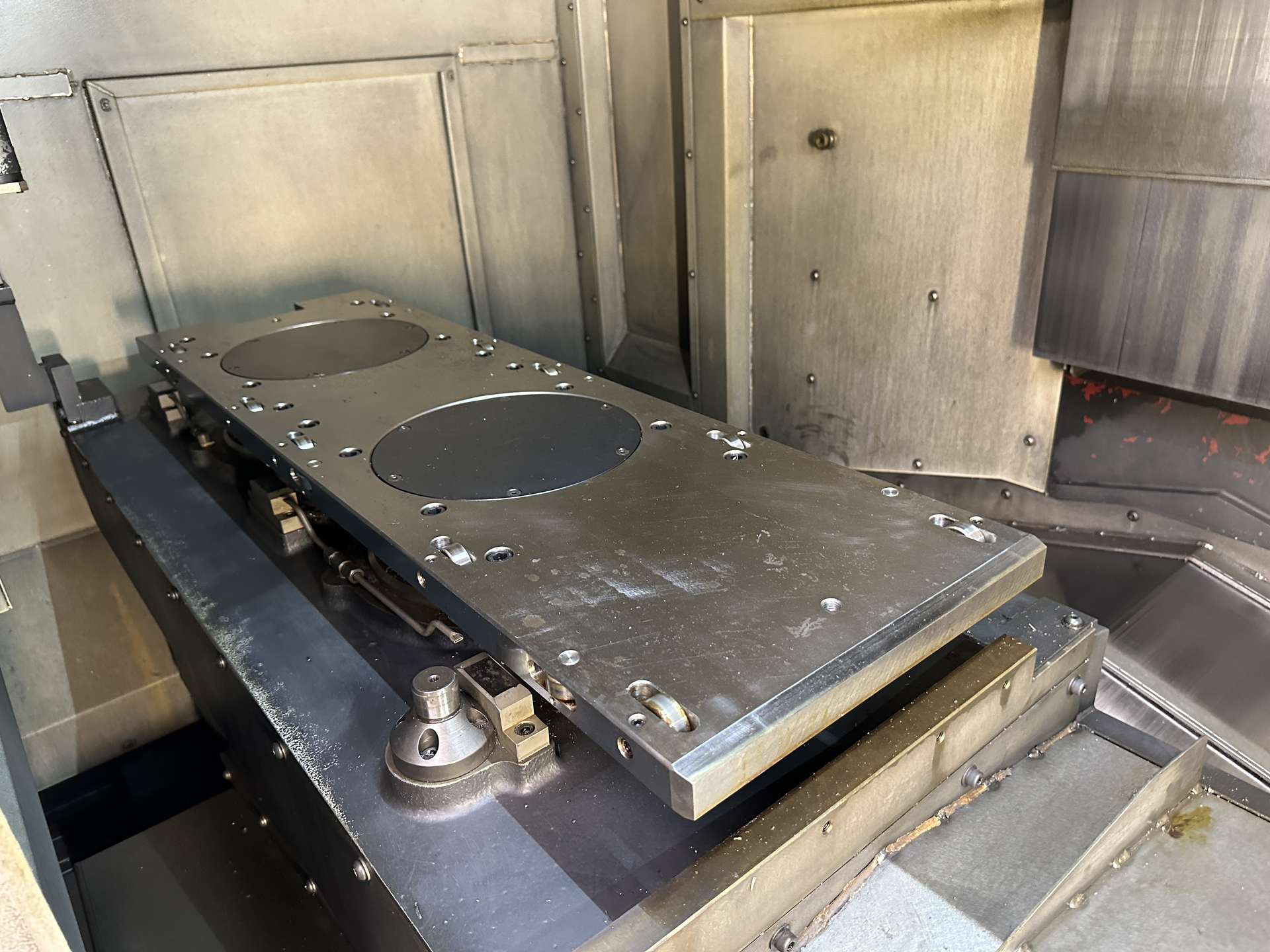

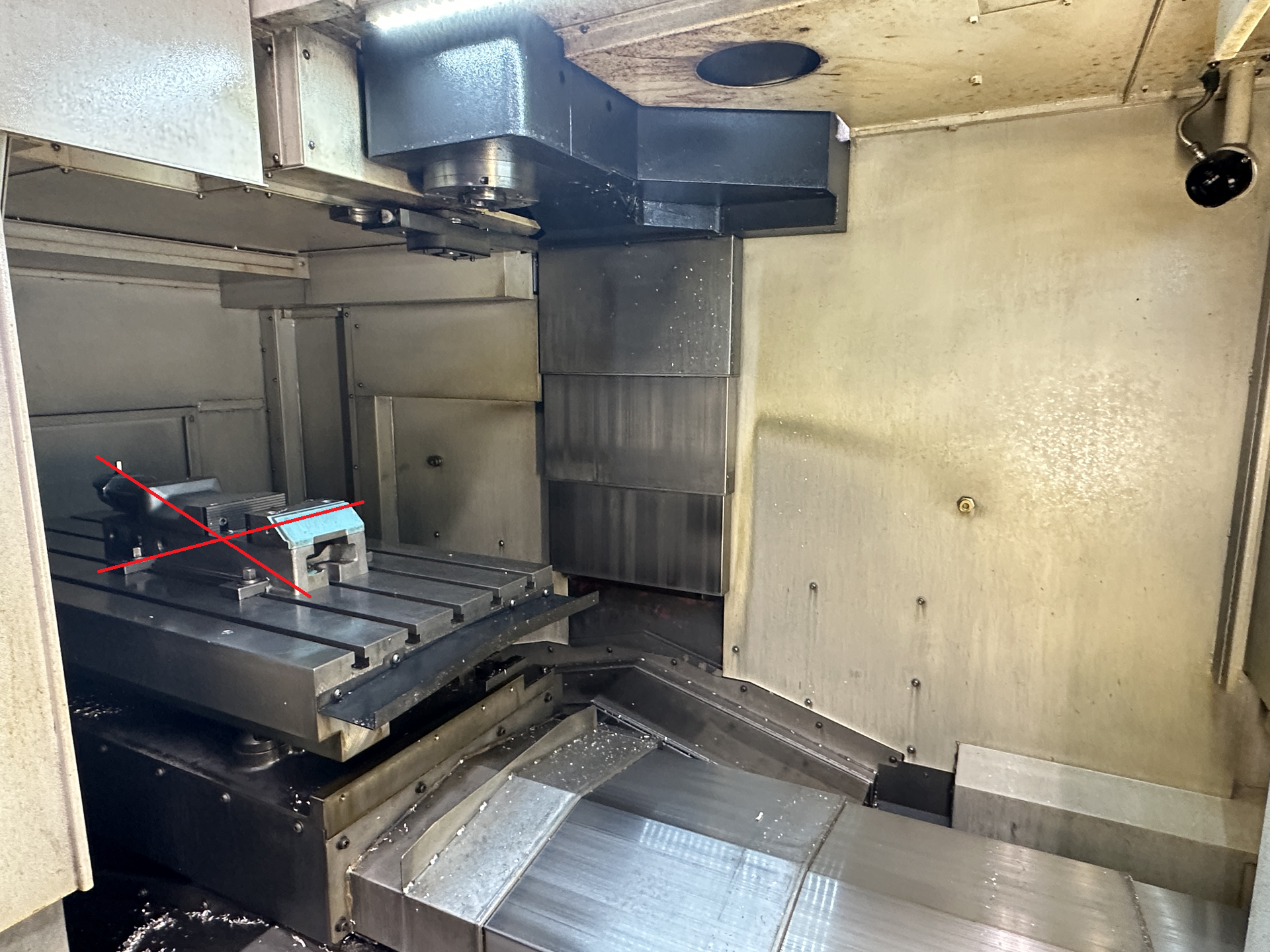

Number of tables: 2.

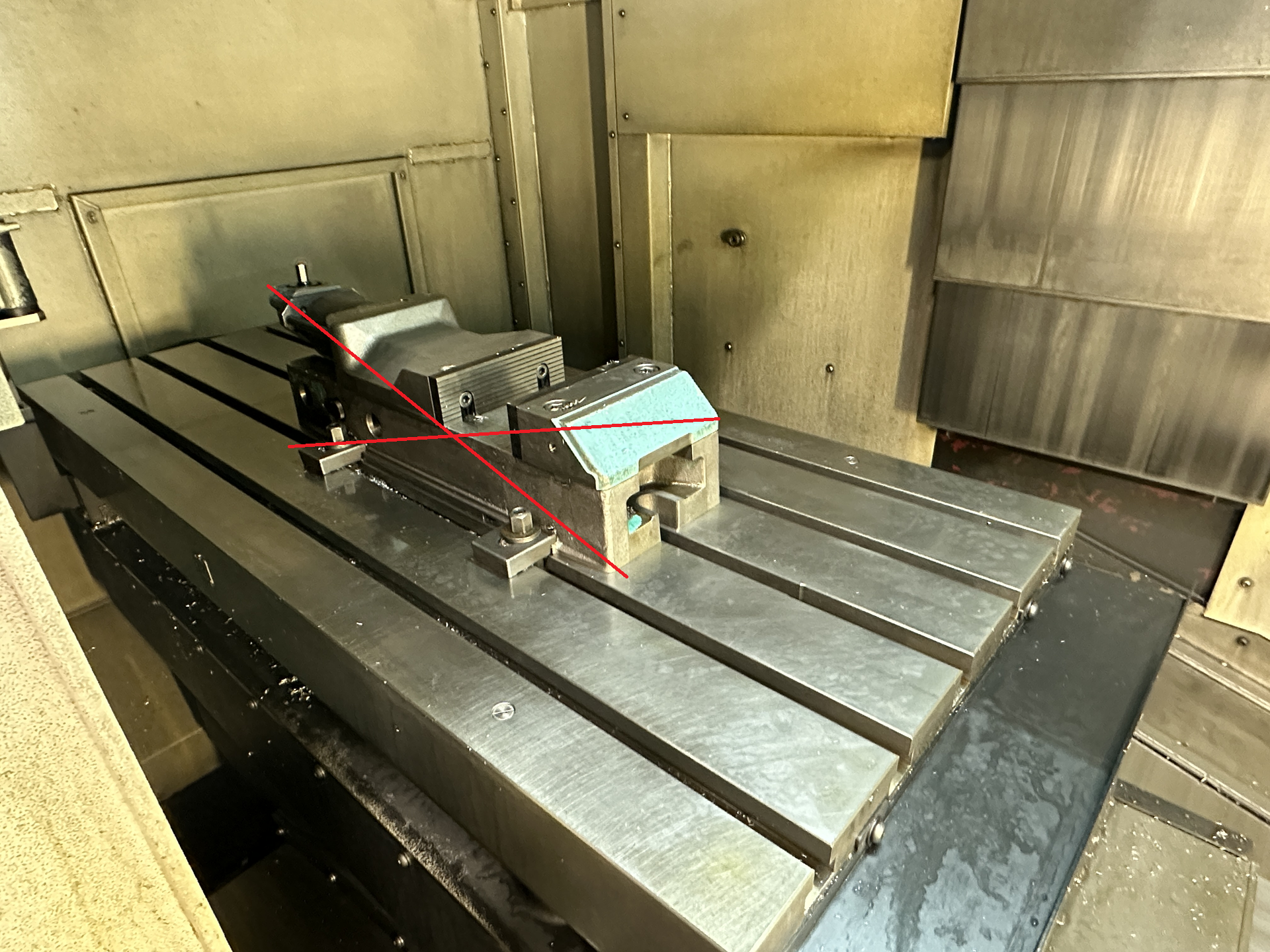

Table length: 1300 mm.
Table width: 550 mm.
Number of T-channels: 5.
Distance of the T-slots: 100 mm.
T-channel width: 18 mm.
Table load max.: 1200 kg.
Longitudinal travel (X-axis): 1050 mm.
Transversal travel (y-axis): 510 mm.
Vertical travel (z axis): 510 mm.

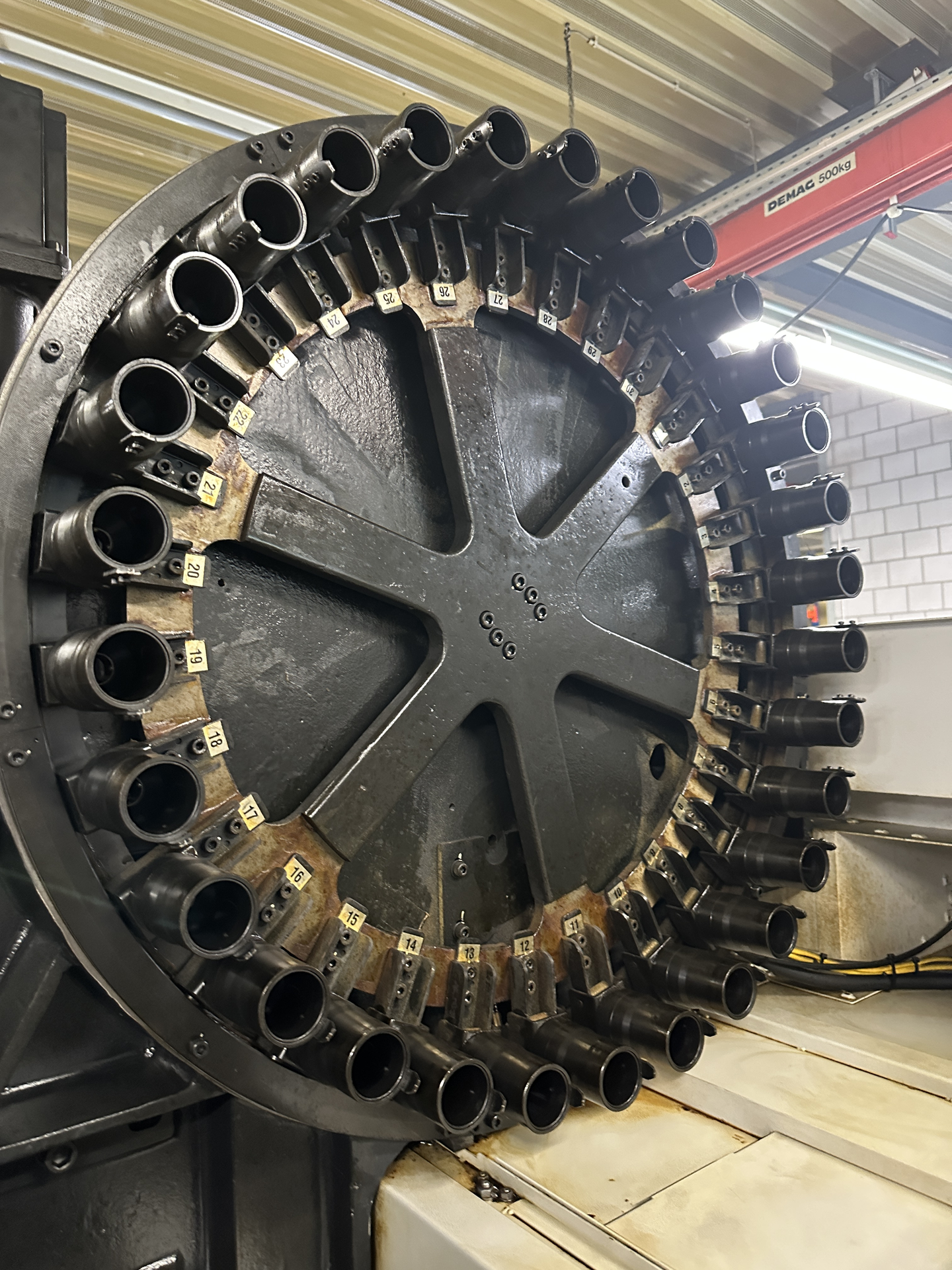

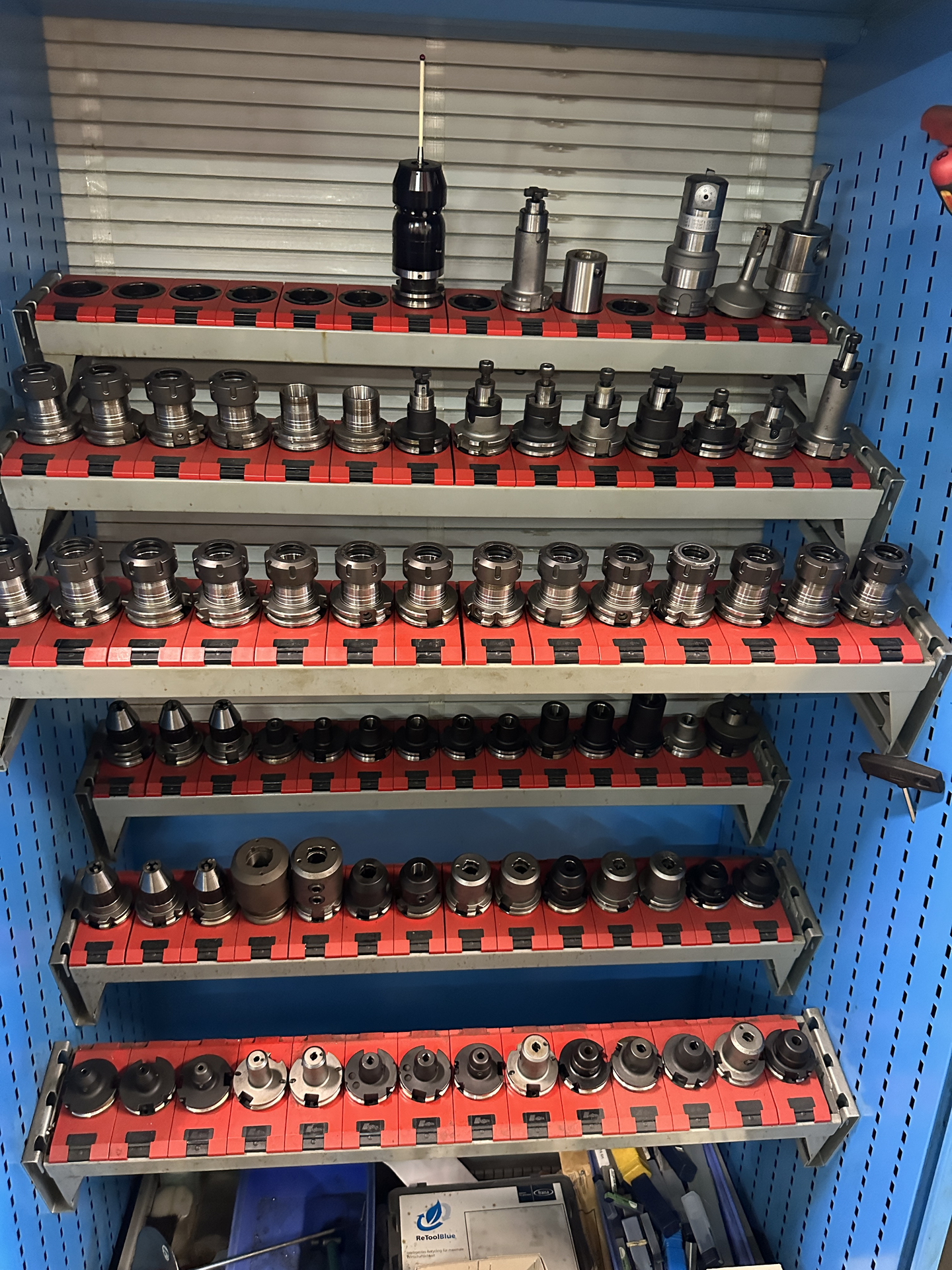

Number of tools: 30.
Tool diameter max.: 80 mm.
Diameter with free adjacent pockets: 125 mm.
Tool lenght: 350 mm.
Max. tool-weight: 8 kg.
Average chip-to-chip time: 2.9 s.

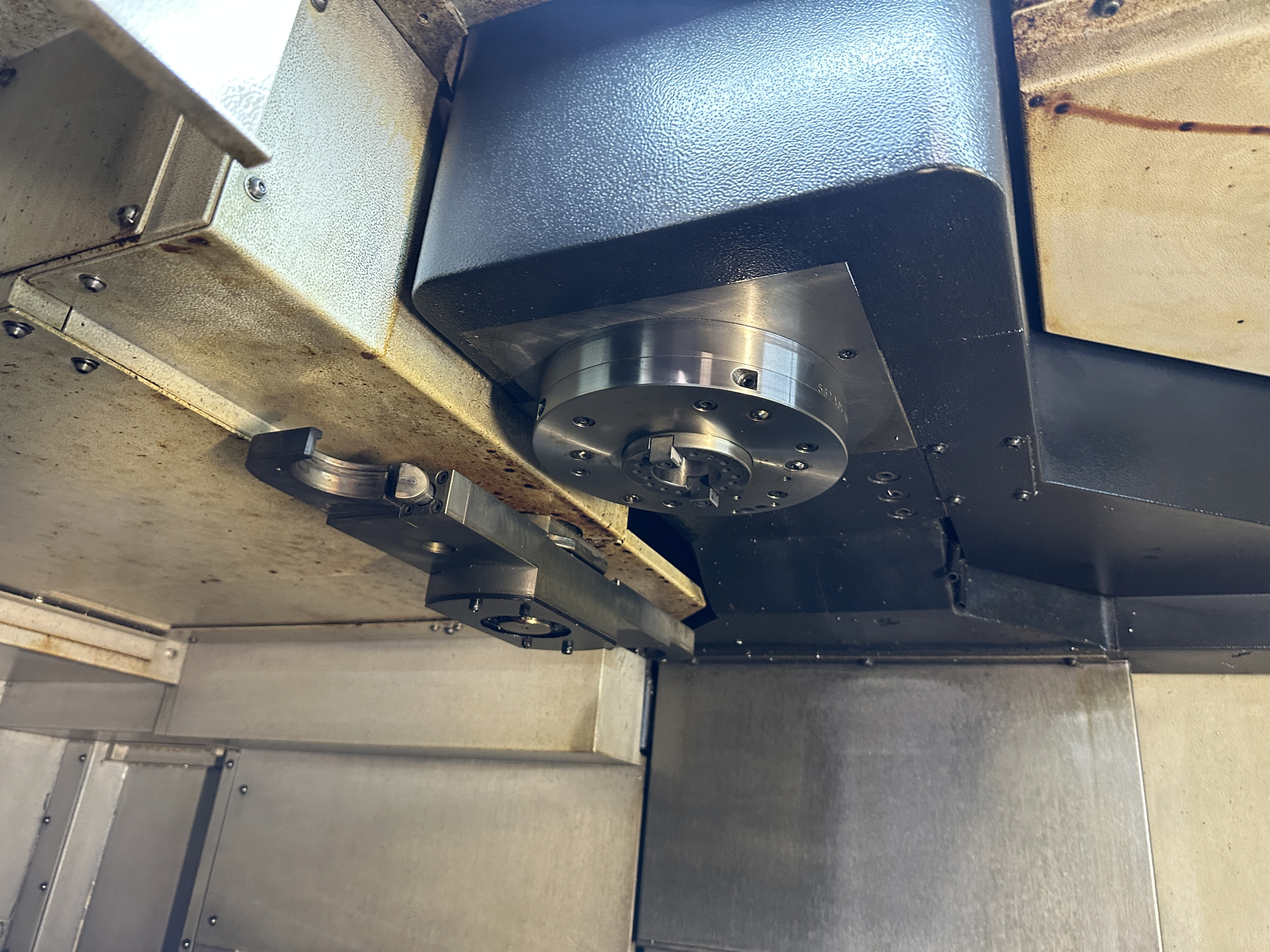

Spindle nose: ISO: 40.
Distance spindle nose to table: 150 - 660 mm.
from: 35 t/min.
up to: 12000 t/min.
Feed range: 1 - 8000 mm/min.
Rapid traverse:: 36 m/min.
Air connect: 5 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 18.5 / 7.5 kW.
Total power required: 32 kVA.
Machine's weight about: 6900 kg.
Length: 2880 mm.
Width: 2835 mm.
Height: 2783 mm.

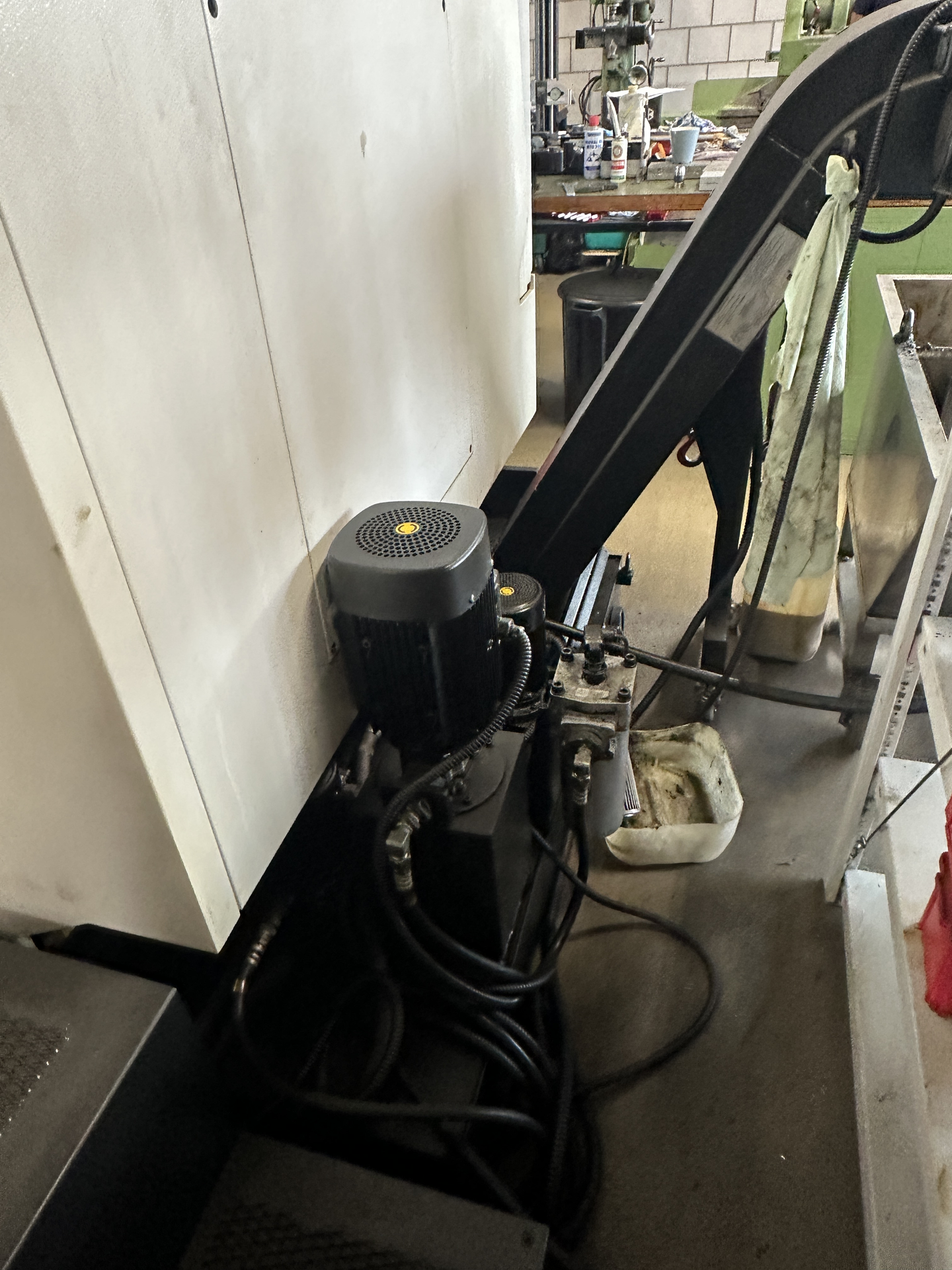

Coolant system: 250 l.
Coolant through spindle (cts): 15 bar.
