MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Tacchella
  • Model:

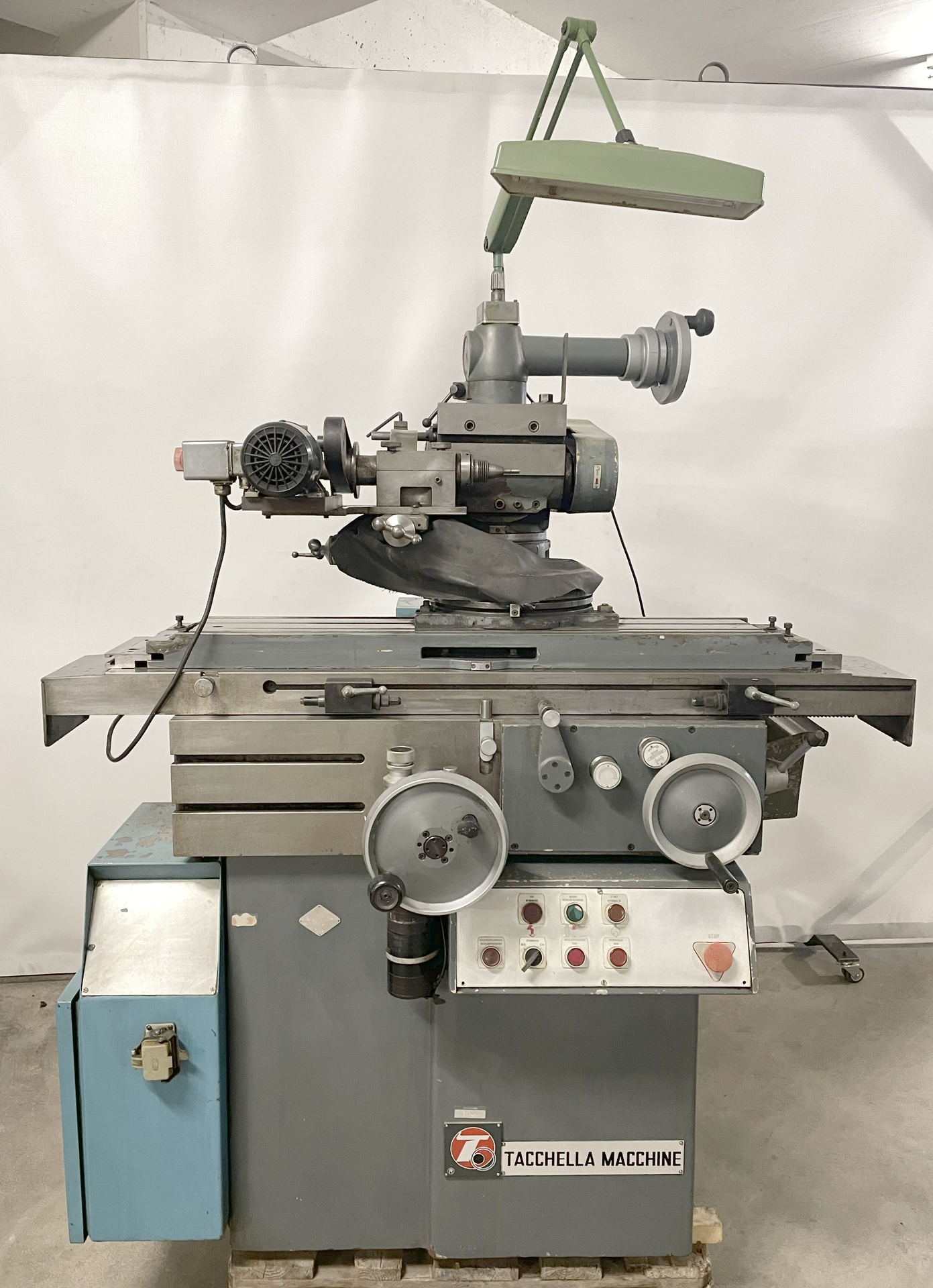

  • 022488 - TACCHELLA 4 AM
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 125 mm.
Distance between centres: 550 mm.

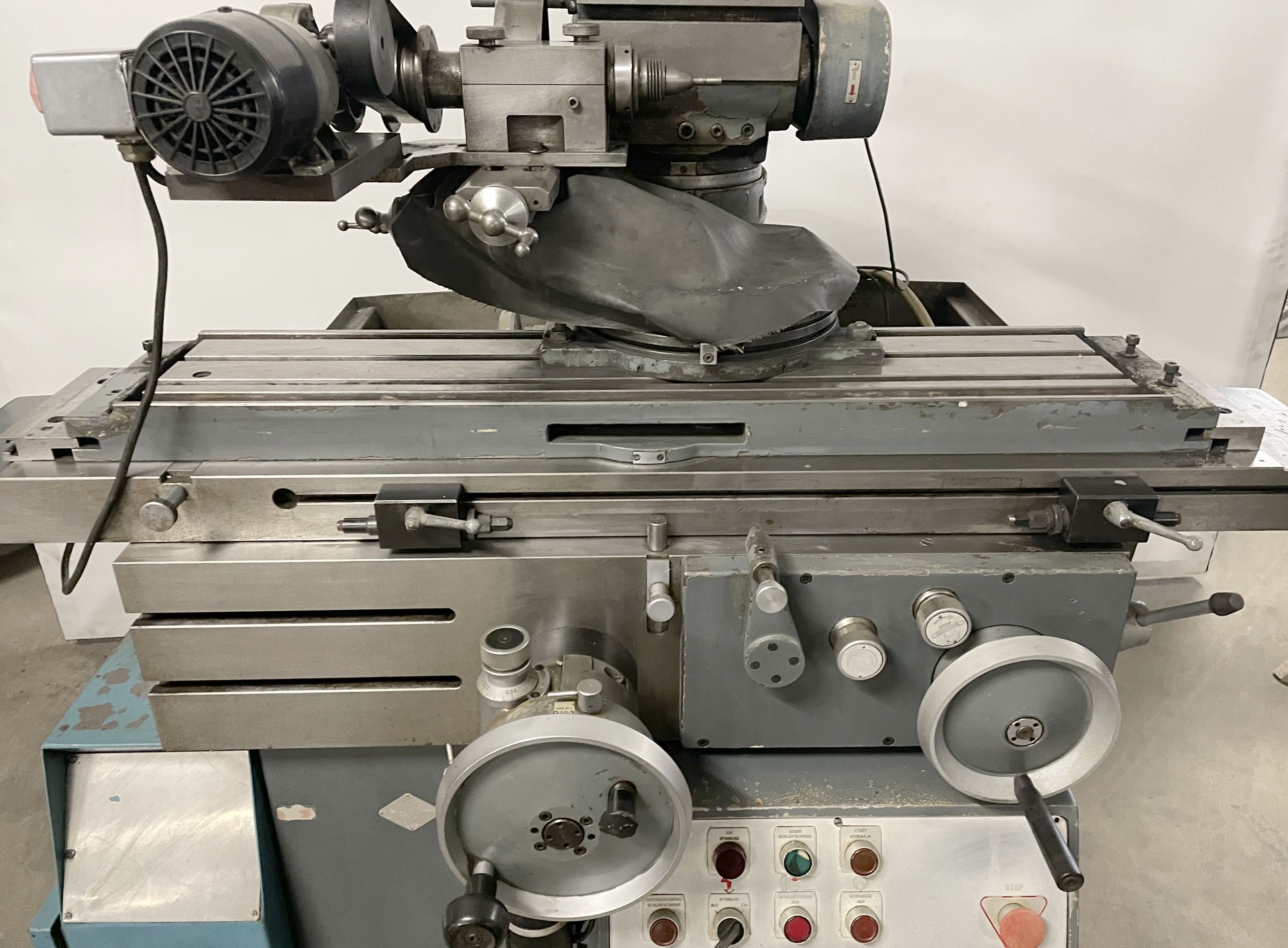

Table length: 900 mm.
Table width: 130 mm.
Max. grinding diameter: 250 mm.

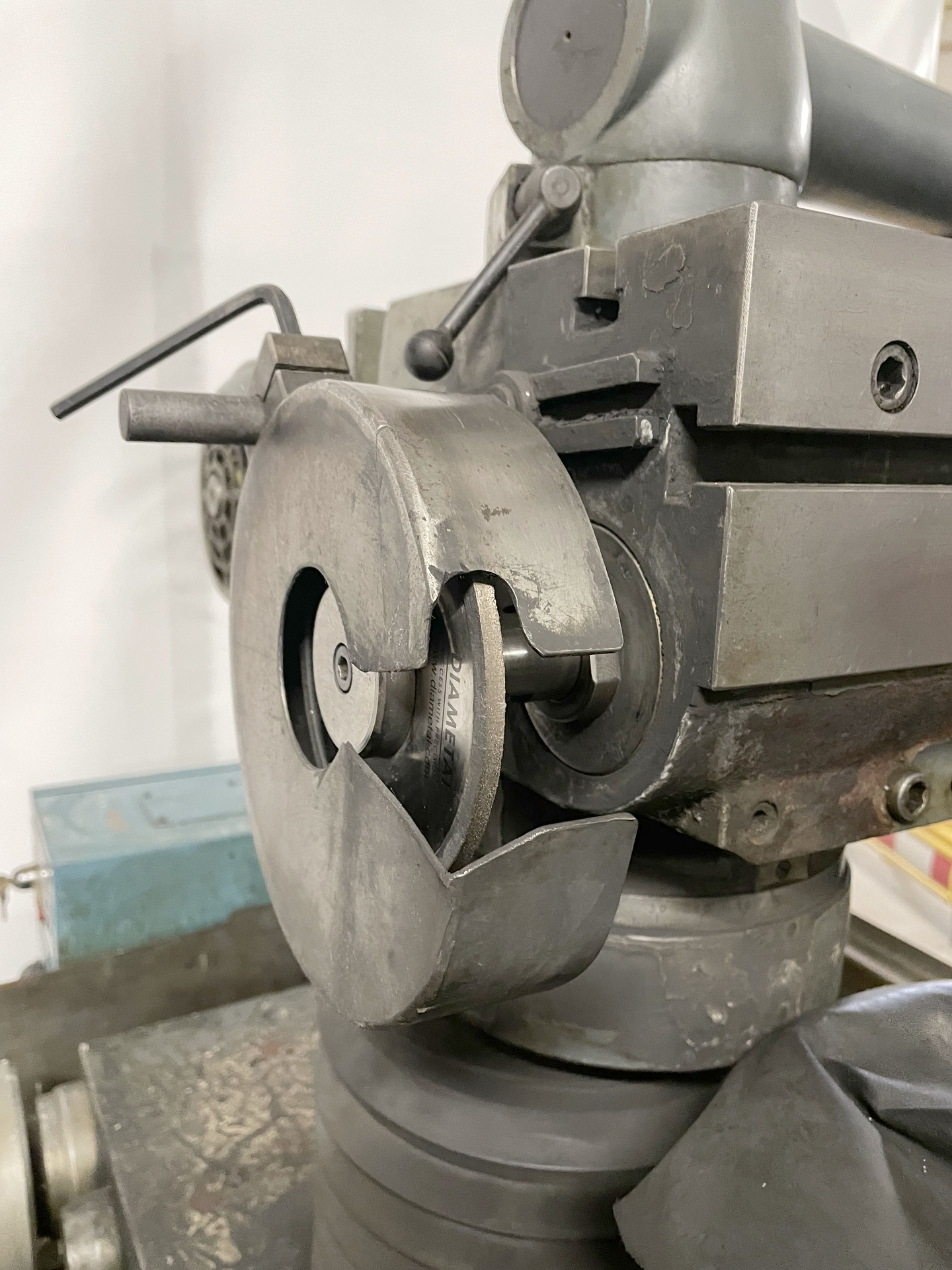

Grinding-wheel diameter: 200 mm.
Longitudinal way of table: 400 mm.
Transversal way of grinding head: 200 mm.
from: 2200 t/min.
up to: 6400 t/min.
Voltage 50 Hz 3x: 380 Volt.
Length: 1400 mm.
Width: 1300 mm.
Height: 1700 mm.
