MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Takisawa
  • Model:

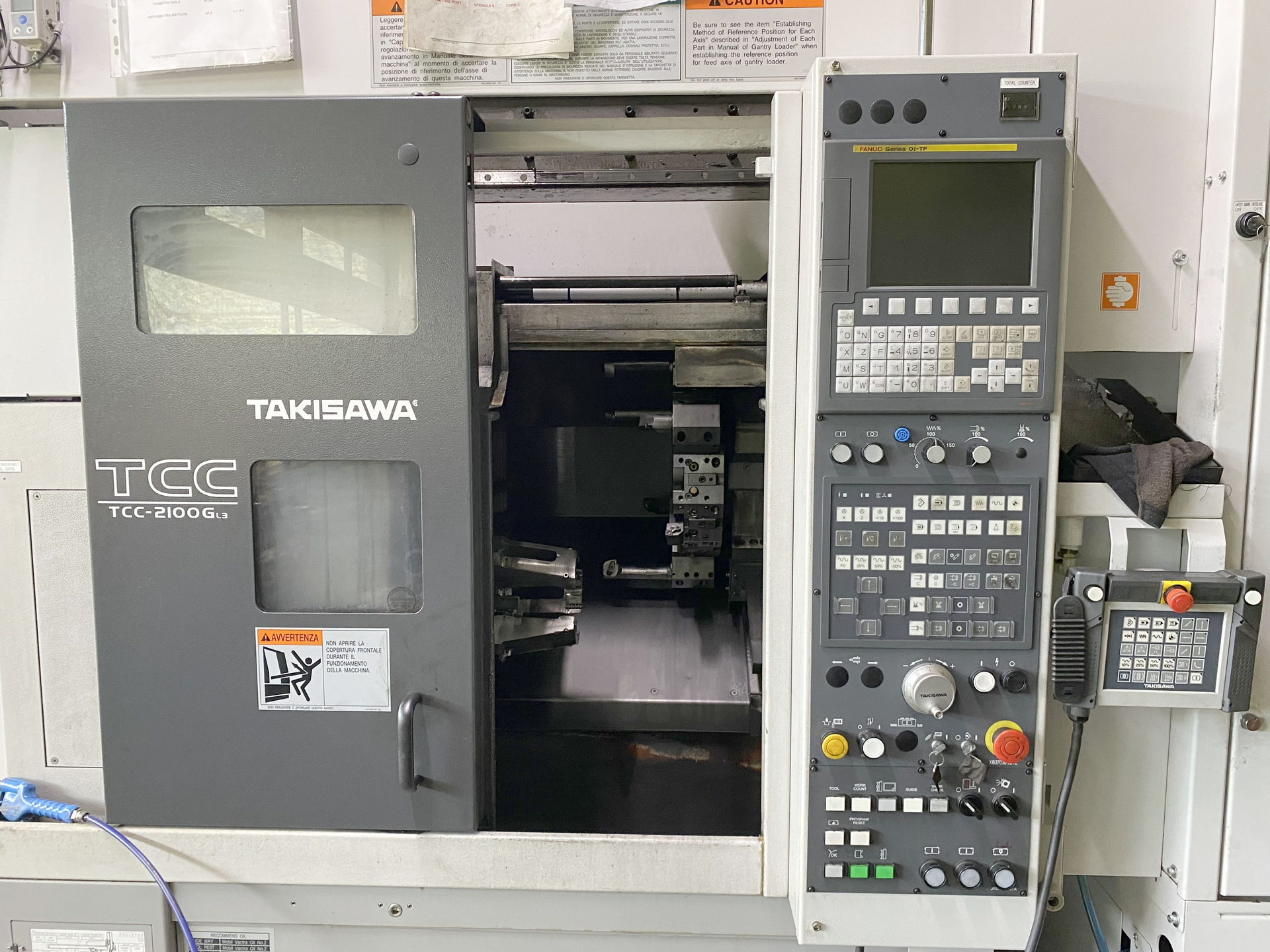

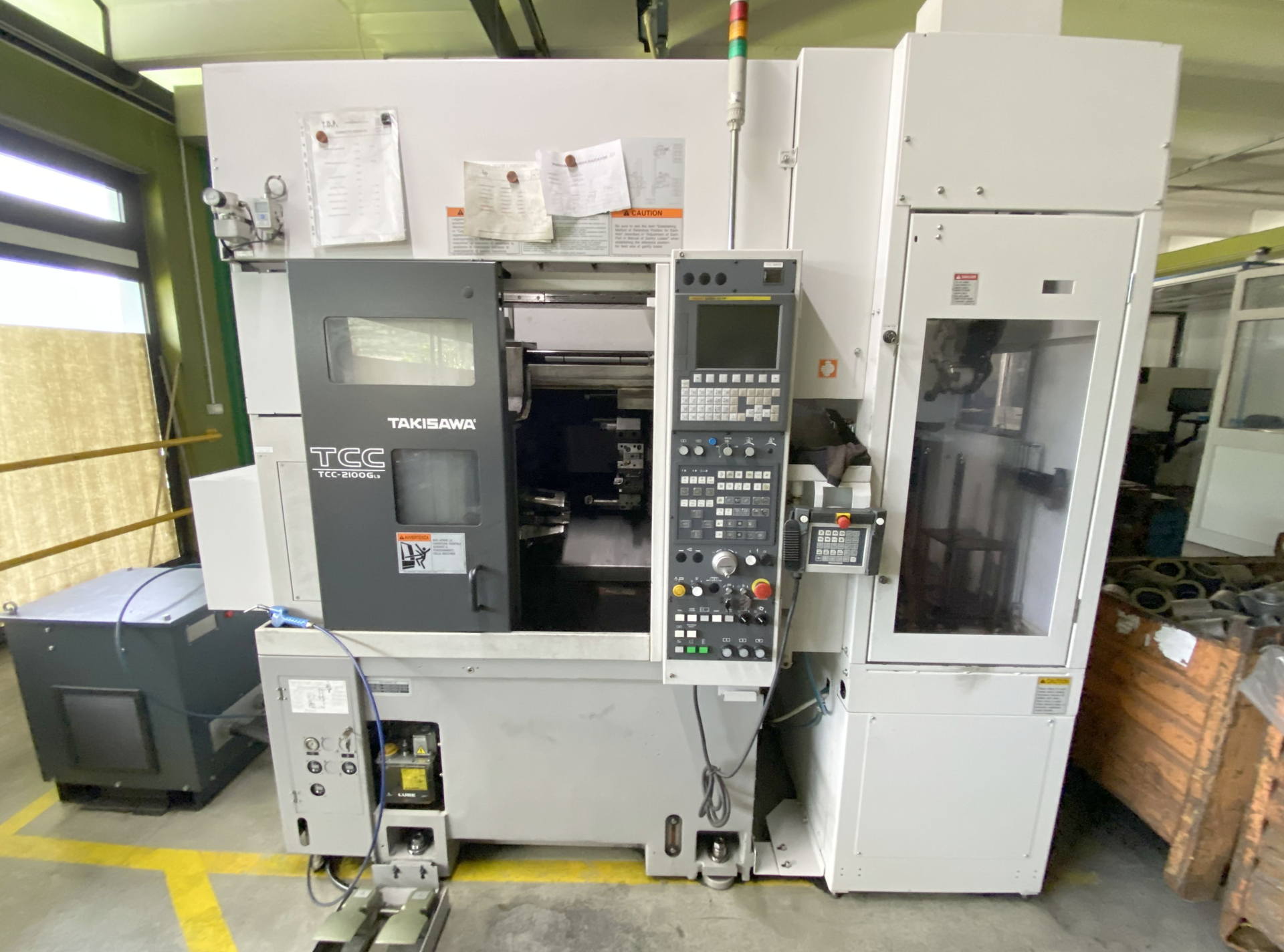

  • 022476 - TAKISAWA TCC 2100G L3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Swing diameter: 420 mm.
Maximum turning length: 291 mm.
Max. turning diameter: 320 mm.
Longitudinal travel (Z-axis): 350 mm.
Transversal strocke (X axis): 190 mm.

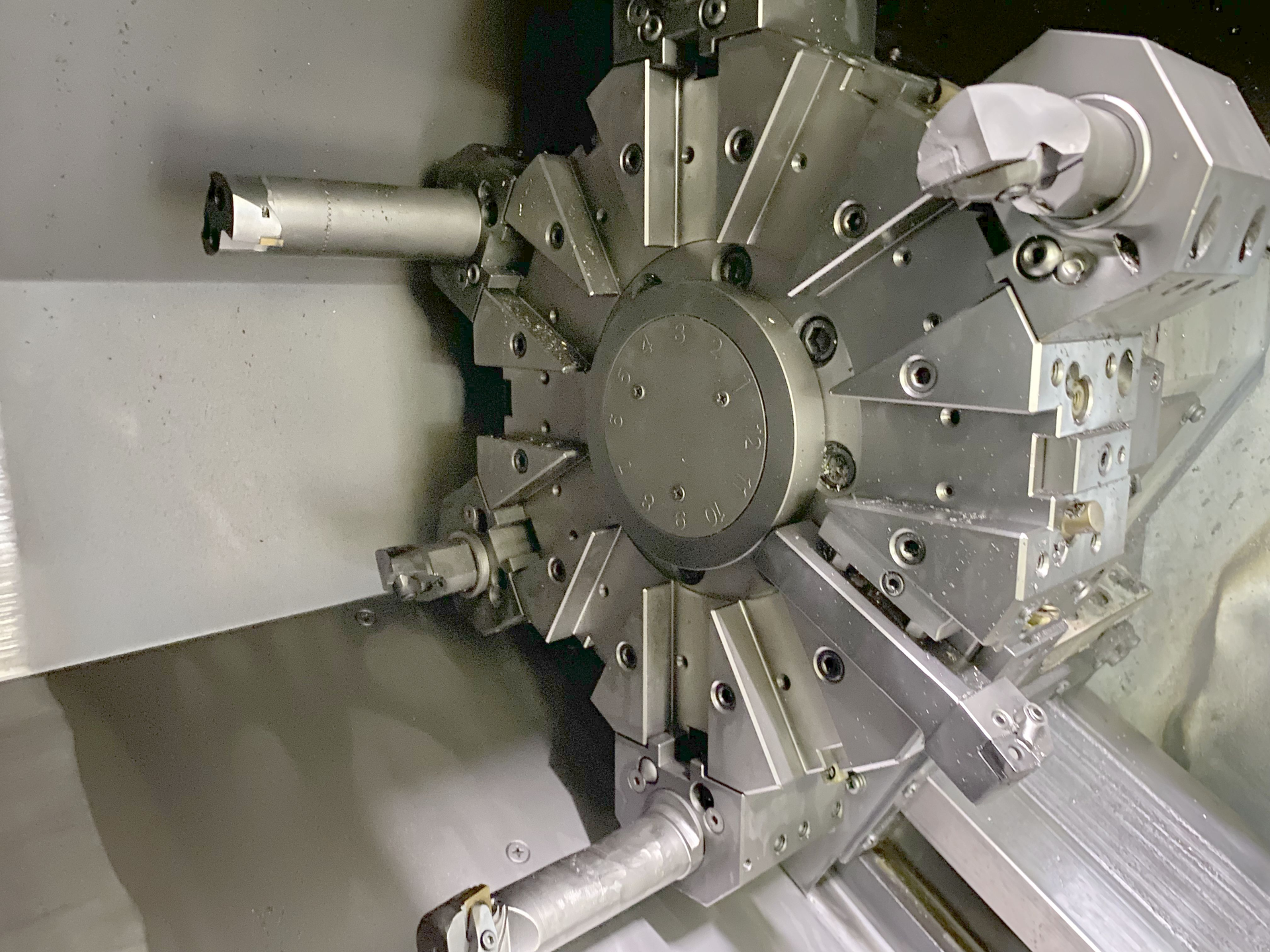

Number of positions: 12.
from: 100 t/min.
up to: 3200 t/min.
Rapid traverse X: 24 m/min.
Rapid traverse Z: 30 m/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 14 kVA.
Machine's weight about: 3500 kg.
Length: 2220 mm.
Width: 2214 mm.
Height: 2713 mm.
