MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • 022349 - ANGELINI MAS 140
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 140 mm.
Distance between centres: 800 mm.

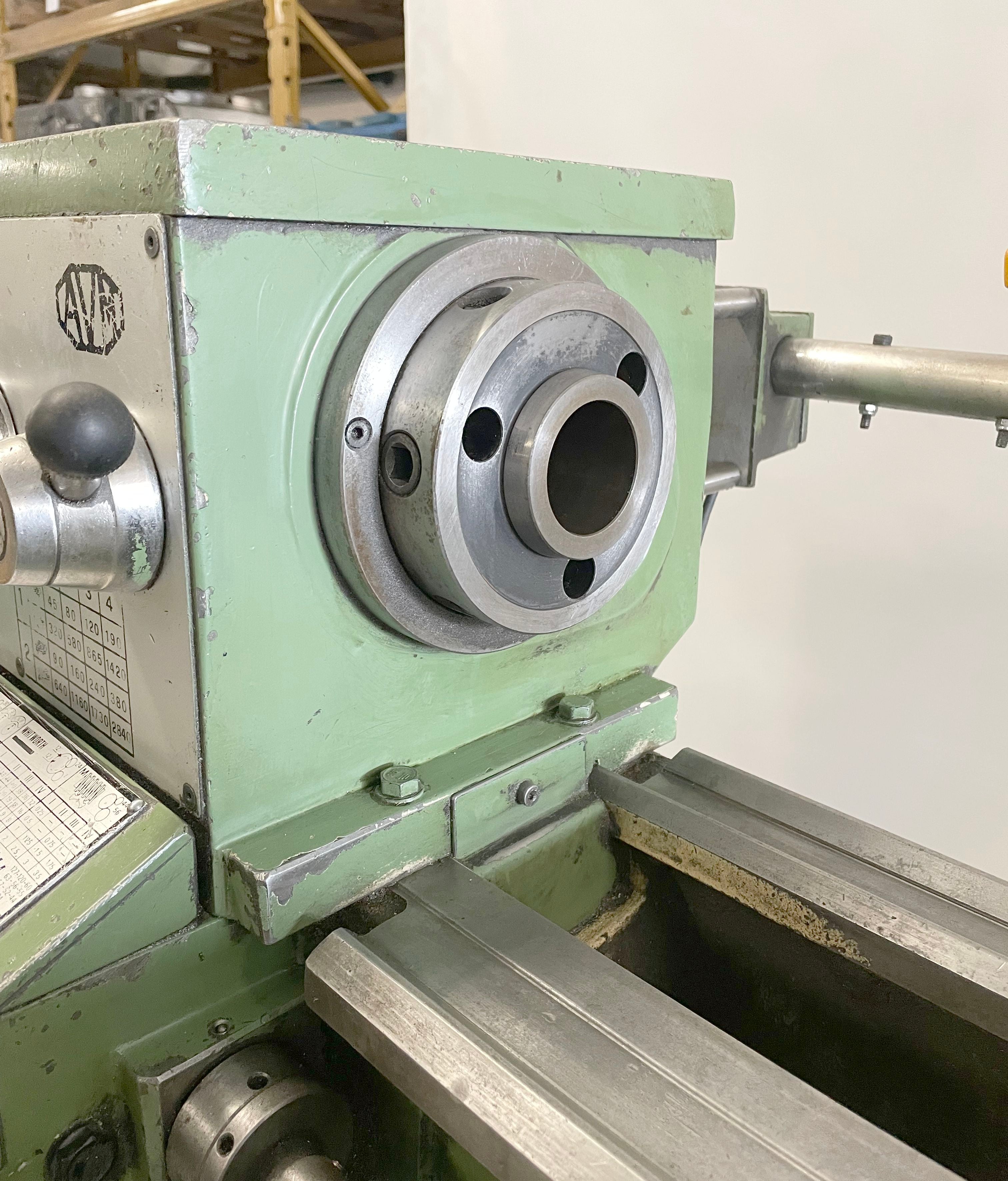

Spindle hole: 35 mm.
taper in spindle: MT: 5.
number (steps): 16.
from: 0.5 mm/t.
up to: 7 mm/t.

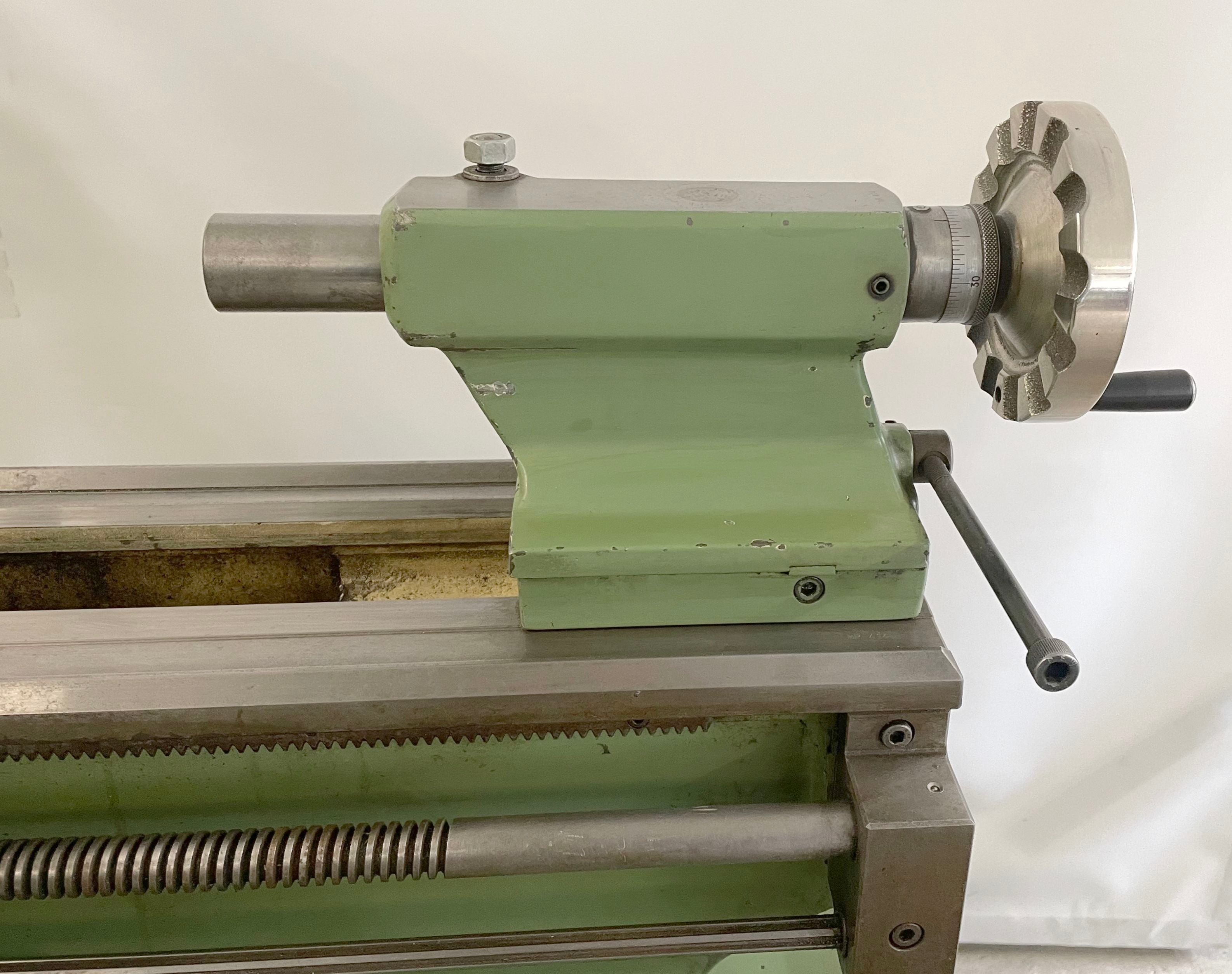

Taper in tailstock:: 3 CM.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 720 kg.
Length: 1600 mm.
Width: 650 mm.
Height: 1200 mm.

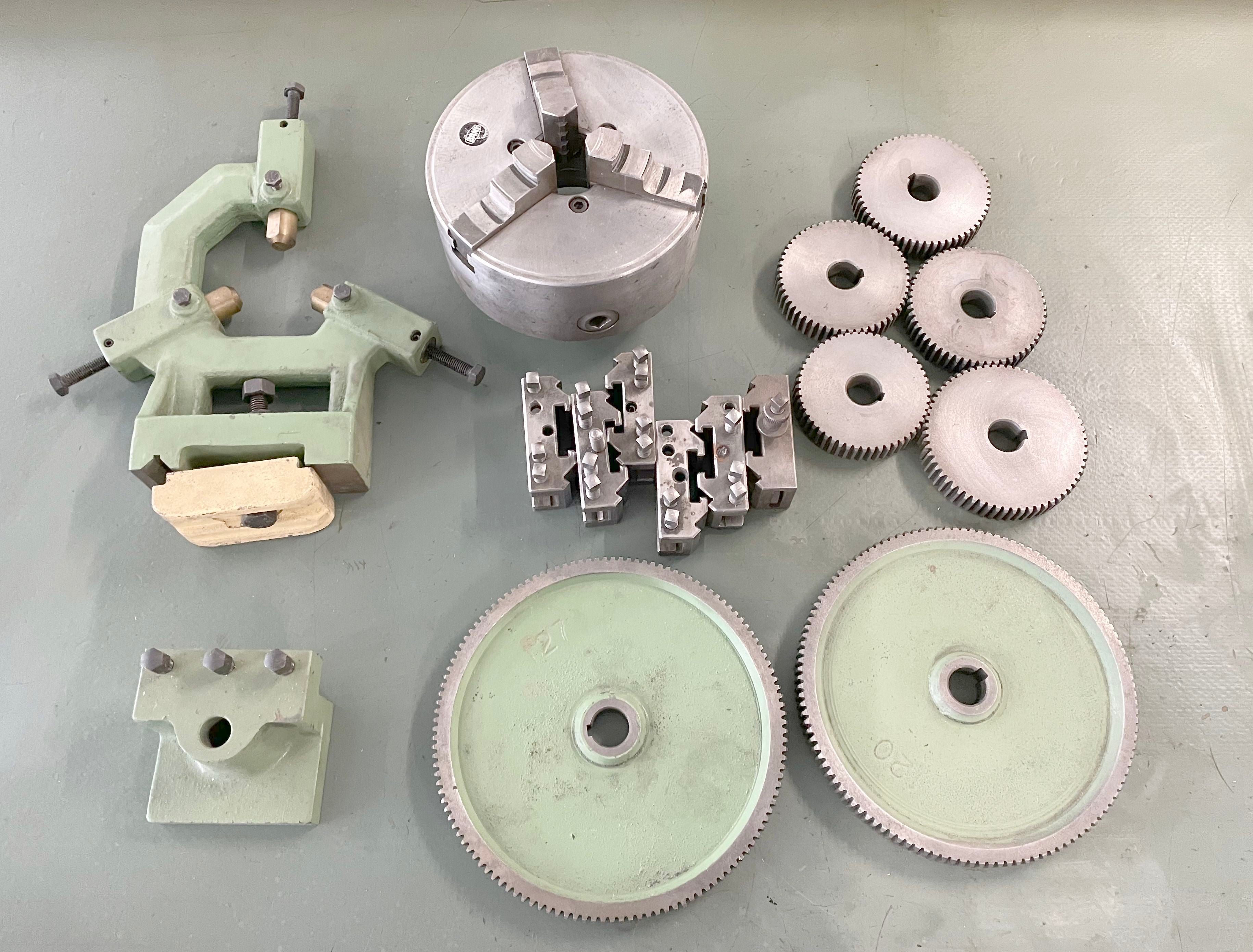

3-jaw chuck diameter: 160 mm.
