MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • VARI
  • Model:

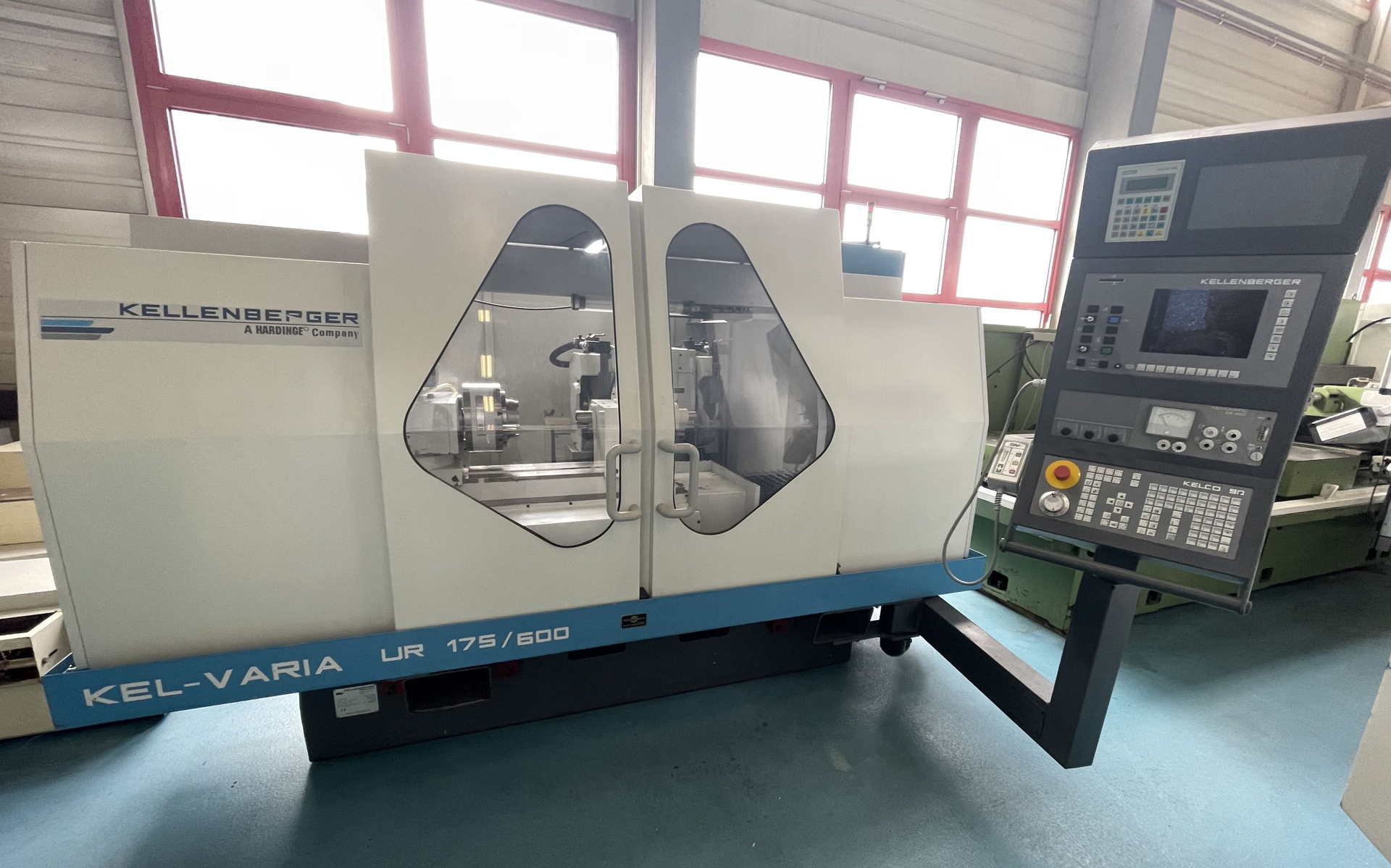

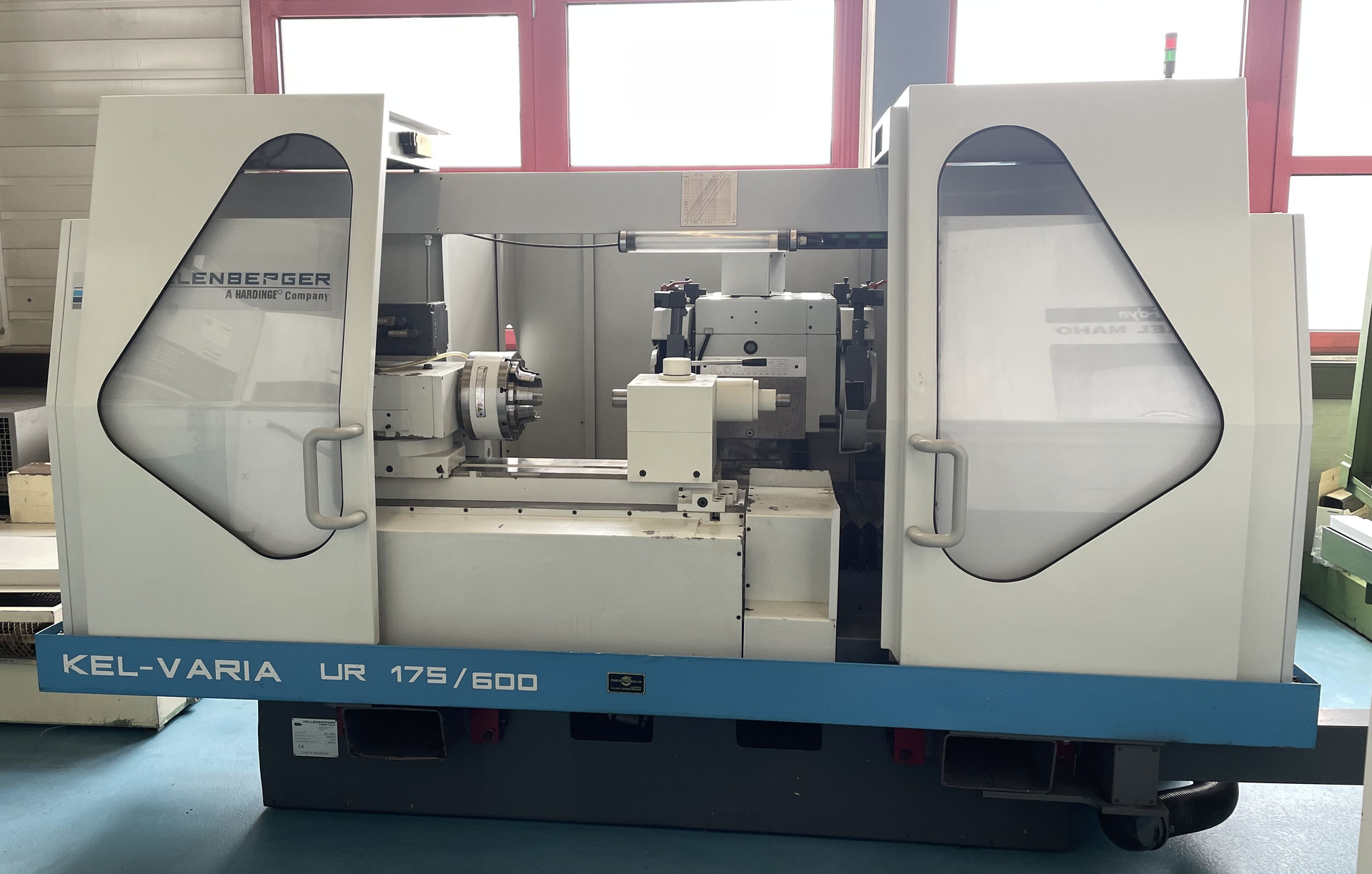

  • 022073 - KELLENBERGER KEL-VARIA UR 175/600
  • Condition:
  • 1
  • YOM:
  • NA

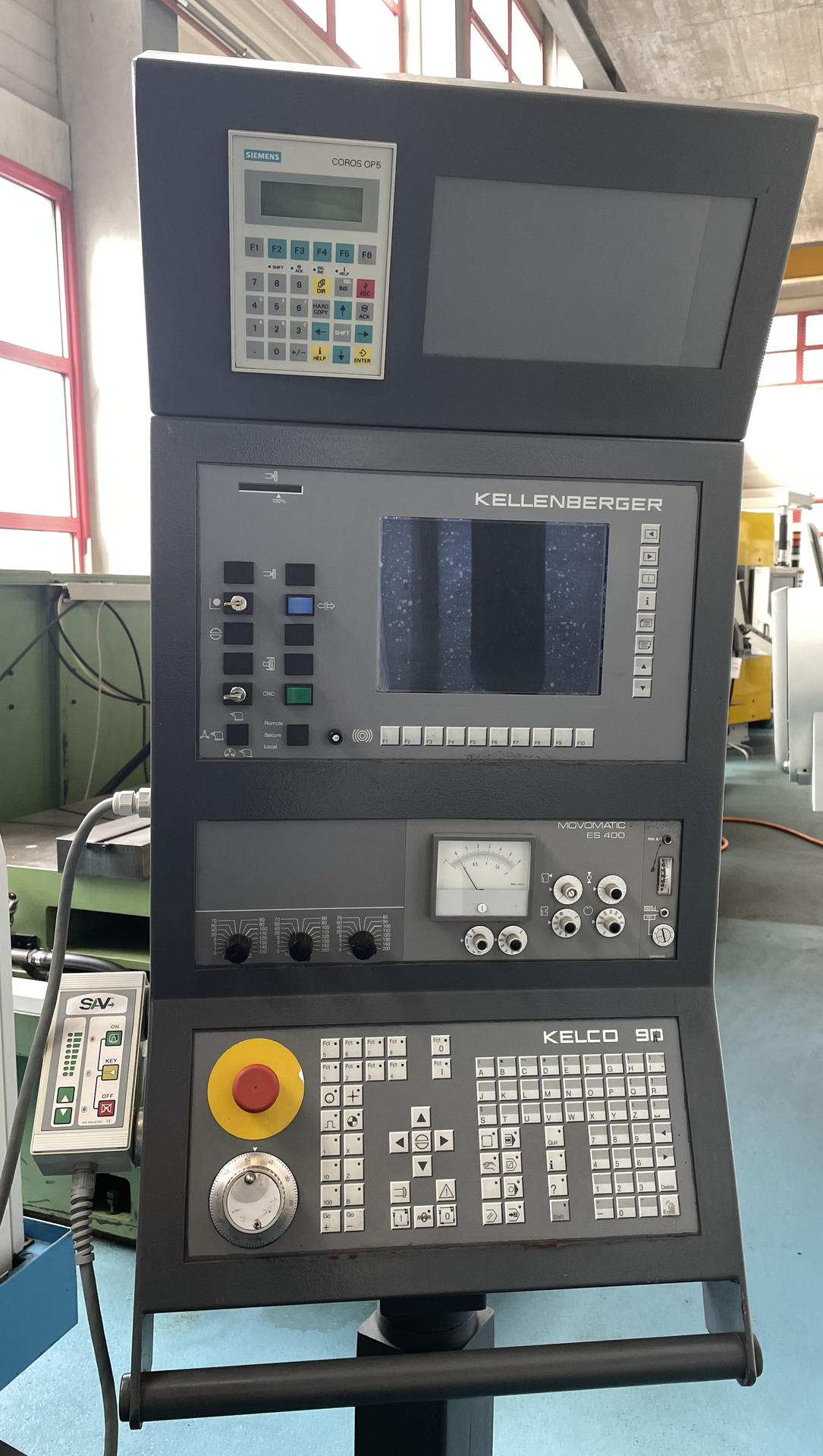

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 600 mm.
Max. grinding diameter: 349 mm.
Workpiece weight on centres max.: 150 kg.
Diameter: 400 mm.
Width: 63 mm.
Bore: 127 mm.
max. grinding wheel width: 63 mm.
B axis resolution max.: 0.001 °.
from: m/min.
up to: 28000 t/min.

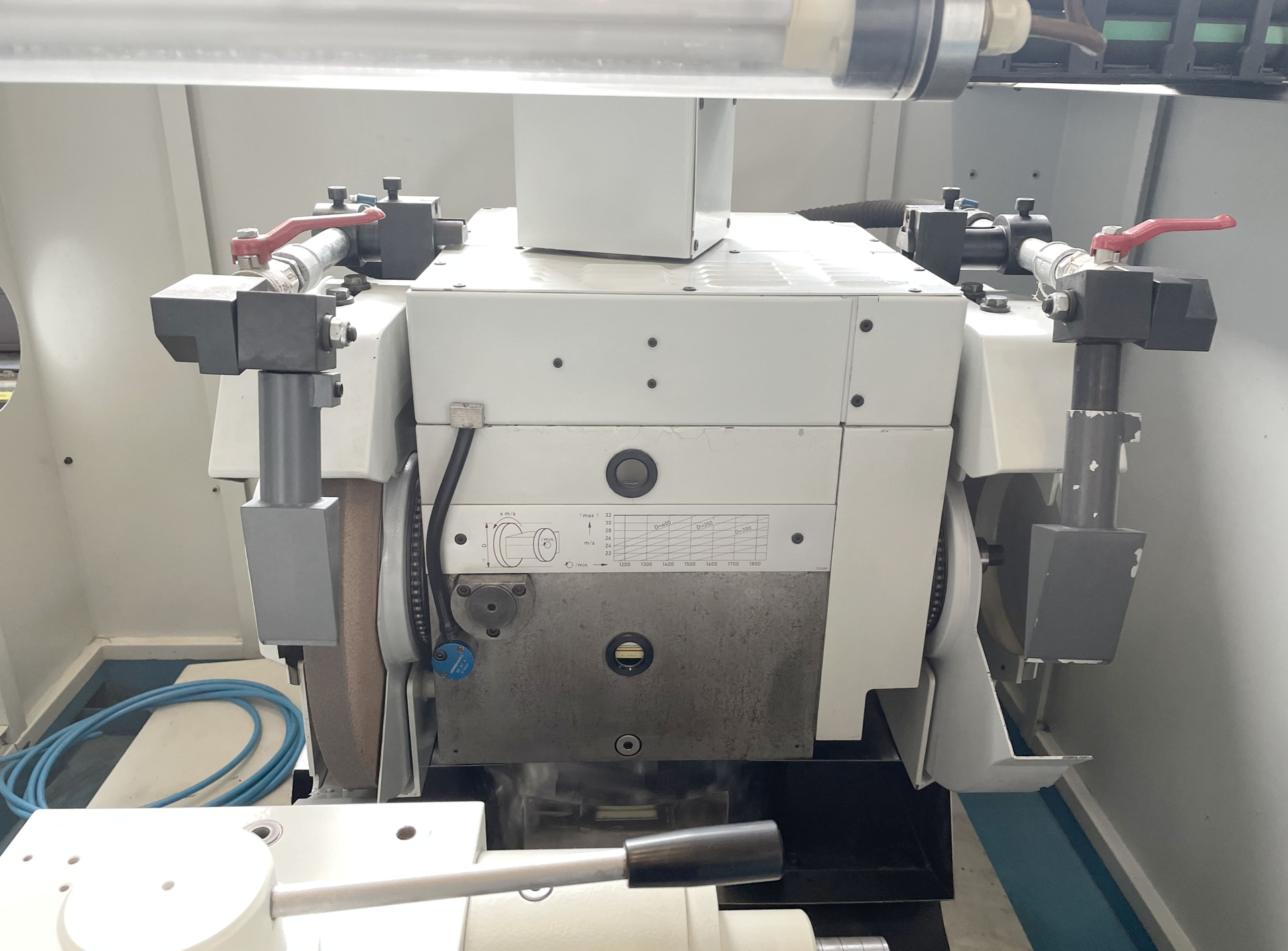

Rotatable grinding spindle head (b-axis): 240 °.
Peripheral speed: 32 m/s.
Indexing automatic: 0.1 °.
Rapid feed motion: 10 m/min.
rotatable: 90 °.
taper in spindle: MT: 5.
Taper in tailstock:: 3 CM.
Tailstock travel of barrel: 30 mm.
Max. table angular displacement: 10 °.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 4.4 kW.
Workpiece spindle motor: 2 kW.
Machine's weight about: 6000 kg.
Number of spindles: 1.
Macnetic chuck diameter: 250 mm.
