MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

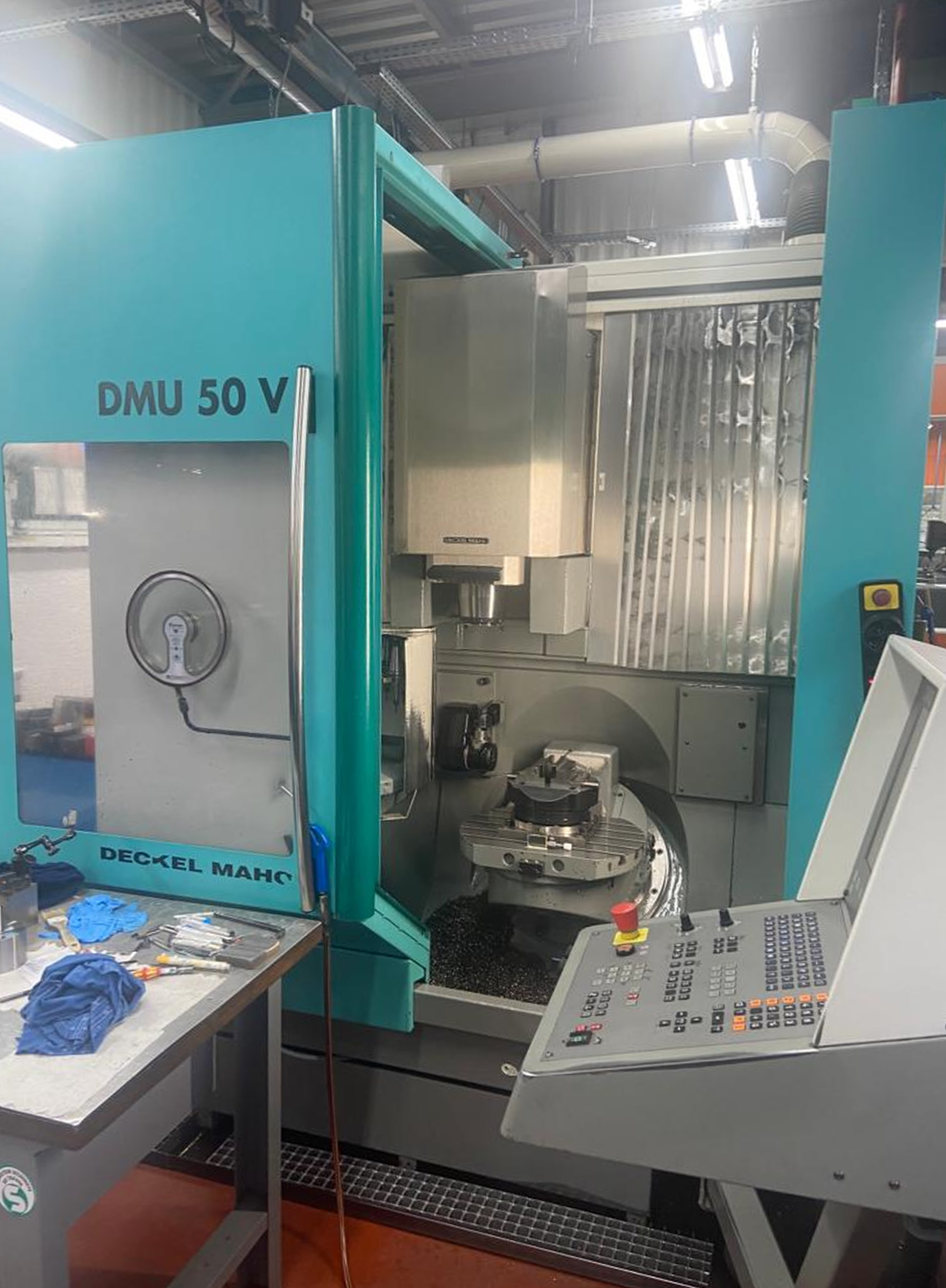

  • 021995 - DMG DMU 50 V
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 82274 Heures.
Operating time: 81288 Heures.
Number of axis total: 5.

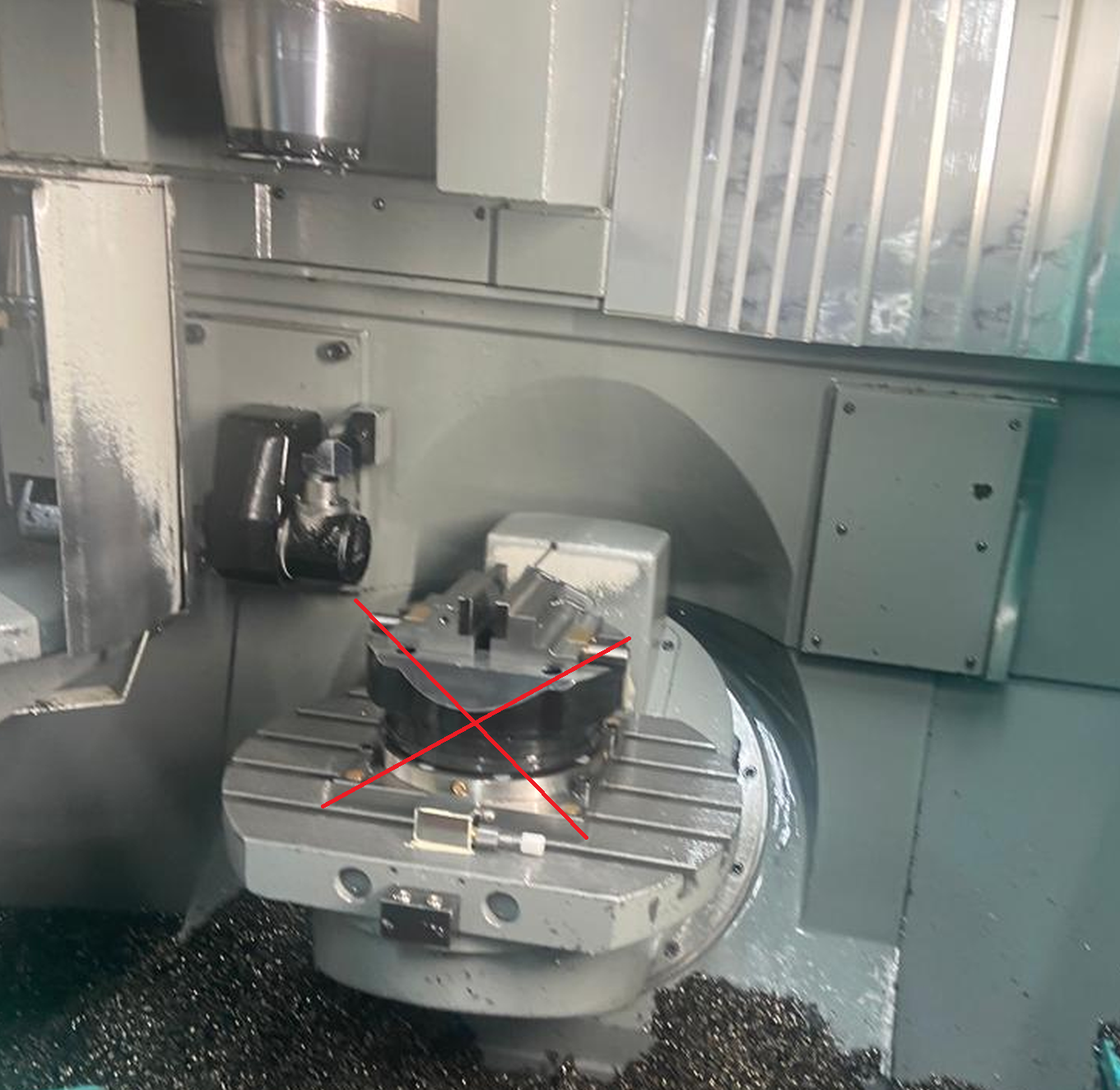

Table length: 500 mm.
Table width: 380 mm.
Number of T-channels: 5.
Distance of the T-slots: 63 mm.
T-channel width: 14H7 mm.
Centering bore diameter: 30H7 mm.
Table load max.: 200 kg.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 380 mm.
Vertical travel (z axis): 380 mm.
Swivel angle (a-axis): 180 °.
B axis: °.
up to: 8000 t/min.

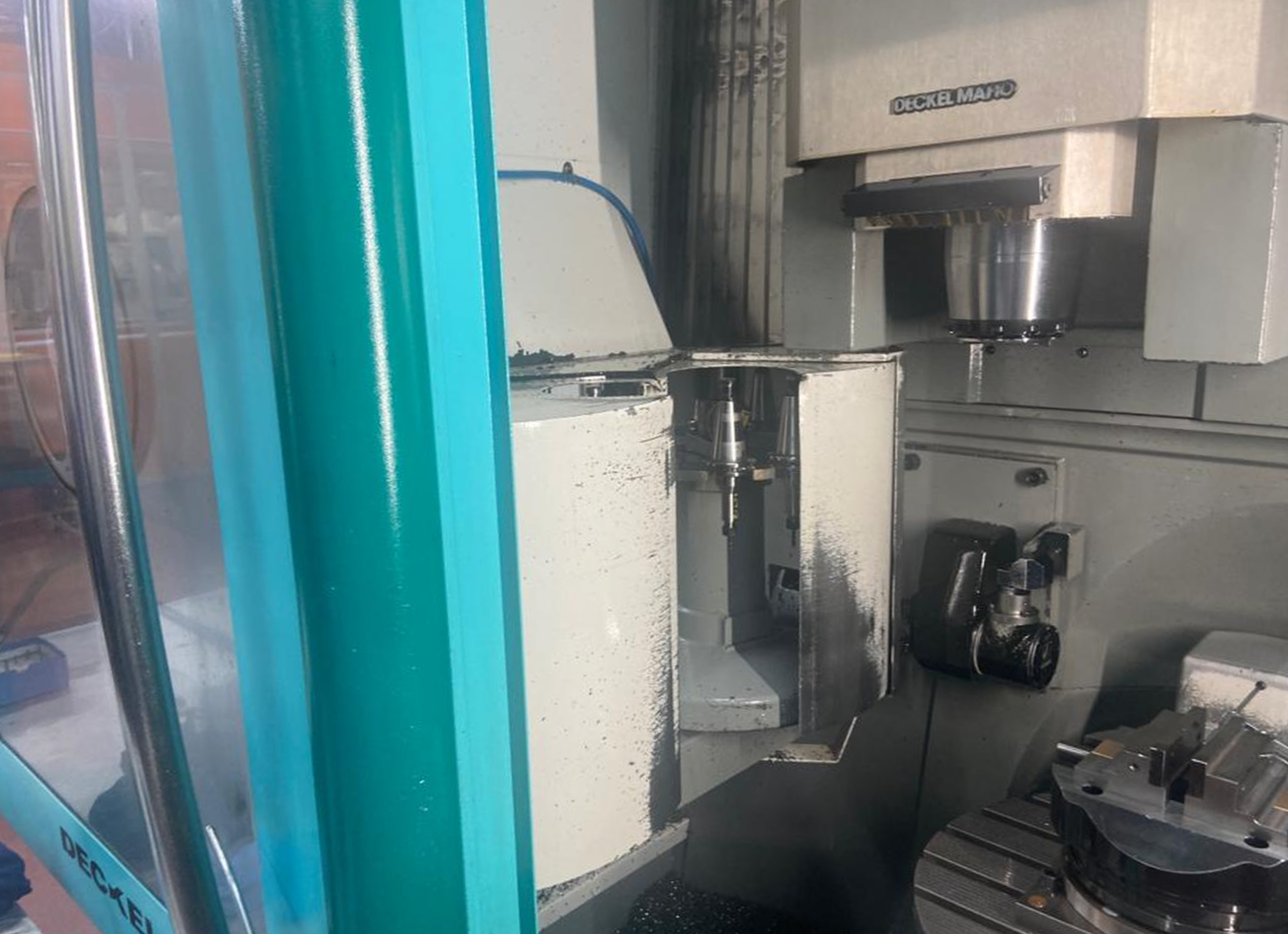

Number of tools: 24 (2x12).
Tool diameter: 80 mm.
Diameter with free adjacent pockets: 130 mm.
Tool lenght: 280 mm.
Max. tool-weight: 6 kg.
Spindle nose SK: 40 DIN 69871 A.
from: 20 t/min.
Feed range: 10000 mm/min.
Rapid traverse:: 30 m/min.
Vertical quill travel: 90 mm.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 15 / 10 kW.
Torque max.: 130 / 87 Nm.
Total power required: 26 kVA.
Machine's weight about: 3500 kg.
Length: 2450 mm.
Width: 1800 mm.
Height: 2380 mm.

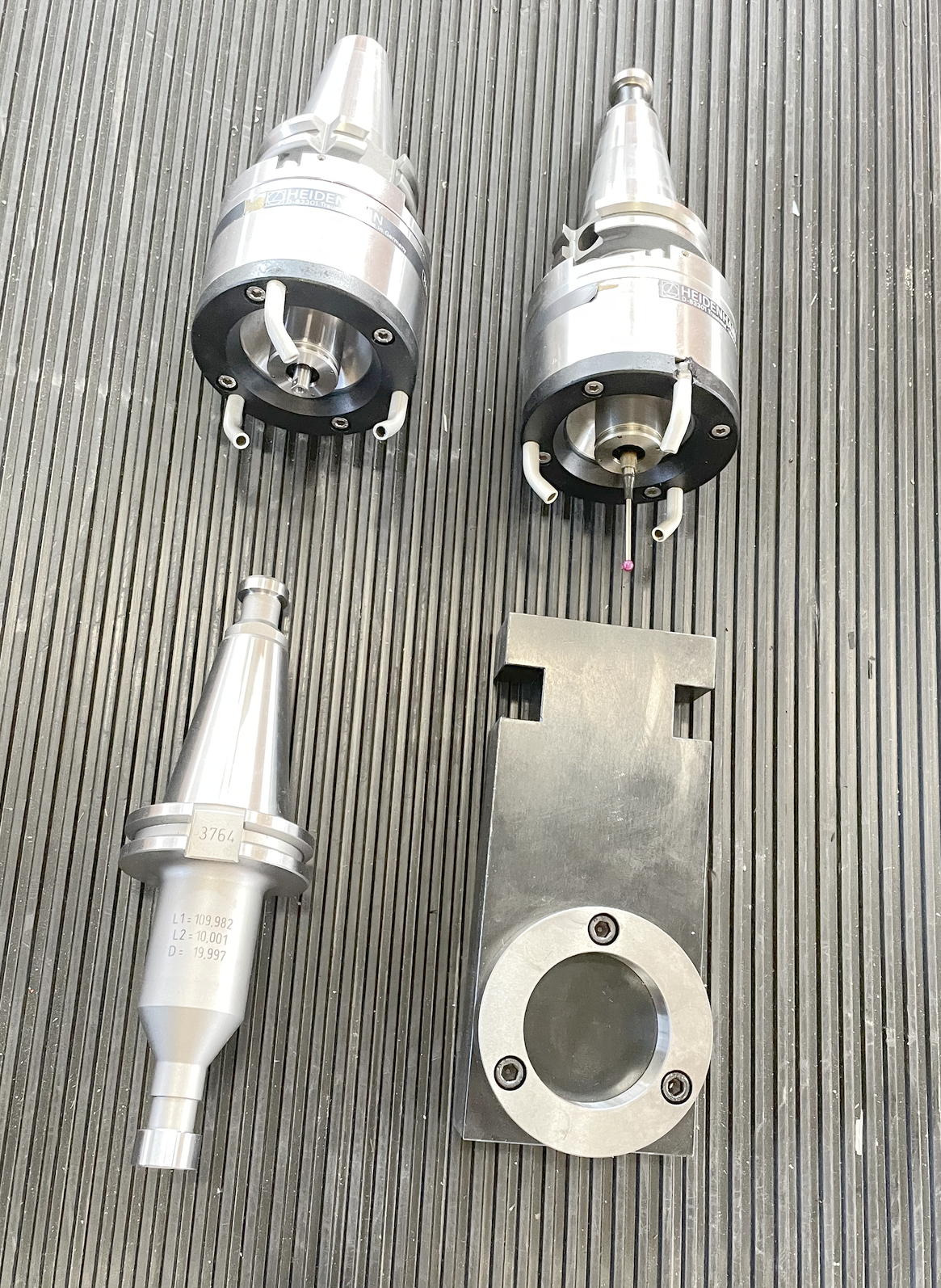

Touch Probe: HEIDENHAIN.
