MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • 021745 - FFI FJR
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Drill capacity in steel: 30 mm.
Drill capacity in cast-iron: 32 mm.
Max. taping diameter M: 20.
Depth of throat: 170 - 580 mm.

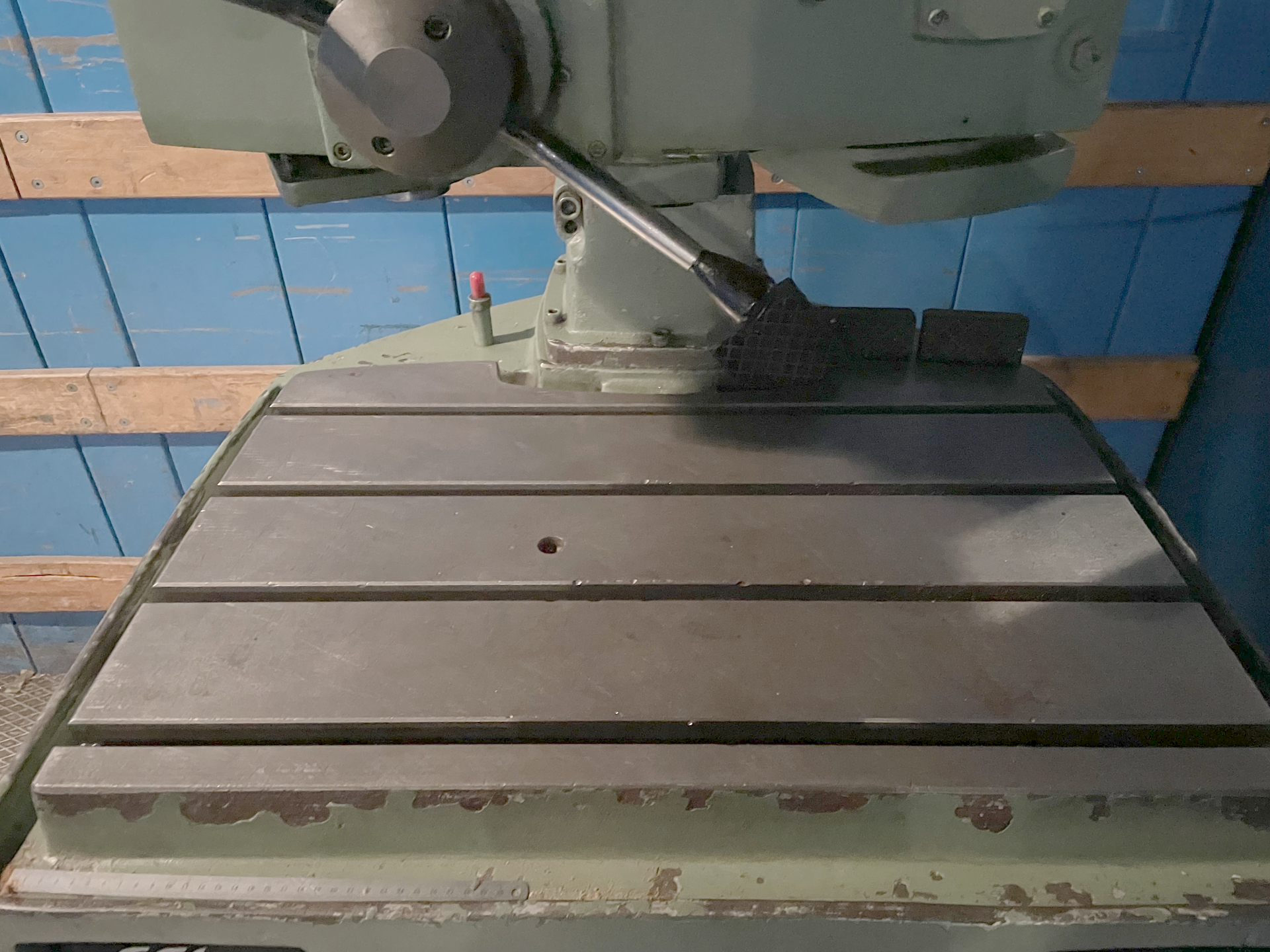

Table length: 880 mm.
Table width: 585 mm.
Number of T-channels: 4.
T-channel width: 18 mm.
Distance of the T-slots: 150 mm.
Taper in spindle: 4 CM.
Spindle stroke: 150 mm.
number (steps): 3.
from: 0.1 mm/t.
up to: 0.22 mm/t.
to spindle: min.: 210 mm.
max: 590 mm.
Column diameter: 160 mm.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.4 / 1.0 kW.
Length: 880 mm.
Width: 700 mm.
Height: 2030 mm.
