MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Sodick
  • Model:

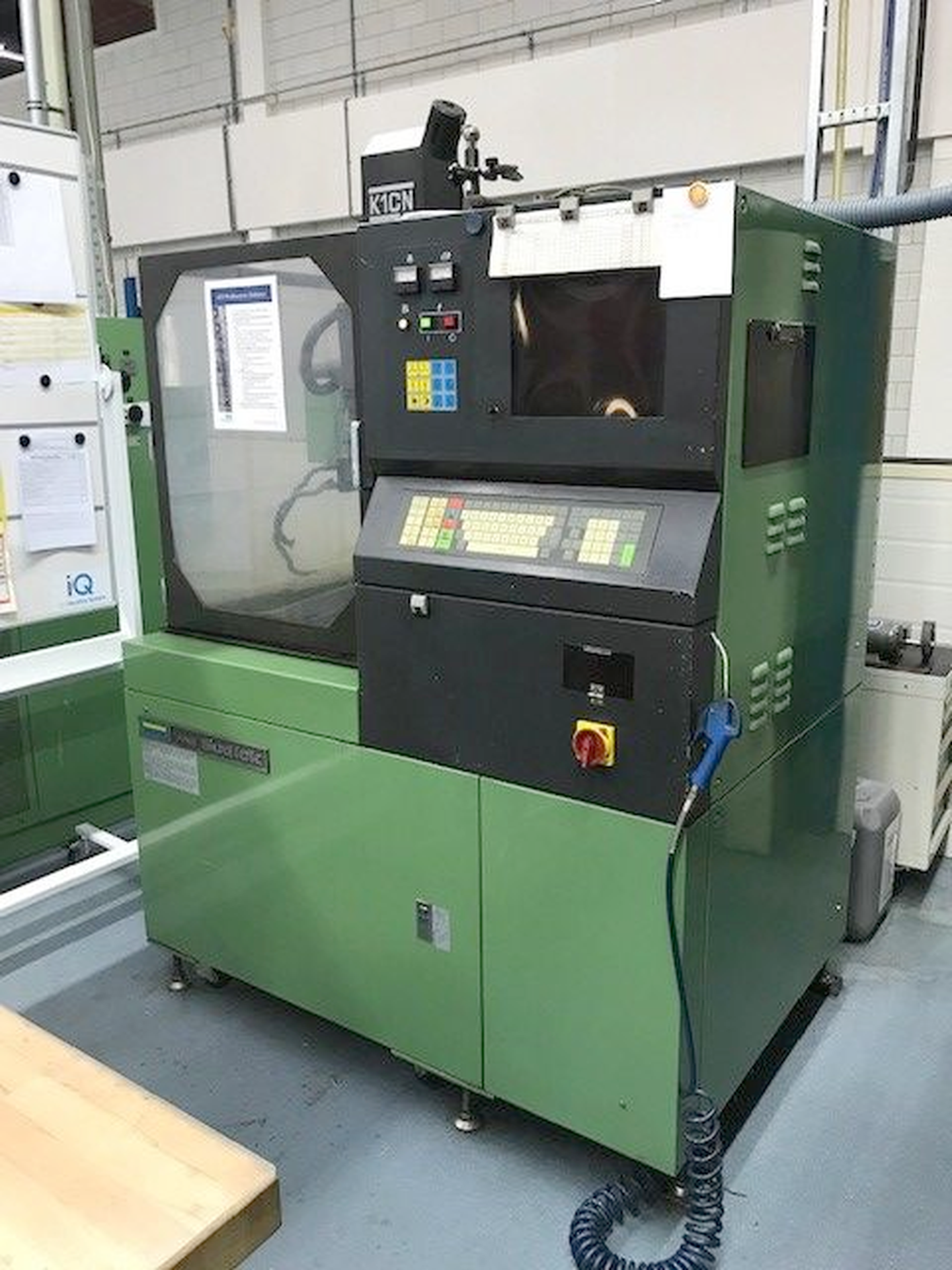

  • 020737 - SODICK K 1 CN
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Length: 1390 mm.
Width: 990 mm.
Height: 2080 mm.
Table load max.: 200 kg.
Longitudinal traverse (X-axis): 200 mm.
Cross traverse (Y-axis): 300 mm.
Vertical travel (Z axis): 300 mm.
W axis: 230 mm.
from: 0.3 mm.
up to: 3 mm.

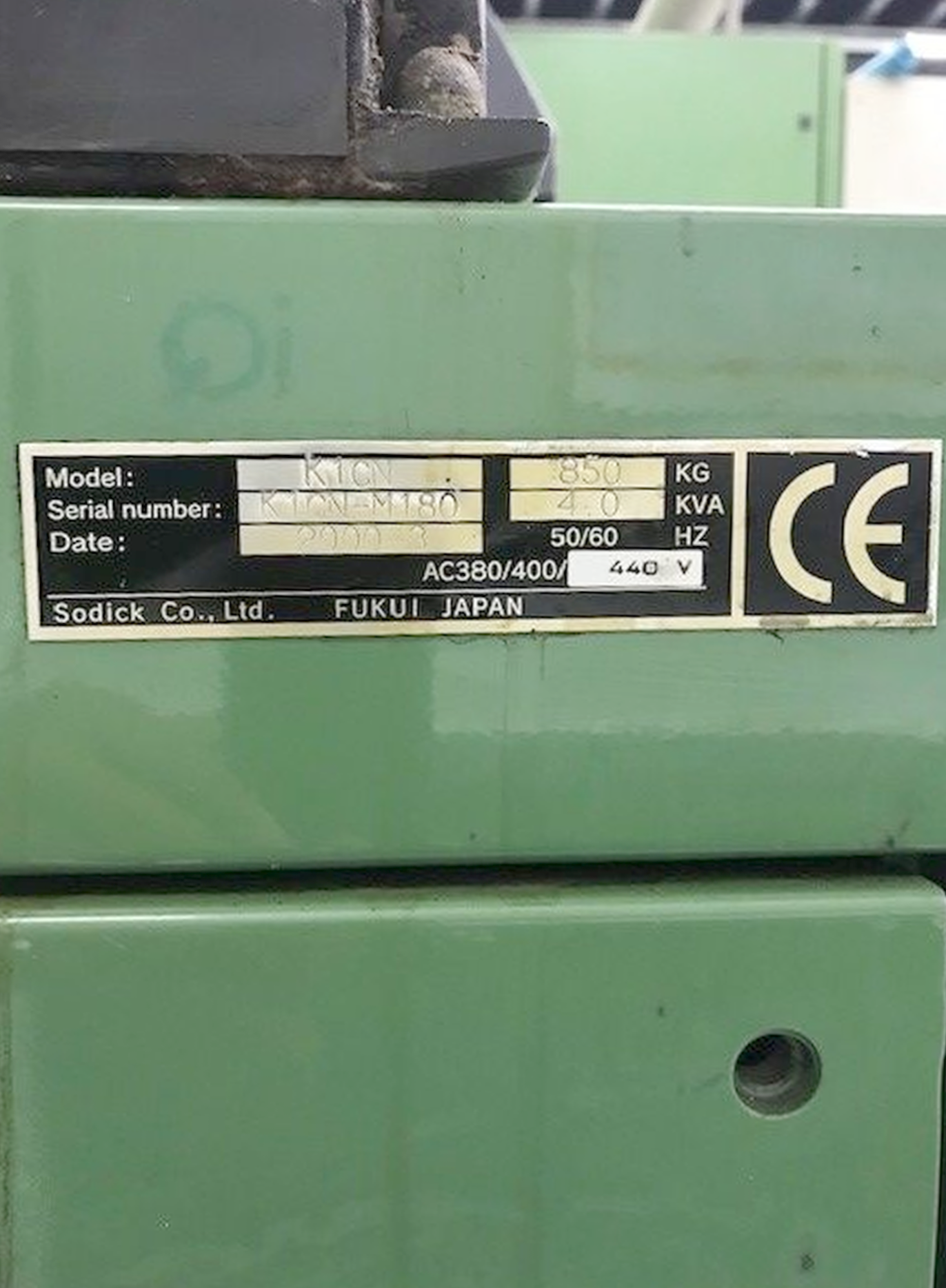

Voltage 50 Hz 3x: 440 Volt.
Total power required: 4 kVA.
Weight total installation approx.: 850 kg.
+ request more information
