MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

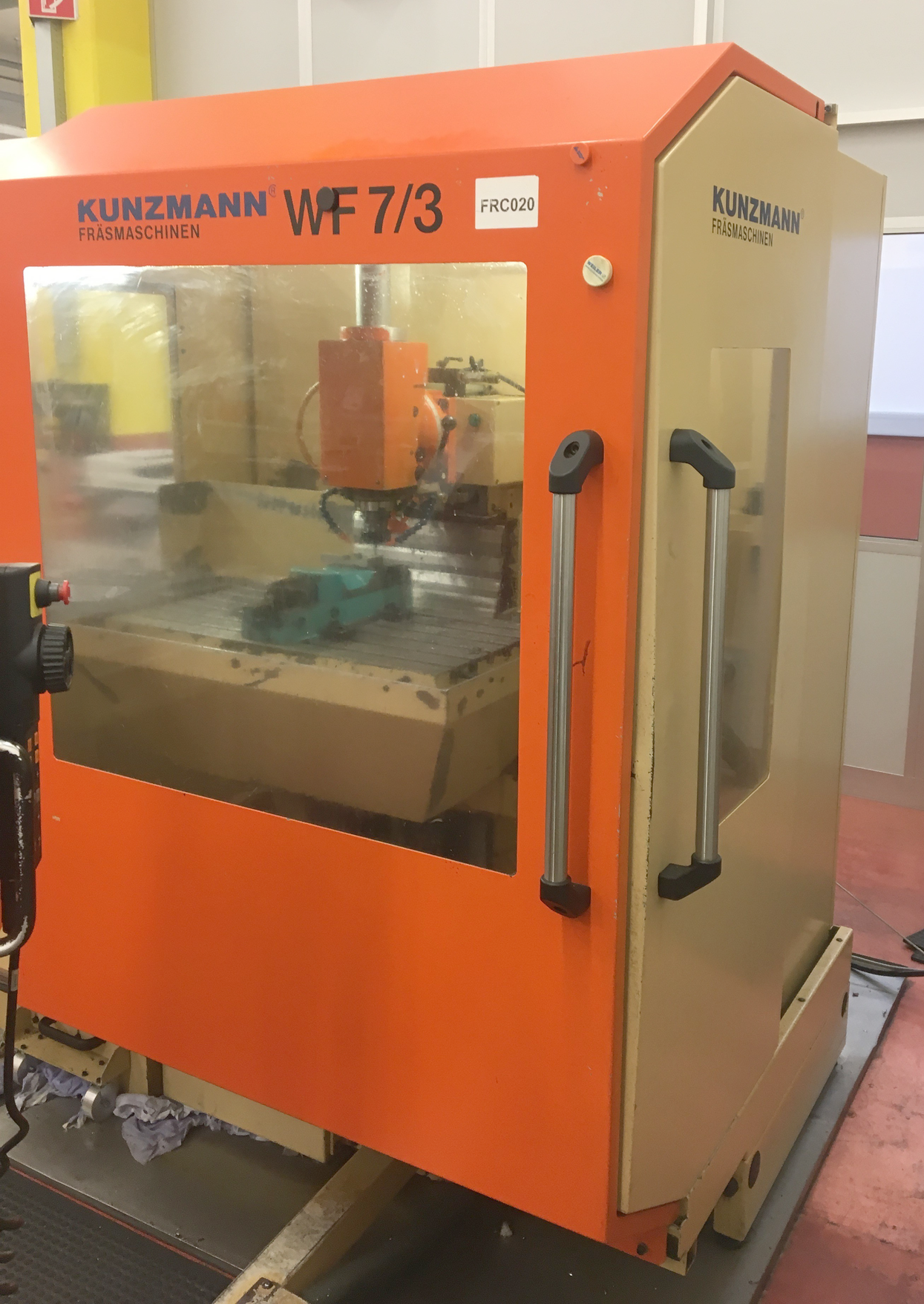

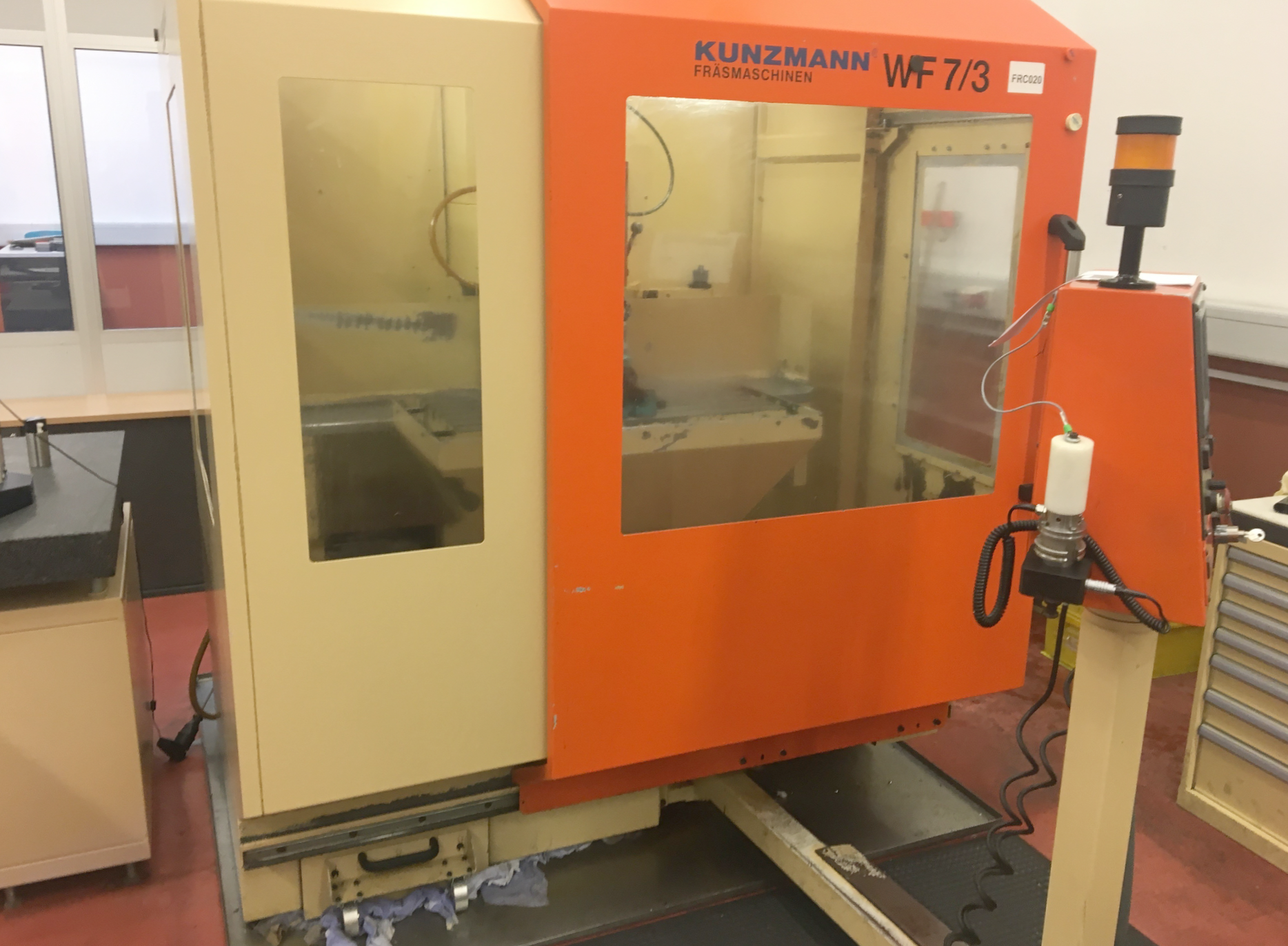

  • 020606 - KUNZMANN WF 7/3
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

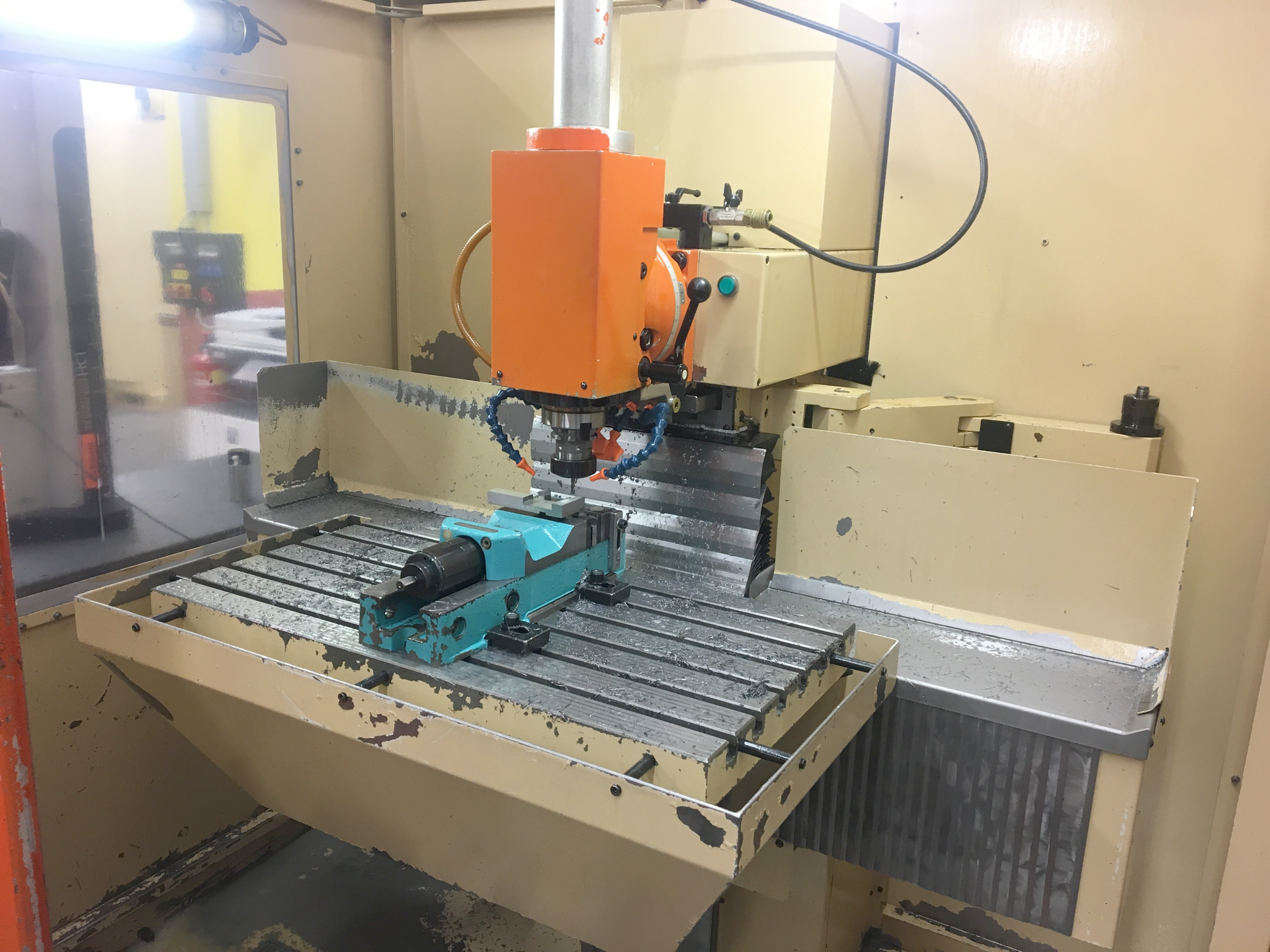

Table length: 800 mm.
Table width: 425 mm.
Longitudinal travel (X-axis): 600 mm.
Transversal travel (y axis): 400 mm.
Vertical travel (z axis): 400 mm.
Table load max.: 250 kg.
spindle to table: 560 mm.
Taper in spindle:: 40 SK.
horizontal from: 5 t/min.
up to: 2000 mm/min.
vertical from: t/min.
from: 5 t/min.
Swivel range Vertical milling head: +/- 90 °.
longitudinal from: mm/min.
transversal from: mm/min.
vertical from: mm/min.
Rapid traverse: long.: 10 m/min.
Rapid traverse: transversal: 10 m/min.
Rapid traverse: vertical: 8 m/min.
Vertical quill travel: 60 mm.
Voltage 50 Hz 3x: 400 Volt.
Milling spindle motor: 5.5 / 7 kW.
Total power required: 15 kVA.
Machine's weight about: 1800 kg.
Length: 2100 mm.
Width: 1800 mm.
Height: 2050 mm.

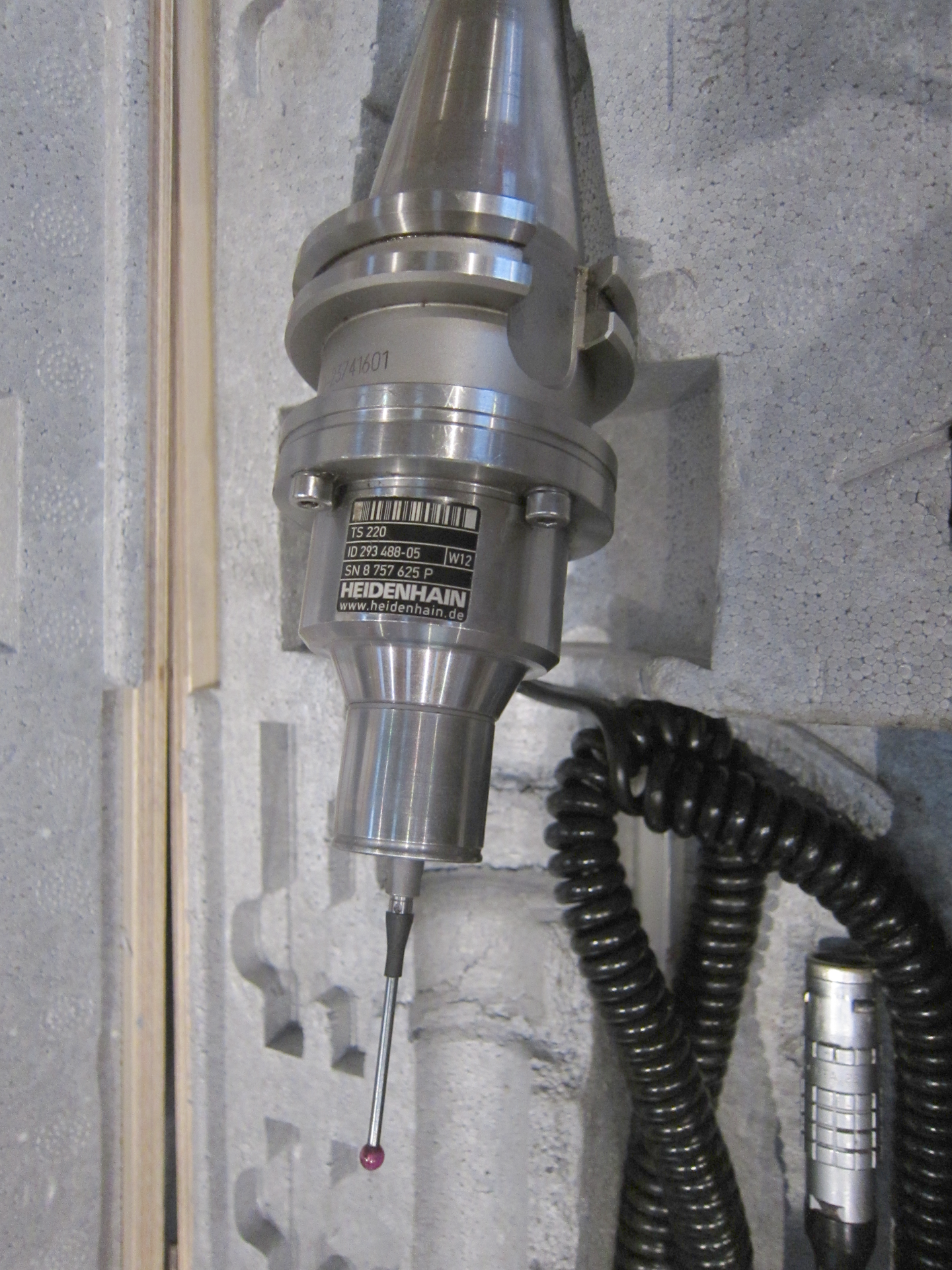

Measuring feeler gauge: Heidenhain.
