MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Waldrich
  • Model:

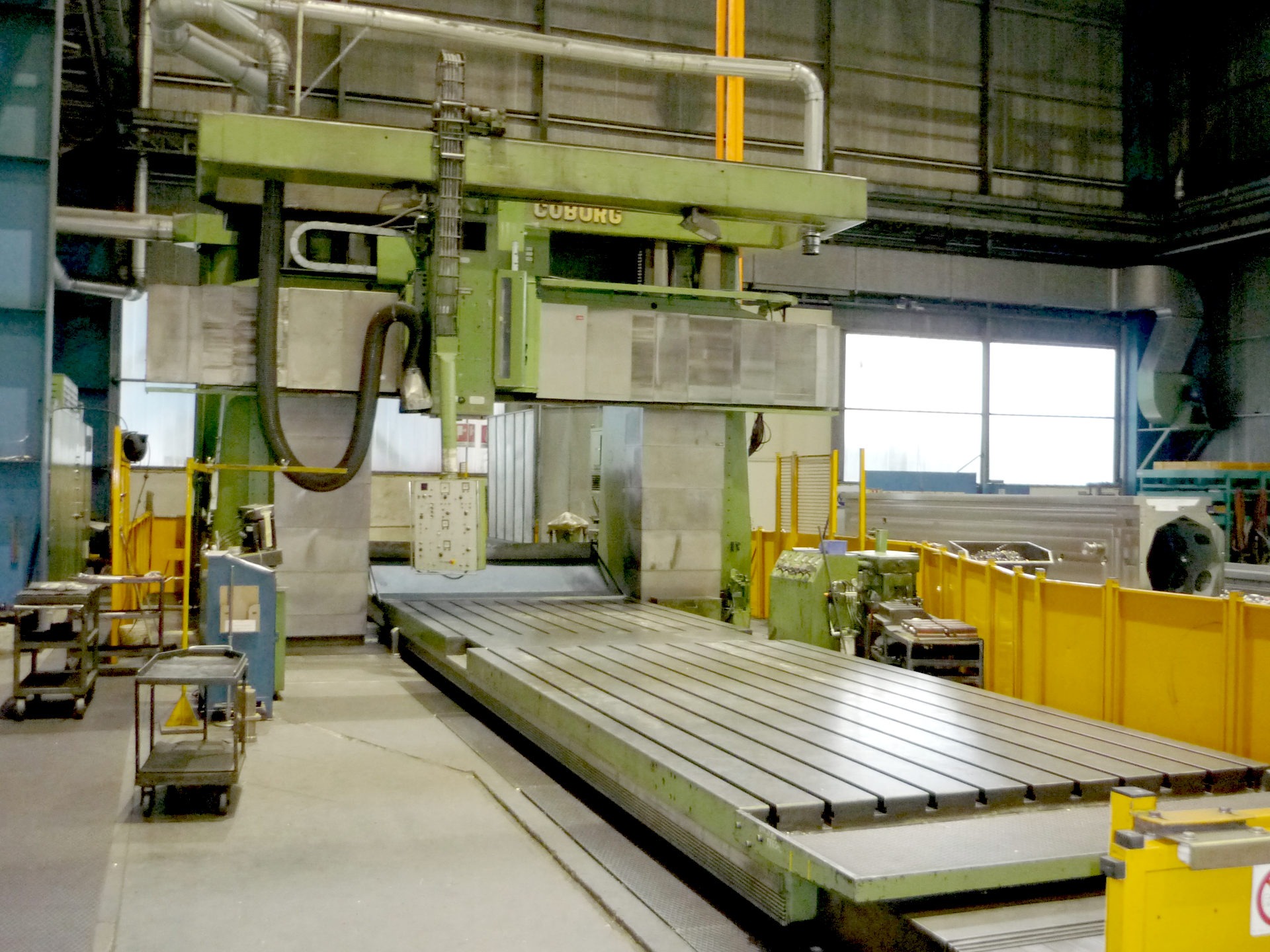

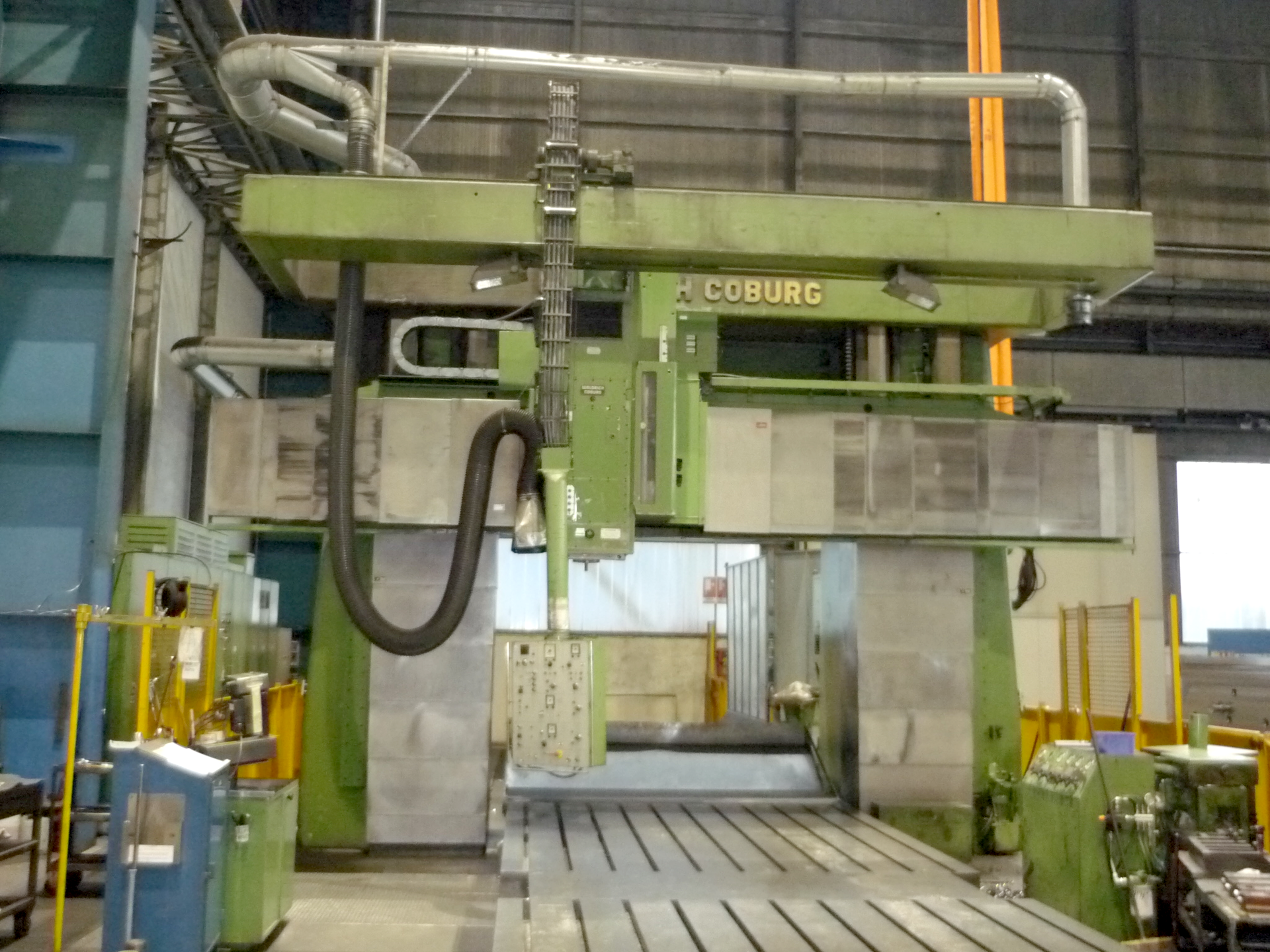

  • 019353 - WALDRICH COBURG 20-10 FP 280
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

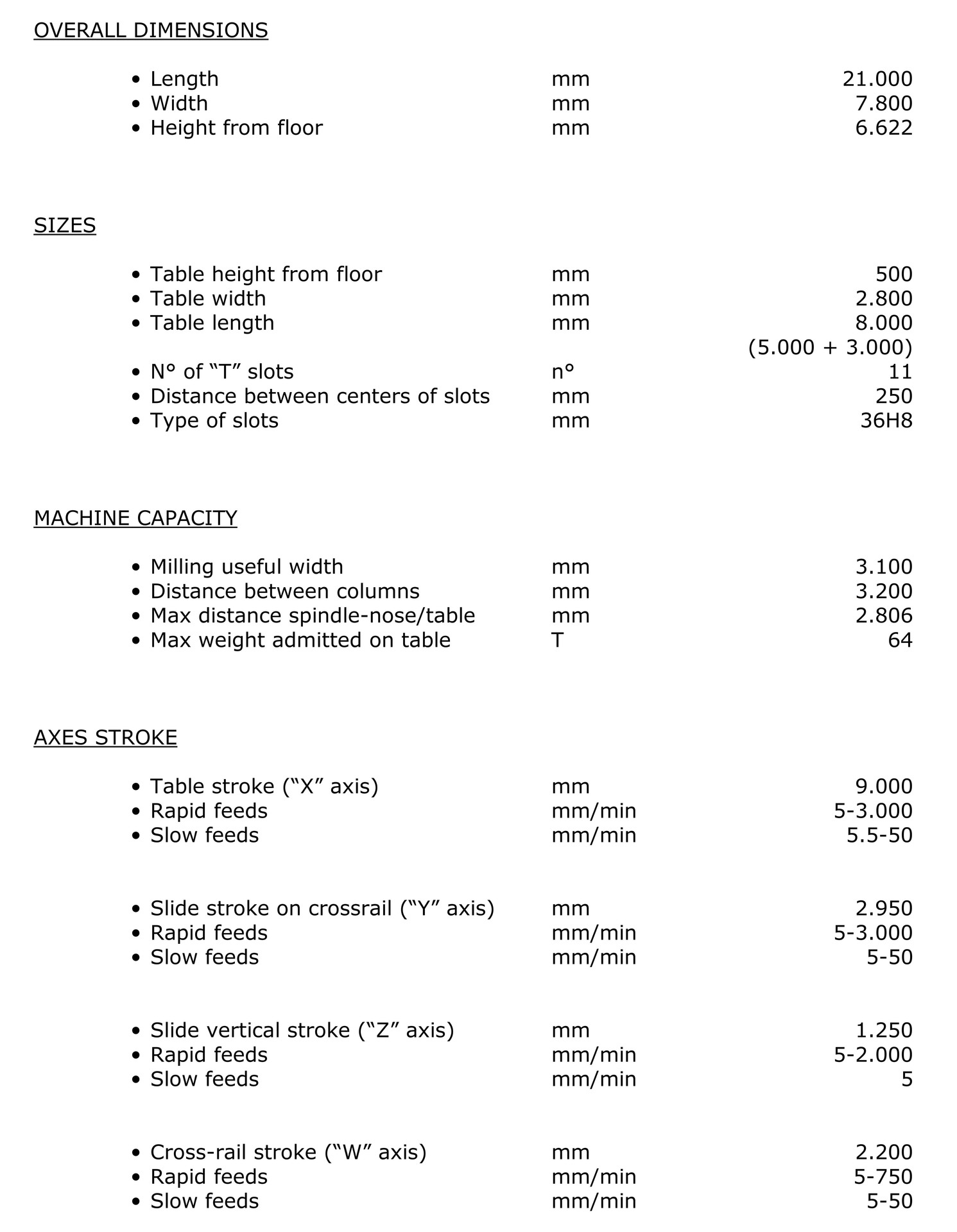

Number of axis total: 3.
Table length: 8000 mm.
Table width: 2800 mm.
Number of T-channels: 11.
T-channel width: 36H8 mm.
Distance of the T-slots: 250 mm.
X axis: 5 - 3000 mm/min.
Y axis: 5 - 3000 mm/min.
Z axis: 5 - 2000 mm/min.
W axis: 5 - 50 mm/min.
Distance table to spindle max.: 2806 mm.
Distance between columns: 3200 mm.
Table load max.: 64000 kg.
Taper in spindle: 60 ISO.
number (steps): 16.
from: 20 t/min.
up to: 750 mm/min.
X axis from: 5 mm/min.
Y axis from: 5 mm/min.
Z axis from: 5 mm/min.
W axis from: 5 mm/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 100 kW.
Spindle torque: 13000 Nm.
Length: 21000 mm.
Width: 7800 mm.
Height: 6622 mm.
