REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
ESSA

Model:

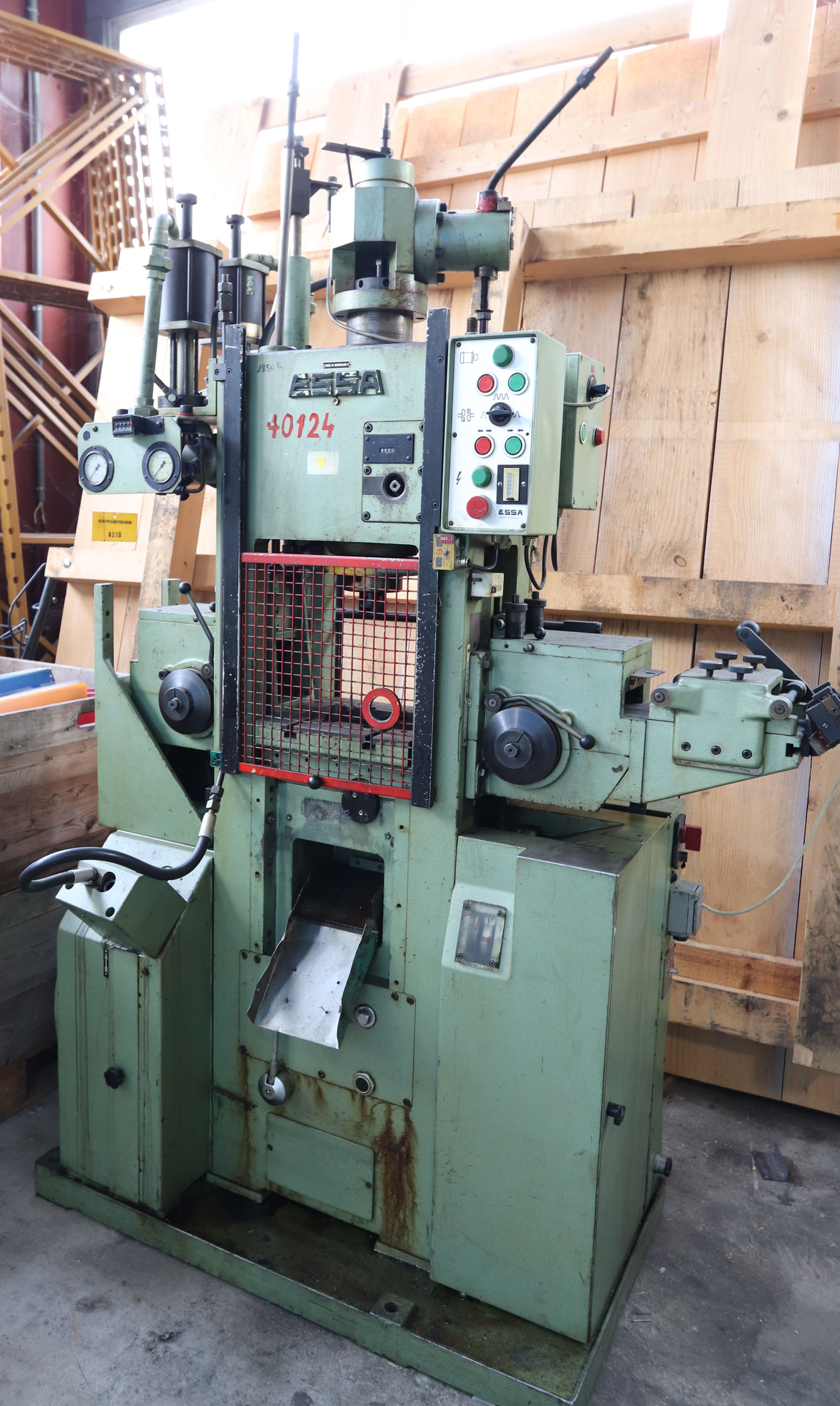

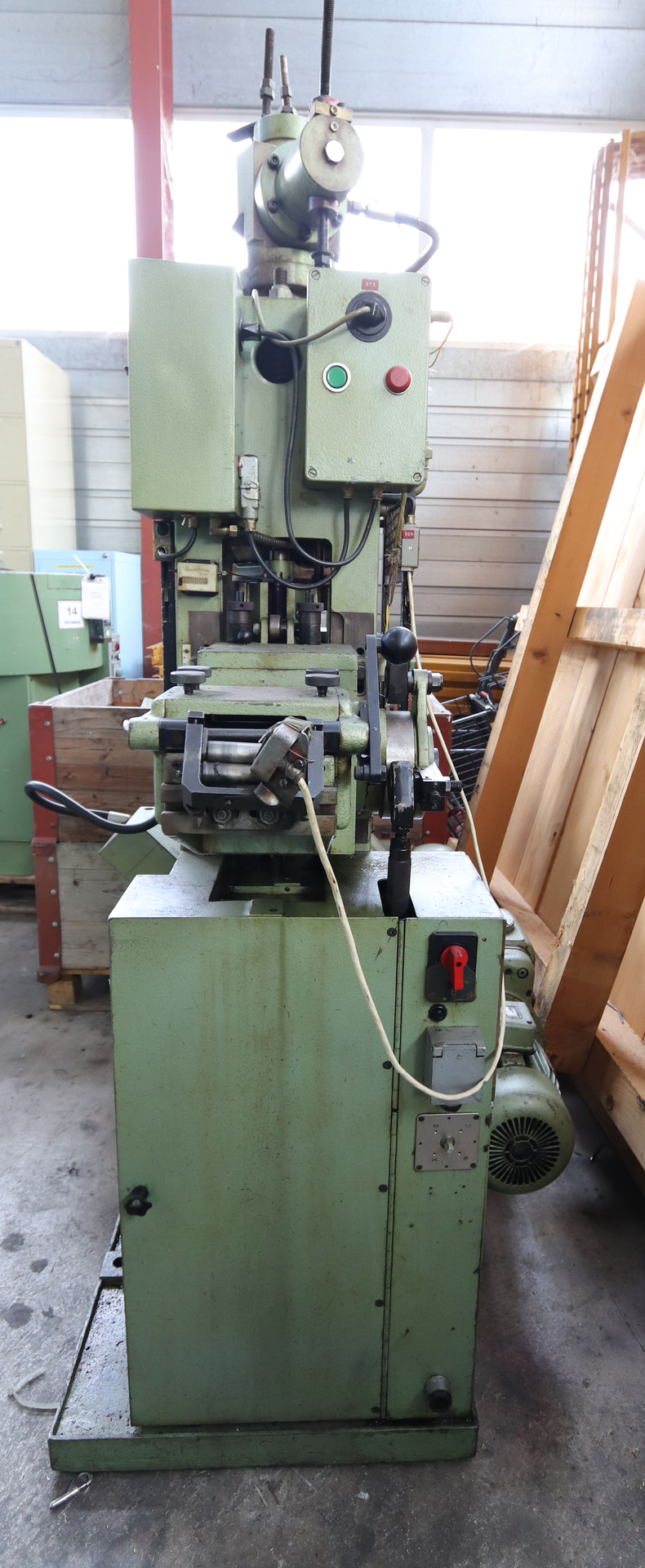

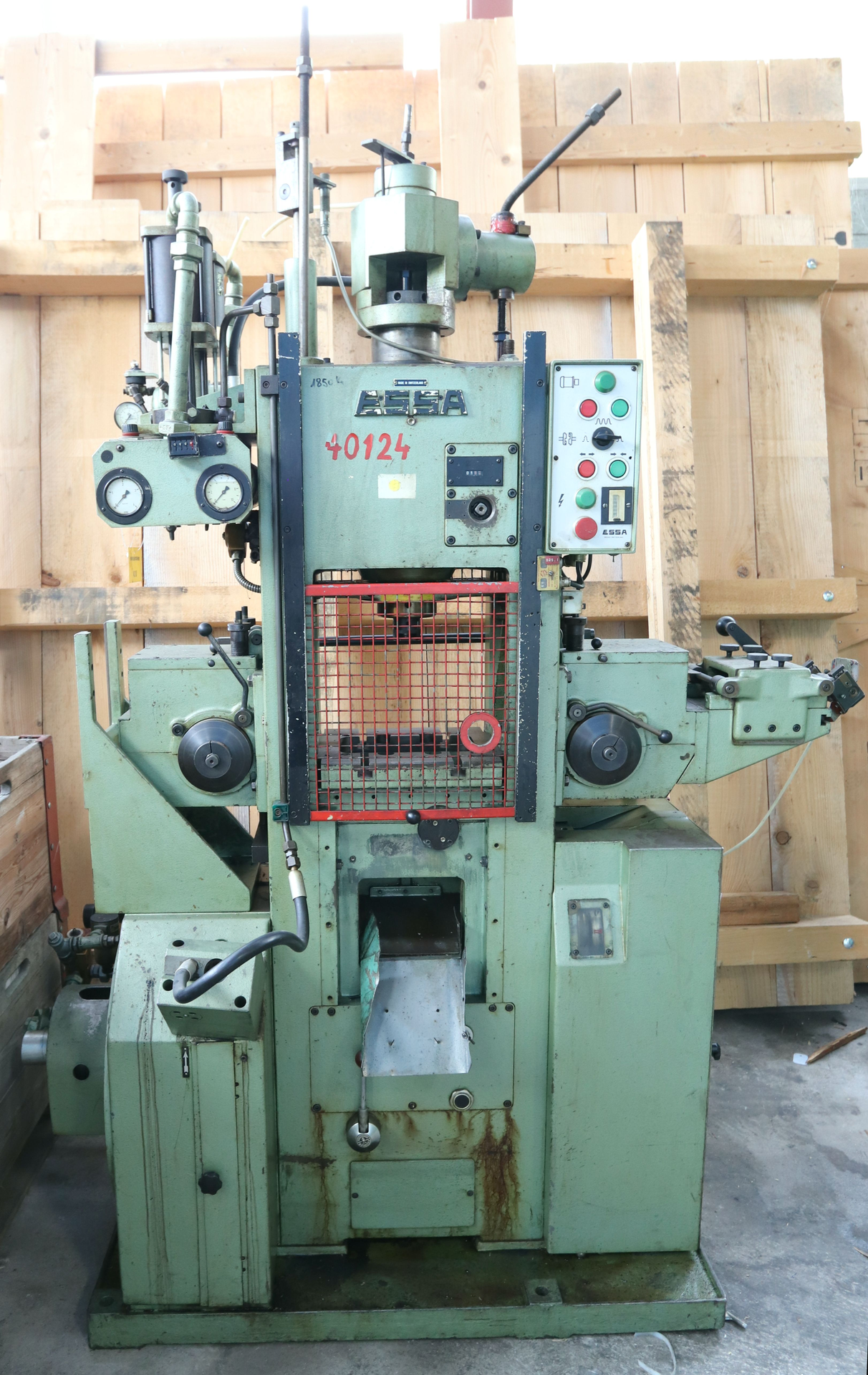

004310 - ESSA BH 15

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Pressure: 15 to.
from: 200 c/min.
up to: 500 c/min.
Length: 1350 mm.
Width: 850 mm.
Thickness: 60 mm.
Cut edge: 300 mm2.
Slide adjustment: 60 mm.
Slide stroke: 24 mm.
slide bore diameter: 25 mm.
max: 211 mm.
longitudinal: 320 mm.
Lateral: 170 mm.
Voltage 50 Hz 3x: 380 Volt.
Power: 4 CV.
Machine's weight about: 1800 kg.
Height: 1950 mm.
Automatic feed: number: 2.
max. stroke: 100 mm.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY
