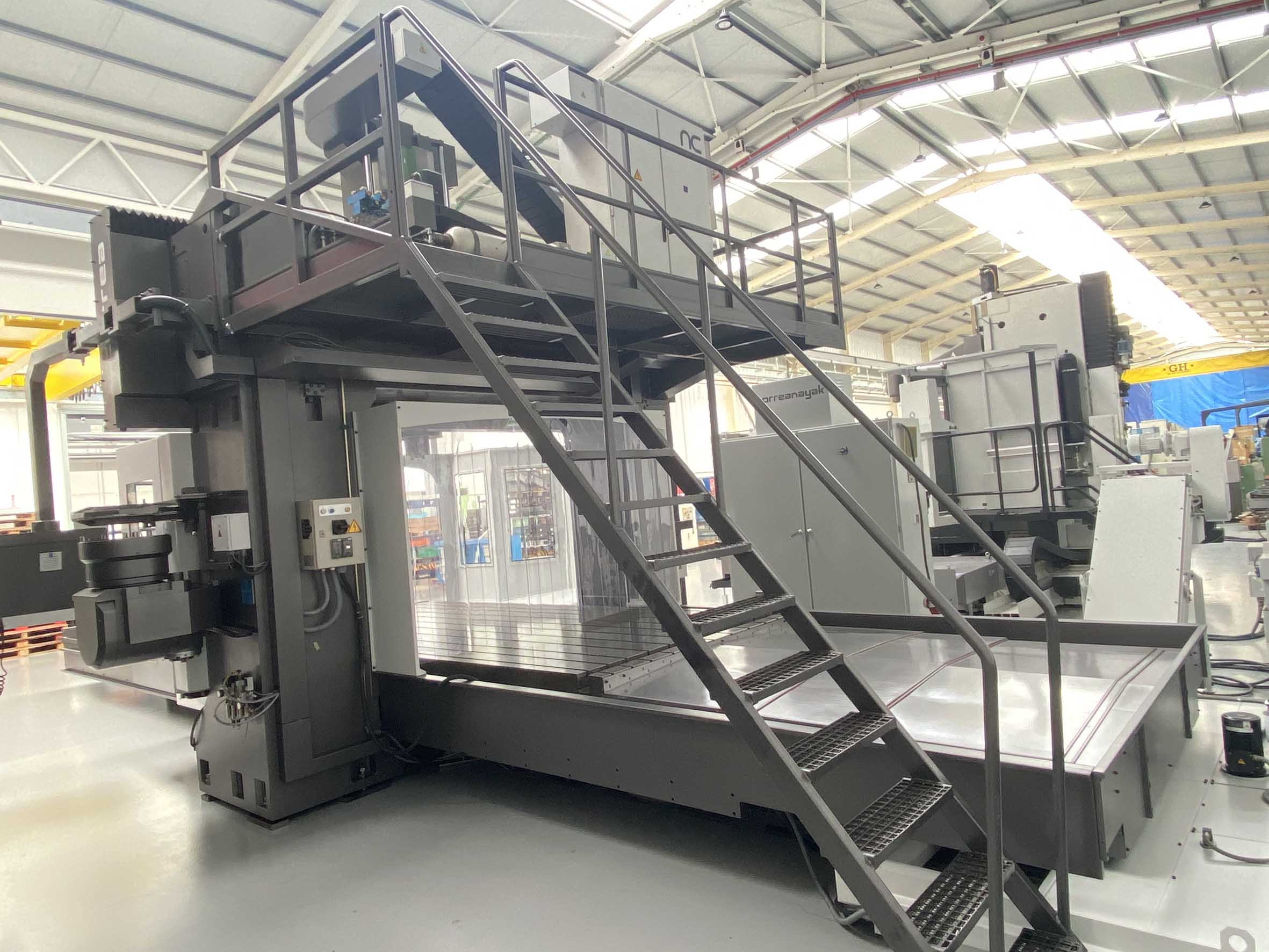

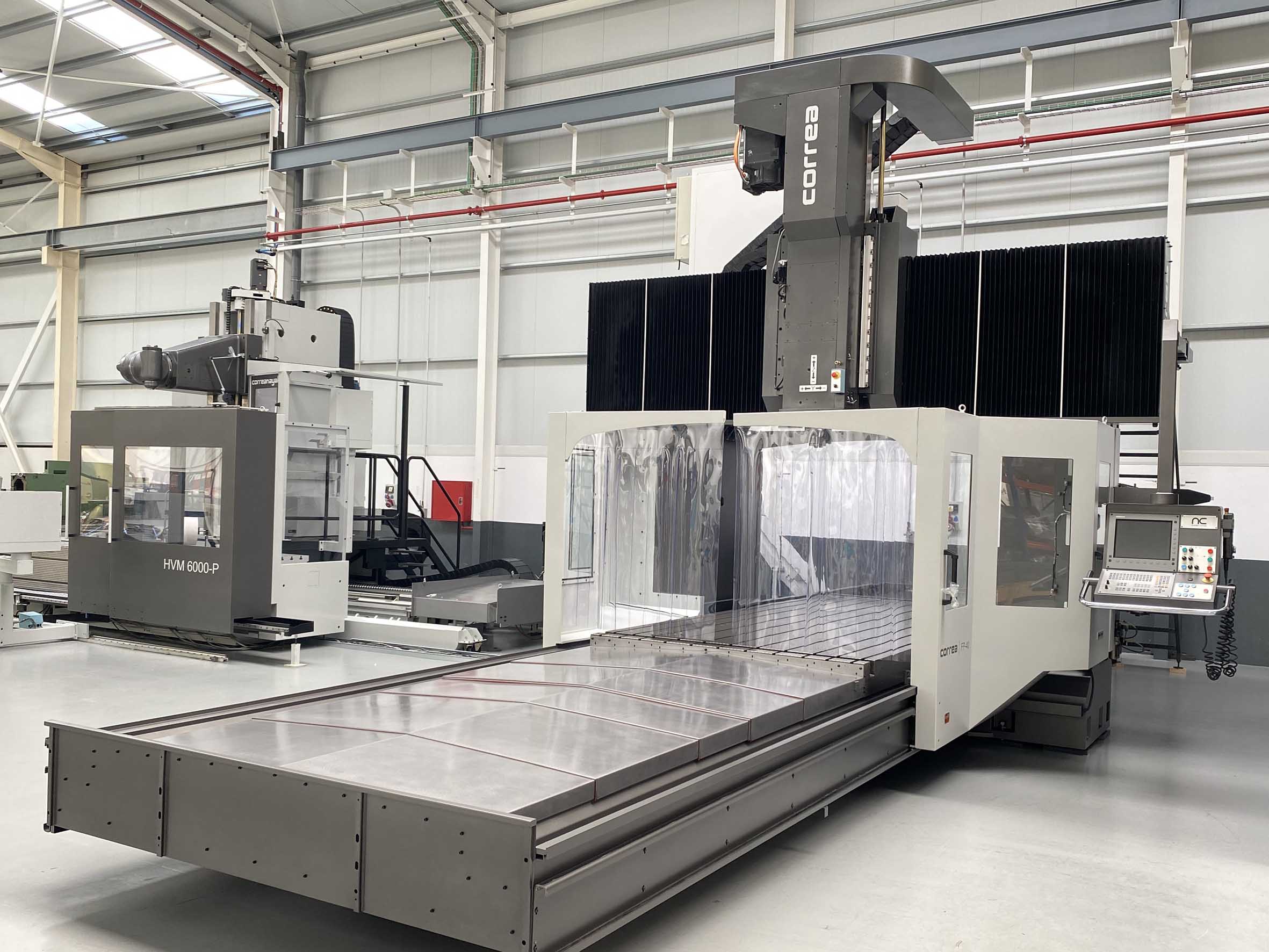

Manufacturer :NICOLAS CORREA
Model :FP 40/40 UAGA
Year :2006
CNC :HEIDENHAIN iTNC-530
Table Surface :4.500 x 2.000 mm
Longitudinal Travel (X Axis) :4.000 mm
Cross Travel (Y Axis) :3.000 mm
Vertical Travel (Z axis) :2.500 mm
Distance Between Columns :2.550 mm
Rapid Feed (X Axis) :15.000 mm/min
Rapid Feed (Y, Z Axis) :12.000 mm/min
Max. Working Feed :5.000 mm/min
Taper :ISO-50
Direct Output Head Speed :5.000 r.p.m.
Speed Head 45º :3.000 r.p.m.
Main Engine Power :22 kW
Speed Ranges :2
Max Weight Allowed on table :15.000 kg.
Direct Output INCLUDED
Universal Head UAGA : INCLUDED
Auto Indexing Head :2.5º /2.5º
Automatic Support in the right side for Head UAGA INCLUDED
Automatic Support in the left site for Direct Output Head. INCLUDED
Automatic Head Changer :INCLUDED
Chip Conveyor INCLUDED
Year - 1979
X - 1800(mm)
Y - 1200(mm)
Z - 900(mm)
Taper - 50 (ISO/MT)
Power - 22(kW)
Vertical Milling Machine for Tool a. Dieshop with large working area
...
